Wine Rack System Horizontal Connector Piece
Only 899 left in stock

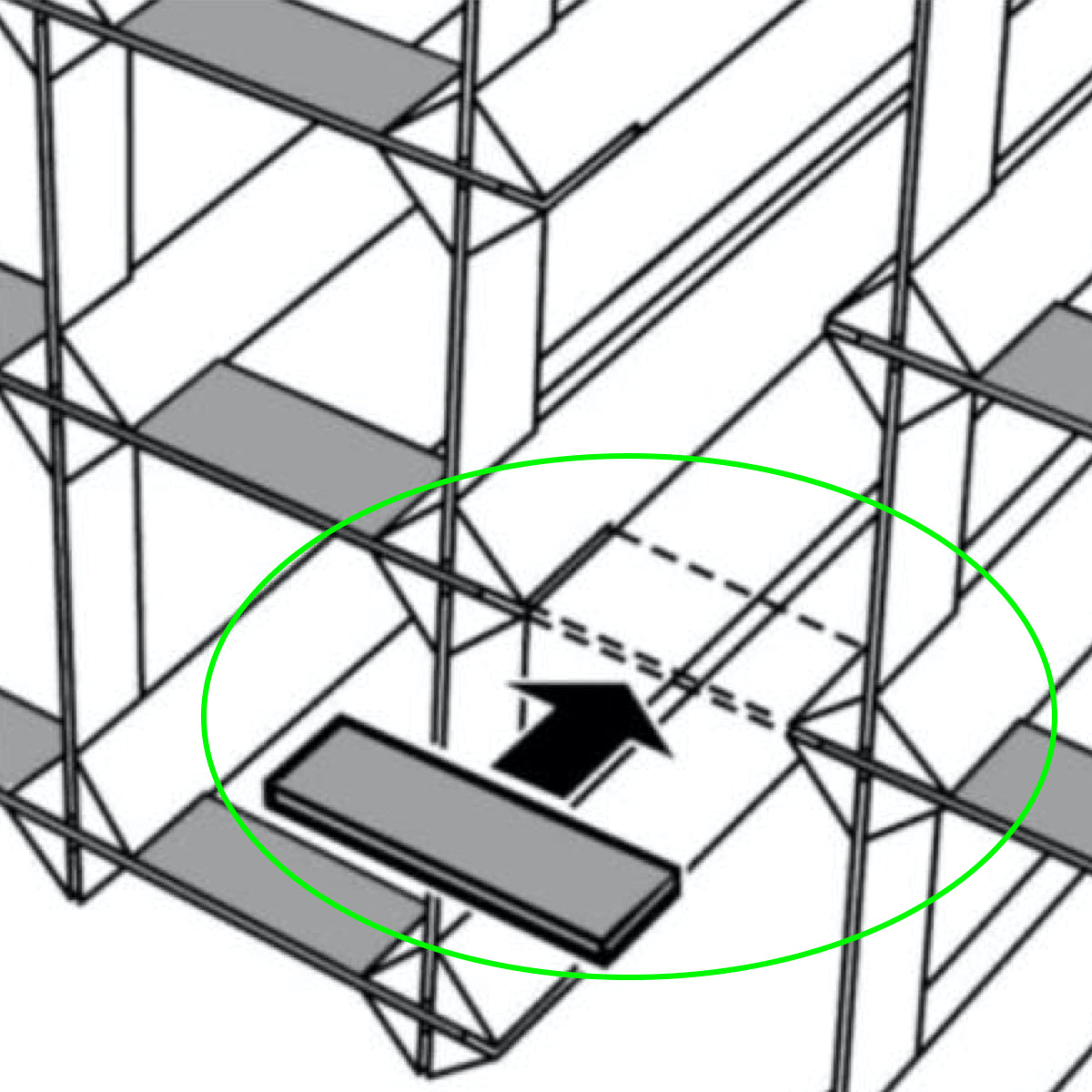

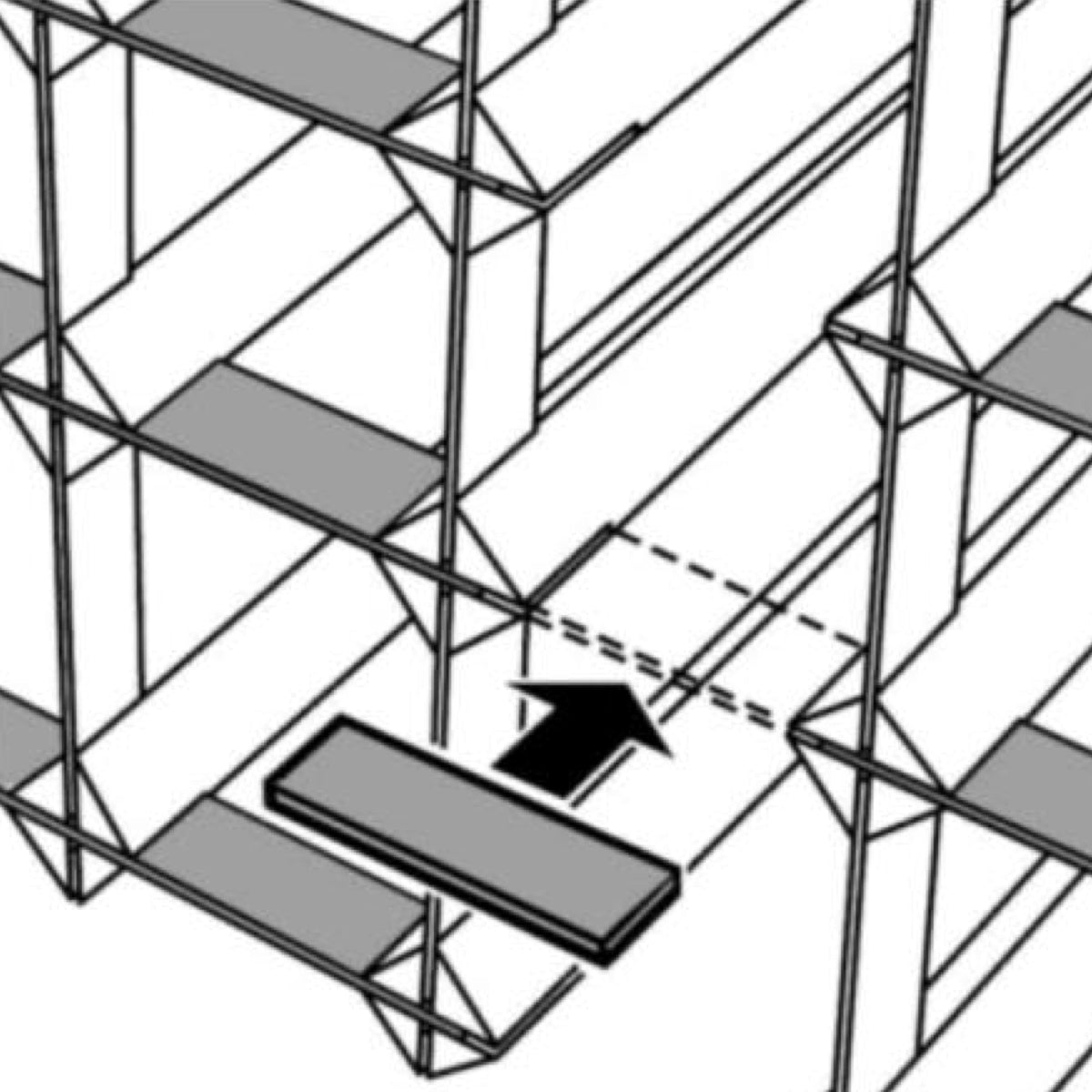

These wine rack system horizontal connector pieces can be used to connect two or more independent wine rack systems horizontally to expand and form a larger wine rack. When connected these clips add an additional 2.17" (55mm) in width to your combined Wine Racks. At the same time, an additional column is provided as storage space.
Note: 2 connector pieces per wood strip.
The number of connector clips required is as below:
- 2-bottle (hole) height: 6
- 3-bottle (hole) height: 8
- 4-bottle (hole) height: 10
- 5-bottle (hole) height: 12
- 6-bottle (hole) height: 14
- 7-bottle (hole) height: 16
- 8-bottle (hole) height: 18
- 9-bottle (hole) height: 20
- 10-bottle (hole) height: 22
Note: 2 connector clips per wood strip.
