Upright Wine & Beverage cooler Combo With Low-E Glass
This wine cooler and bar refrigerator combo is a set of two units. With 3 separate temperature zones, now you can store the Reds, Whites, Spirits, and any soft drinks at your preferred temperatures. Standalone or side by side, built-in or freestanding, they will give the appearance of one unit

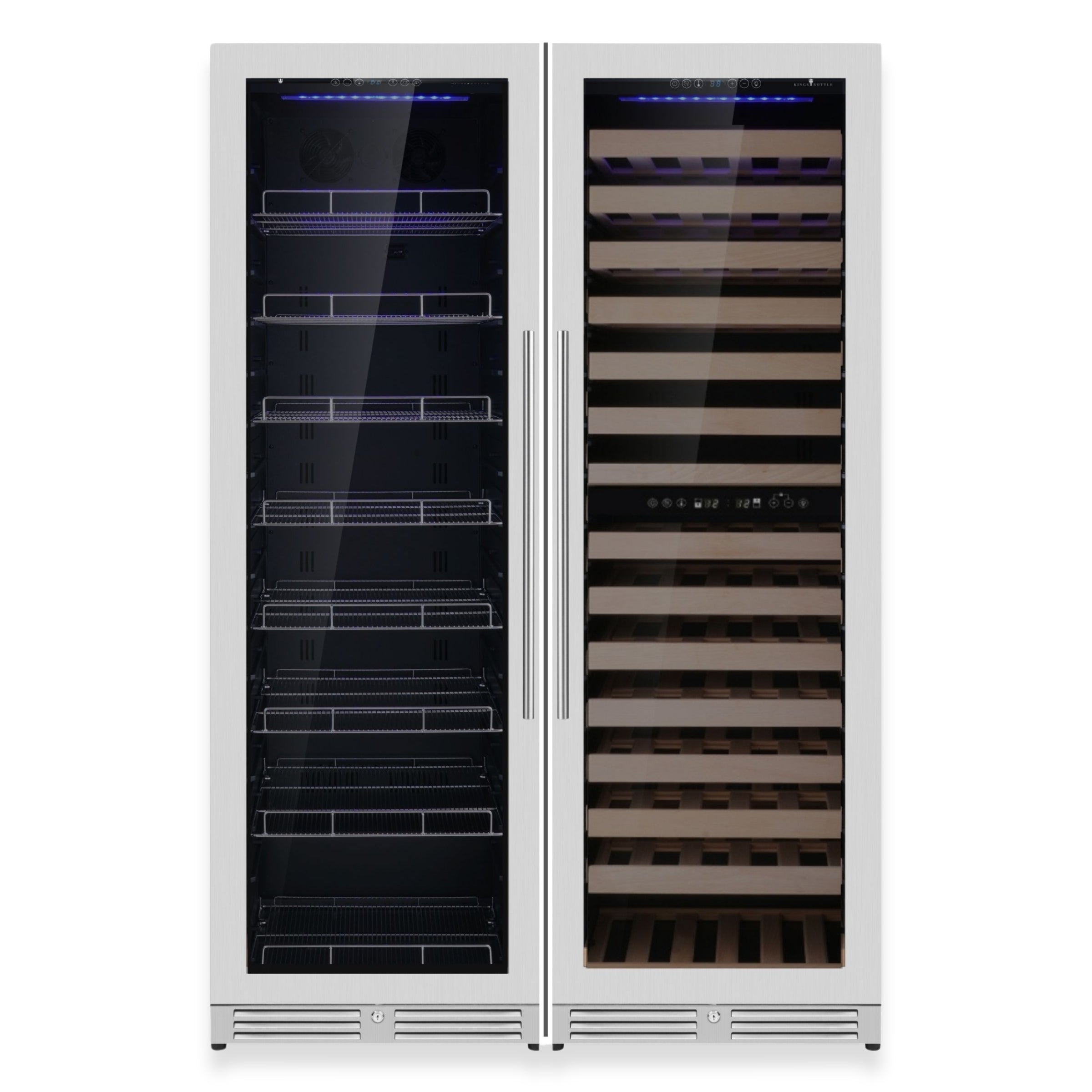

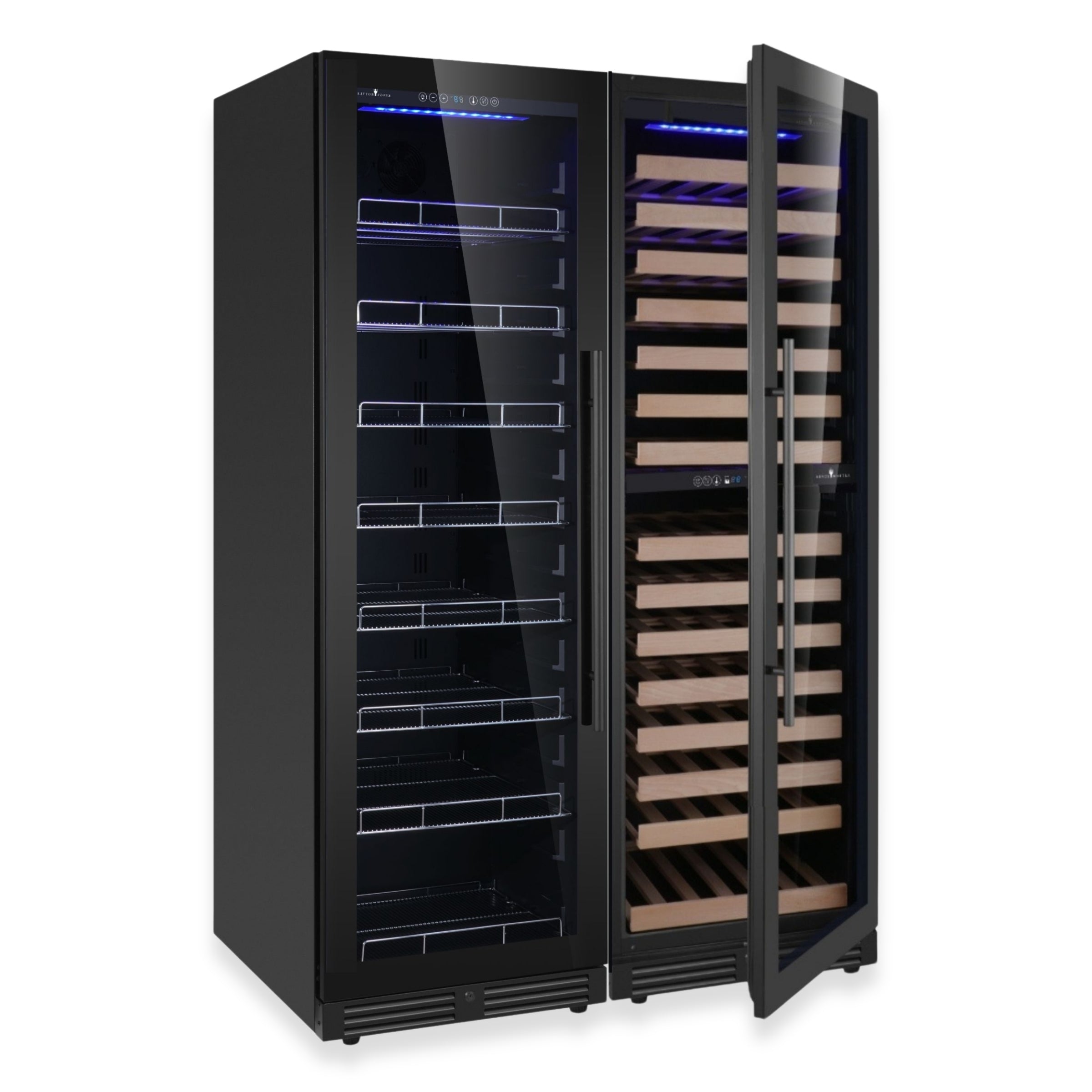

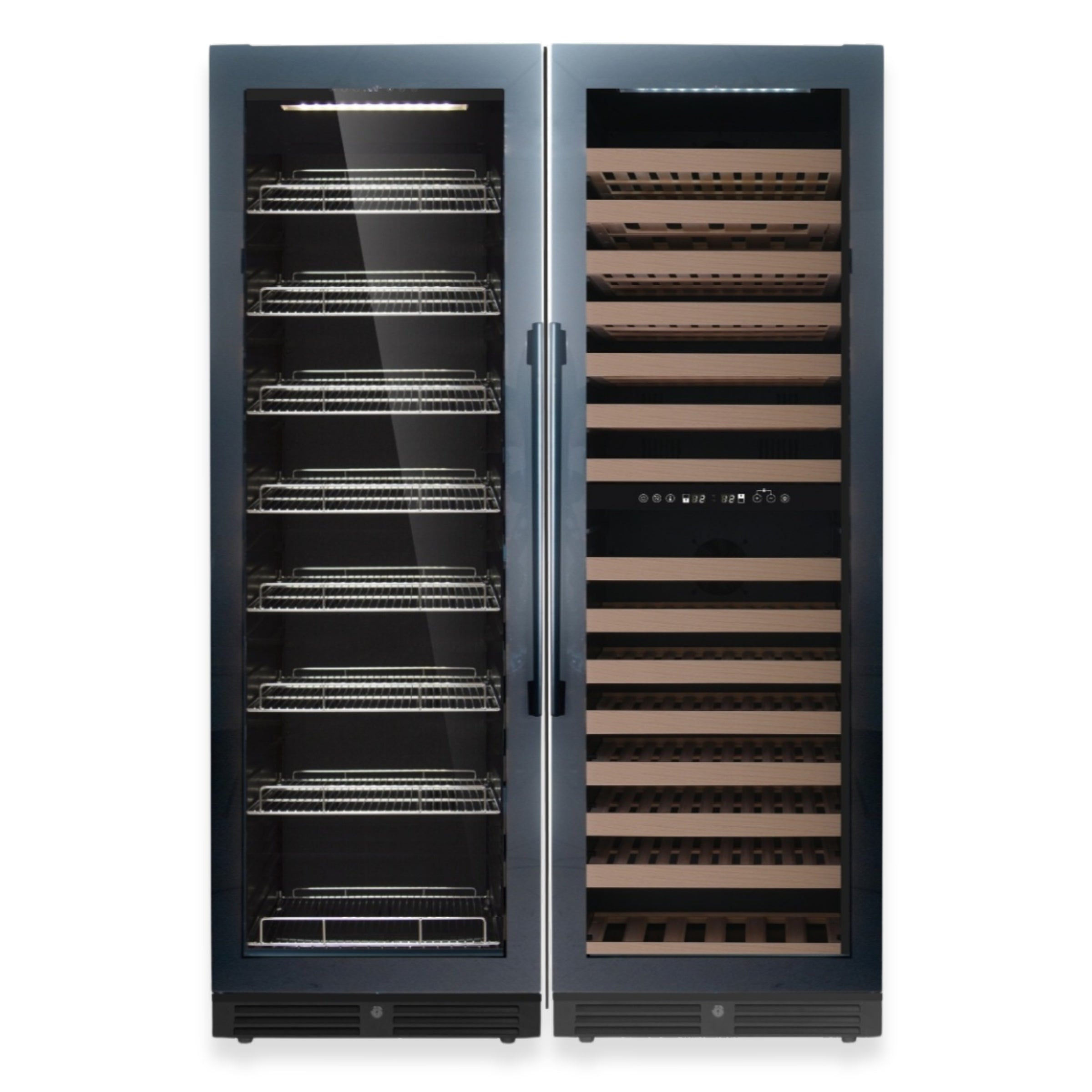

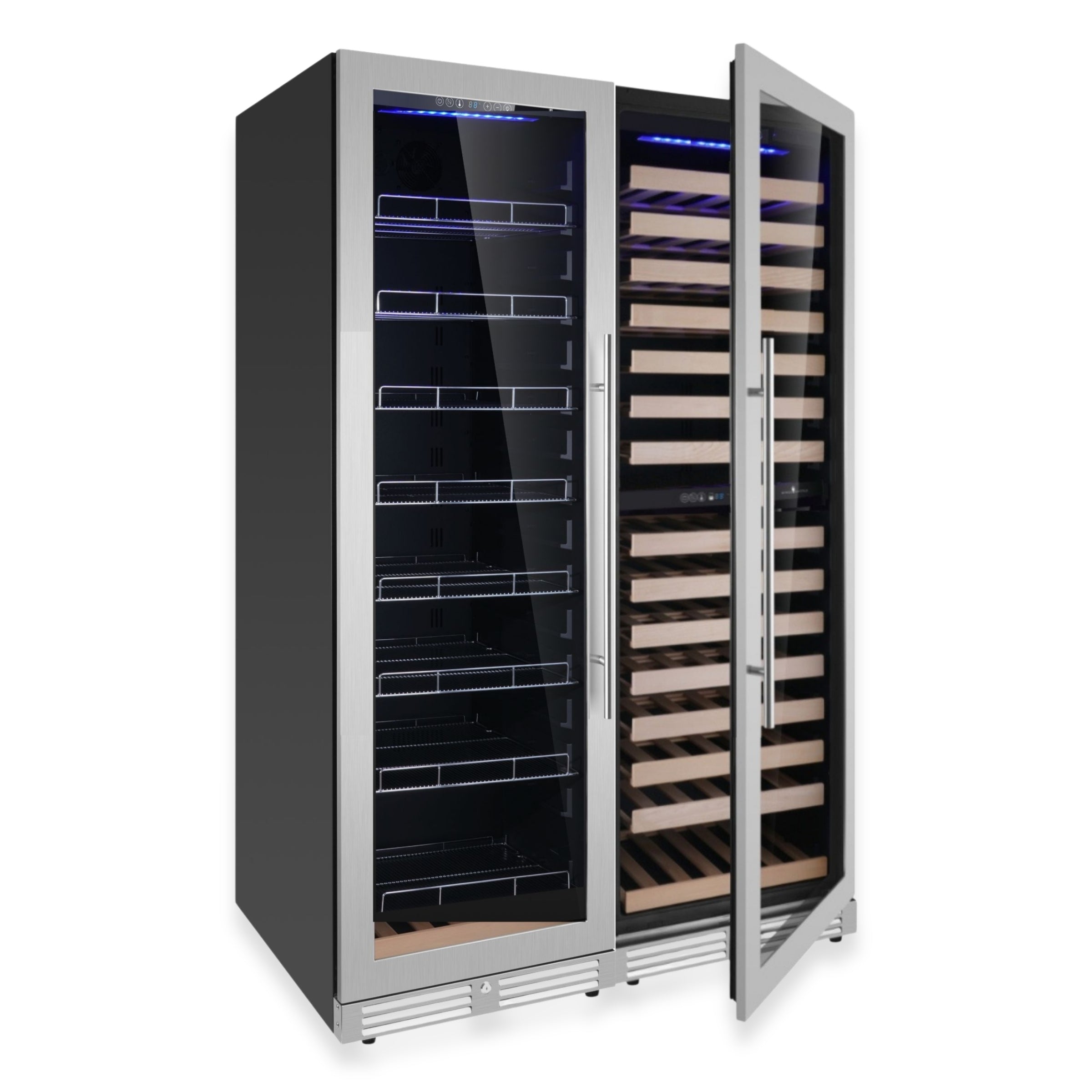

1. This combo is a set of 2 units. The image provided displays the wine unit on the left and the beer unit on the right, however, depending on our available inventory, their positions may be swapped. For a specific ordering, please leave a note when checking out.

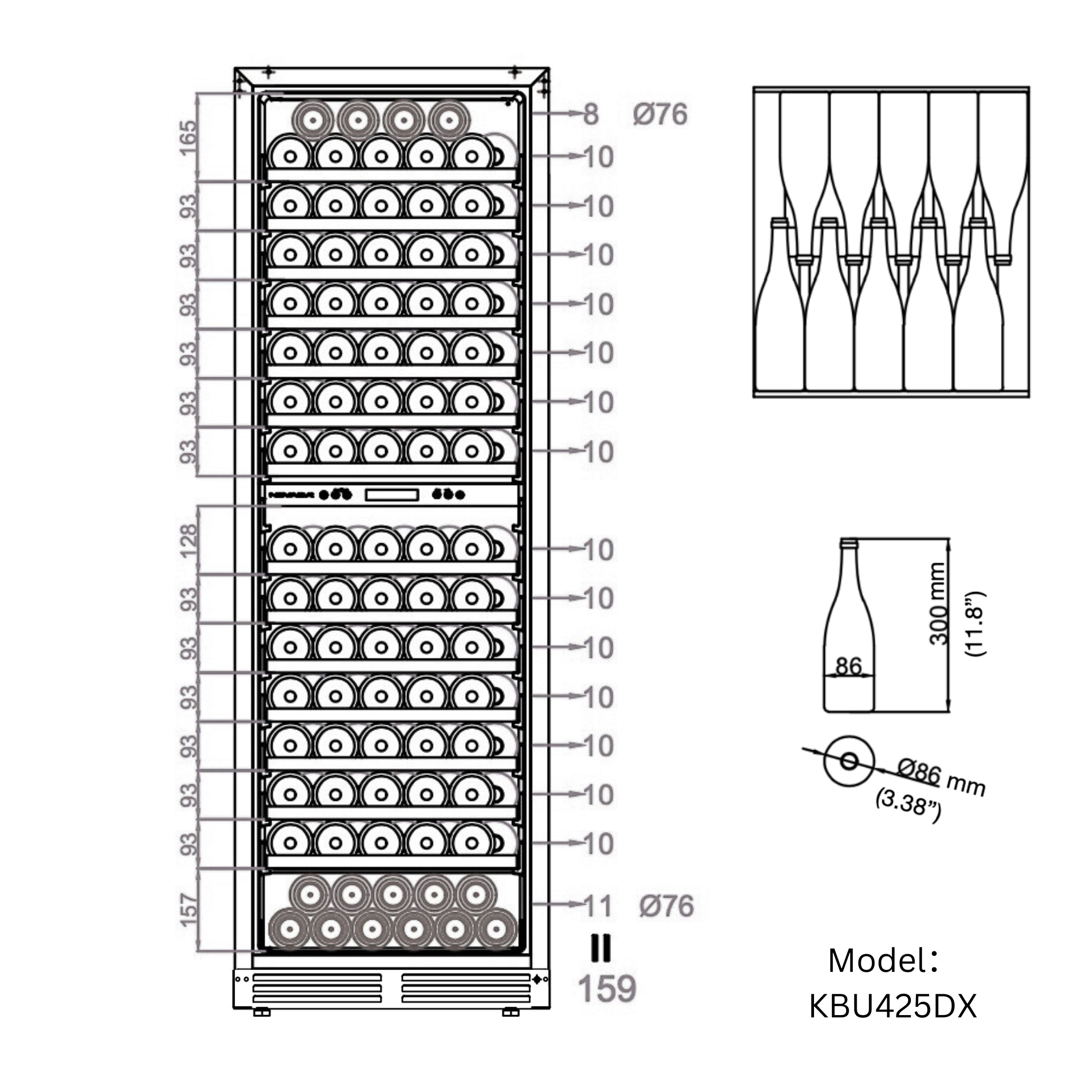

2. For information of the storage capacity, dimensions, cutout and user manual, please refer to the tab of USER INSTRUCTIONS.
- Volume: 15CF*2 (425*2 Litre)
- Capacity: 630 Cans (330 ml) + 159 bottles of wine
- Installation: Built-in or freestanding, Front Venting
- Shelf Configuration: 8 Chromed Steel Shelves + 15 Beech Wooden Shelves
- Adjustable Temperature Range:
- Beer Side: 36°F to 68°F ( 2°C to 20°C)
- Wine Side:
- Upper Zone 36°F to 54°F ( 2°C to 12°C );
- Lower Zone 54°F to 68°F ( 12°C to 20°C )
- At Min/Max Room Temperatures: 32 - 100 °F ( 0 -38°C)
- Noise Level in Decibels: <42dB
Top brand Embraco Inverter Compressor;
Super quiet and reduces energy consumptions by 40%.
Increases the air circulation space around the compressor; Better cooling performance, less vibration, less noise.
Thicker foam helps save energy consumption and optimize cooling performance
Compensates for air humidity.
Effectively filters impurities in the air while keeping the air in the cabinet fresh
Reduce energy consumption;
Less condensation on the glass door.
Simple and easy to operate;
Clear and accurate.
Aggressive light control
2 minutes door open alarm
Laminated steel plate, integrated molding;
Seamless S/S Door Frame
Thin door design
Wine friendly beech wooden shelves;
Cleverly spaced to fit regular and larger bottles.
- Rated Power Input: 110-115V/60HZ
- Rated Current: 1.7A
- Power Input: 165W
- Power Lamp: 0.7W
- Refrigerant: R600A / 52g
- Unit Size: This is a set of two units. Each unit in this combo is 23.42”W x 27.36”D x 70.86”H (Included 0.59" stand feet)
- These front-venting fridges can be built into cabinetry. Should it be built into cabinetry, there should be an additional 0.5" on either side, behind and on top of the unit. These extra spaces enable units to be placed in the position efficiently, accommodate the door when opened, and without the power cords being damaged.
Note: If you can't find the information on the specific product page, please try to find it here. This section is for general information including user manuals, product videos, product catalogs.
- KingsBottle Wine and Beverage Coolers
- KingsBottle Inside Look
- CAREL Controller Temperature Setting Instructions
- LAE Controller Operating Instructions - Adjust Temperature
- LAE Controller Parameter Settings - For your information only, we don't recommend you to make any changes to it if it is necessary. You can keep the parameter settings at the default value
Product User Manual Downloads (PDF)
Instructions for setting the temperature to a lower value
If you want to set the temperature to a lower value, please refer to the instructions below:
- Instructions for temperature differential adjustment-Single Zone
- This apply to models KBU50WX, KBU100WX, KBU170WX, KBU50BX, KBU100BX, KBU170BX
- Instructions for temperature differential adjustment-Dual Zone
- This apply to models KBU50DX, KBU100DX, KBU170DX, KBU28LRX
Wine Cooler Manuals
- KBU50W/100W/170W Single Zone Wine Coolers - Carel Controller
- KBU50D/100D/170D Dual Zone Wine Coolers
- KBU145D/270D/428D Dual Zone Wine Coolers
- KBUSF54D Dual Zone Wine Coolers
- Thermoelectric Wine Coolers
Beverage Cooler Manuals
- Carel Controller Power On
- KBU50B/100B/170B Beverage Coolers
- KBU145B/270B/428B Beverage Refrigerators
- KBUSF54B Beverage fridge
- KBU55C/56C/328C Under Counter Beverage Coolers - Carel Controller
- KBU55/56/328 BP Commercial Backbar Beverage Fridge - Carel Controller
- KBU208SC/330SC Commercial Backbar Beverage Fridge
- KBU650/1000 Standing Commercial Beverage Refrigerators
- KBU380 SS/SD Back Bar Coolers
- KBU21/52/68 Mini Fridges - Digital Display Controller
Wine & Beverage Cooler Manual
- 28LR Beer and Wine Cooler Combo
- KBU50/100/170 BW2 Beverage and Wine COMBO
- KBU50/100/170 BW3 3-Zone Beverage and Wine COMBO
- KBU145/270/428 BW3 3-Zone Beverage and Wine COMBO
- KBUSF54COMBO-BW3 3-Zone Beverage and Wine COMBO
