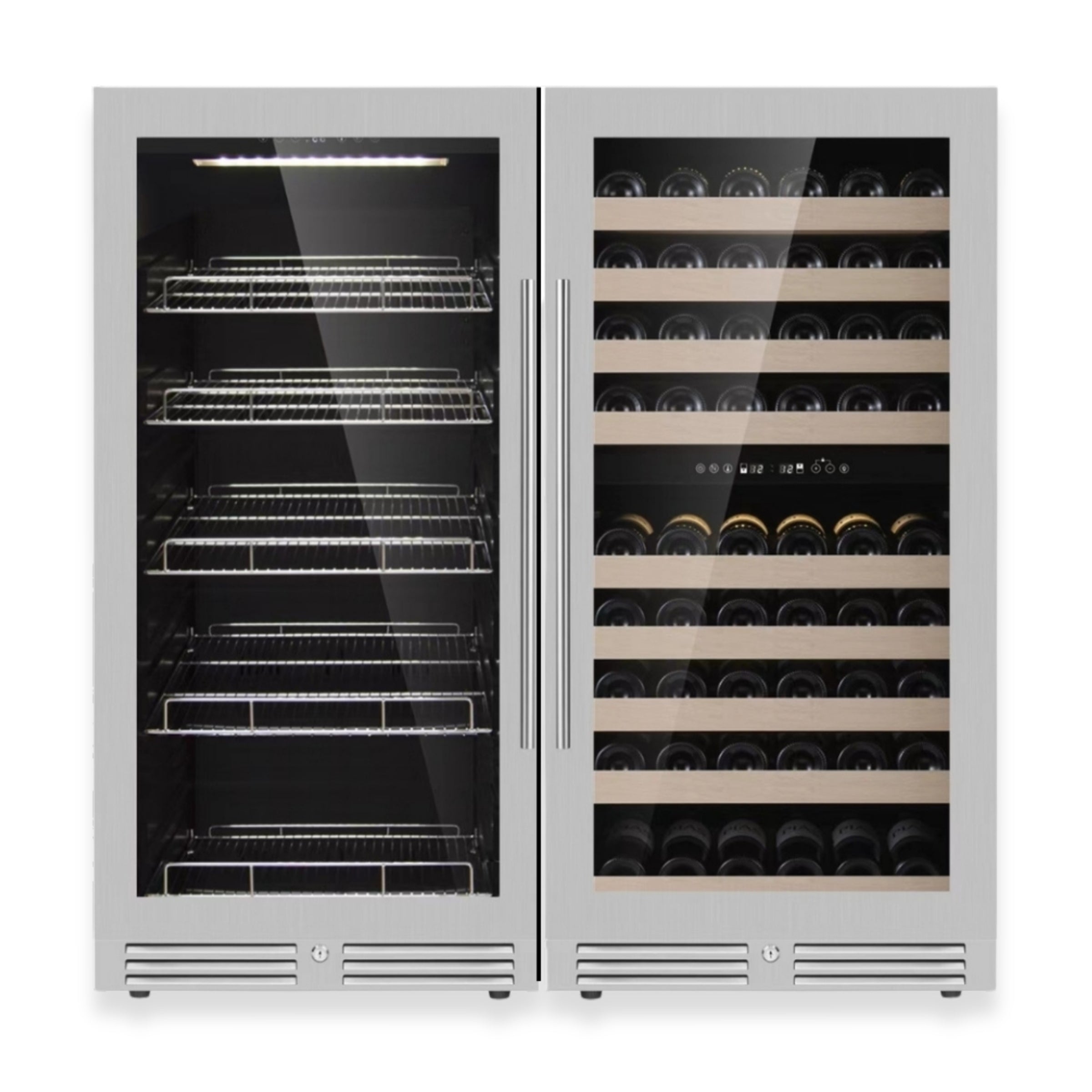

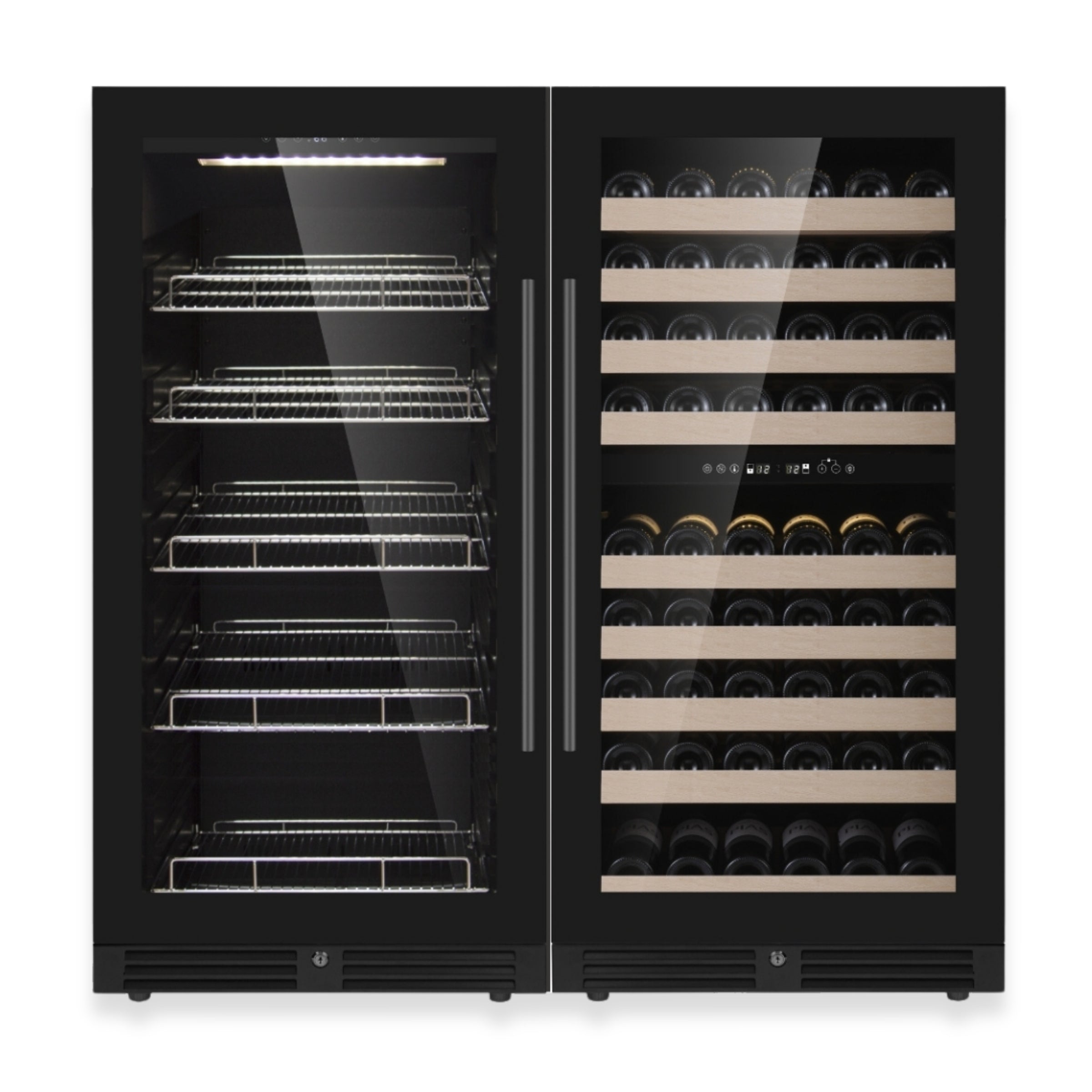

47" High Wine & Beverage Refrigerator Combo with Triple Temp. Zones
SIZE: 46.84” W x 27.55” D x 47.24” H, included stand height 0.59”
USE CASE: Ideal for most spaces whether freestanding or built in. Great option to complement a wine display
NOTE: Set of two units, use side by side or separately.
Quick Overview:
The 47" High Triple-Zone Wine & Beverage Refrigerator Combo is designed for wine enthusiasts and beverage lovers who require optimal storage for both wine and drinks. This combination unit features a dual-zone wine cooler with temperature controls for red and white wines, plus a dedicated beverage compartment for your cans.
- The wine cooler has two separate temperature zones:
- The upper zone maintains temperatures from 41°F to 54°F (5°C to 12°C) for white wines.
- The lower zone keeps red wines at temperatures from 54°F to 68°F (12°C to 20°C).
- The beverage section stores up to 389 cans (12 oz) at an ideal serving temperature.
This model is powered by the Embraco Inverter Compressor, offering ultra-quiet, energy-efficient operation while maintaining precise temperature control. The sleek Low-E glass door ensures UV protection and helps maintain energy efficiency.
The cooler comes with premium adjustable shelving for flexible storage and can be installed as either a built-in or freestanding unit to fit seamlessly in your space.
Specifications
Specifications
| Volume: | 18.72 CF (530 Liters) Total, 9.36 CF (265 Liters) Each |

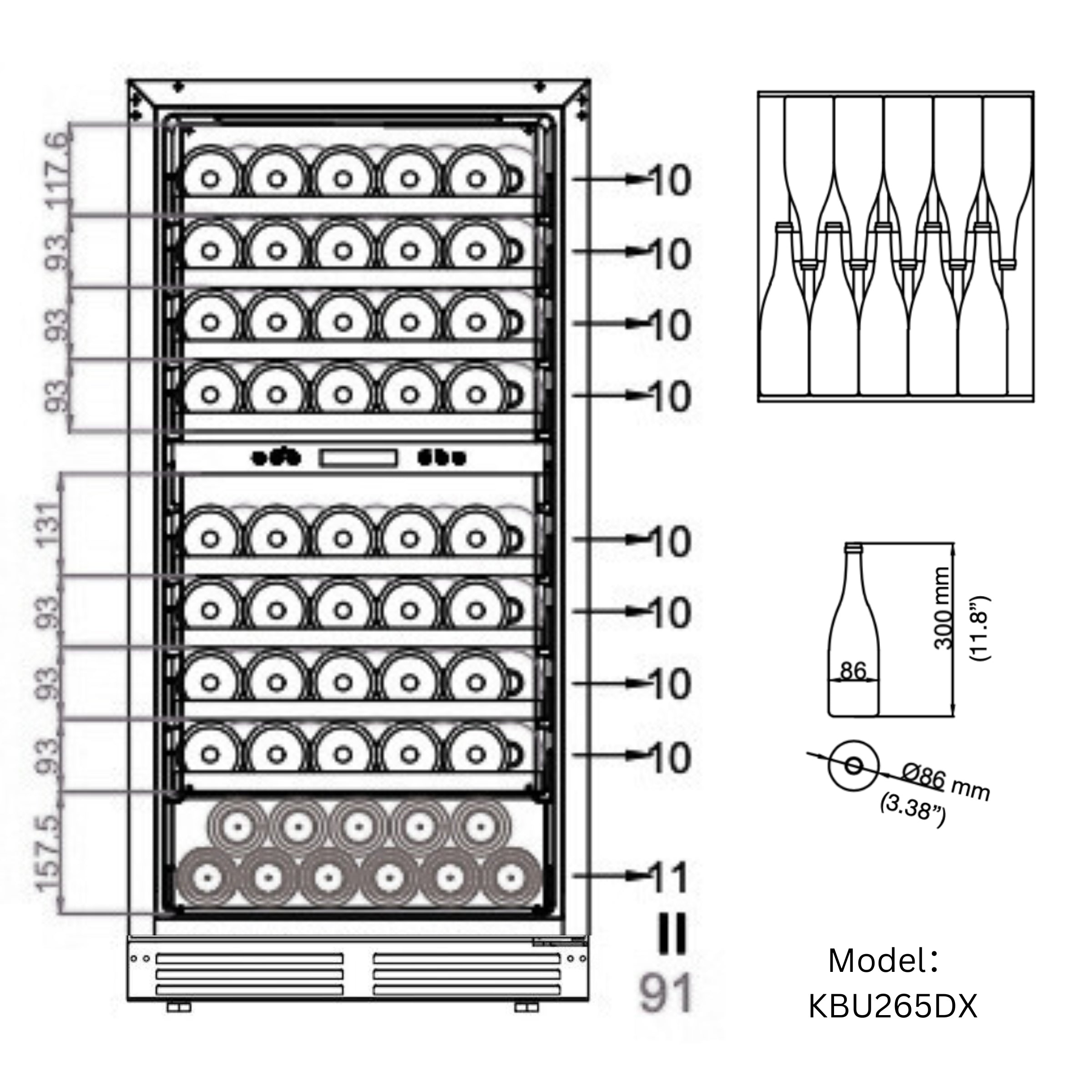

| Capacity (by bottles): | 91 bottles |

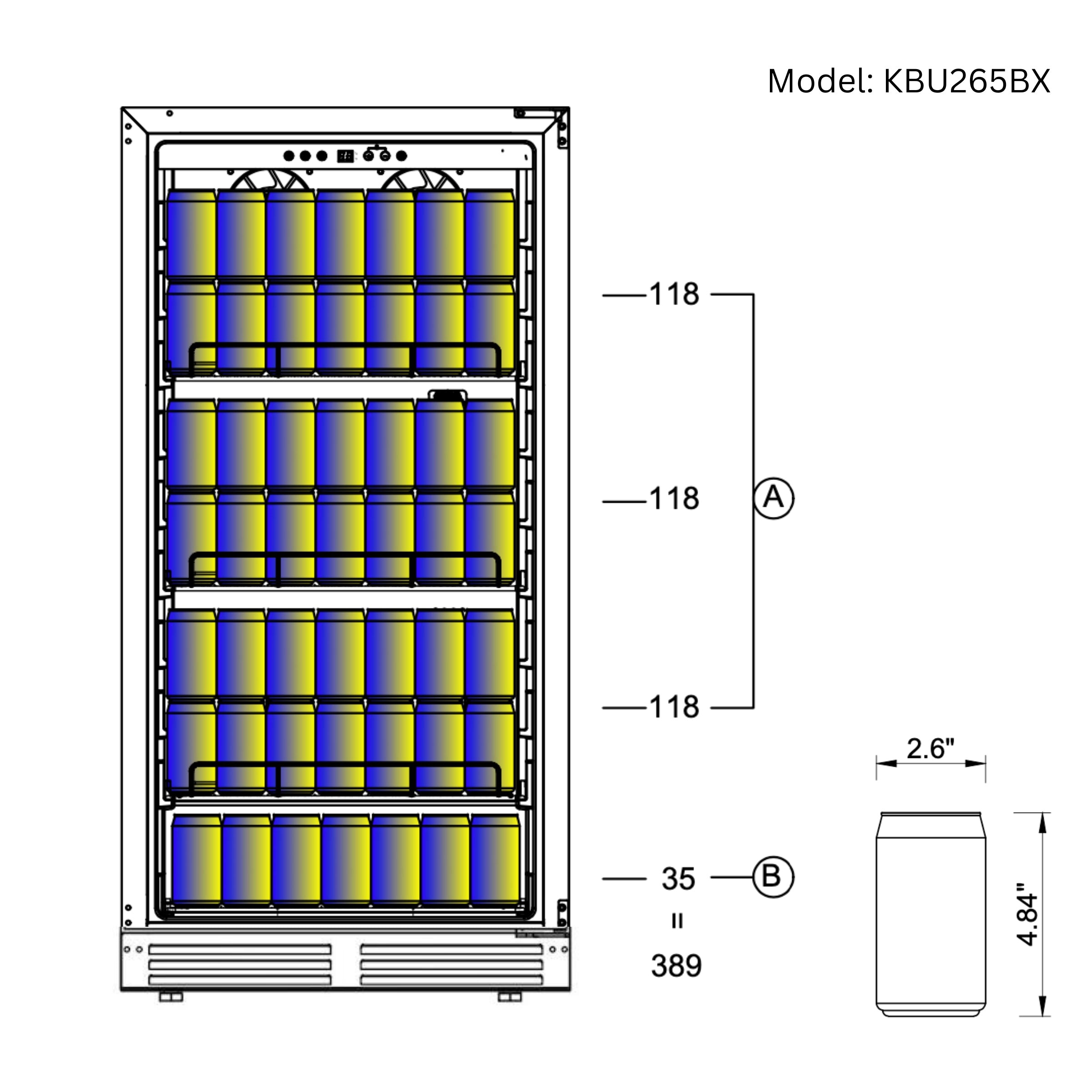

| Capacity (by cans): | 389 cans |
| Installation Type: | Built-In or Freestanding |
| Climate Type: | N |
| Temperature Zones: | Triple Zone |
| Adjustable Temperature Range: |
|
| Operating Room Temperature: | 32-100°F (0-38°C) |
| Shelf Configuration: | 5 Chromed Steel Shelves + 8 Beech Wooden Shelves |
| Dimensions: | 46.84” W x 27.55” D x 47.24” H, included stand height 0.59” |
Electrical
| Compressor: | Embraco Inverter Compressors |
| Rated Power Input: | 330W (165W per unit) |
| Rated Current: | 3.4A (1.7A per unit) |
| Refrigerant: | R600A / 45g per unit |
Technical Features
Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet operation and reduces energy consumption by 40%.
Patented Sink of Compressor
Increases air circulation space around the compressor;
Provides better cooling performance, less vibration, and reduced noise.
Low-E Glass
Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.
Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.
Fan Circulated Air-Cooling System
Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.
Activated Carbon Filter
Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.
LED Display Digital Touchpad Control
Simple and easy-to-operate controls;
Clear and accurate settings display.
Beech Wooden Shelf
Optimized FULL-EXTENSION pull-out wood shelves with sturdy and wine-friendly beech; Cleverly spaced to fit both regular and larger bottles up to 3.39" (86mm) in diameter.
Magnetic Switch
Aggressive light control with a 2-minute door-open alarm.
Hidden Door Hinge
Laminated steel plate with integrated molding;
Full built-in design for seamless integration.
Seamless Stainless Steel Door Frame
Features an artistic appearance with a thin door design.
45mm Thickness C-Pantane
Thicker foam optimizes cooling performance and reduces energy consumption.
Dimensions & Diagrams

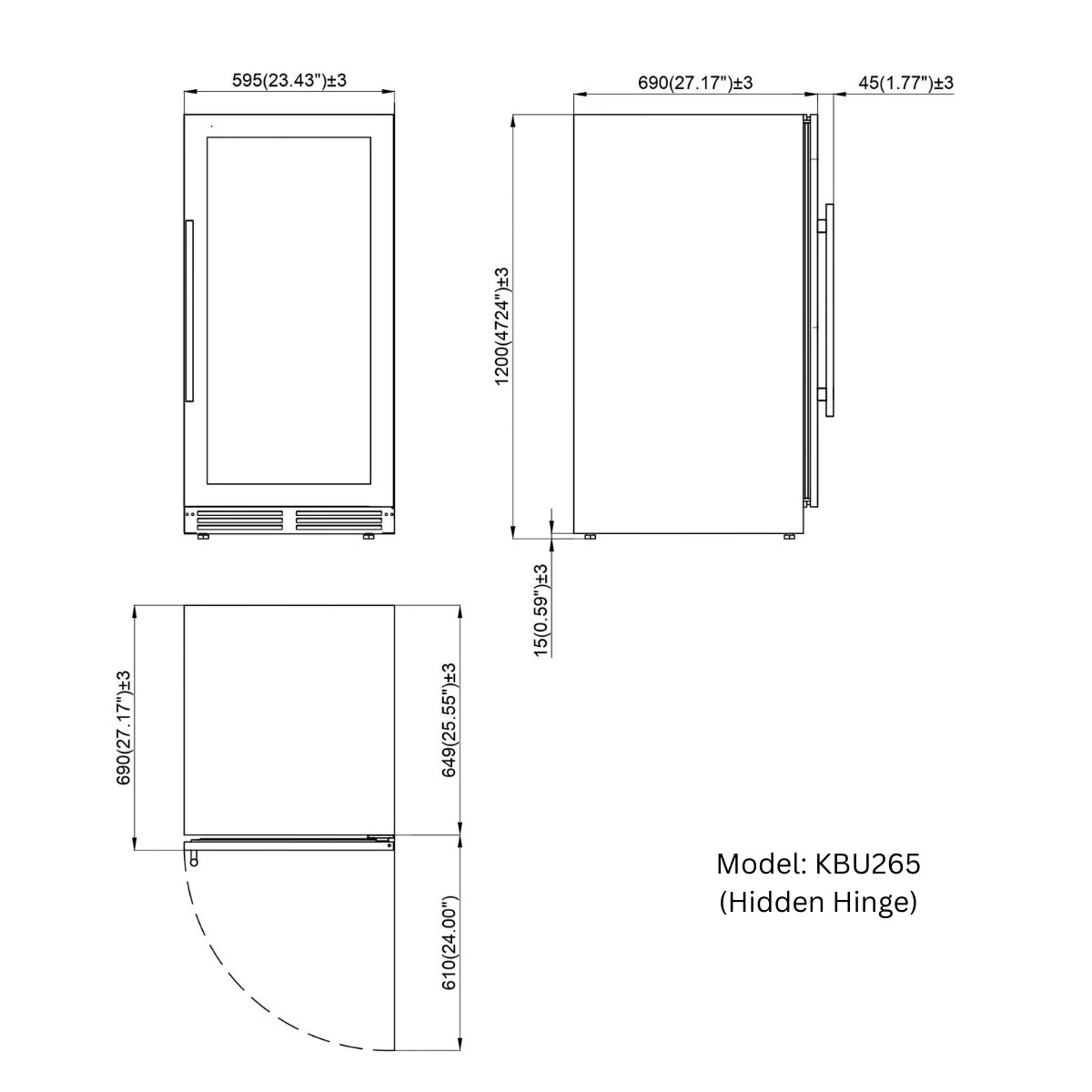

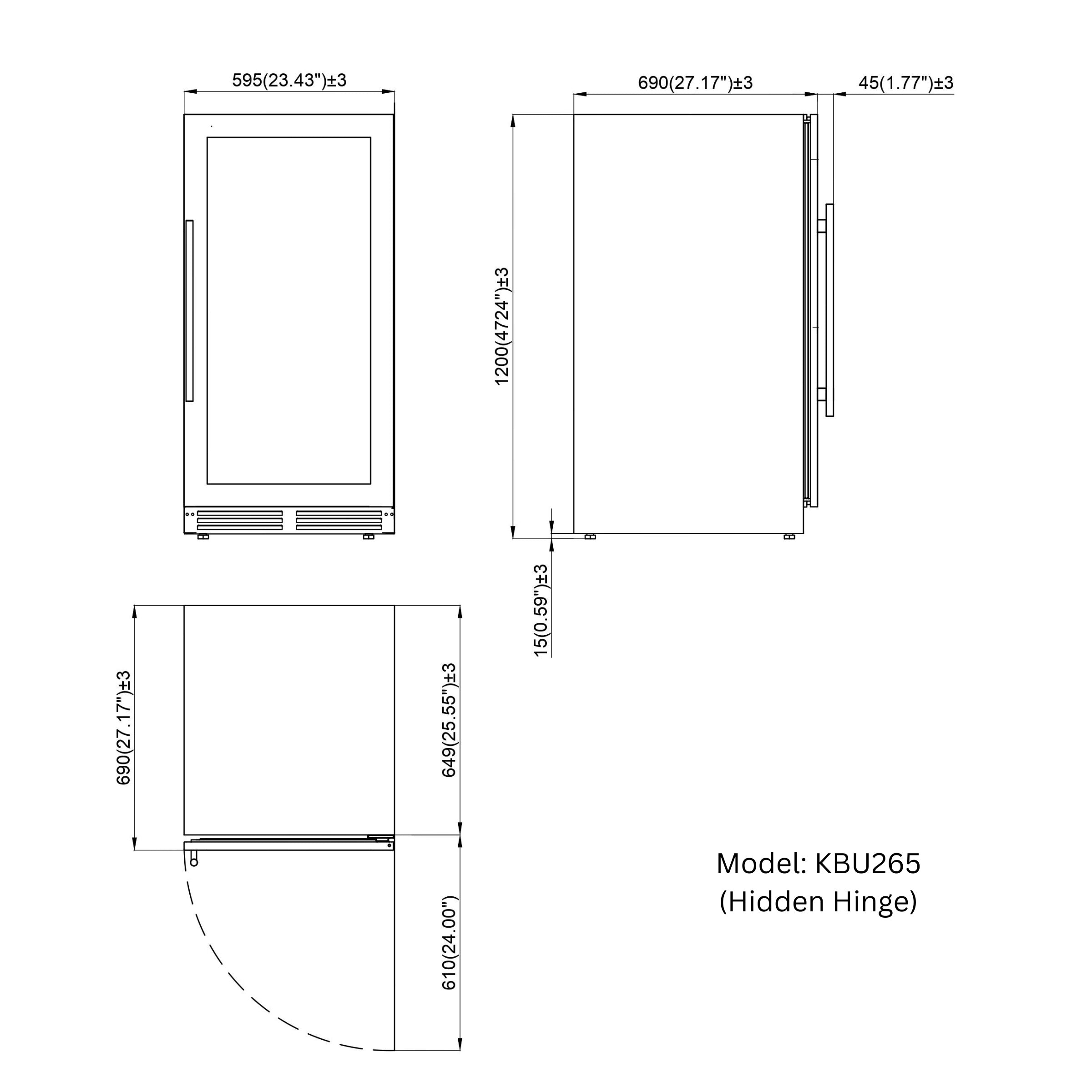

Technical Dimensions

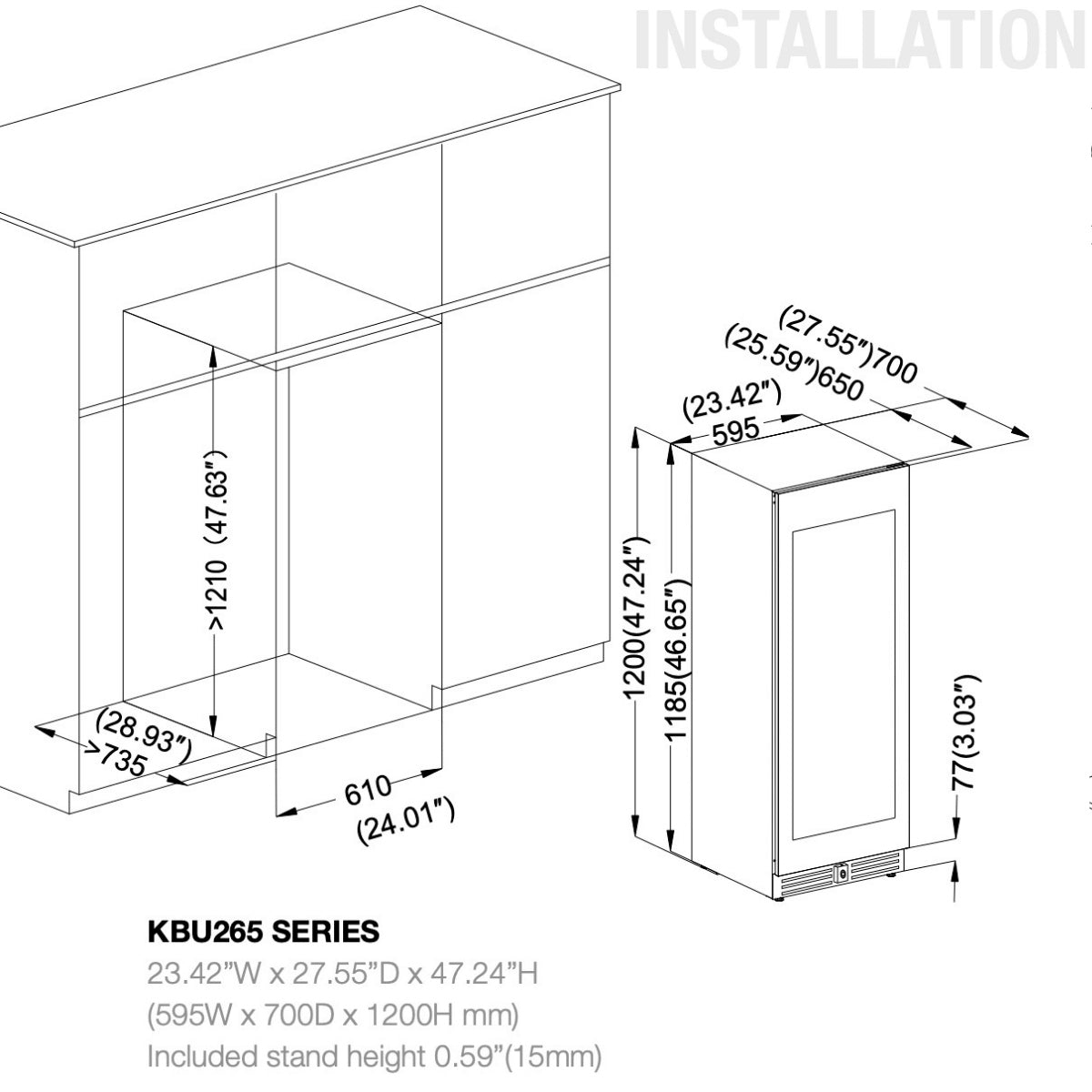

Installation Diagrams
User Instruction
This manual covers a combo set of two units: a Beverage Cooler and a Dual Zone Wine Cooler.
For Beverage Cooler
Key Features
- Single-zone cooling to keep drinks at their optimal serving temperatures.
- Adjustable temperature range: 35°F to 68°F (2°C to 20°C).
- Powered by energy-efficient EMBRACO Inverter compressors for reliable cooling.
User Manual
Download the Beverage Cooler User Manual (KBU145BX/KBU265BX/KBU425BX) .
For Dual Zone Wine Cooler
Key Features
- Dual-zone cooling for storing red and white wine at optimal temperatures.
- Adjustable temperature range for upper and lower zones
- Upper Zone 35°F to 54°F (2°C to 12°C);
- Lower Zone 54°F to 68°F ( 12°C to 20°C ).
- Energy-efficient cooling with advanced EMBRACO Inverter compressors.
User Manual
Download the Dual Zone Wine Cooler User Manual (KBU145DX/KBU265DX/KBU425DX)
