15CF Large Dual Zone Wine and Beverage Center

SKU: KBU425DX-FG HYBRID RHH

$2,895.00

SIZE: 23.42”W x 27.36”D x 70.86”H, included stand height 0.59”

USE CASE: Perfect for integrating into modern kitchens or home bars where space is at a premium and wine quality is paramount.

NOTE: Accommodates large bottles up to 3.39" (86mm) in diameter.

DOOR STYLE:

DOOR DIRECTION:

WARRANTY:

Variant

Key Features

Independent temperature settings for red and white wines.
Low-E glass minimizes energy use and condensation, acting as an invisible insulating barrier.
Equipped with top-brand Embraco Inverter Compressor for ultra-quiet operation and up to 40% energy savings.

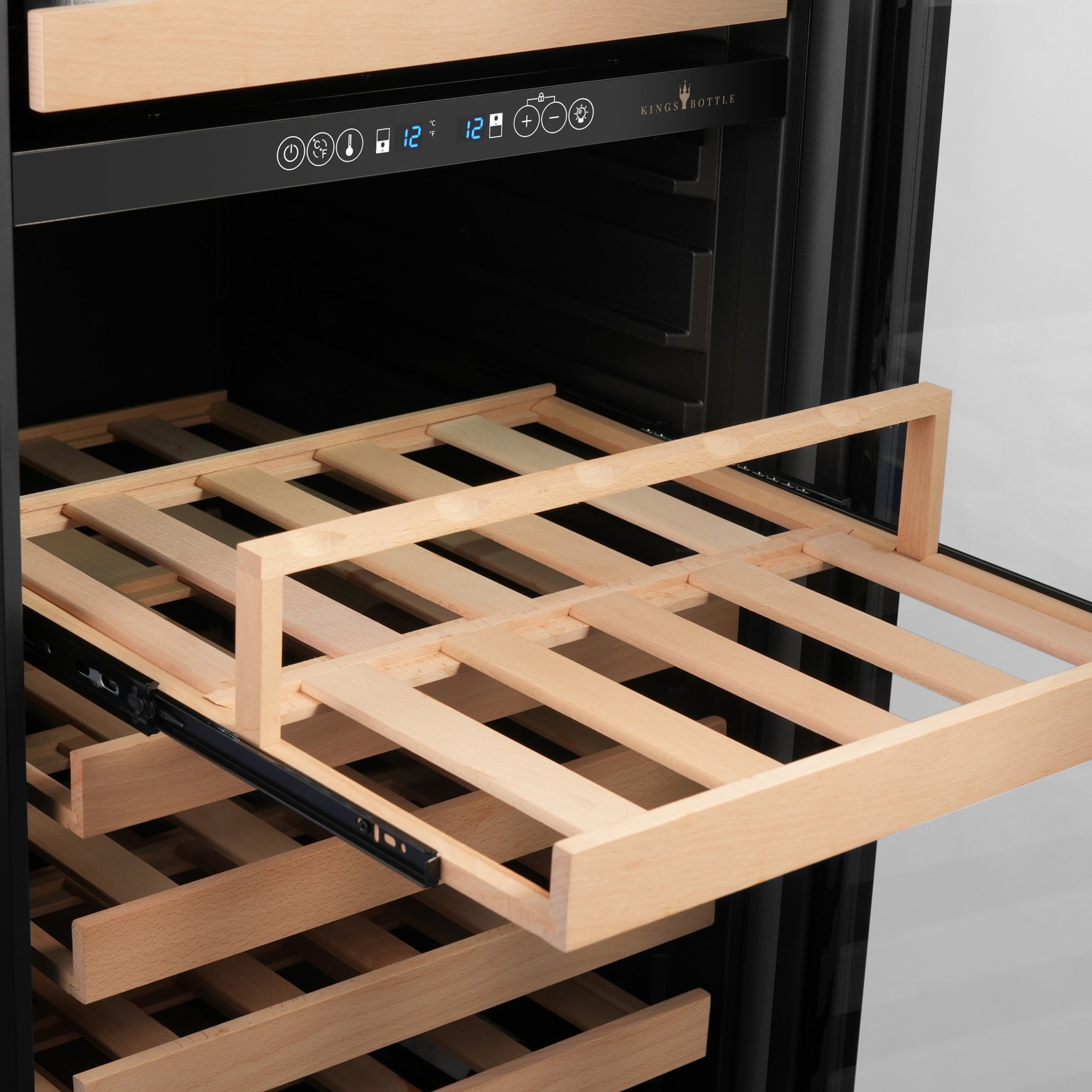

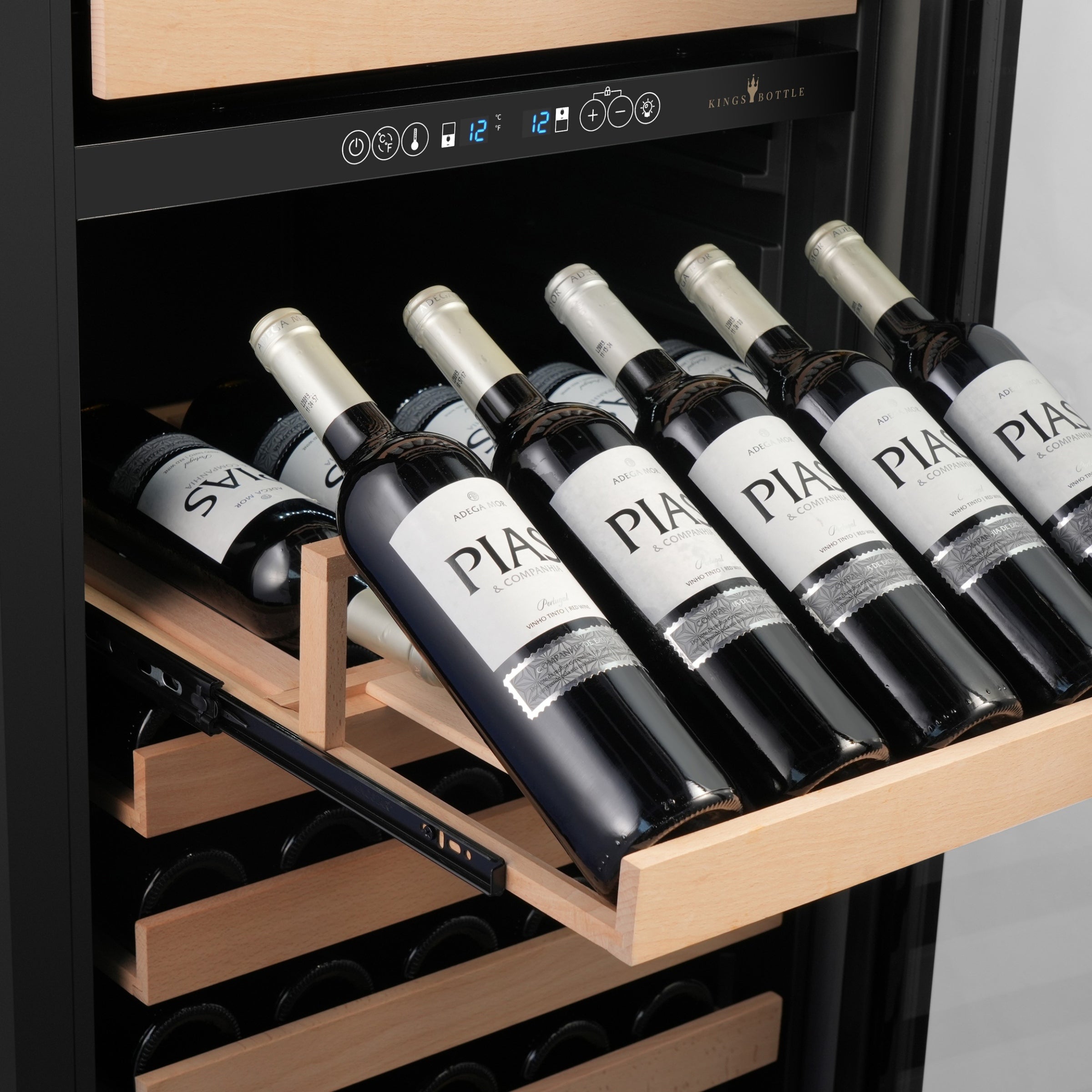

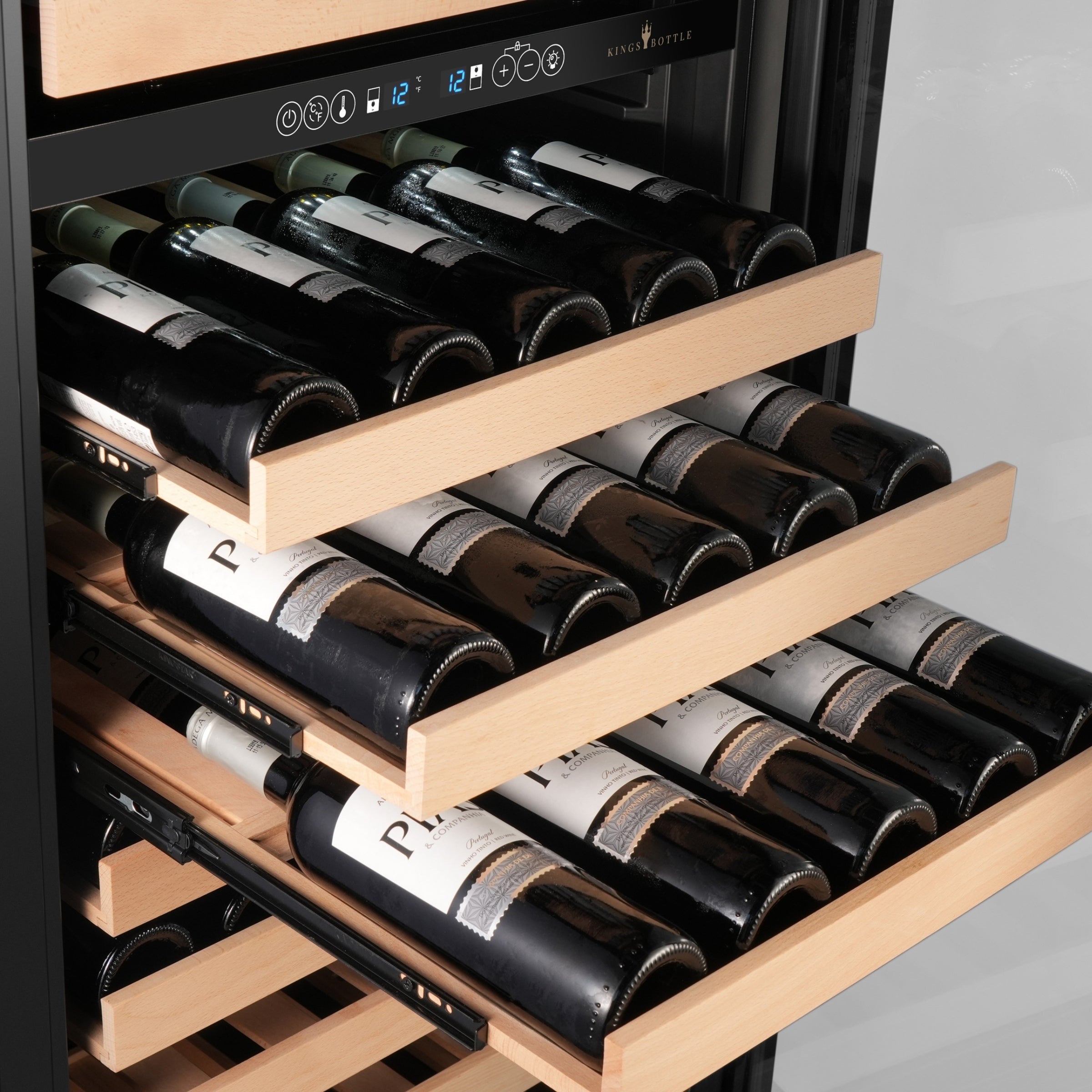

Optimized full-extension pull-out wood shelves made from sturdy, wine-friendly beech; designed to accommodate regular and larger bottles up to 3.39" (86mm) in diameter.

Quick Overview:

Dual-zone cooling: Upper zone (36°F–54°F) is perfect for beers, sodas, and mixers; lower zone (54°F–68°F) provides ideal conditions for storing your favorite reds and whites.
Premium Embraco Inverter Compressor delivers whisper-quiet performance and up to 40% energy savings—great for busy households and frequent entertainers.
Low-E glass door minimizes condensation and blocks UV light, keeping every bottle and can clearly visible and well-protected.

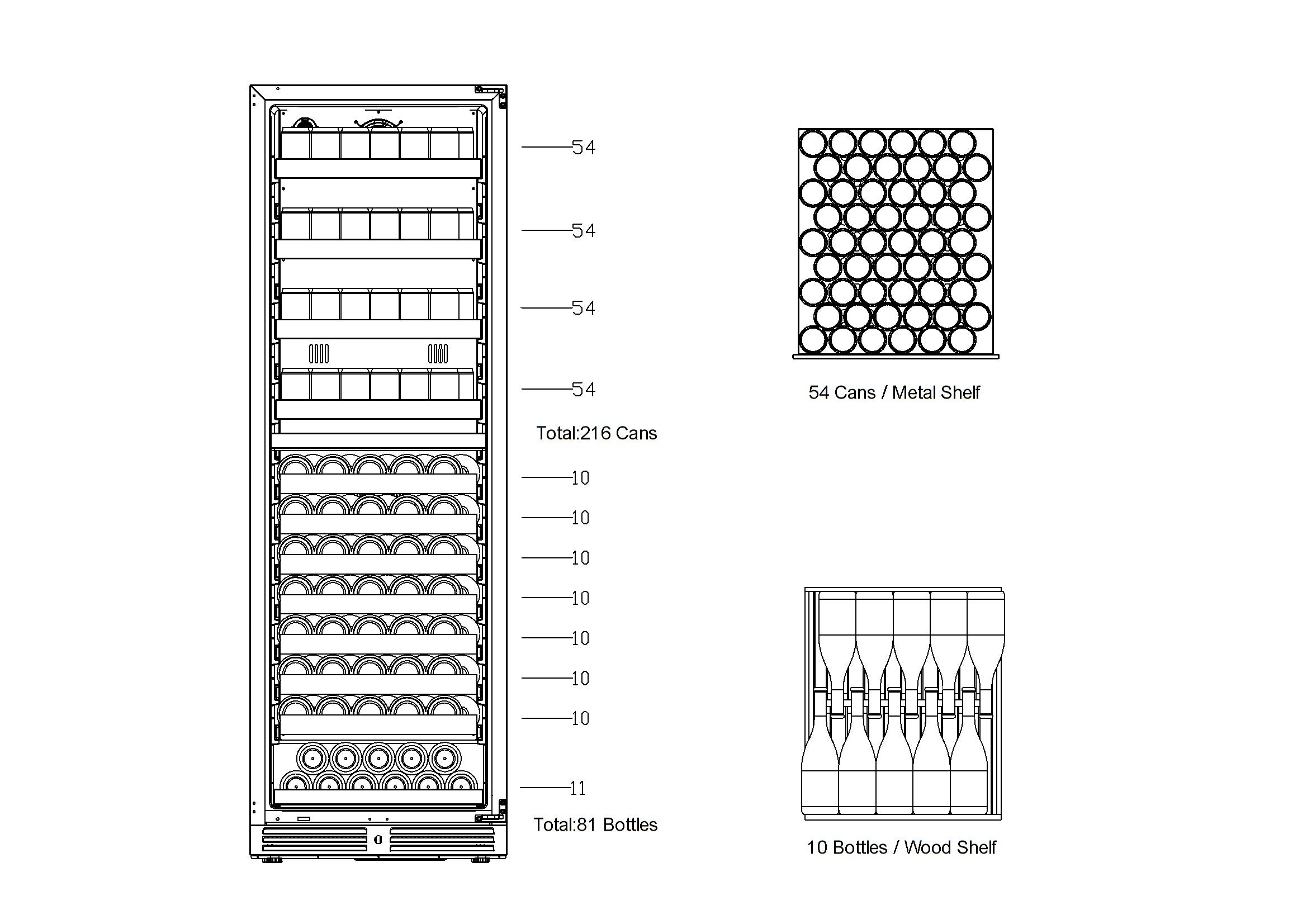

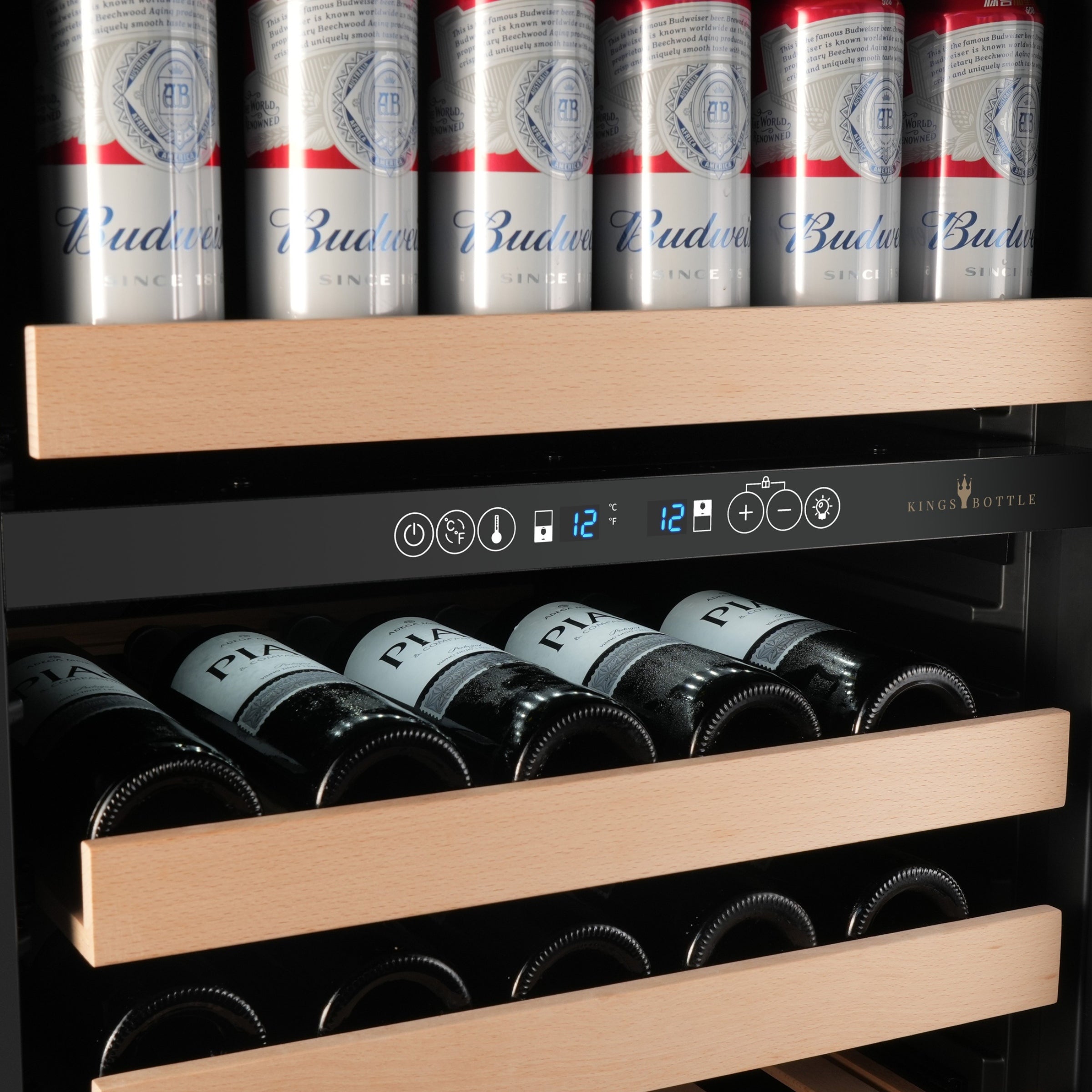

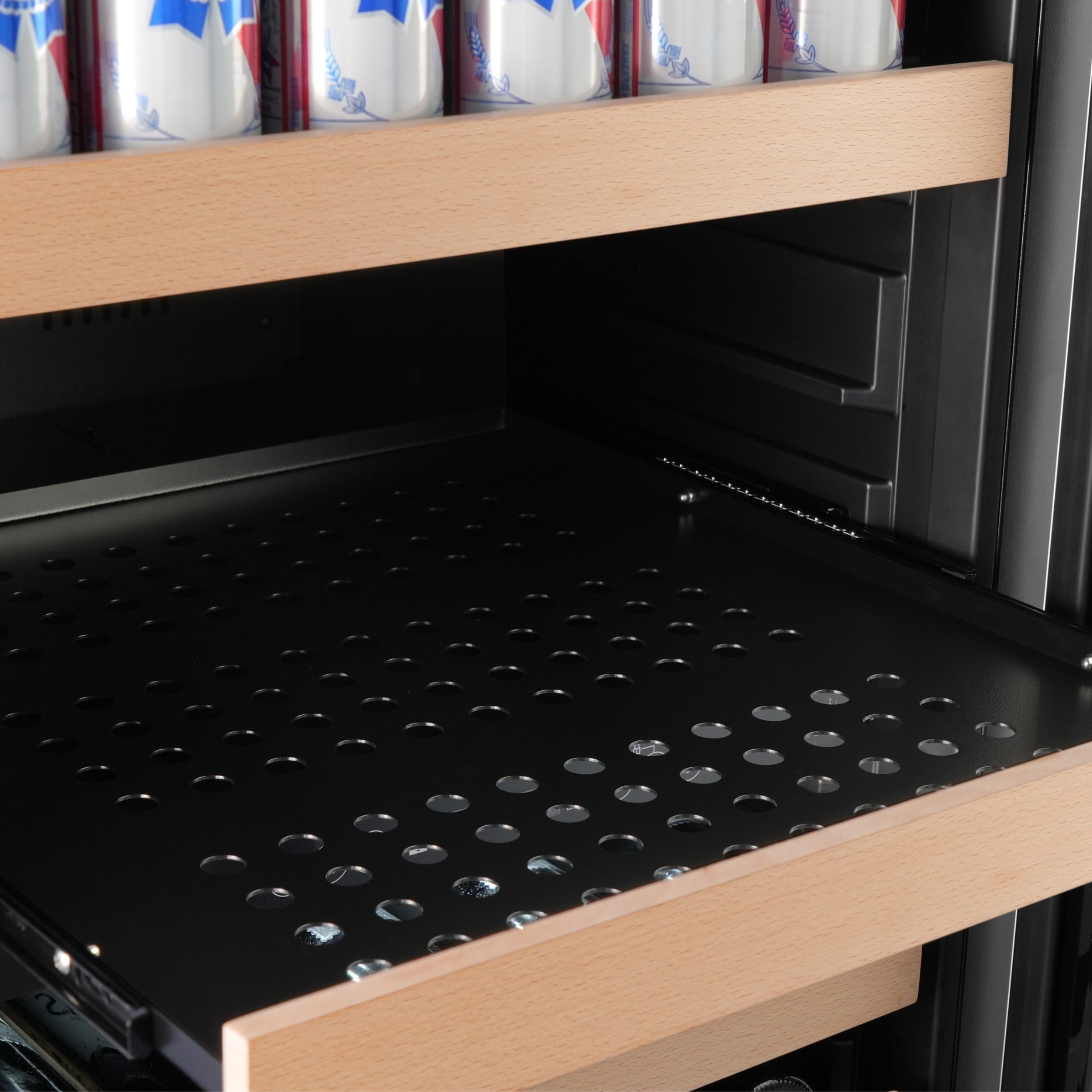

Flexible storage design features telescoping metal shelves in the upper zone and smooth-gliding wooden shelves in the lower zone—holding up to 81 wine bottles (up to 3.4-inch diameter) and 216 cans (12 oz).
Front-venting construction enables seamless built-in installation within cabinetry or a striking freestanding setup.

Description

Upgrade your entertaining with KingsBottle’s 71-inch High Upright Dual Zone Wine & Beverage Center. This 15CF capacity unit offers two independent zones—the top for beers, sodas, and mixers, and the bottom for your favorite wines.

Dual Zone Cooling – Beverages: 36–46°F | Wines: 54–64°F
Premium Shelving – Telescopic metal shelves for cans/bottles + wooden shelves for wine
Energy-Efficient Performance – Embraco Inverter Compressor saves up to 40% energy, runs ultra-quiet at 40 dB
Protects Your Collection – Low-E glass door reduces condensation & blocks UV rays
Flexible Installation – Built-in or freestanding with a modern black glass finish

Perfect for kitchens, home bars, and entertainment spaces, this upright wine and beverage center combines style, versatility, and professional-grade performance.

Specifications

Cooling

Bottle Capacity	81 Bottles
Can Capacity	216 Cans
Temperature Zones	Dual Zone
Temperature Range	Upper Zone 35°F to 54°F (2°C to 12°C); Lower Zone 54°F to 68°F ( 12°C to 20°C )
Compressor	Embraco Inverter Compressor

Construction

Door Type	Borderless Black Glass Door

Electrical & Size

Volume	15.00 CF (425 Liters)
Noise Level	42.0 dB
Weight	103.0 lb
Dimensions (W x D x H)	23.43" W x 27.36" D x 70.87" H

Installation & Documents

Installation Information

Installation Type	Built-in / Freestanding
Ventilation Requirement	Front Venting – Allows built-in installation with no rear clearance required for operation
Clearance Note	No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access.

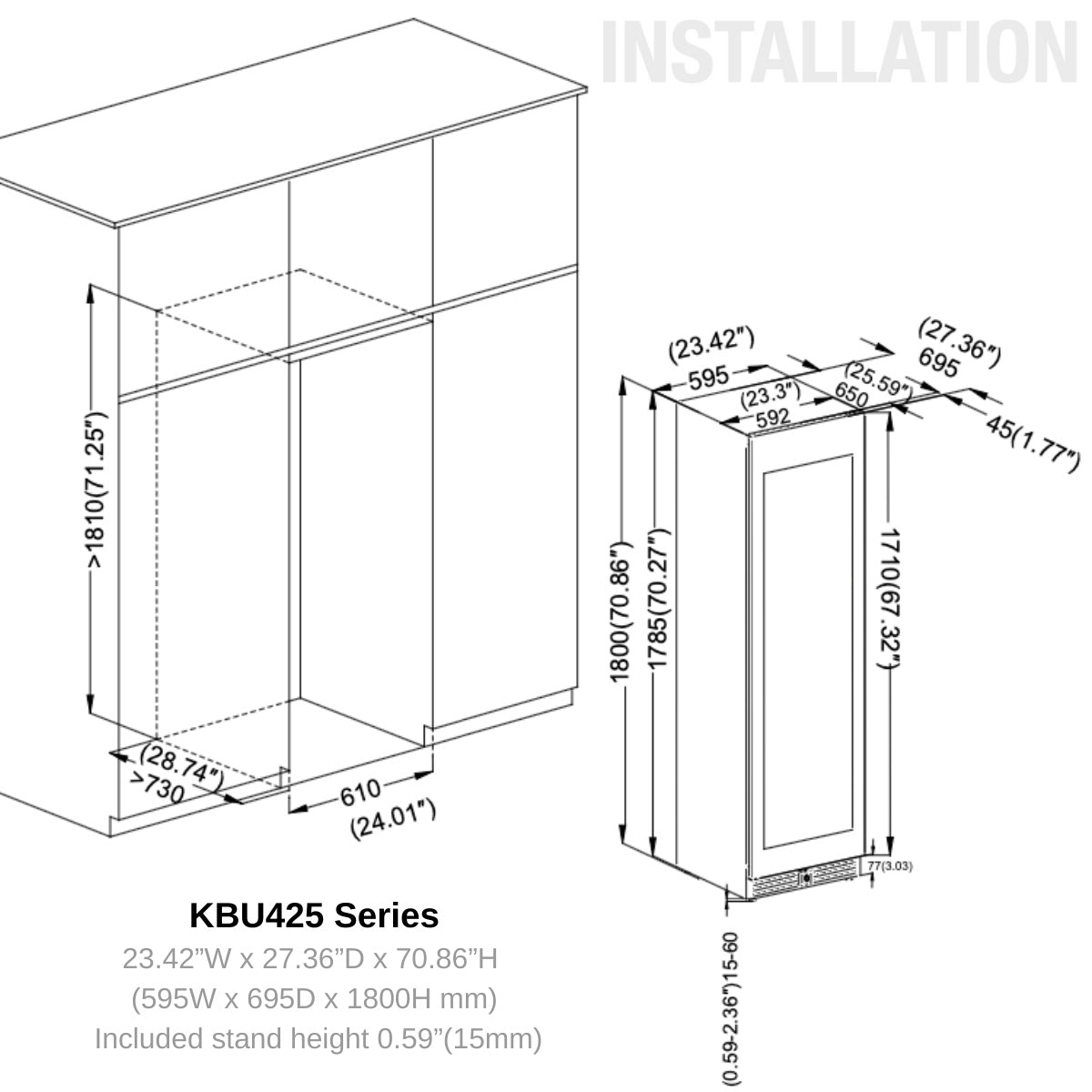

Installation Considerations	The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement.
Installation Note	Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance.
