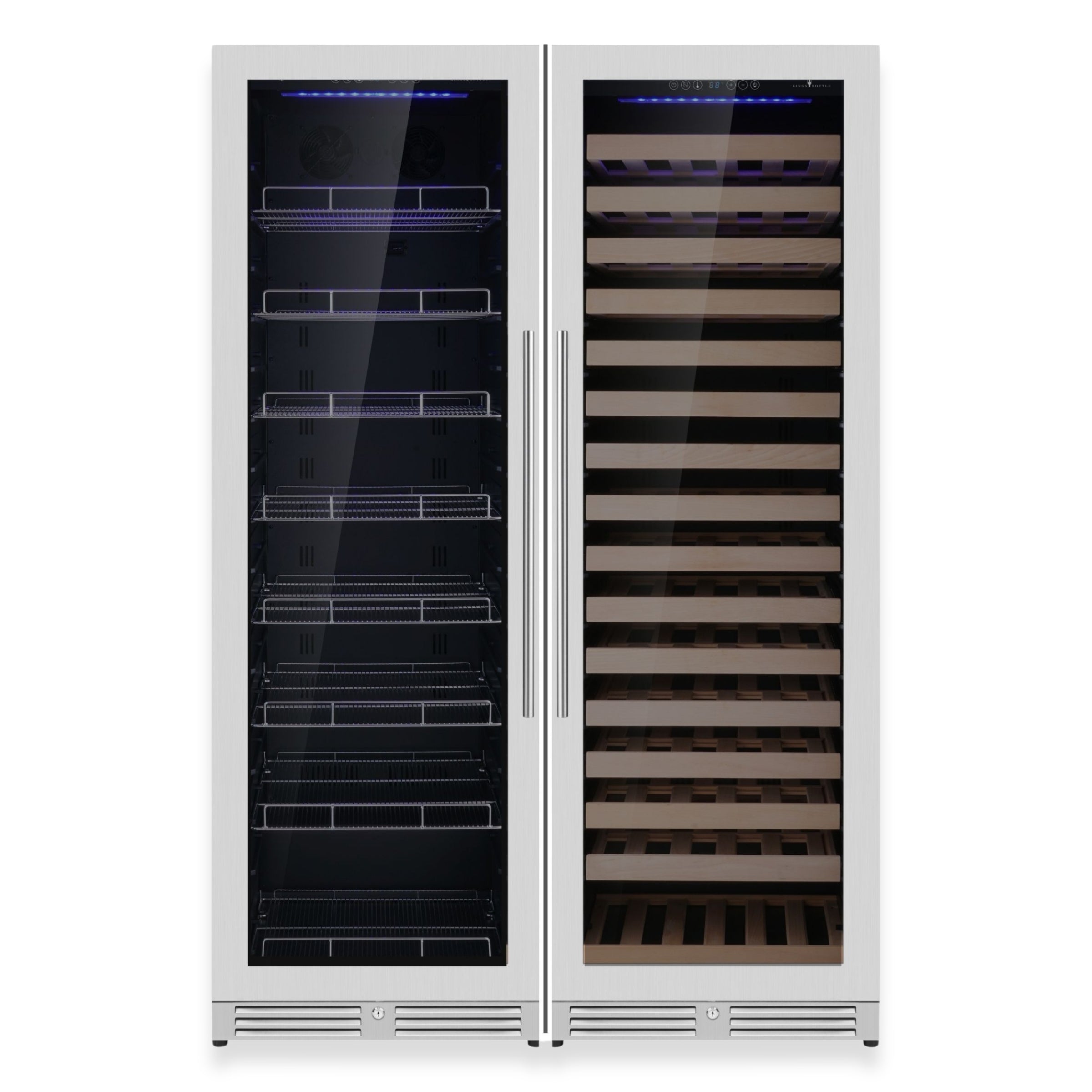

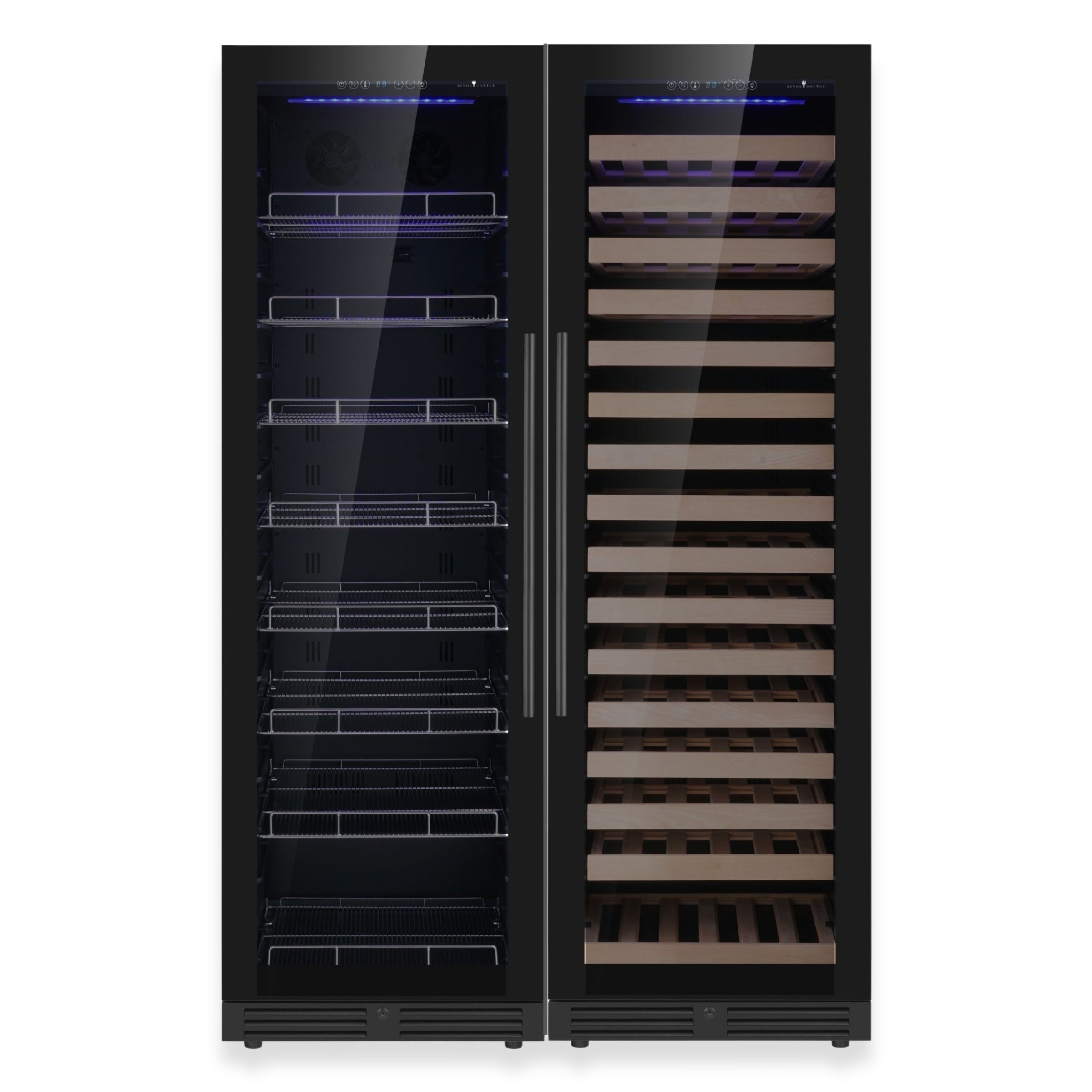

Ultimate Wine & Beverage Upright Refrigerator Combo with Low-E Glass Door
SIZE: 46.84” W x 27.36” D x 70.86” H, included stand height 0.59”
USE CASE: Ideal for collectors, home bars, or restaurants needing versatile, ample storage in a sleek, modern design.
NOTE: Set of two units, use side by side or separately.
Quick Overview:
The Ultimate Wine & Beverage Upright Refrigerator Combo offers efficient and stylish storage for both wine and beverages. With two distinct cooling zones, you can store your wine and drinks at the perfect temperature. The upper zone is ideal for wine, while the lower zone keeps beverages cold and refreshing.
This combo is powered by the Embraco Inverter Compressor, which ensures ultra-quiet operation and up to 40% less energy consumption compared to traditional compressors. Its sleek Low-E glass door provides UV protection, preserving the quality of your wine and beverages.
The adjustable shelving offers flexibility to store a variety of bottle and can sizes, and the unit’s modern design is perfect for both freestanding or built-in installation.
Specifications
Specifications
| Volume: | 30 CF (850 Liters) Total, 15 CF (425 Liters) Each |
| Capacity (by bottles): | 161 bottles |
| Capacity (by cans): | 630 cans |
| Installation Type: | Built-In or Freestanding |
| Climate Type: | N |
| Temperature Zones: | Dual Zone |
| Adjustable Temperature Range: |
|
| Operating Room Temperature: | 32-100°F (0-38°C) |
| Shelf Configuration: | 8 Chromed Steel Shelves + 16 Beech Wooden Shelves |
| Dimensions: | 46.84” W x 27.36” D x 70.86” H, included stand height 0.59” |
Electrical
| Compressor: | Embraco Inverter Compressors |
| Power Supply: | 110-115V/60HZ |
| Rated Power Input (W): | 330W (165W per unit) |
| Rated Current: | 3.4A (1.7A per unit) |
| Refrigerant: | R600A / 52g per unit |
Technical Features
Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet operation and reduces energy consumption by 40%.
Patented Sink of Compressor
Increases air circulation space around the compressor;
Provides better cooling performance, less vibration, and reduced noise.
Low-E Glass
Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.
Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.
Fan Circulated Air-Cooling System
Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.
Activated Carbon Filter
Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.
LED Display Digital Touchpad Control
Simple and easy-to-operate controls;
Clear and accurate settings display.
Beech Wooden Shelf
Optimized FULL-EXTENSION pull-out wood shelves with sturdy and wine-friendly beech; Cleverly spaced to fit both regular and larger bottles up to 3.39" (86mm) in diameter.
Magnetic Switch
2-minute door-open alarm.
Hidden Door Hinge
Laminated steel plate with integrated molding;
Full built-in design for seamless integration.
Seamless Stainless Steel Door Frame
Features an artistic appearance with a thin door design.
45mm Thickness C-Pantane
Thicker foam optimizes cooling performance and reduces energy consumption.
Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
User Instruction
This manual covers a combo set of two units: a Beverage Cooler and a Single Zone Wine Cooler.
