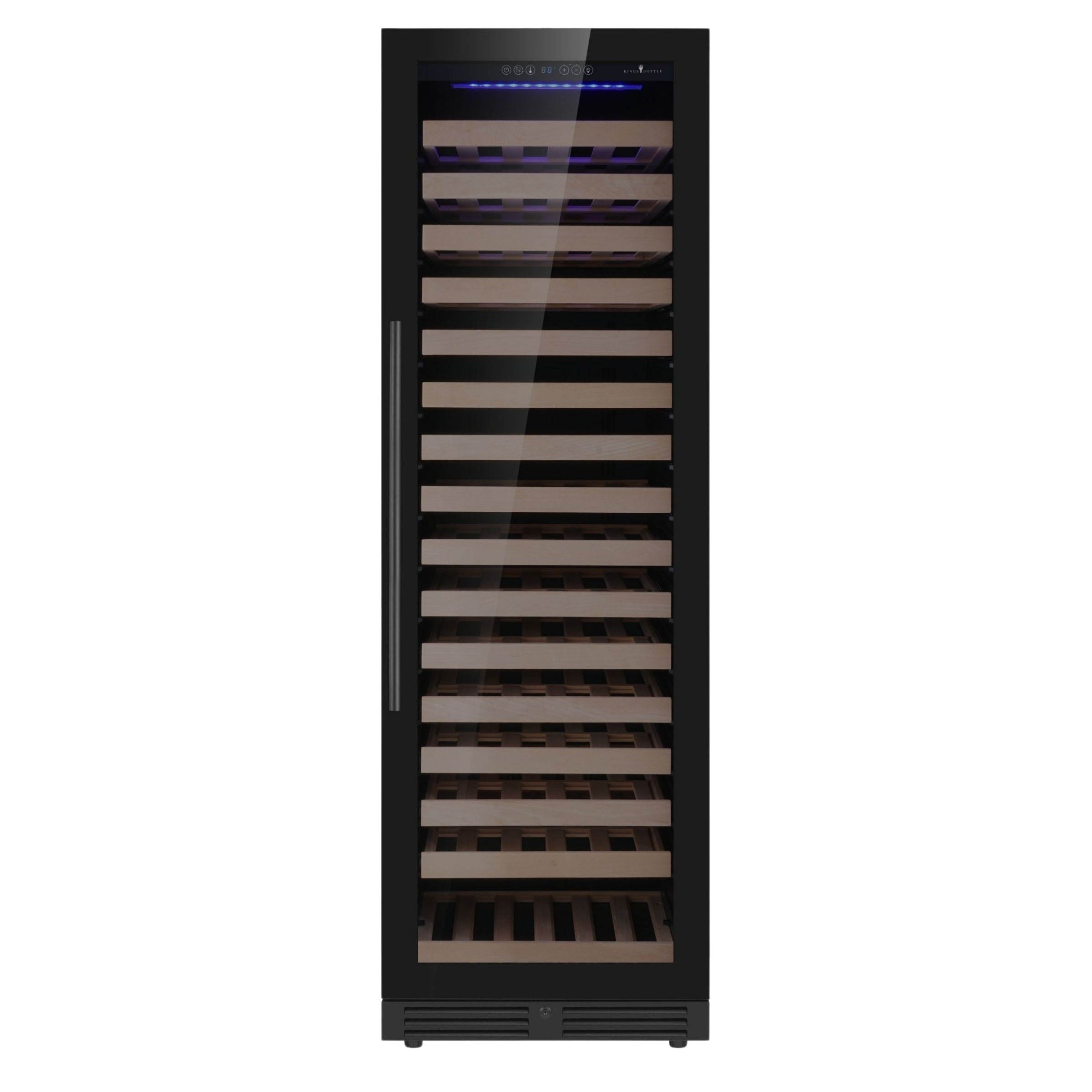

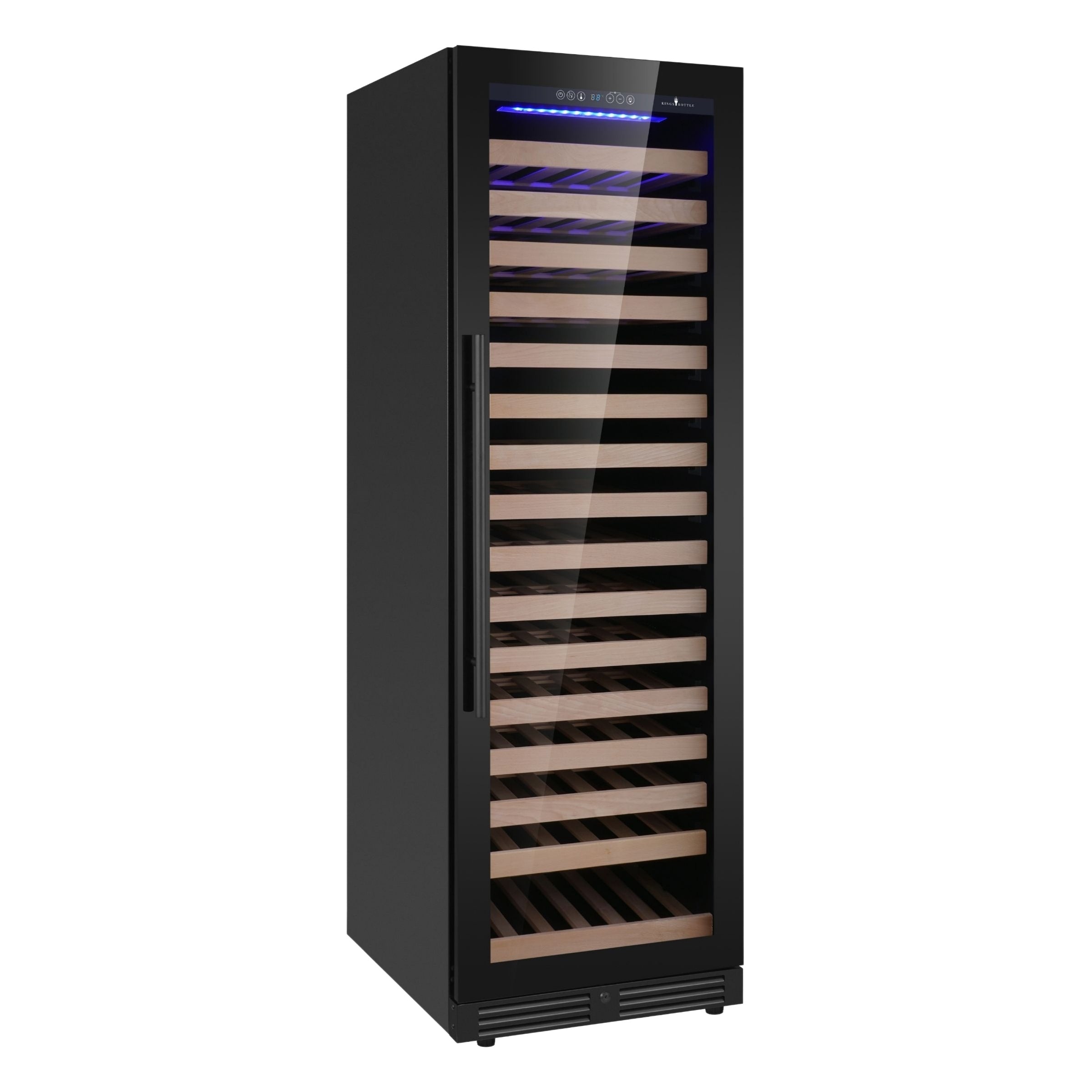

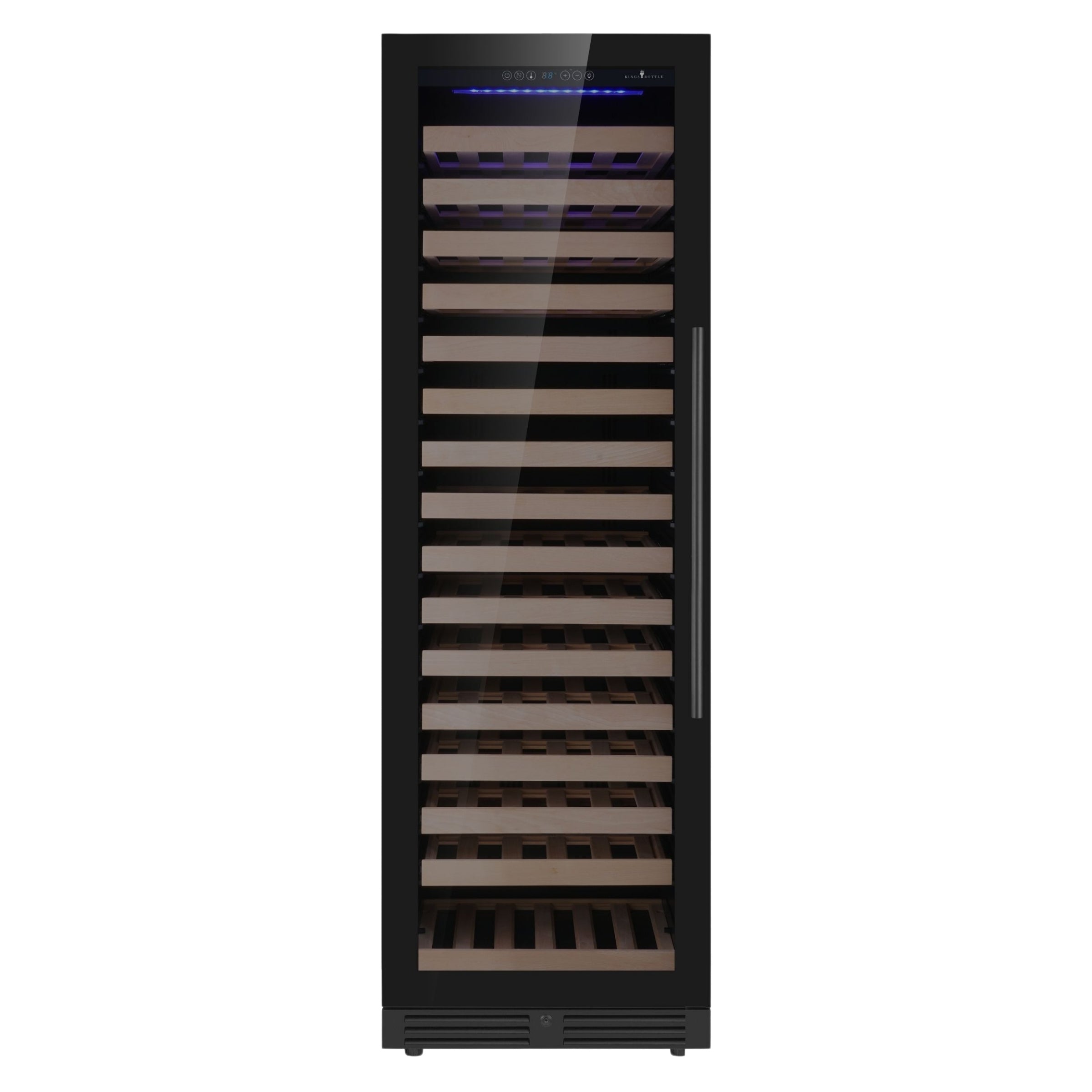

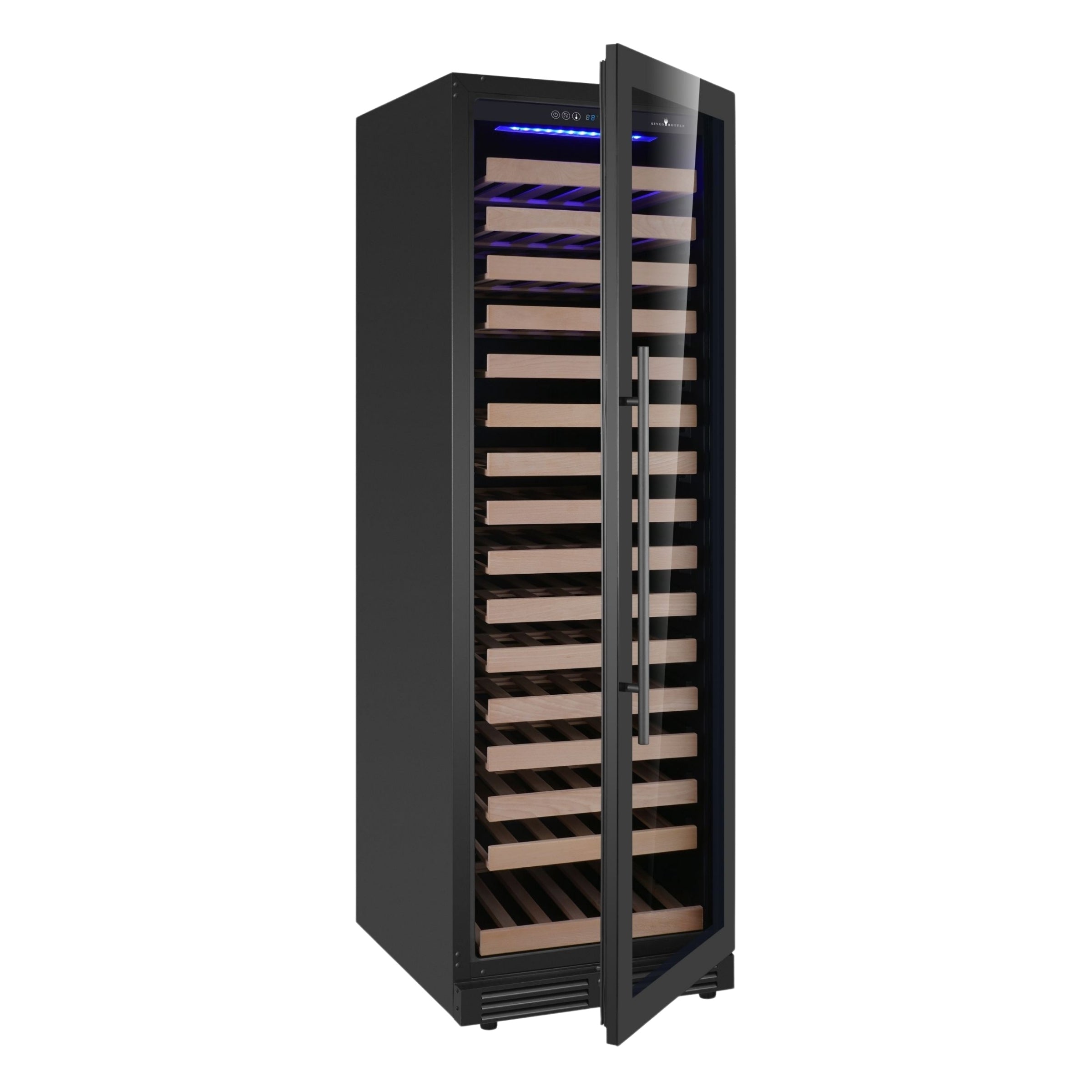

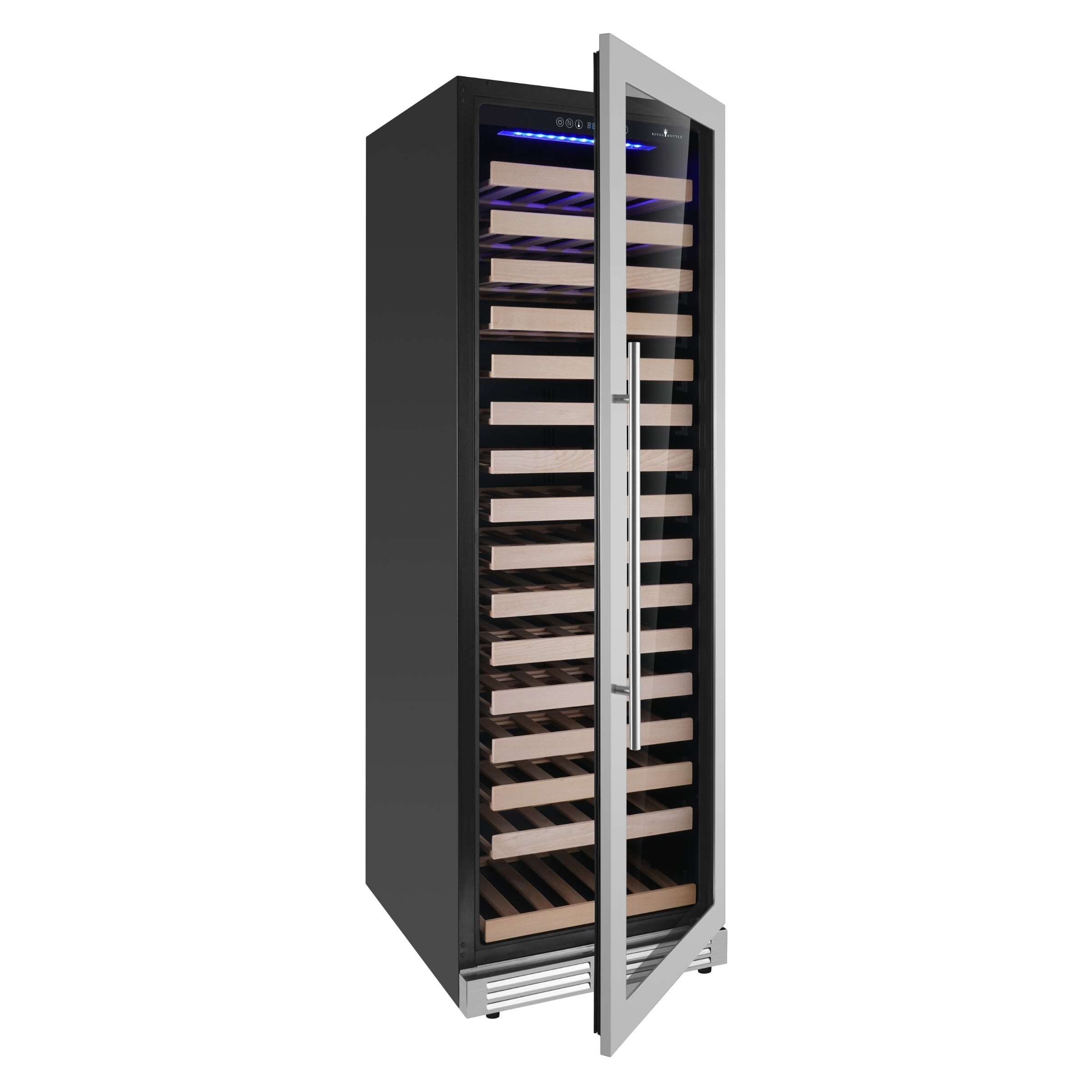

Upright Single Zone Large Wine Cooler With Low-E Glass Door
SIZE: 23.42”W x 27.36”D x 70.86”H, included stand height 0.59”
USE CASE: Ideal for medium collections to be cellared over extended periods

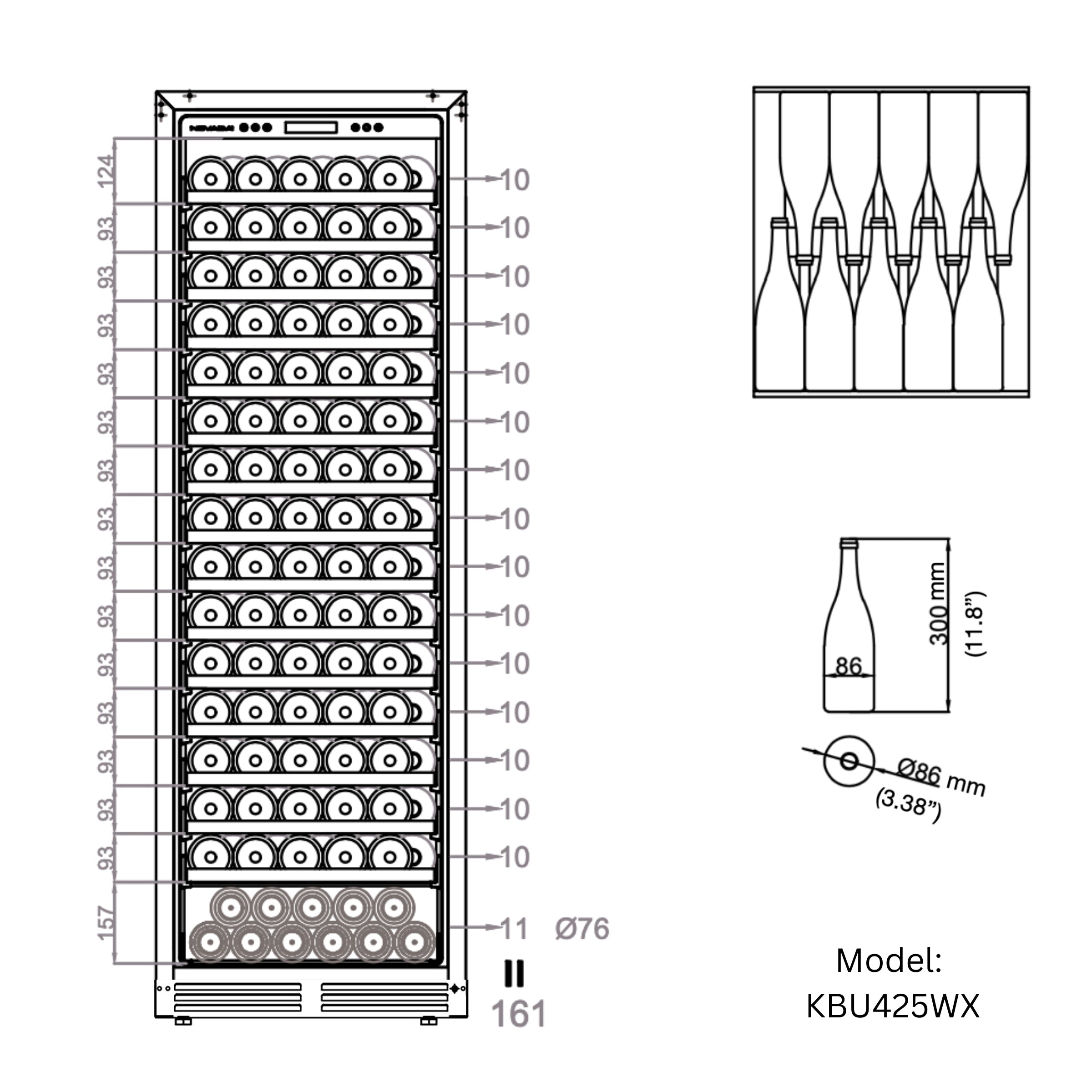

NOTE: Accommodates large bottles up to 3.39" (86mm) in diameter.
Quick Overview:
The Upright Single-Zone Large Wine Cooler with Low-E Glass Door is the ideal solution for wine collectors who need efficient storage in a stylish, easy-to-access unit. Powered by the Embraco Inverter Compressor, it offers ultra-quiet, energy-efficient performance, reducing energy consumption while ensuring your wines stay at the perfect temperature.
The Low-E Glass Door provides UV protection, safeguarding your wine collection from harmful light while also minimizing condensation. This cooler’s spacious interior offers ample storage space for up to 161 bottles of wine, with adjustable shelving that allows you to customize the layout for various bottle sizes.
Designed with sleek, modern aesthetics, this wine cooler is the perfect addition to any home or commercial space.
👉 Need a dual-zone version?
Check out our same-size Dual Zone Upright Low-E Glass Door Large Wine Cooler.
👉 Pair It as a Beer& Wine Combo: Looking to expand your beverage storage? Consider pairing this wine cooler with our Large Beverage Refrigerator for a matching set.
Specifications
Cooling
| Bottle Capacity | 161 Bottles |
|---|---|
| Temperature Zones | Single Zone |
| Temperature Range | 35°F to 68°F ( 2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
Construction
| Door Type | Borderless Black Glass Door |
|---|
Electrical & Size
| Volume | 15.00 CF (425 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 103.0 lb |
| Dimensions (W x D x H) | 23.43" W x 27.36" D x 70.87" H |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
