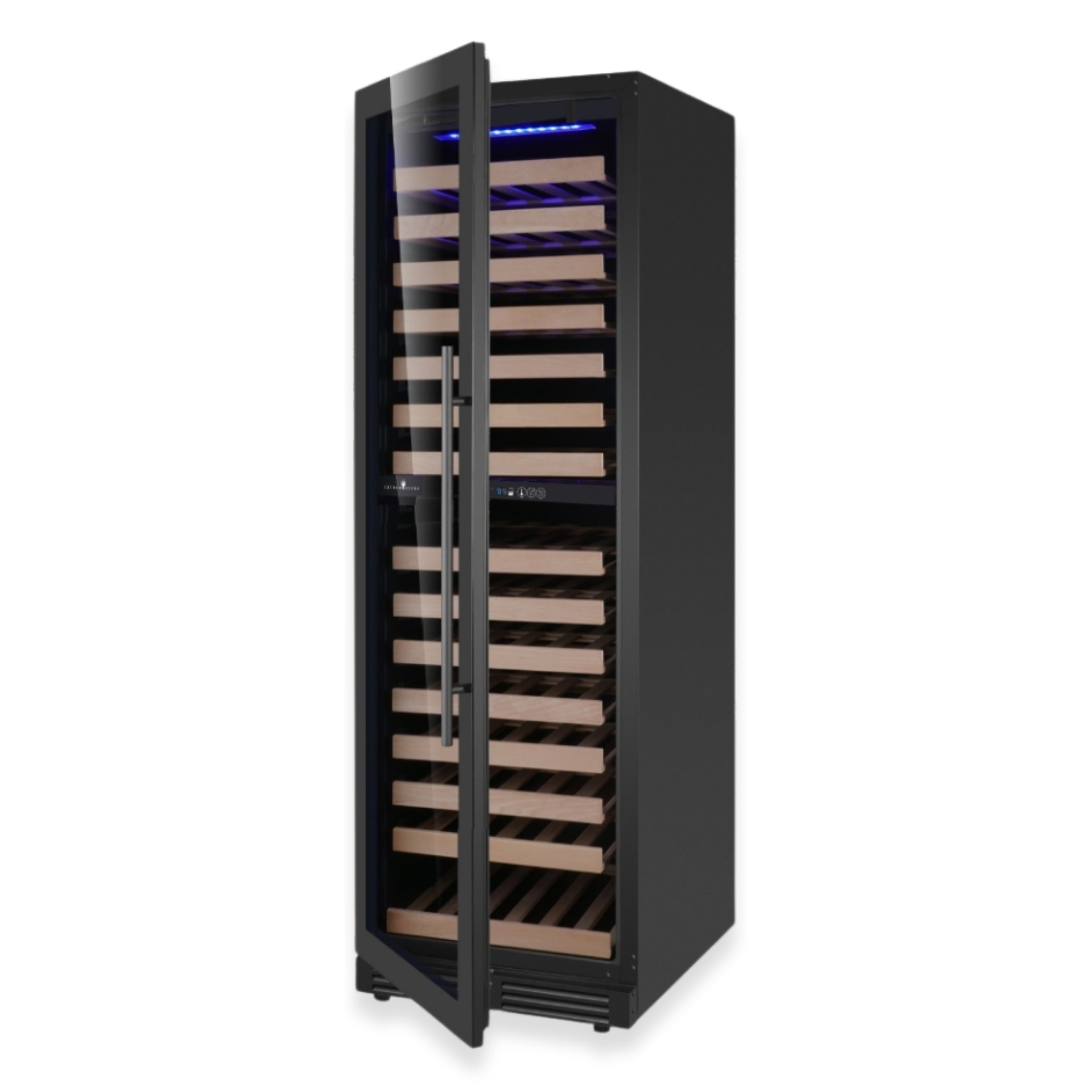

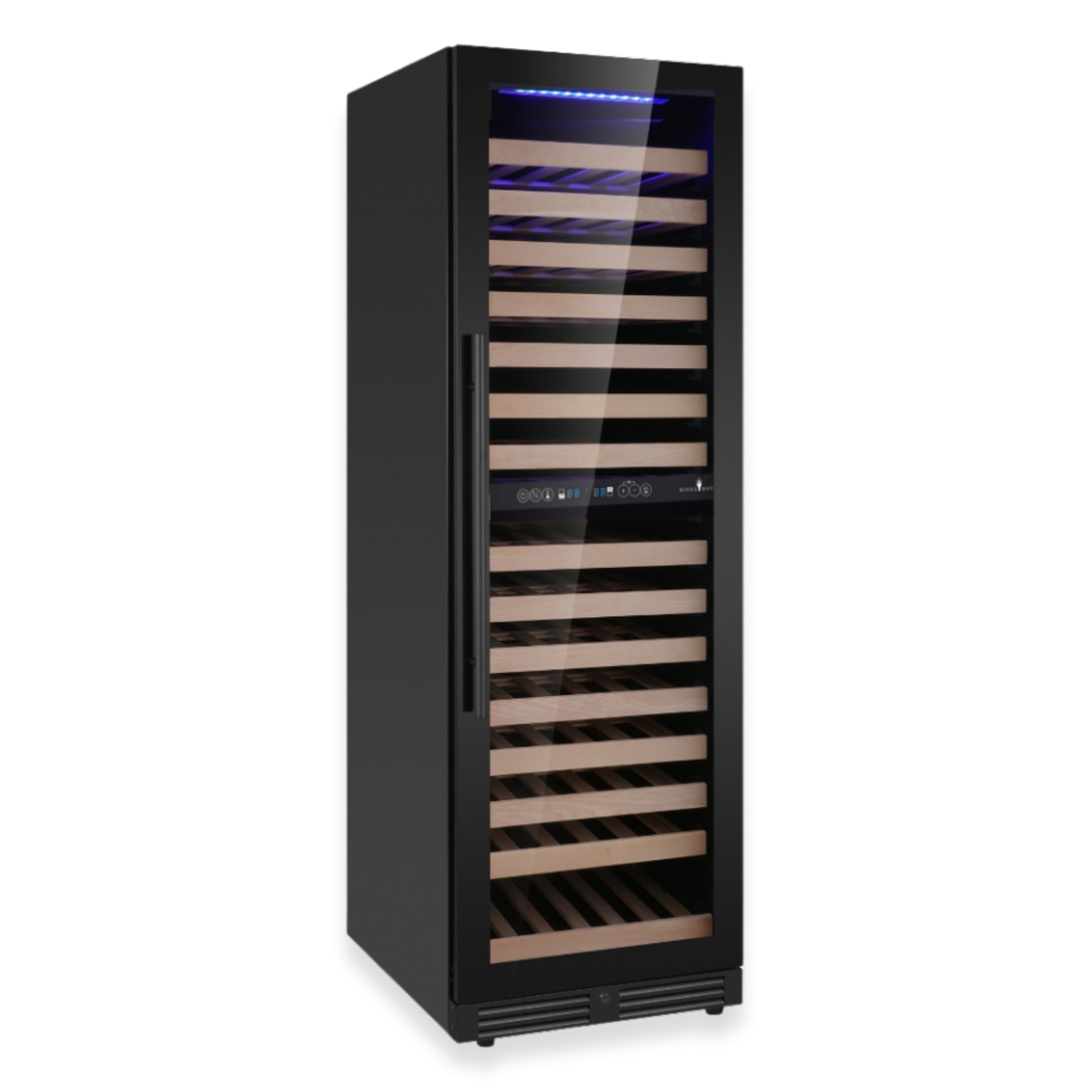

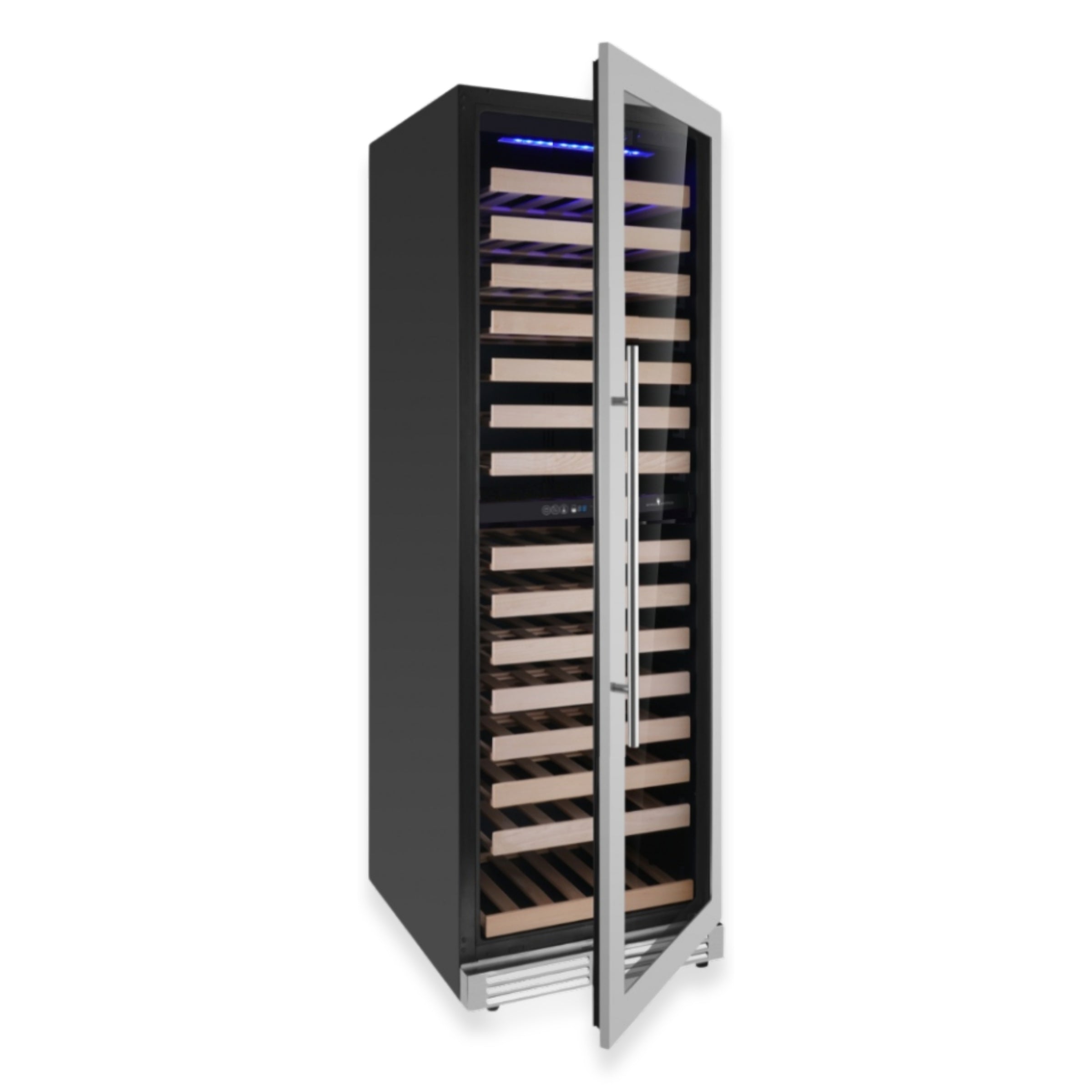

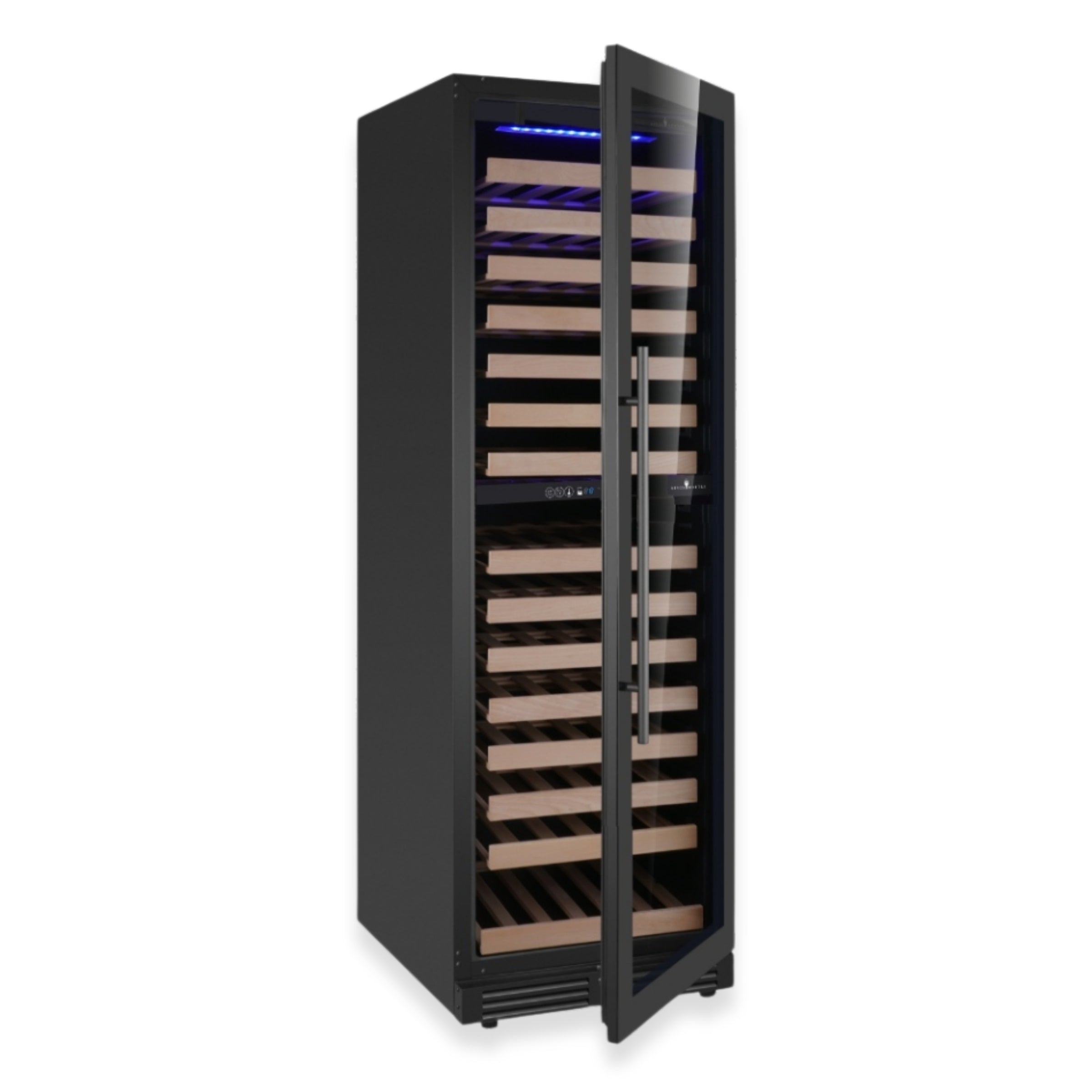

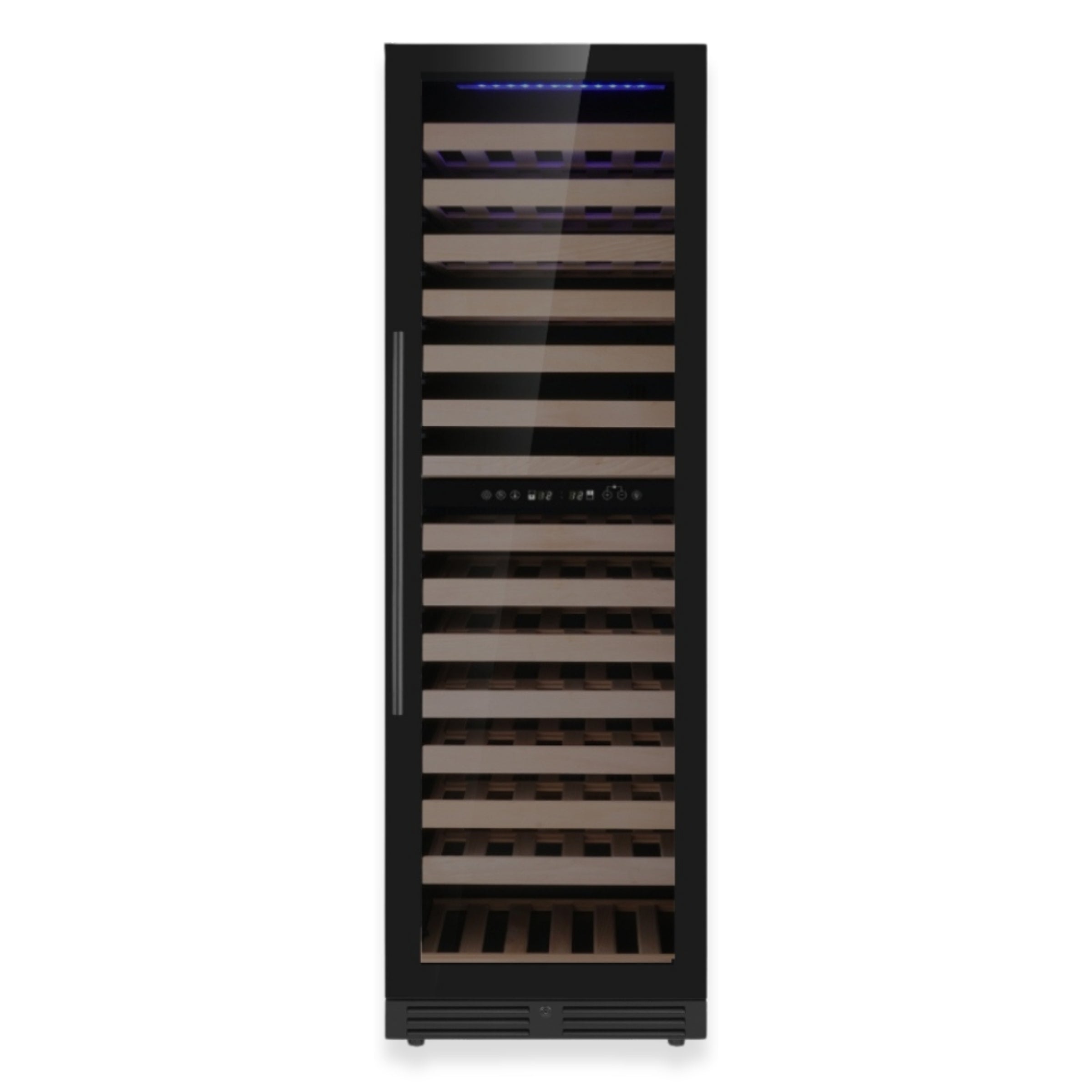

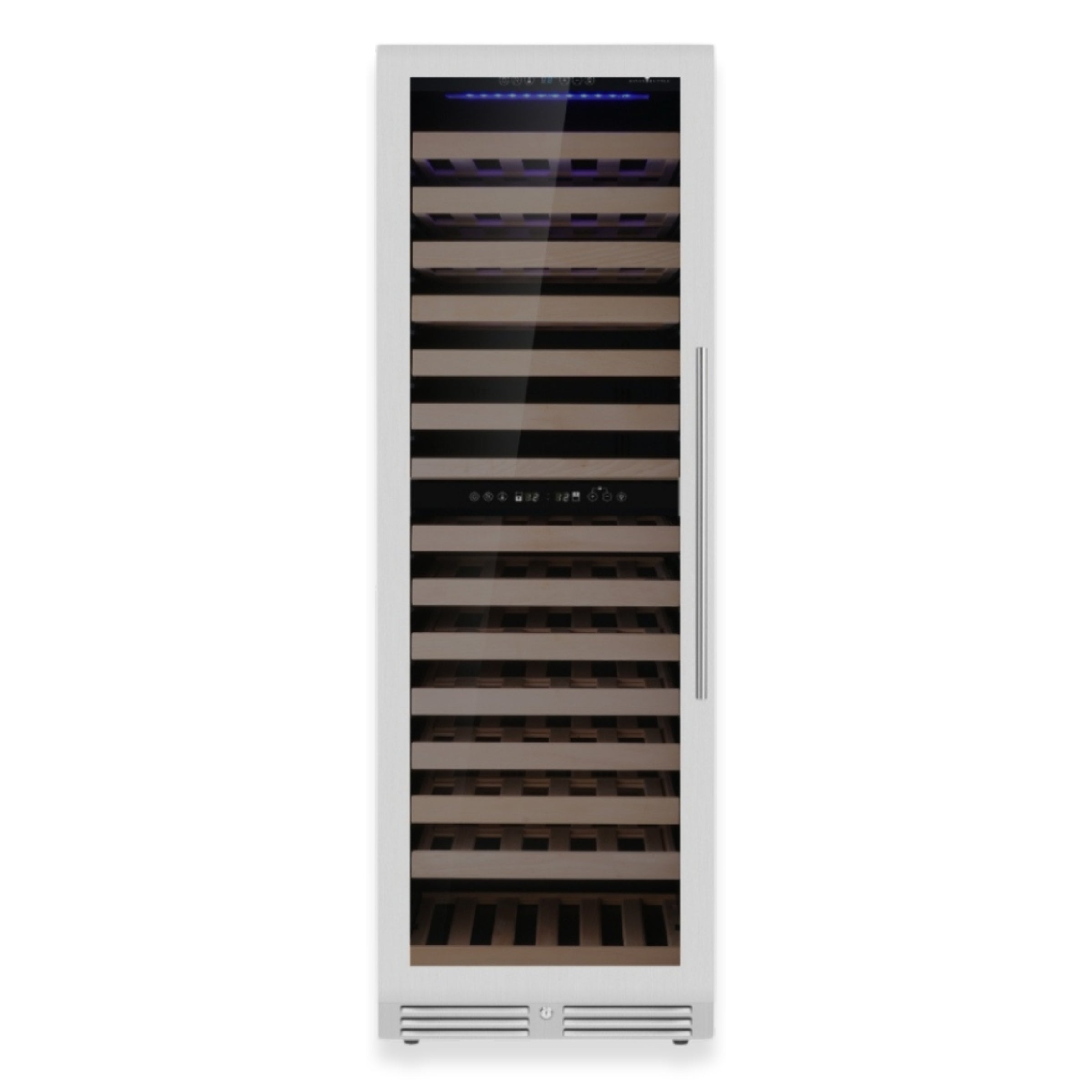

72-Inch Upright Dual-Zone Wine Cooler
Wine Collection Storage
Designed for dedicated wine collectors, providing stable temperature control and optimal conditions for long-term bottle preservation.
Key Features

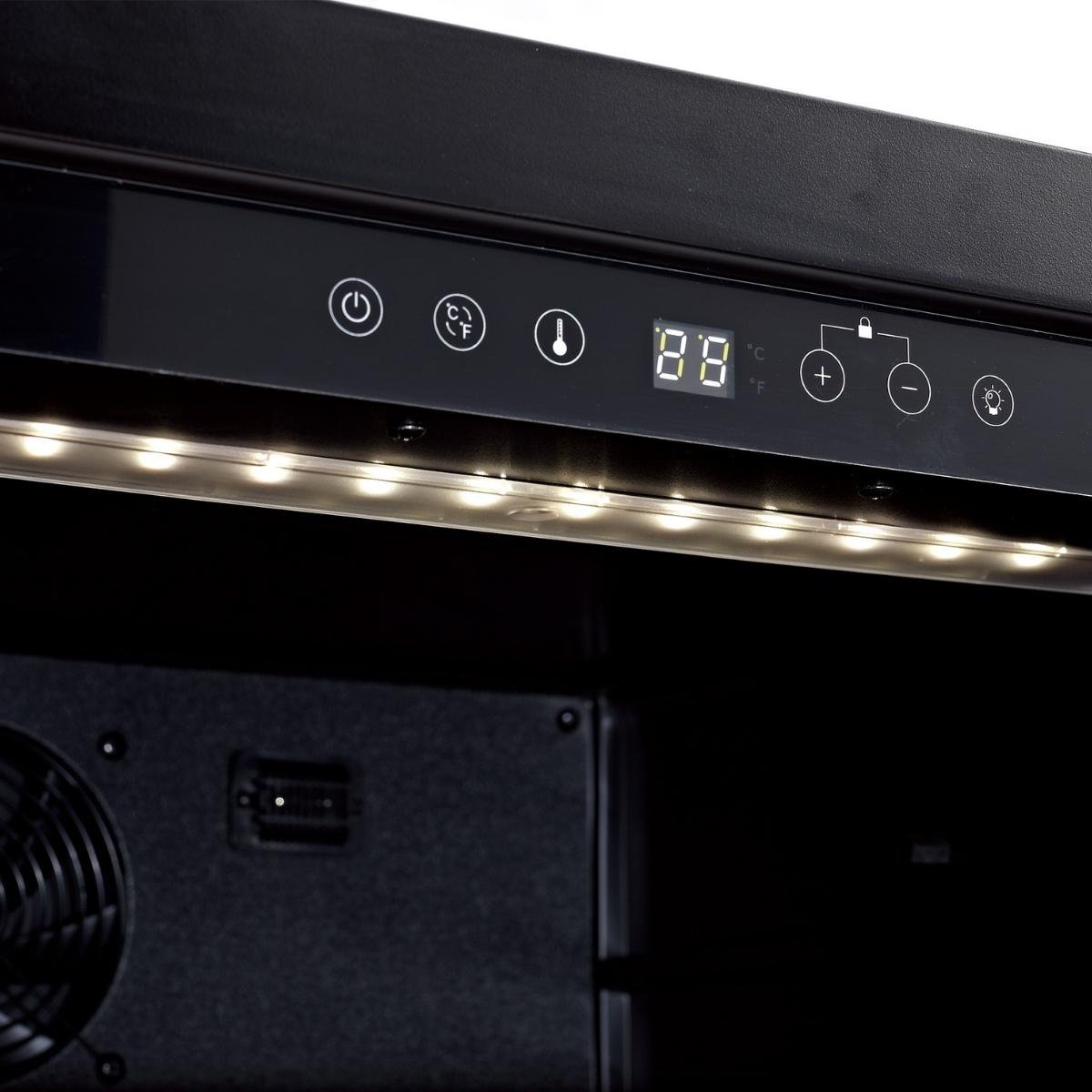

Dual-Zone Temperature Control
Store wine at ideal serving and aging temperatures with independently controlled zones.
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Large Bottle Compatibility
Fits wider bottles without compromising storage capacity or organization.
Full-Extension Shelving
Smooth glide-out shelves provide easy access to every bottle, even those stored at the back.
Capacity
Stores up to 159 bottles
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Designed for larger wine collections, this tall dual-zone wine cooler provides organized storage with flexible serving conditions for different wine styles.
Independent temperature zones allow red and white wines to be stored separately within one upright refrigeration system.
The tall configuration supports expanded bottle capacity while keeping the collection visible, accessible, and neatly arranged for everyday use or entertaining.
Well suited for wine rooms, entertainment spaces, and dedicated storage areas where capacity, flexibility, and refined presentation all matter.
Specifications
Cooling
| Bottle Capacity | 159 Bottles |
|---|---|
| Temperature Zones | Dual Zone |
| Temperature Range | Upper Zone 35°F to 54°F (2°C to 12°C); Lower Zone 54°F to 68°F ( 12°C to 20°C ) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
Construction
| Door Type | Low-E Glass |
|---|
Electrical & Size
| Volume | 15.00 CF (425 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 103.0 lb |
| Energy Consumption | 230 kWh/Year |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Dimensions (W x D x H) | 23.43" W x 27.36" D x 70.87" H (595W x 695D x 1800H mm) |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
