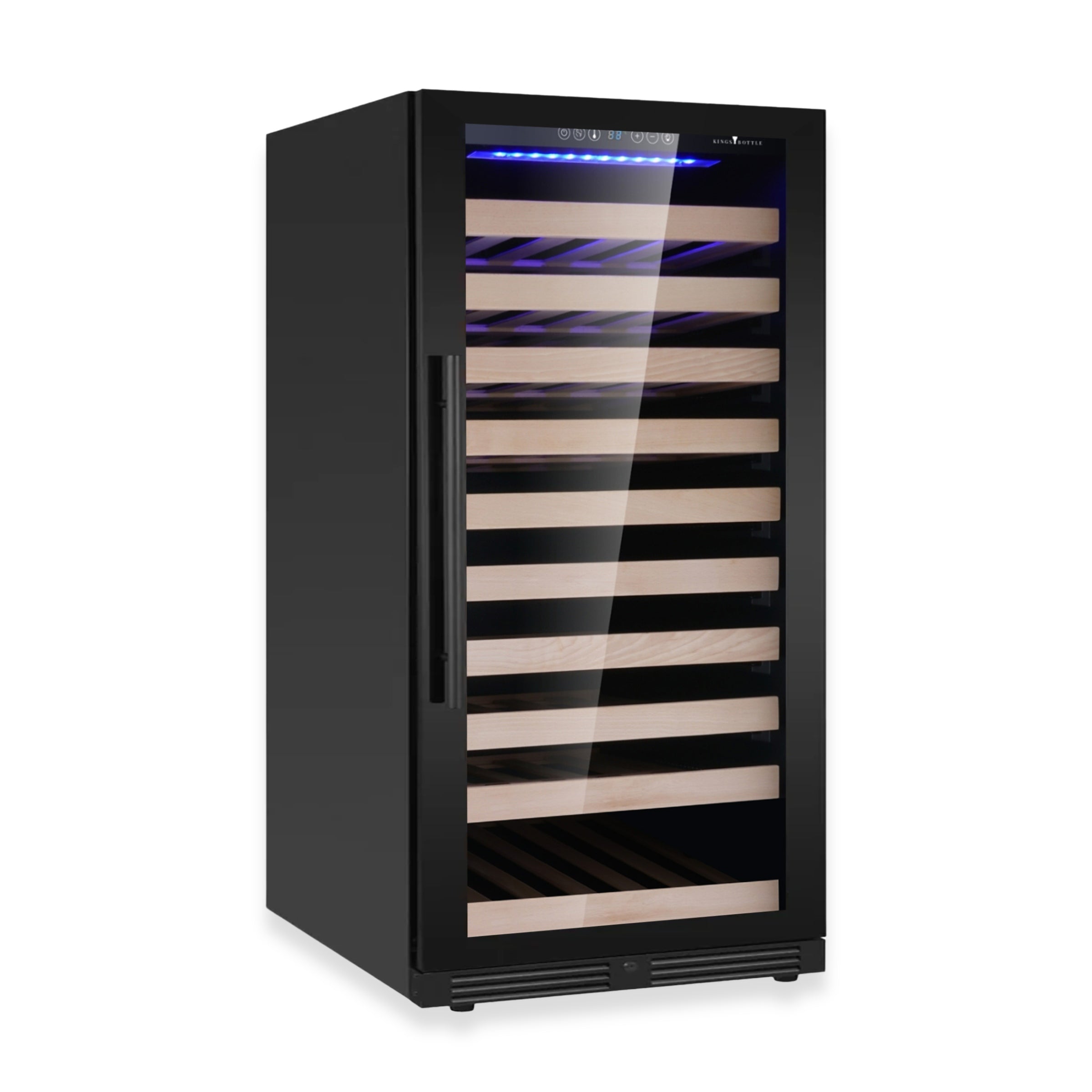

47-Inch Height Single Zone Wine Cooler with Low-E Glass Door
SIZE: 23.42”W x 27.55”D x 47.24”H, included stand height 0.59”
USE CASE: Ideal for medium collections to be cellared over extended periods. Great for under stairs or pantries

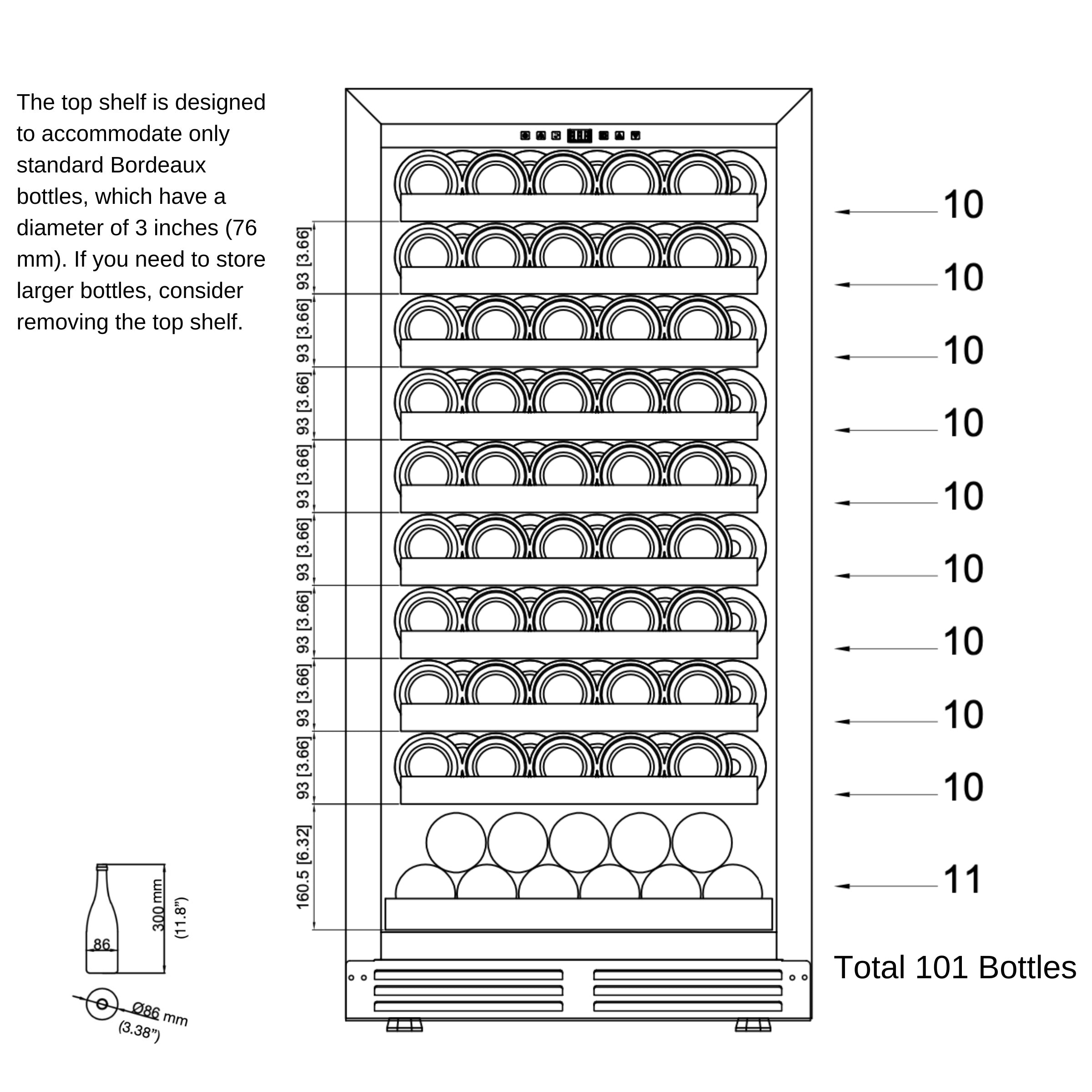

NOTE: Accommodates large bottles up to 3.39" (86mm) in diameter.
Quick Overview:
The 47-Inch Height Single-Zone Wine Cooler with Low-E Glass Door offers optimal storage for your wine collection with advanced cooling technology. This unit is powered by the Embraco Inverter Compressor, which provides quieter, energy-efficient performance, reducing energy consumption by up to 40%. The Low-E Glass Door offers superior UV protection, preserving the quality and taste of your wines.
With a sleek design and spacious interior, this wine cooler stores up to 99 bottles of wine. It features adjustable shelving, allowing you to store bottles of various sizes. Ideal for both home and commercial use, it provides reliable temperature control in a modern, stylish package.
🔗 Looking for dual-zone flexibility?
Check out our same-size 47-Inch Tall Dual Zone Wine Cooler with Low-E Glass Door
👉 Pair It as a Combo: Looking to expand your beverage storage? Consider pairing this wine cooler with our 389 Cans Capacity Upright Beverage Refrigerator for a matching set.
Specifications
Cooling
| Bottle Capacity | 99 Bottles |
|---|---|
| Temperature Zones | Single Zone |
| Temperature Range | 35°F to 54°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
Construction
| Door Type | Borderless Black Glass Door |
|---|
Electrical & Size
| Volume | 9.36 CF (265 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 76.0 lb |
| Dimensions (W x D x H) | 23.43" W x 27.56" D x 47.24" H |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |

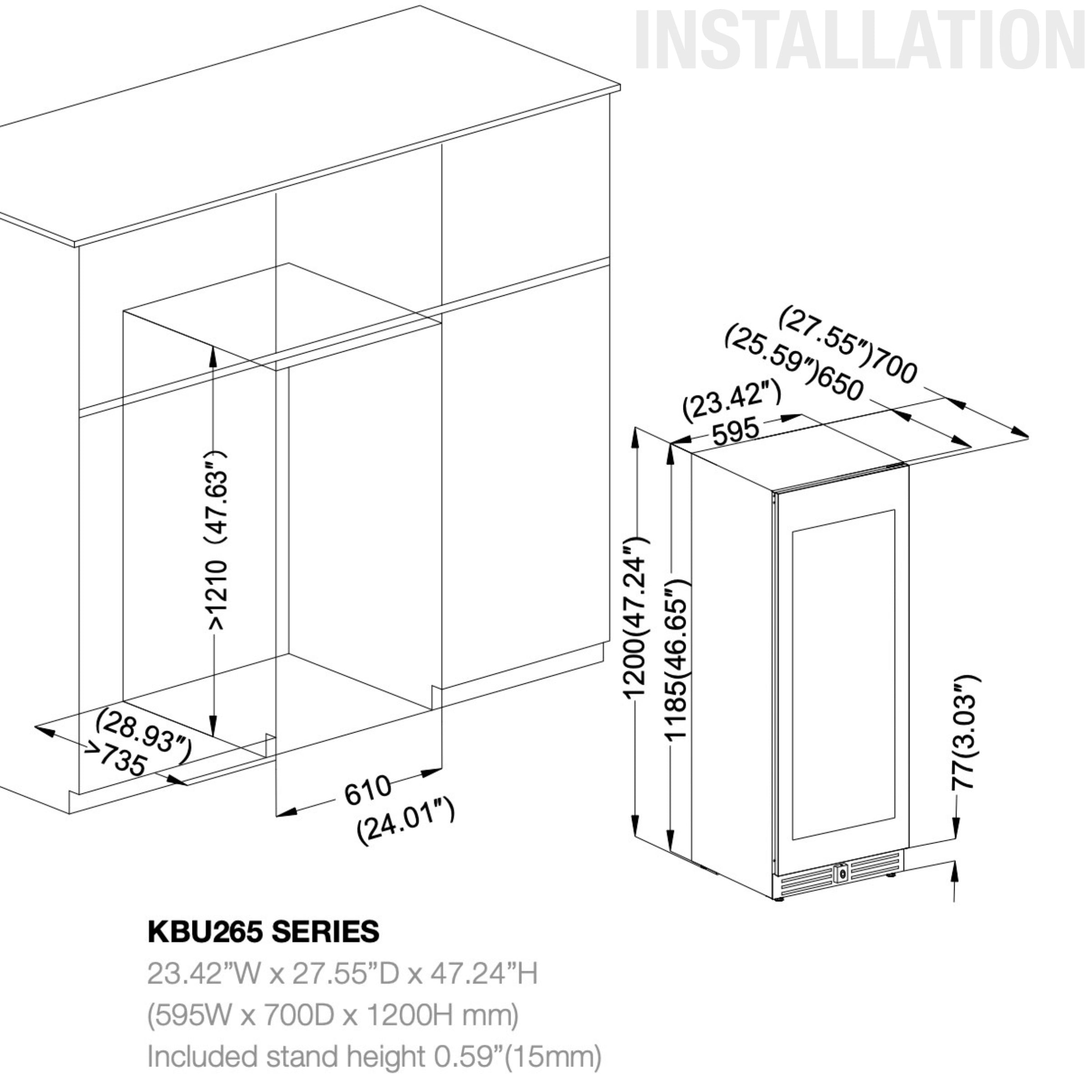

Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
