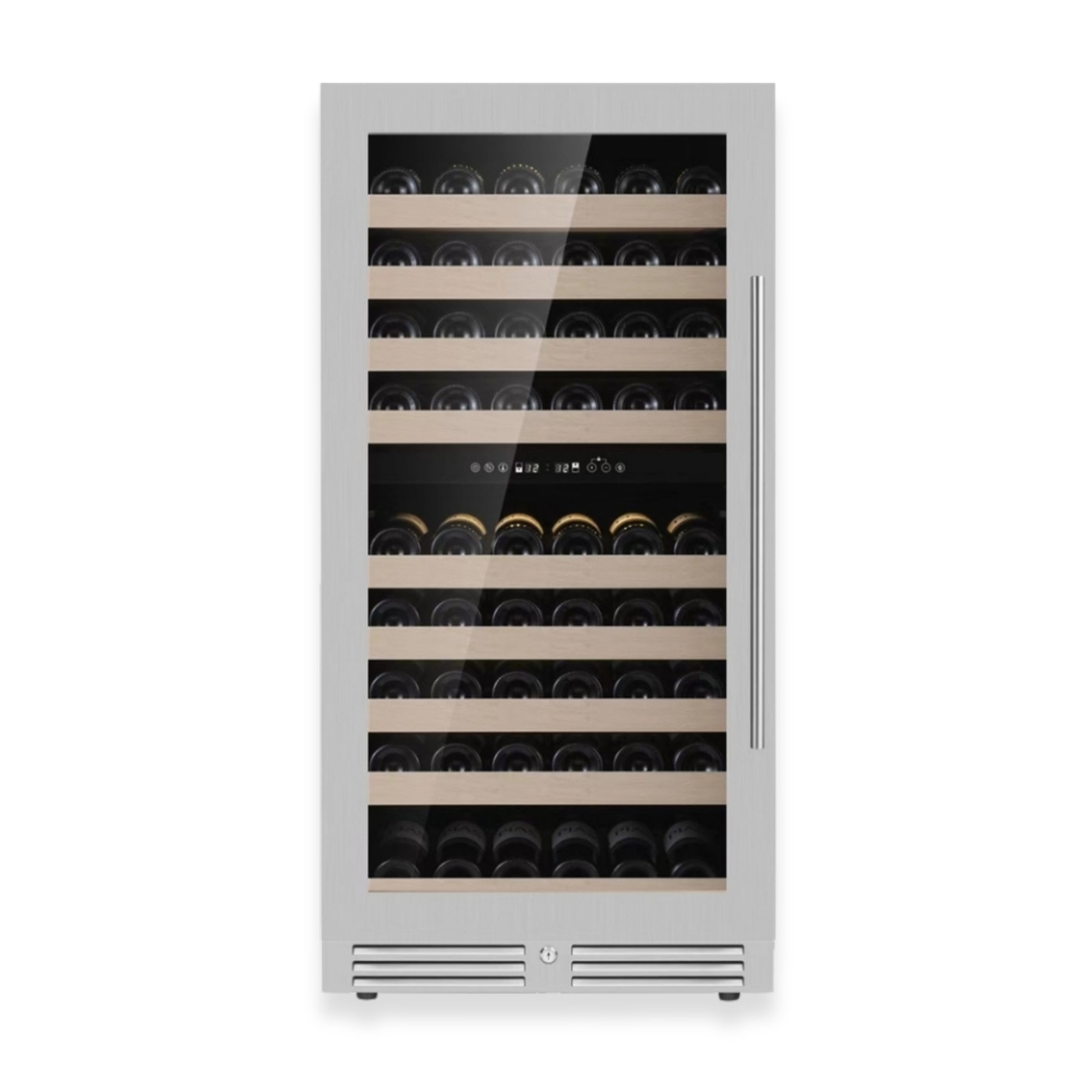

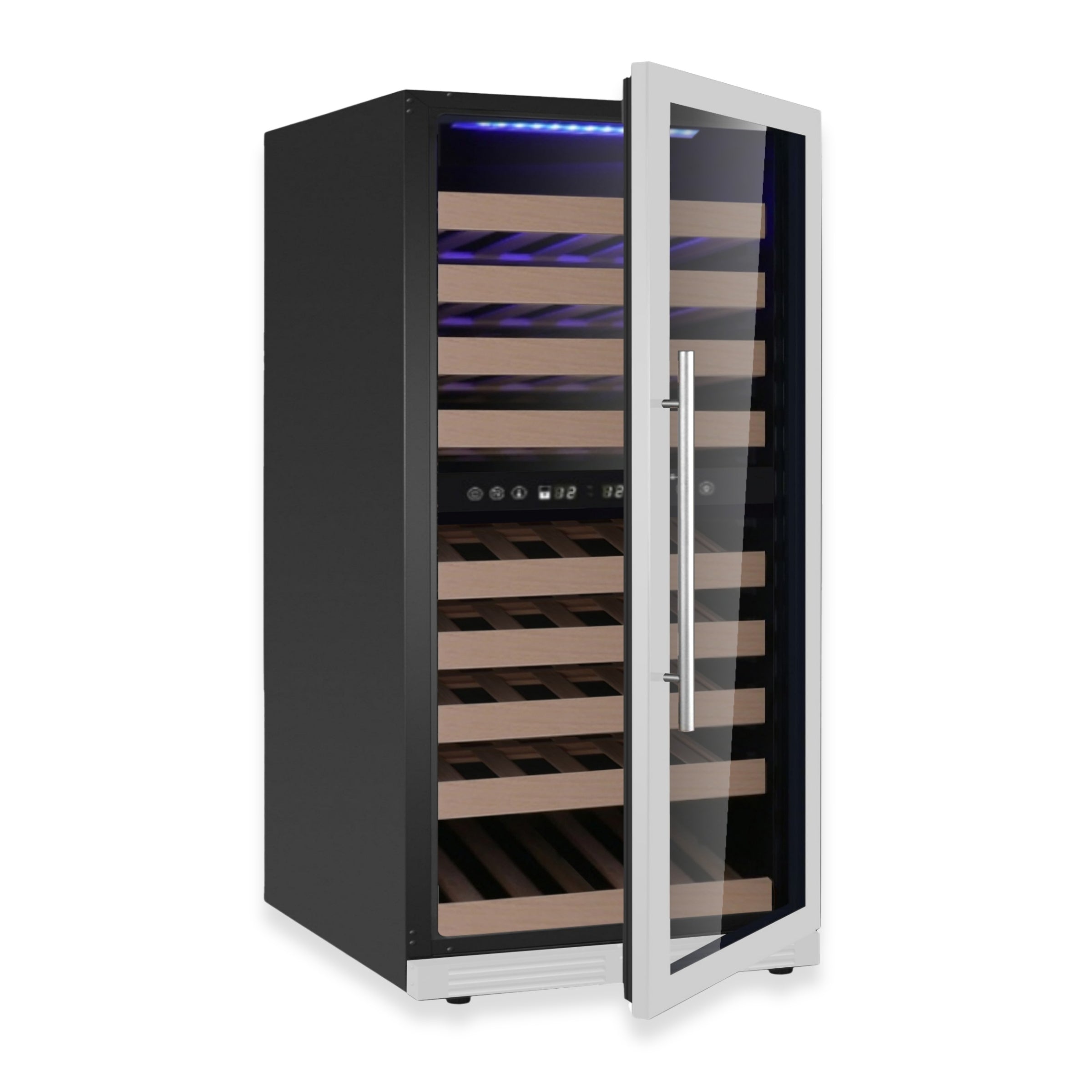

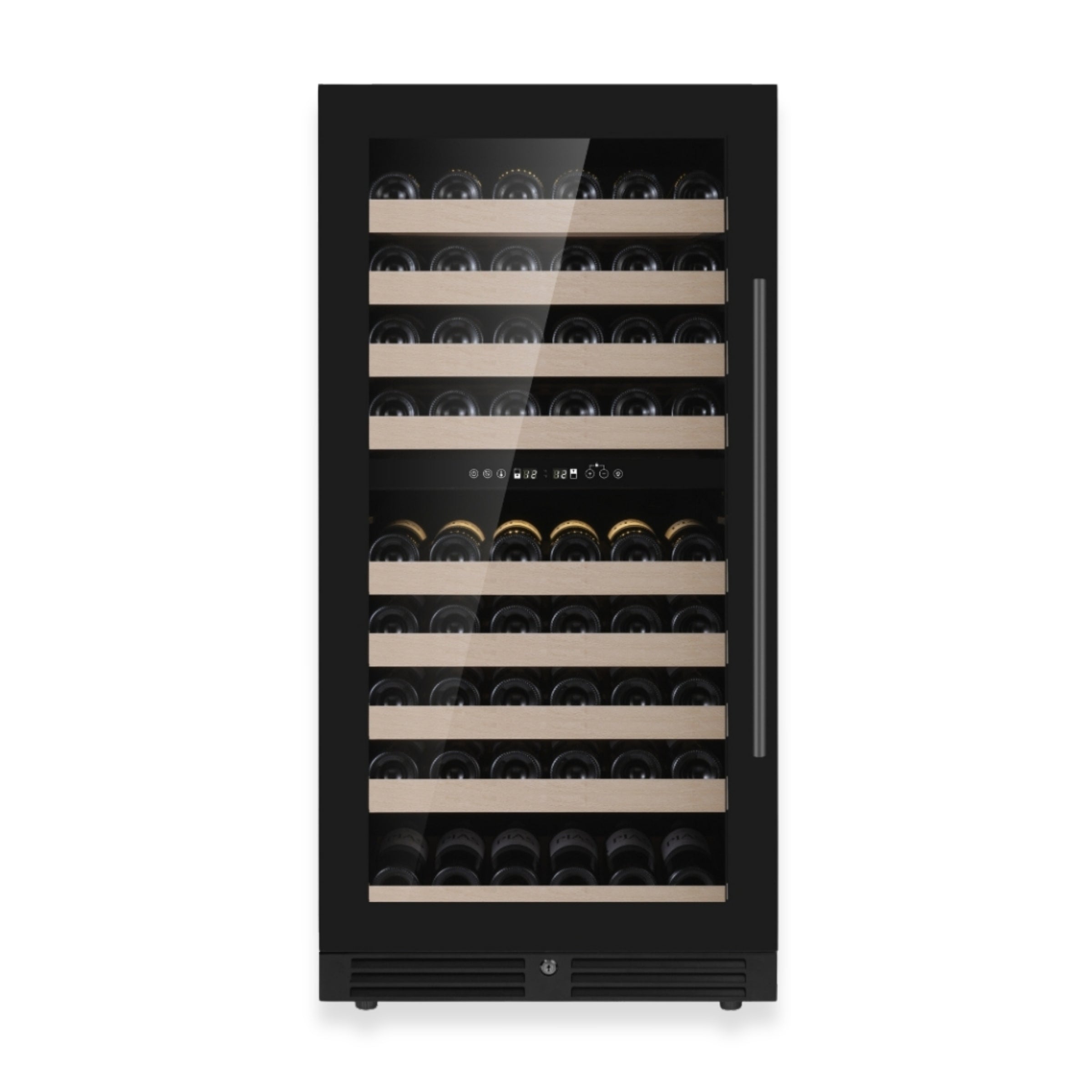

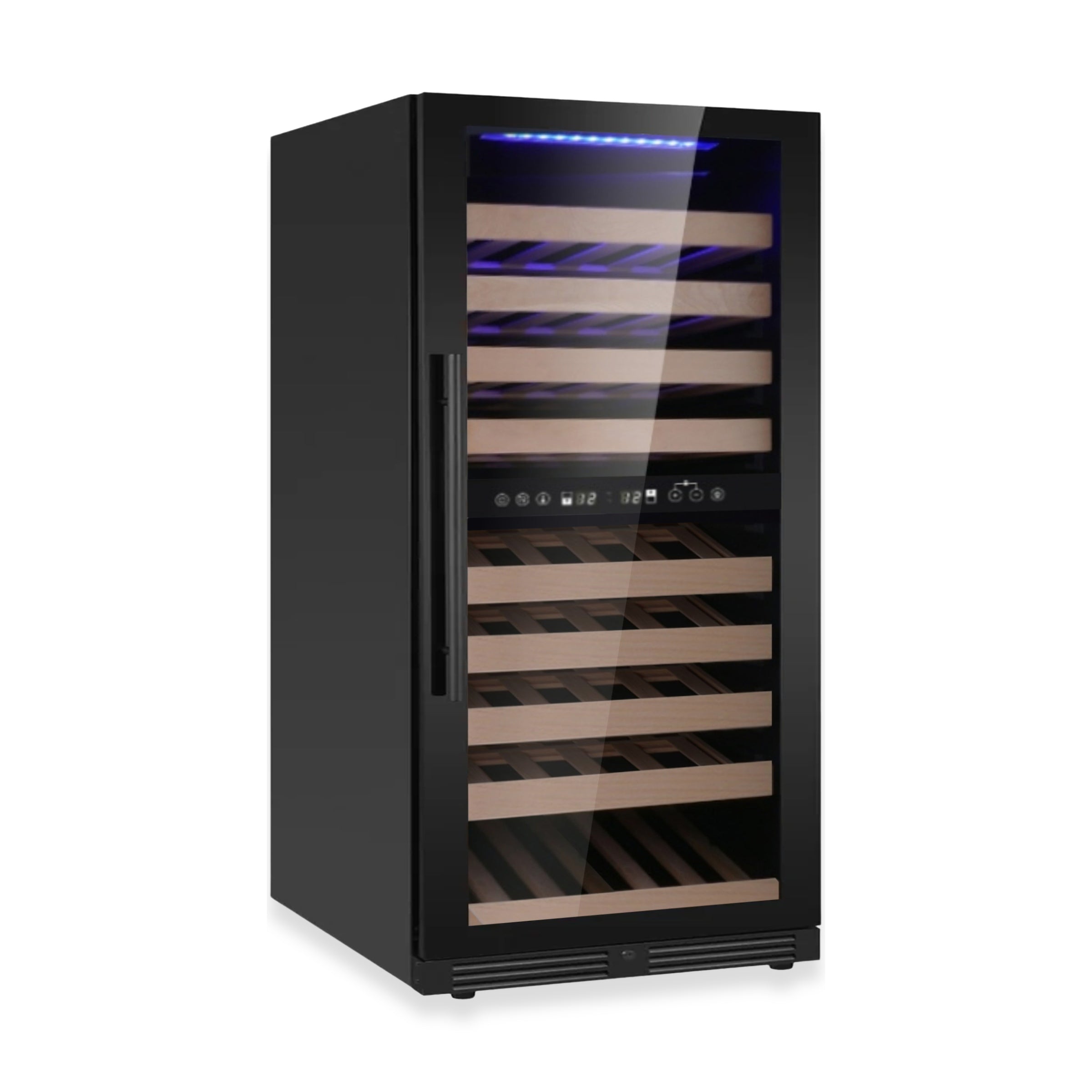

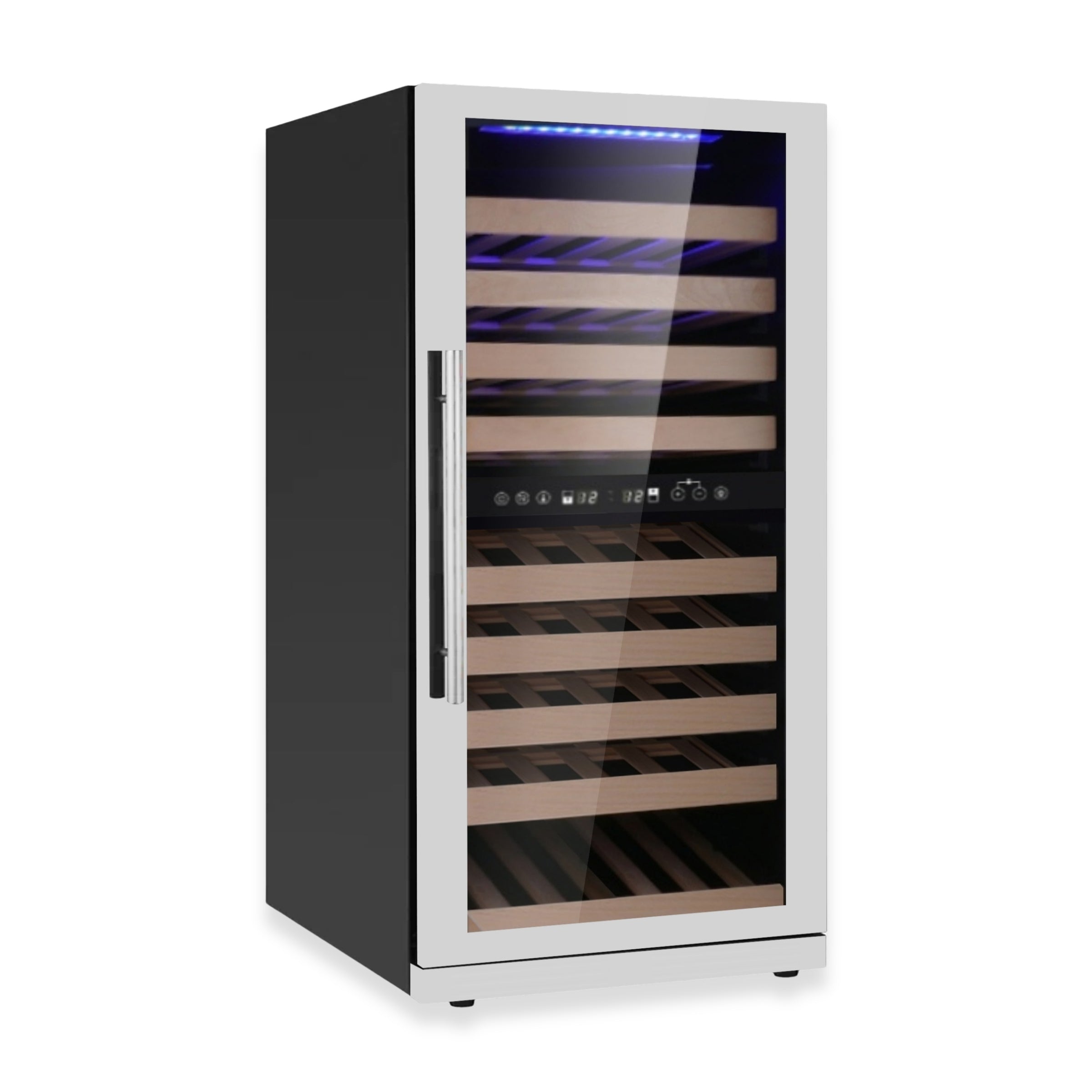

47-Inch Tall Dual Zone Wine Cooler with Low-E Glass Door
SIZE: 23.42”W x 27.55”D x 47.24”H, included stand height 0.59”
USE CASE: Ideal for medium collections with everything at serving temperature. Great for under stairs or pantries
NOTE: Accommodates large bottles up to 3.39" (86mm) in diameter.
Quick Overview:
The 47-Inch Tall Dual Zone Wine Cooler with Low-E Glass Door is designed to provide optimal wine storage with modern efficiency. Featuring an Embraco Inverter Compressor, this wine cooler ensures ultra-quiet and energy-efficient cooling, consuming up to 40% less energy than traditional models.
The Low-E Glass Door protects your wine from harmful UV rays while minimizing condensation. With dual-zone temperature control, you can store both red and white wines at the perfect temperature.
This unit offers ample storage space for your wine collection with adjustable shelves to accommodate different bottle sizes, making it a versatile and stylish addition to any home or commercial space.
👉 Build the ultimate beverage center!
Pair with our 47-Inch Beverage Cooler for a side-by-side triple-zone setup.
Specifications
Specifications
Volume: | 9.36 CF ( 265 Liter) |
Capacity (by bottles): | 91 bottles |
Installation Type: | Built-In or Freestanding |
Climate Type: | N |
Temperature Zones: | Dual Zone |
Adjustable Temperature Range: |
|
Operating Room Temperature: | 32-100°F (0-38°C) |
Shelf Configuration: | 8 Beech Wooden Shelves |
Dimensions: | 23.42”W x 27.55”D x 47.24”H, included stand height 0.59” |
Electrical
Compressor: | Embraco Inverter Compressor |
Rated Power Input: | 165W |
Rated Current: | 1.7A |
Refrigerant: | R600A / 45g |
Power Lamp: | 0.7W |
Energy Consumption: | 0.63Kw*h/24h |
Technical Features
Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet operation and reduces energy consumption by 40%.
Patented Sink of Compressor
Increases air circulation space around the compressor;
Provides better cooling performance, less vibration, and reduced noise.
Low-E Glass
Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.
Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.
Fan Circulated Air-Cooling System
Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.
Activated Carbon Filter
Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.
LED Display Digital Touchpad Control
Simple and easy-to-operate controls;
Clear and accurate settings display.
Beech Wooden Shelf
Optimized FULL-EXTENSION pull-out wood shelves with sturdy and wine-friendly beech; Cleverly spaced to fit both regular and larger bottles up to 3.39" (86mm) in diameter.
Magnetic Switch
Aggressive light control with a 2-minute door-open alarm.
Hidden Door Hinge
Laminated steel plate with integrated molding;
Full built-in design for seamless integration.
Seamless Stainless Steel Door Frame
Features an artistic appearance with a thin door design.
45mm Thickness C-Pantane
Thicker foam optimizes cooling performance and reduces energy consumption.

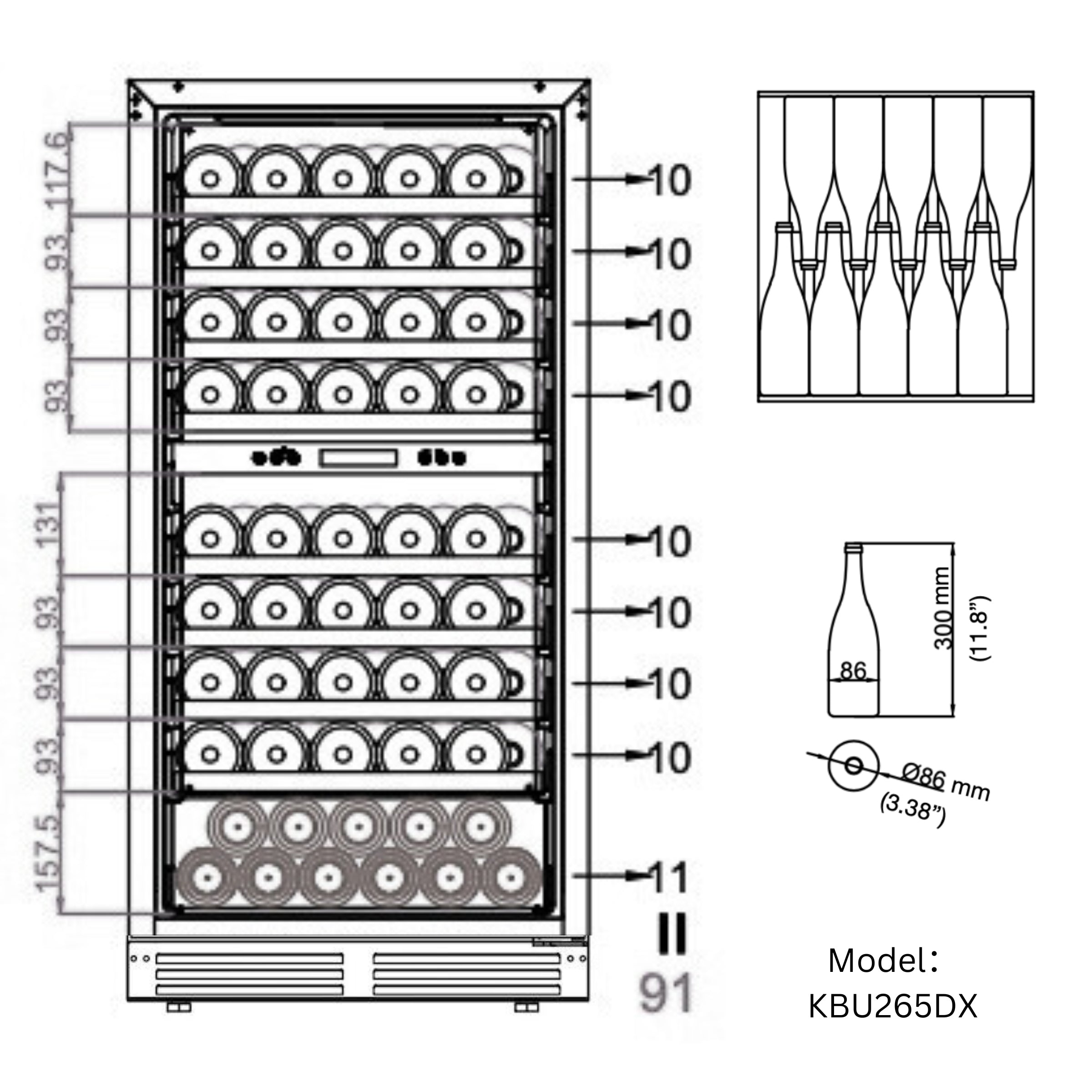

Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
User Instruction
Key Features
- Dual-zone cooling for storing red and white wine at optimal temperatures.
- Adjustable temperature range for upper and lower zones
- Upper Zone 35°F to 54°F (2°C to 12°C);
- Lower Zone 54°F to 68°F ( 12°C to 20°C ).
- Energy-efficient cooling with advanced EMBRACO Inverter compressors.
User Manual
Download the Dual Zone Wine Cooler User Manual (KBU145DX/KBU265DX/KBU425DX)
