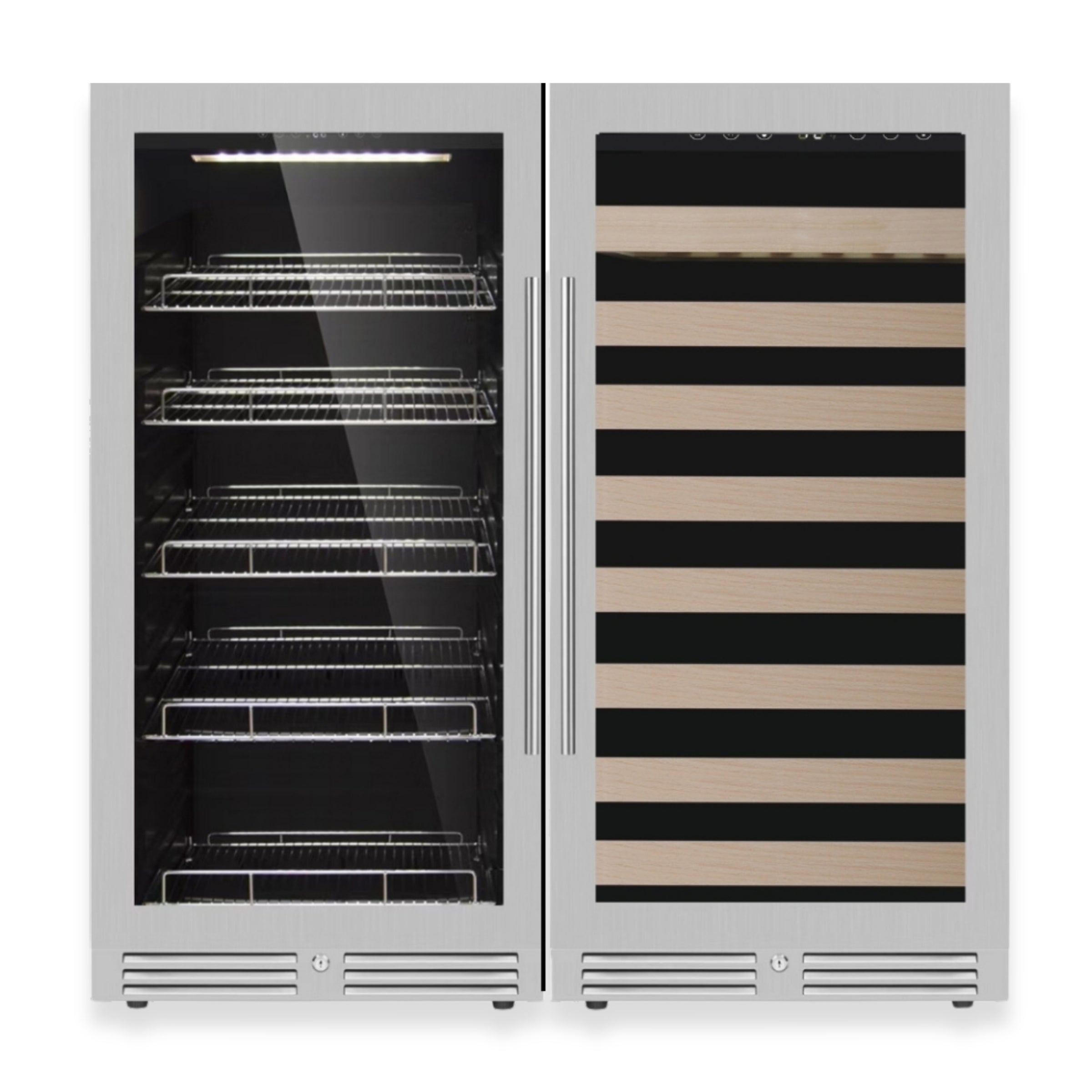

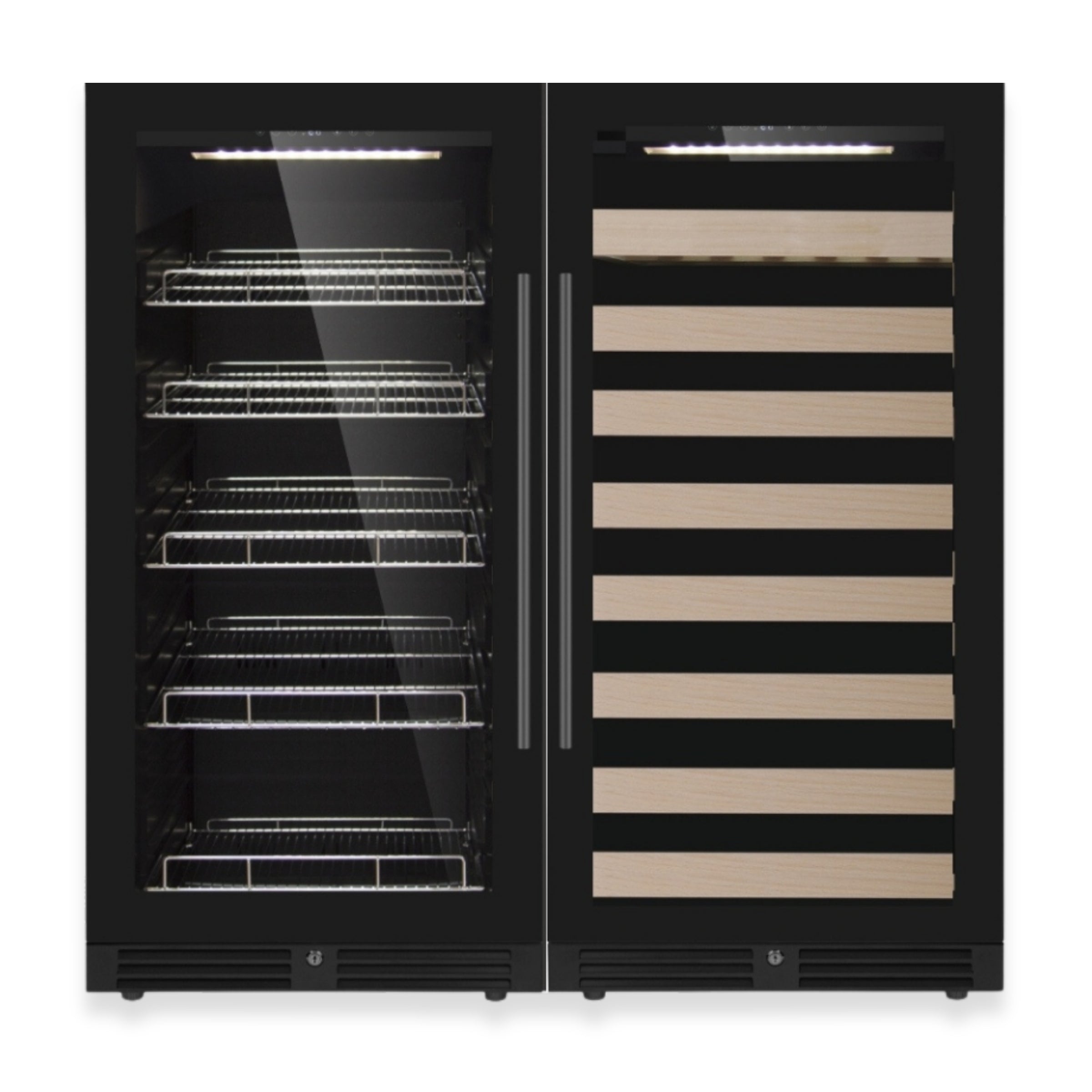

47" High Upright Wine & Beverage Refrigerator Combo with Low-E Glass Door
SIZE: 46.84” W x 27.55” D x 47.24” H, included stand height 0.59”
USE CASE: Ideal for collectors needing ample beverage storage, with an upright design perfect for kitchens, dining rooms, or entertainment spaces.
NOTE: Set of two units, use side by side or separately.
Quick Overview:
The 47" High Upright Wine & Beverage Refrigerator Combo is the perfect storage solution for wine enthusiasts and beverage lovers alike. This versatile cooler offers a dedicated wine section and a beverage compartment with a total capacity to store up to 99 wine bottles and 389 cans.
Powered by the Embraco Inverter Compressor, this cooler provides quiet, energy-efficient cooling while maintaining optimal temperatures. The temperature range of 36°F to 68°F (2°C to 20°C) allows you to store a variety of beverages at their perfect serving temperature.
The sleek, Low-E glass door protects your collection from harmful UV rays, and the adjustable shelving provides flexible storage for both bottles and cans. Whether built-in or freestanding, the unit fits seamlessly into your space with its modern, stylish design.
Specifications
Specifications
| Volume: | 18.72 CF (530 Liters) Total, 9.36 CF (265 Liters) Each |
| Capacity (by bottles): | 99 bottles |
| Capacity (by cans): | 389 cans |
| Installation Type: | Built-In or Freestanding |
| Climate Type: | N |
| Temperature Zones: | Dual Zone |
| Adjustable Temperature Range: |
|
| Operating Room Temperature: | 32-100°F (0-38°C) |
| Shelf Configuration: | 5 Chromed Steel Shelves + 6 Beech Wooden Shelves |
| Dimensions: | 46.84” W x 27.55” D x 47.24” H, included stand height 0.59” |
Electrical
| Compressor: | Embraco Inverter Compressors |
| Power Supply: | 110-115V/60HZ |
| Rated Power Input (W): | 330W (165W per unit) |
| Rated Current: | 3.4A (1.7A per unit) |
| Refrigerant: | R600A / 45g per unit |
Technical Features
Inverter Compressor
Top brand Embraco Inverter Compressor;
Super quiet operation and reduces energy consumption by 40%.
Patented Sink of Compressor
Increases air circulation space around the compressor;
Provides better cooling performance, less vibration, and reduced noise.
Low-E Glass
Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.
Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.
Fan Circulated Air-Cooling System
Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.
Activated Carbon Filter
Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.
LED Display Digital Touchpad Control
Simple and easy-to-operate controls;
Clear and accurate settings display.
Beech Wooden Shelf
Optimized FULL-EXTENSION pull-out wood shelves with sturdy and wine-friendly beech; Cleverly spaced to fit both regular and larger bottles up to 3.39" (86mm) in diameter.
Magnetic Switch
2-minute door-open alarm.
Hidden Door Hinge
Laminated steel plate with integrated molding;
Full built-in design for seamless integration.
Seamless Stainless Steel Door Frame
Features an artistic appearance with a thin door design.
45mm Thickness C-Pantane
Thicker foam optimizes cooling performance and reduces energy consumption.

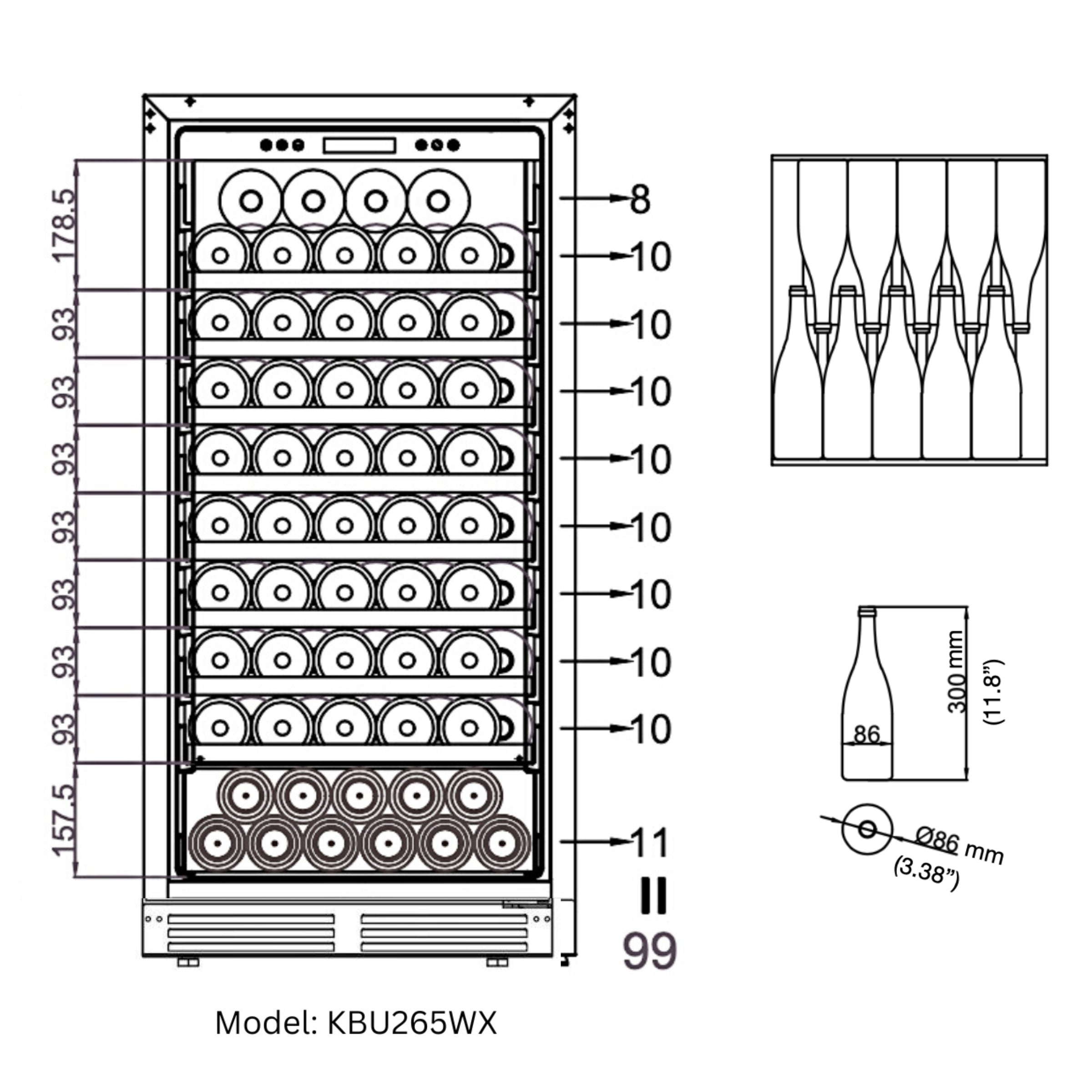

Dimensions & Diagrams
Technical Dimensions
Installation Diagrams
User Instruction
This manual covers a combo set of two units: a Beverage Cooler and a Single Zone Wine Cooler.
