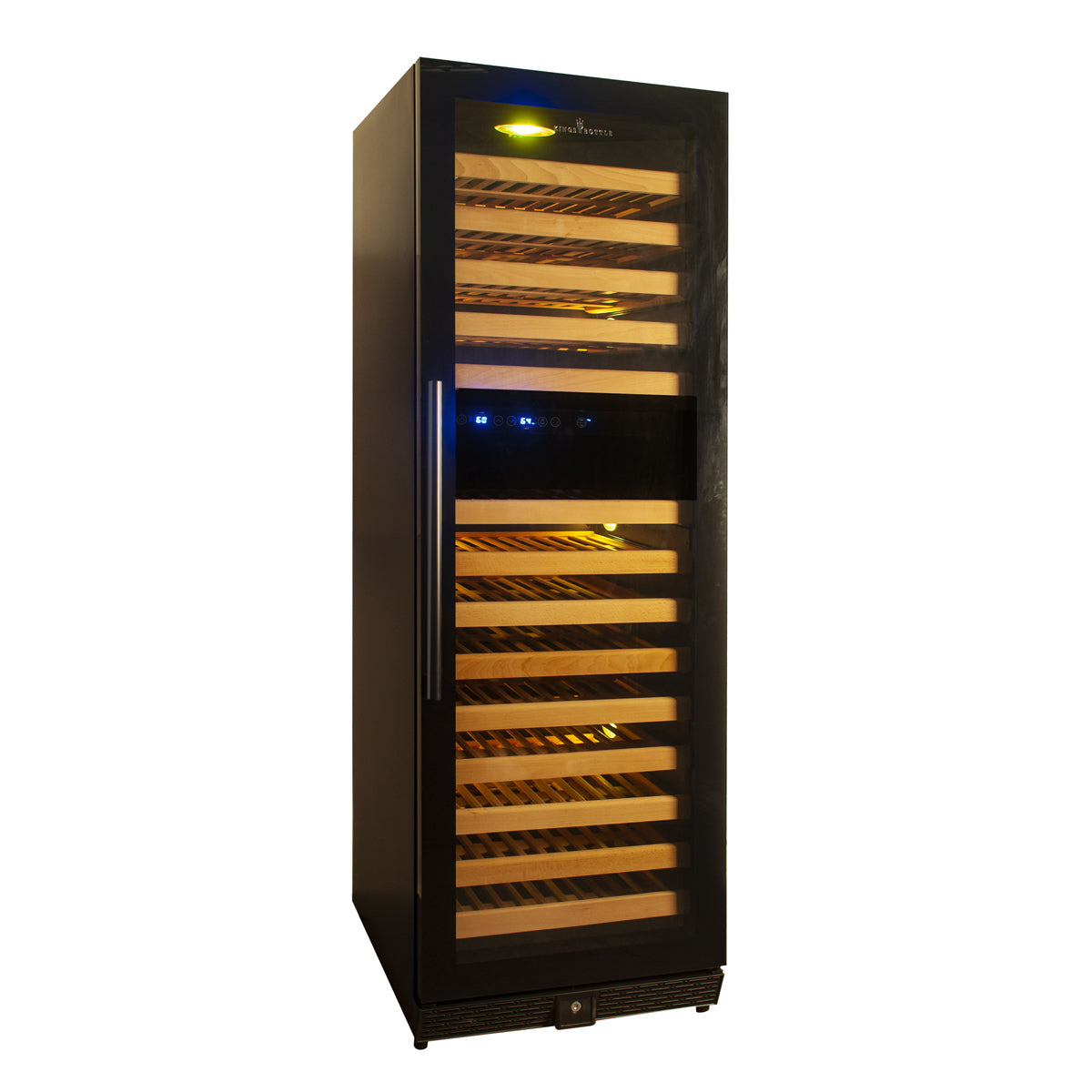

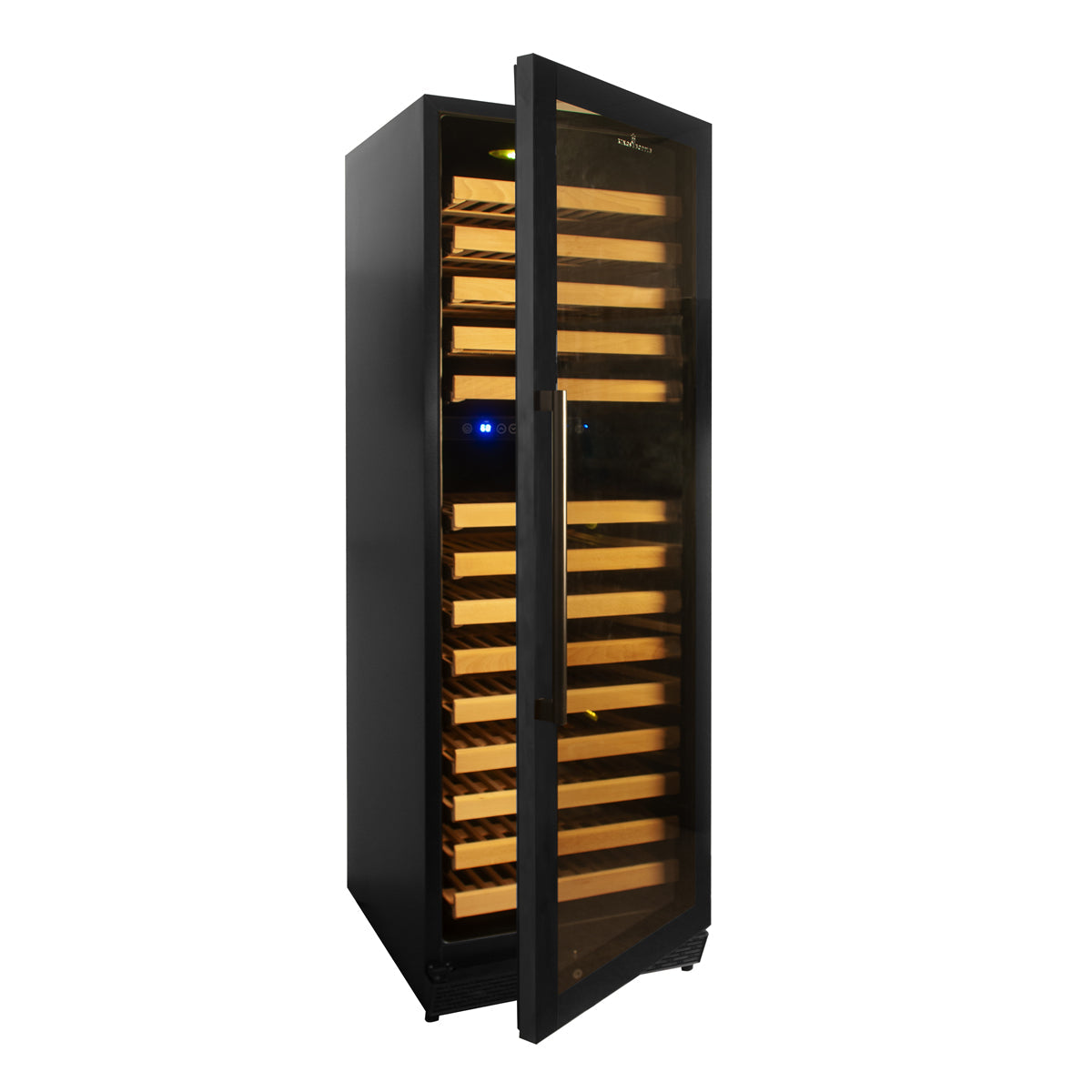

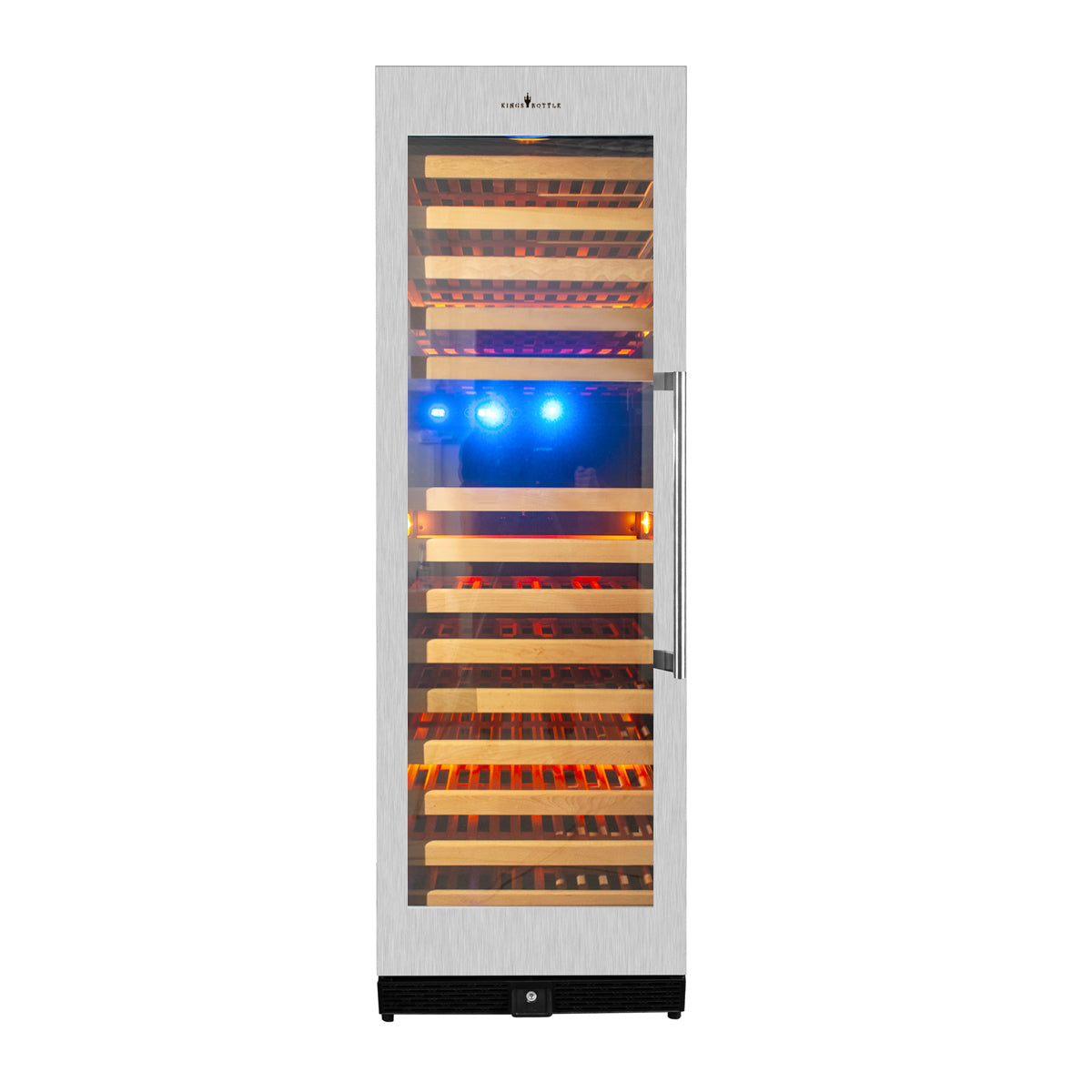

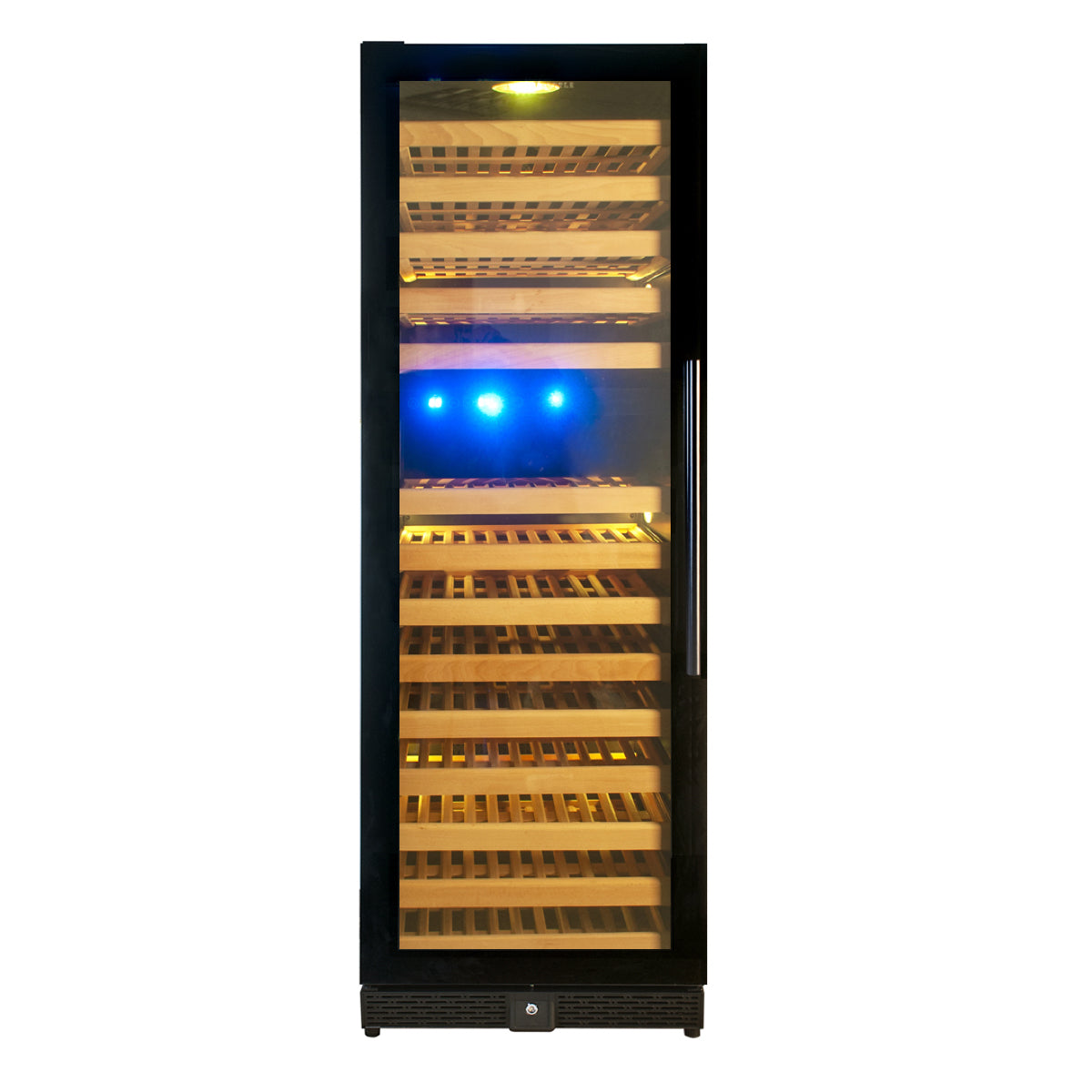

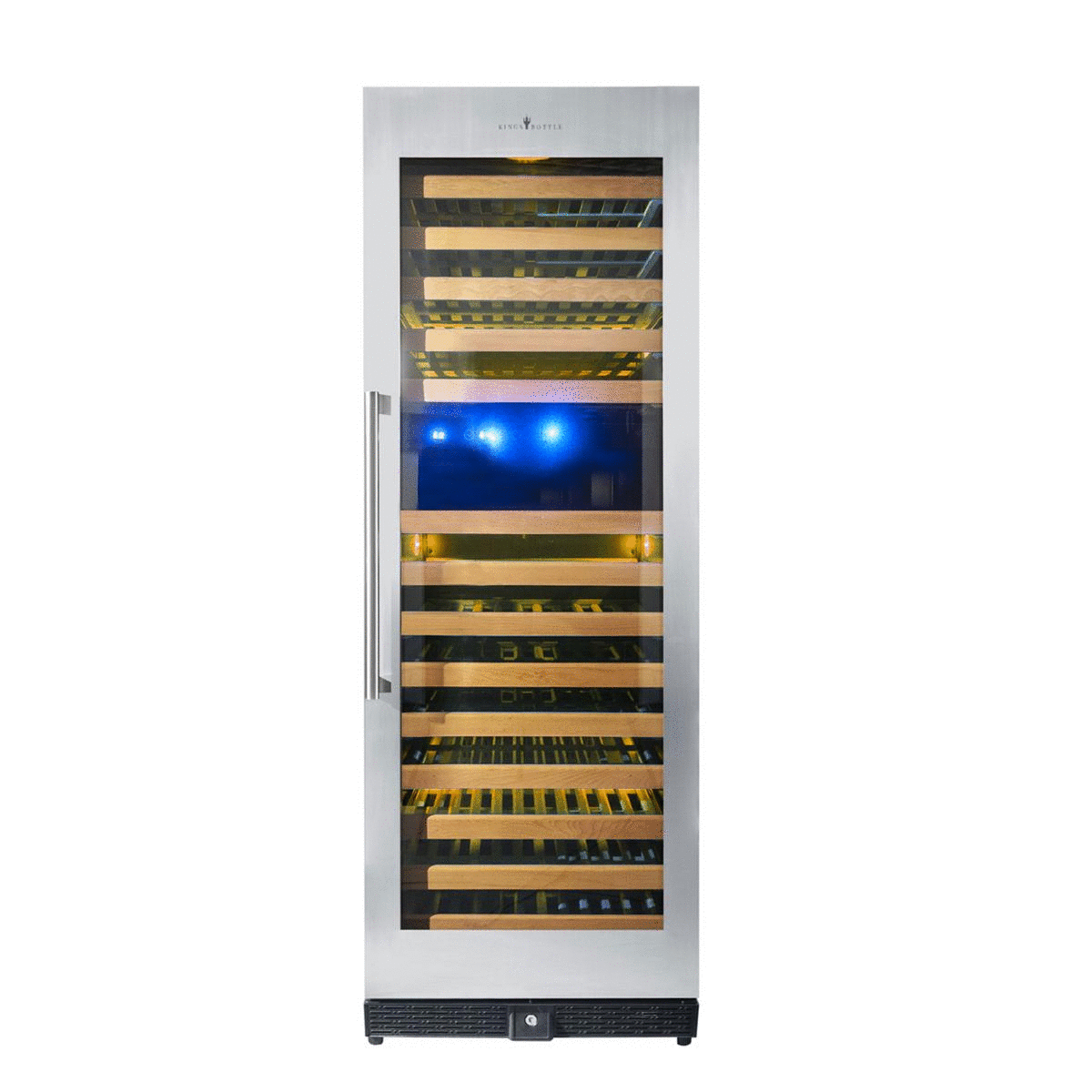

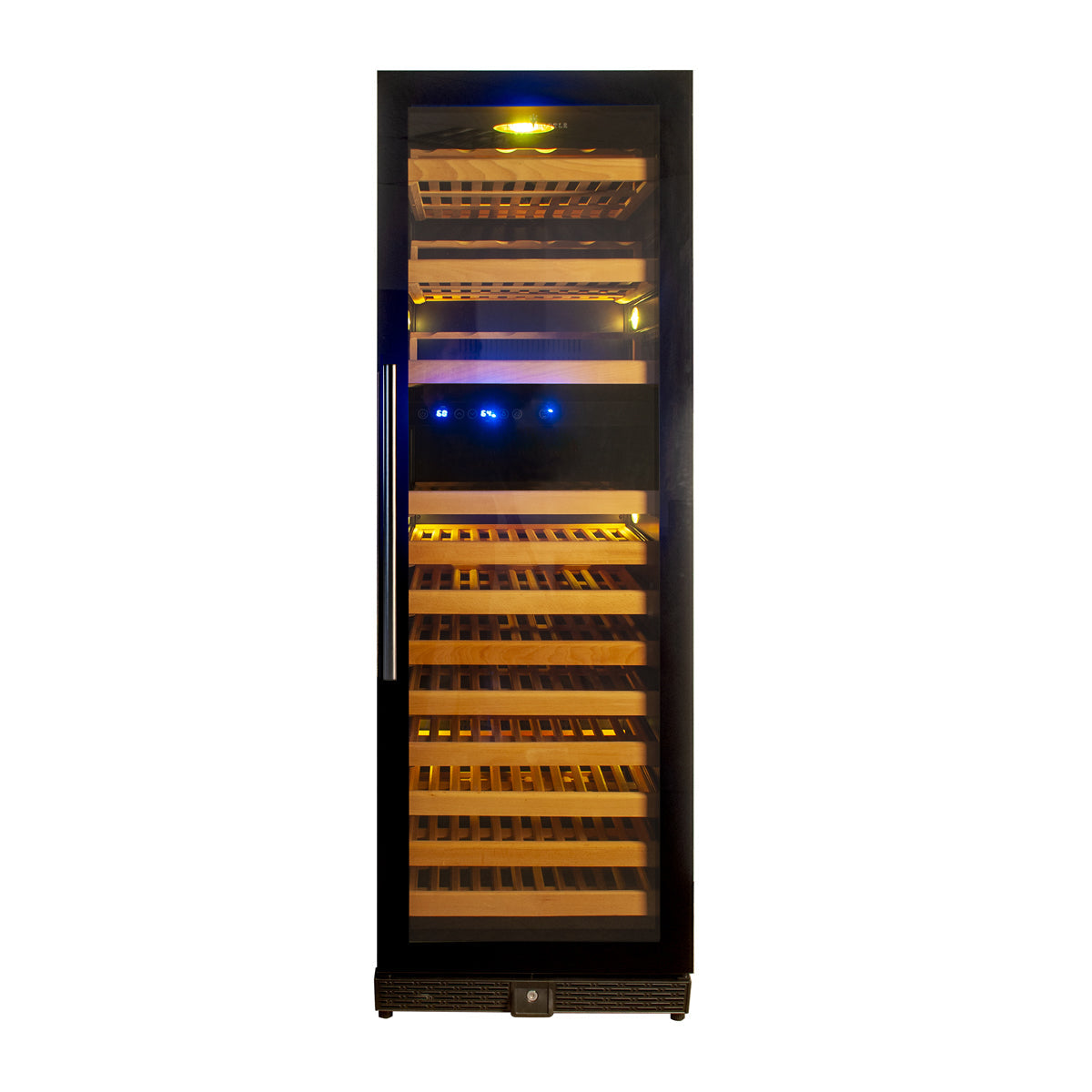

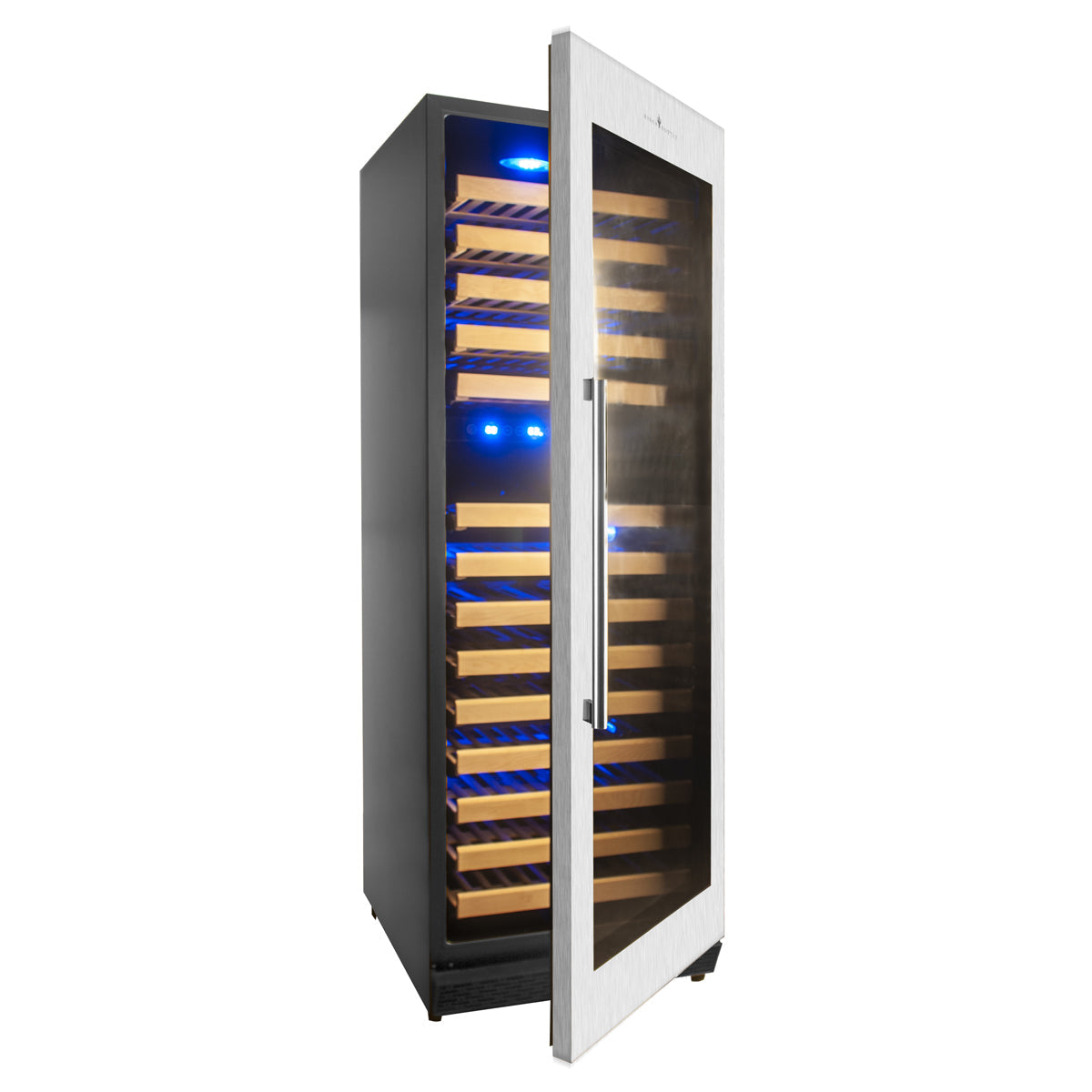

Tall Large Wine Refrigerator With Glass Door With Stainless Steel Trim
SIZE: 23.54”W x 26.97”D x 71.69”H, included stand height 0.98”
USE CASE: Ideal for medium sized wine collection storage
NOTE: Accommodates large bottles up to 3.39" (86mm) in diameter.
Quick Overview:
The Tall Large Wine Refrigerator with Glass Door and Stainless Steel Trim is a premium solution for wine storage. It features the advanced Embraco Inverter Compressor, which ensures efficient, ultra-quiet cooling while saving up to 40% more energy than traditional compressors.
The Low-E Glass Door protects your wine collection from harmful UV rays while minimizing condensation. This wine fridge offers spacious storage for a large collection, perfect for collectors or commercial use. The modern design with sleek stainless steel trim enhances any home or business.
Specifications
Cooling
| Bottle Capacity | 164 Bottles |
|---|---|
| Temperature Zones | Dual Zone |
| Temperature Range | Upper Zone: 39-60 °F ( 4 - 15°C); Lower Zone: 45-64 °F ( 7 - 18°C) |
| Compressor | Embraco Inverter Compressor |
Construction
| Door Type | Glass Door With Stainless Steel Trim |
|---|
Electrical & Size
| Volume | 14.30 CF (405 Liter) |
|---|---|
| Noise Level | 41.0 dB |
| Weight | 141.0 lb |
| Dimensions (W x D x H) | 23.54" W x 26.97" D x 71.69" H |
Installation & Documents
Installation Information

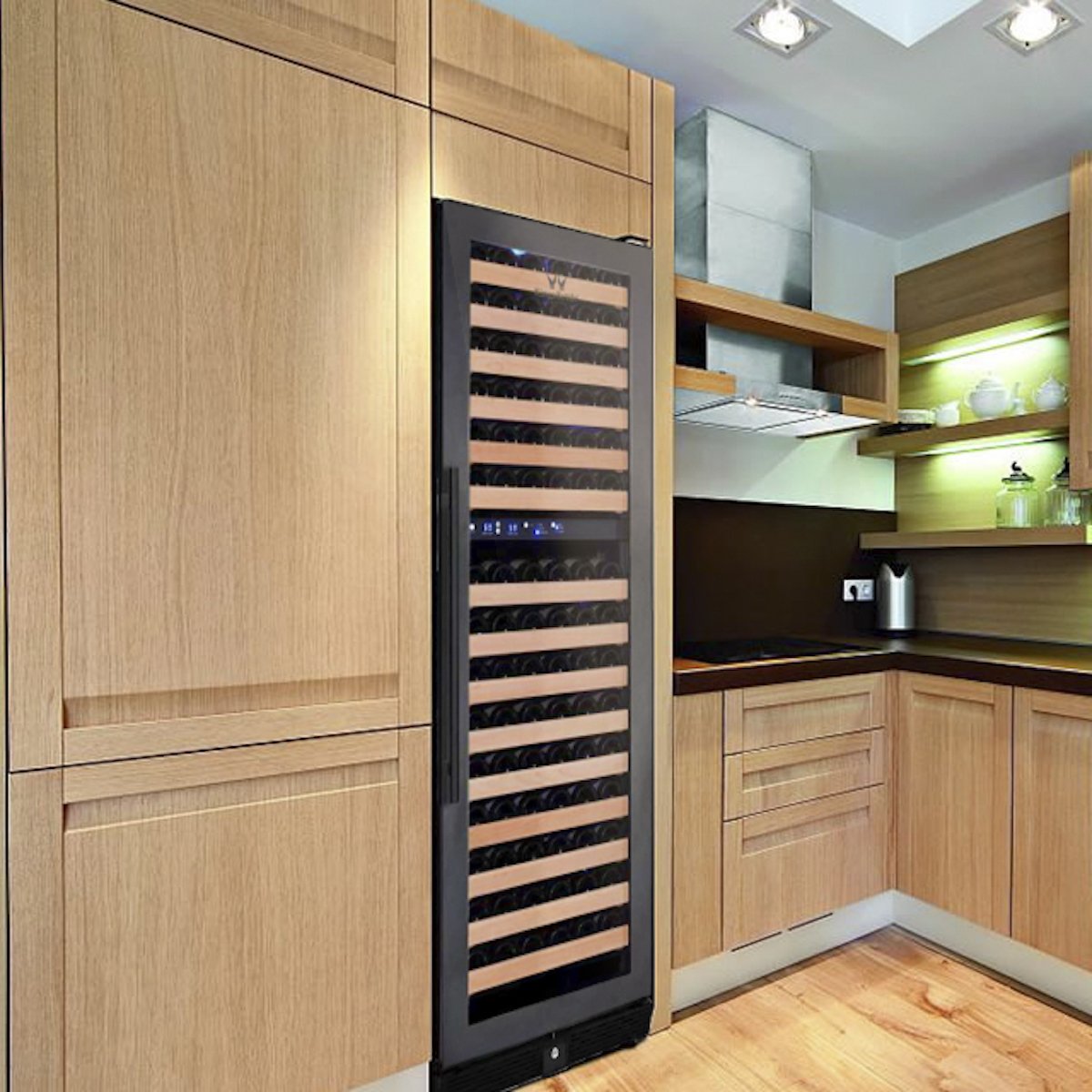

| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |

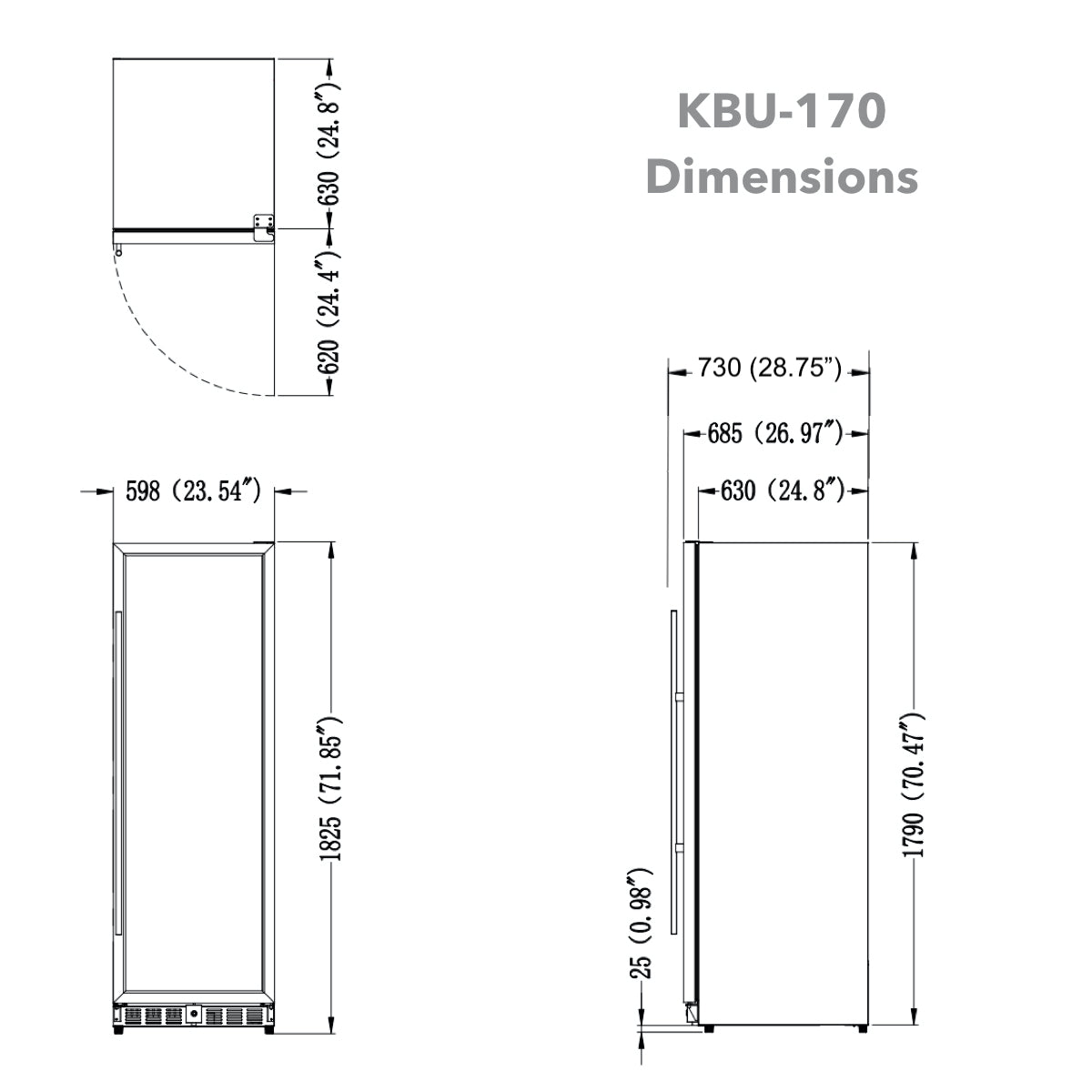

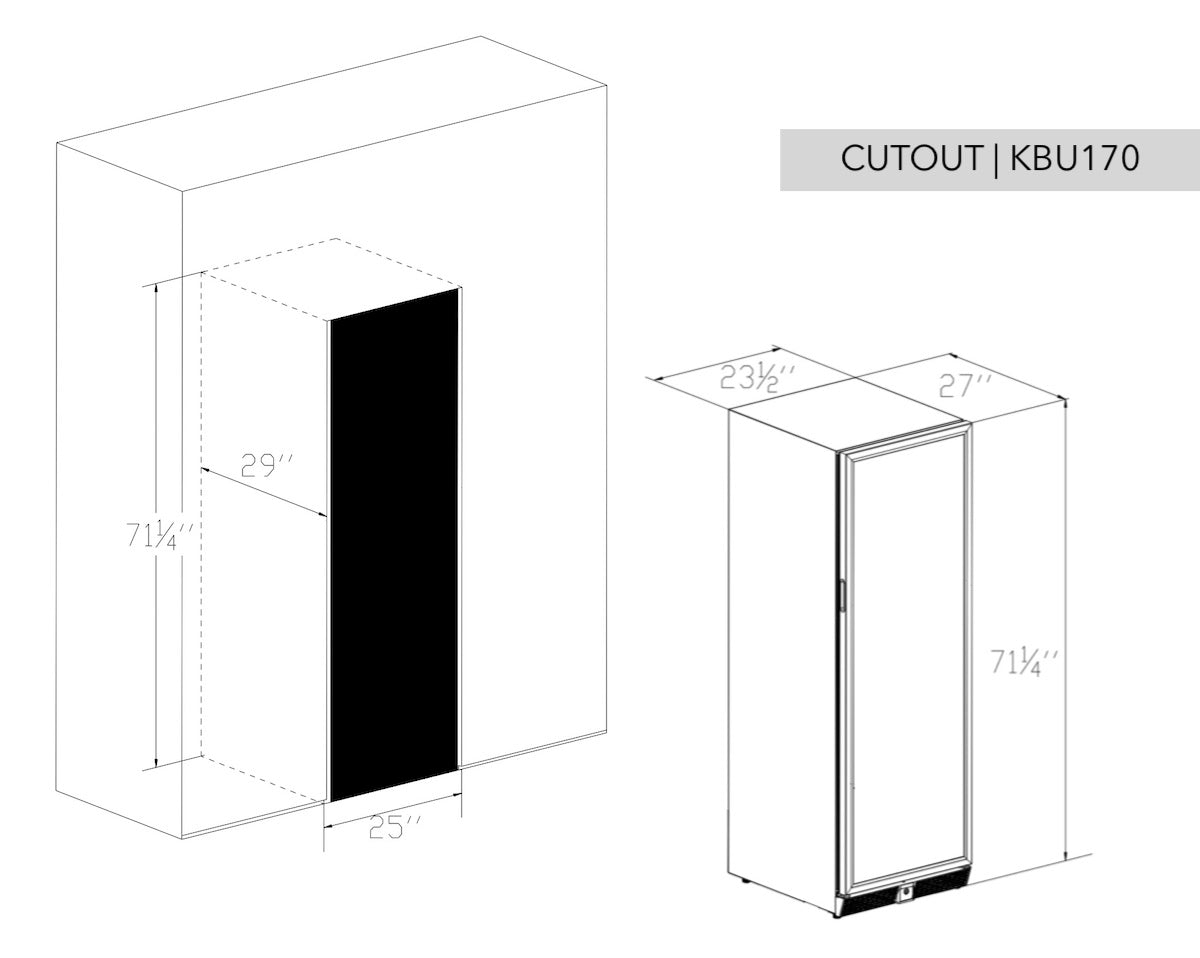

Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
