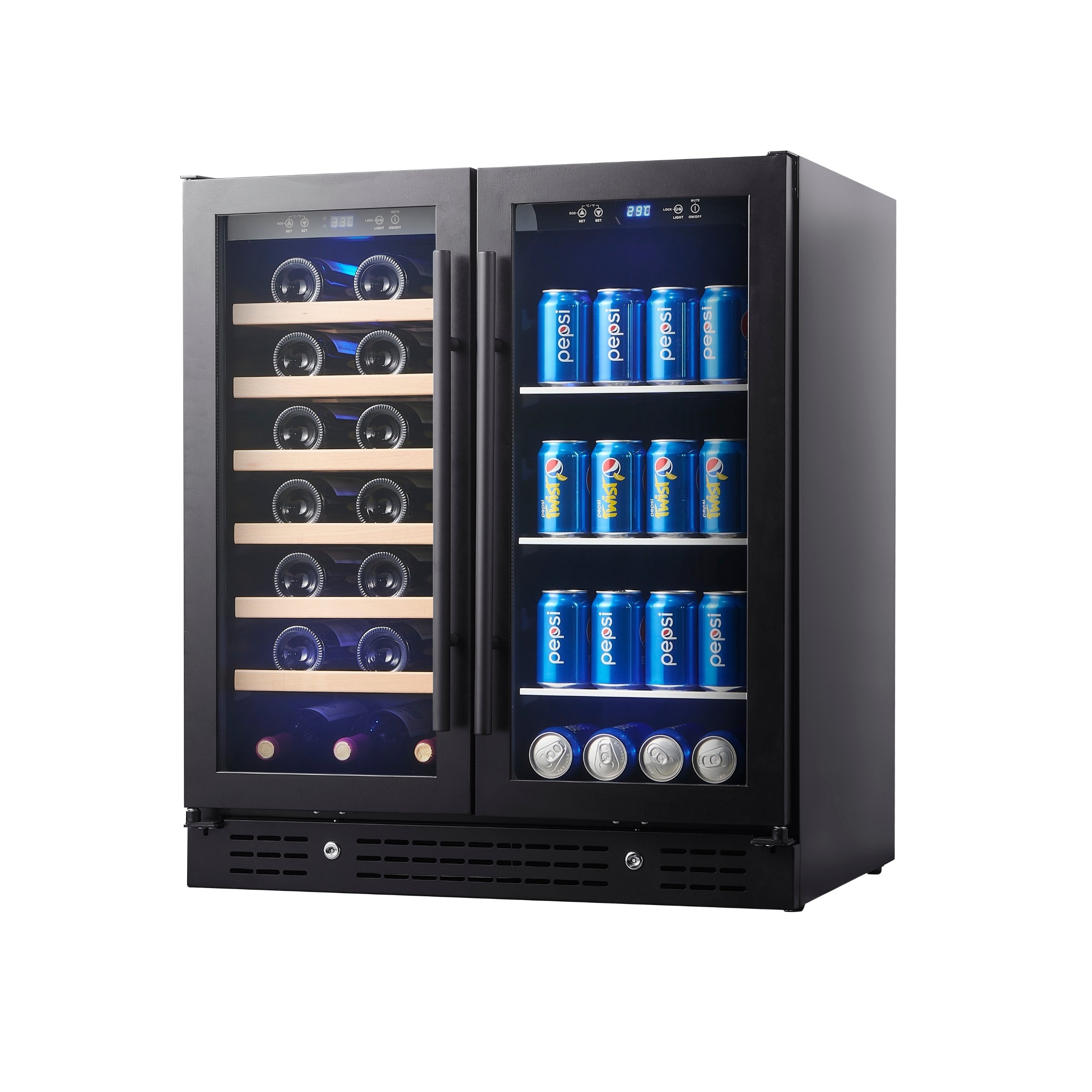

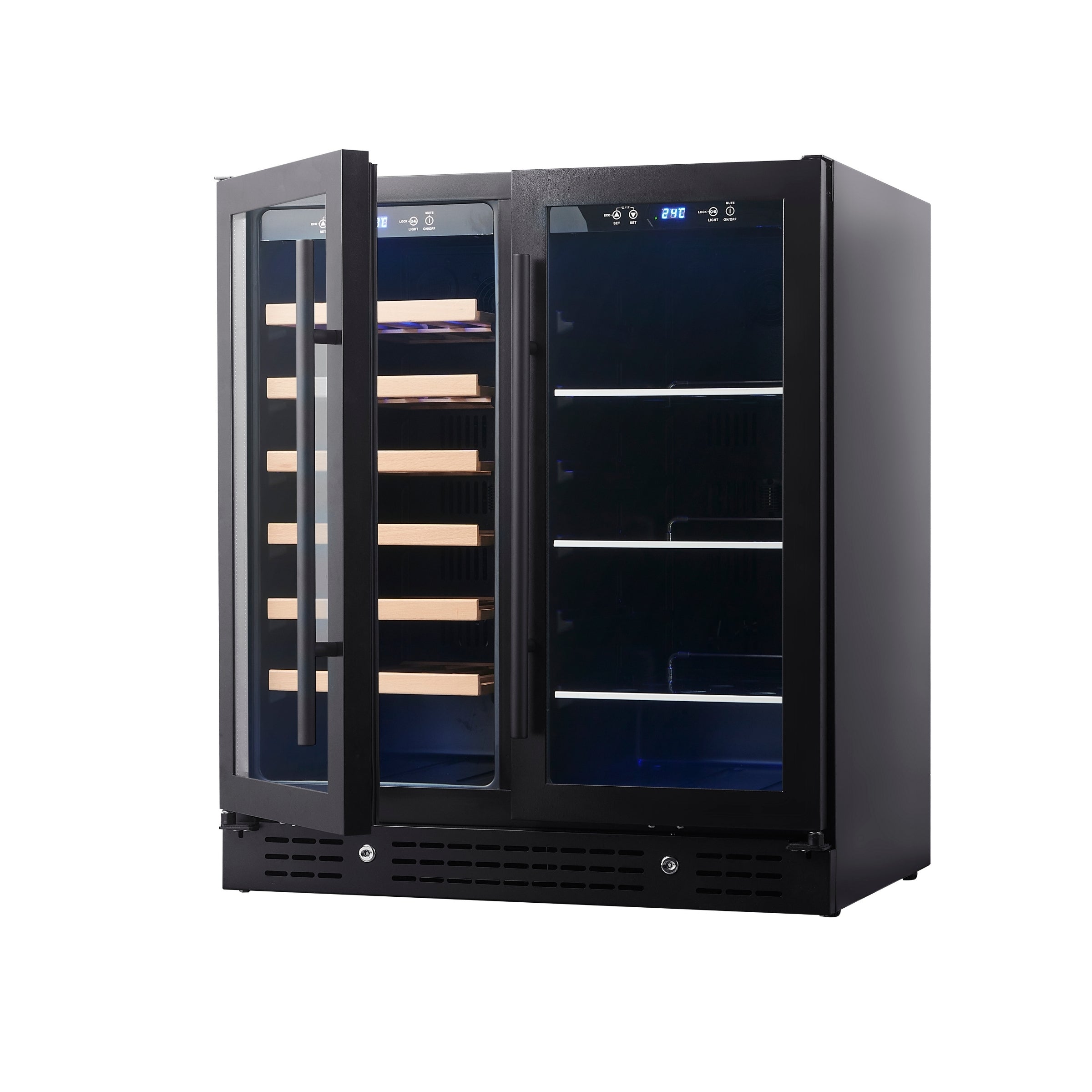

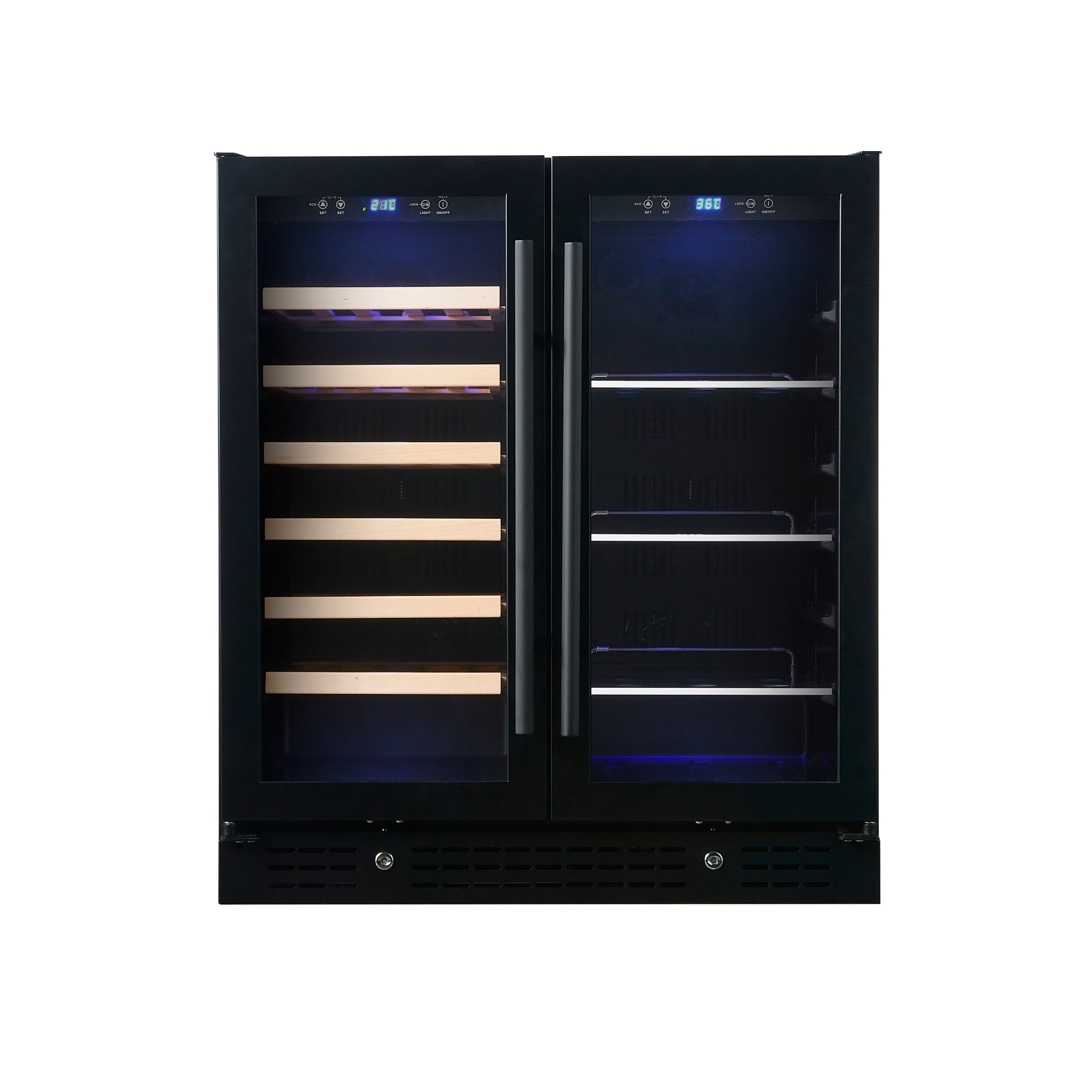

30-Inch Dual-Zone Wine & Beverage Center
Wine & Beverage Dual Storage
Separates wine and beverages into dedicated zones, ensuring optimal conditions for both.
Key Features
Dual-Zone Temperature Control
35°F to 68°F (2°C to 20°C)
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Adjustable Shelving System
Flexible shelf configuration adapts to different bottle or can sizes.
Flexible Dual-Zone Storage
Designed to accommodate both wine bottles and beverage cans within one integrated cooling system.
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Built-In Ready Design
Designed for seamless installation with cabinetry for a clean integrated look.
Designed for modern kitchens, home bars, and entertaining spaces, this integrated wine and beverage refrigeration system combines dual storage functions within one clean built-in solution.
Separate wine and beverage storage zones allow both collections to remain organized and accessible while maintaining their preferred serving conditions.
Designed for seamless under-counter installation, the system integrates naturally into cabinetry layouts while supporting convenient everyday use and refined visual presentation.
Well suited for homes, entertainment spaces, and hospitality-inspired environments where wine storage, beverage access, and built-in integration are equally important.
Specifications
Cooling
| Bottle Capacity | 33 Bottles |
|---|---|
| Can Capacity | 77 Cans |
| Temperature Zones | Dual Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Fixed-Speed Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
Construction
| Door Type | Low-E Glass |
|---|
Electrical & Size
| Volume | 5.83 CF (165 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 60.0 lb |
| Energy Consumption | 570 kWh/Year |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Dimensions (W x D x H) | 29.53" W x 22.44" D x 33.86" H (750W x 570D x 860H mm) |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
