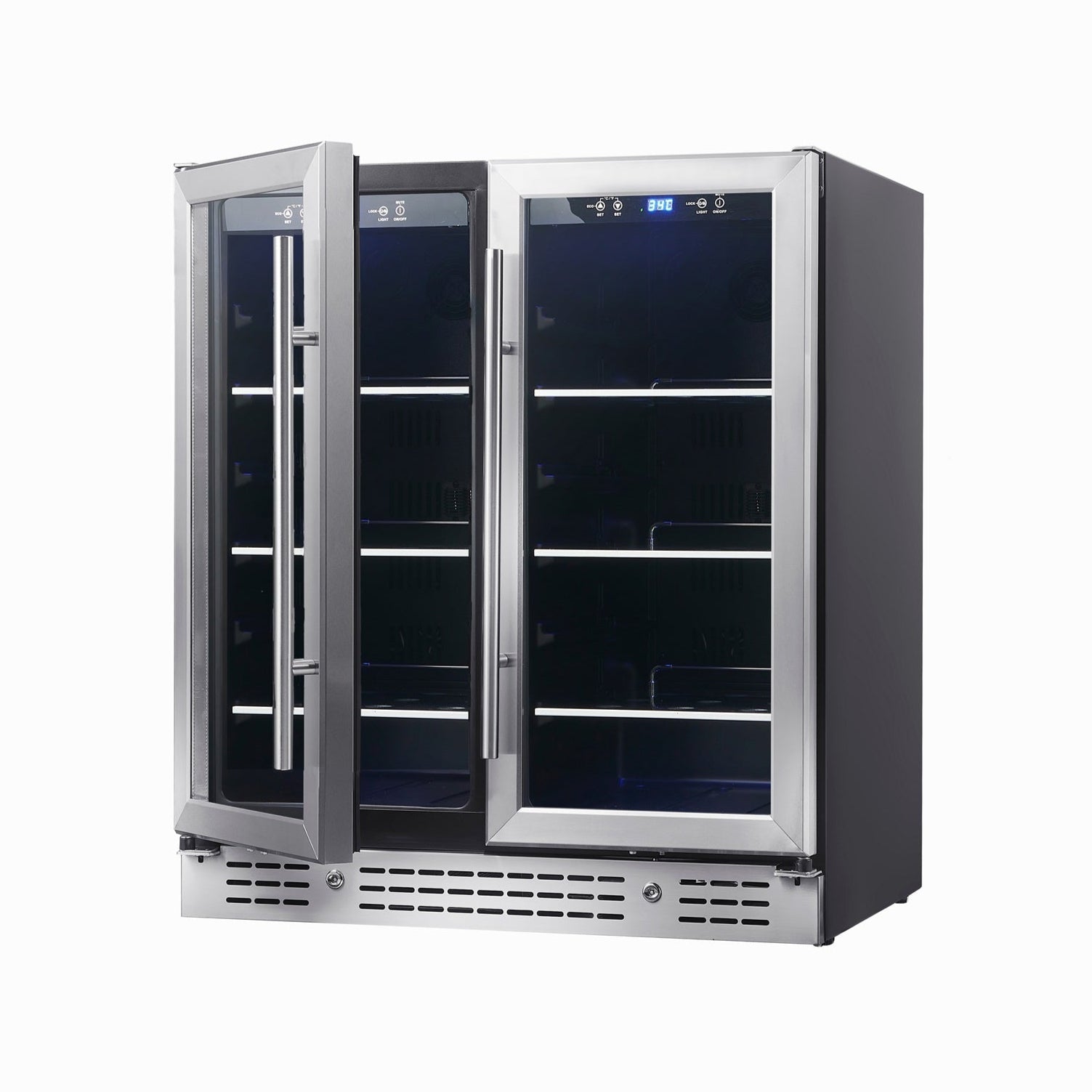

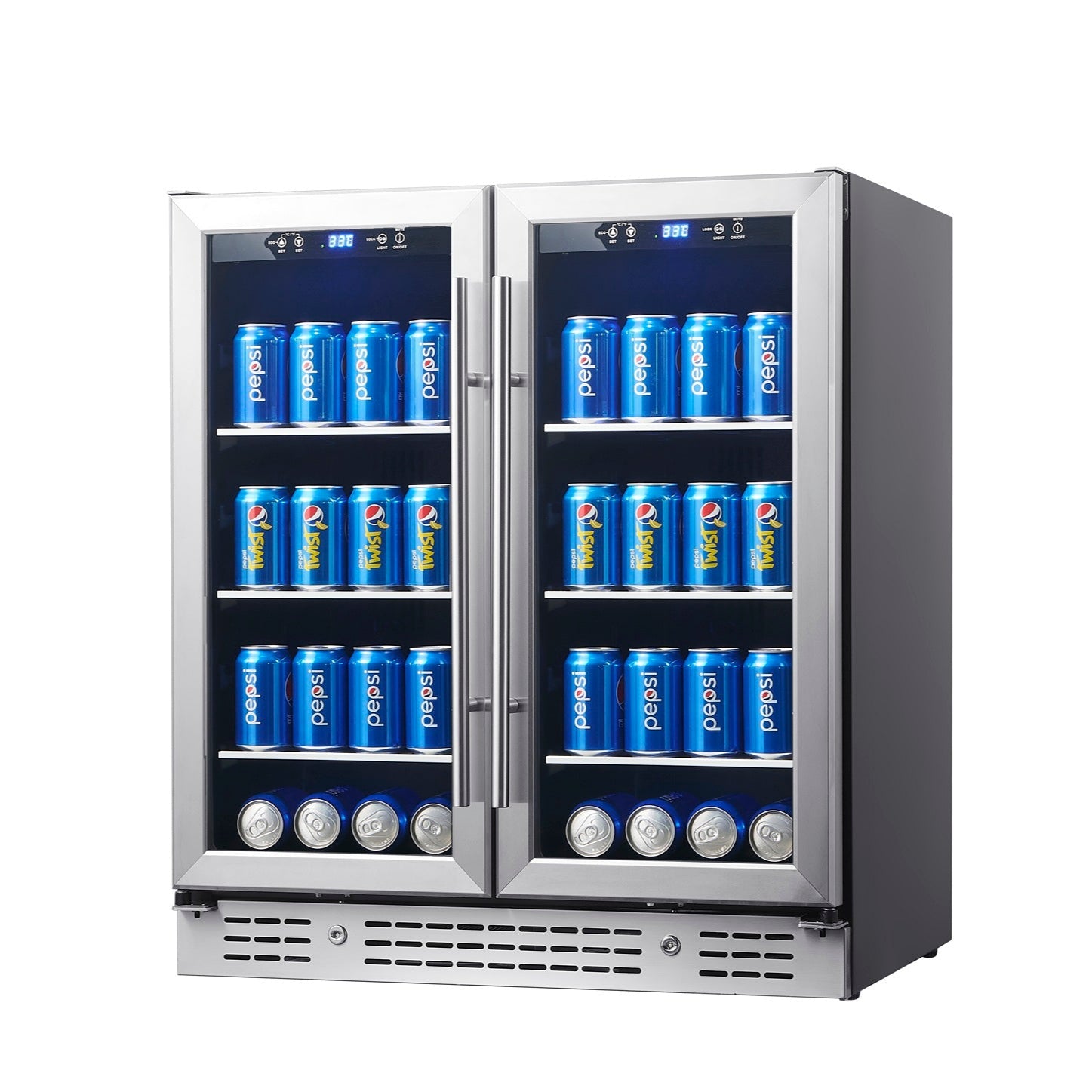

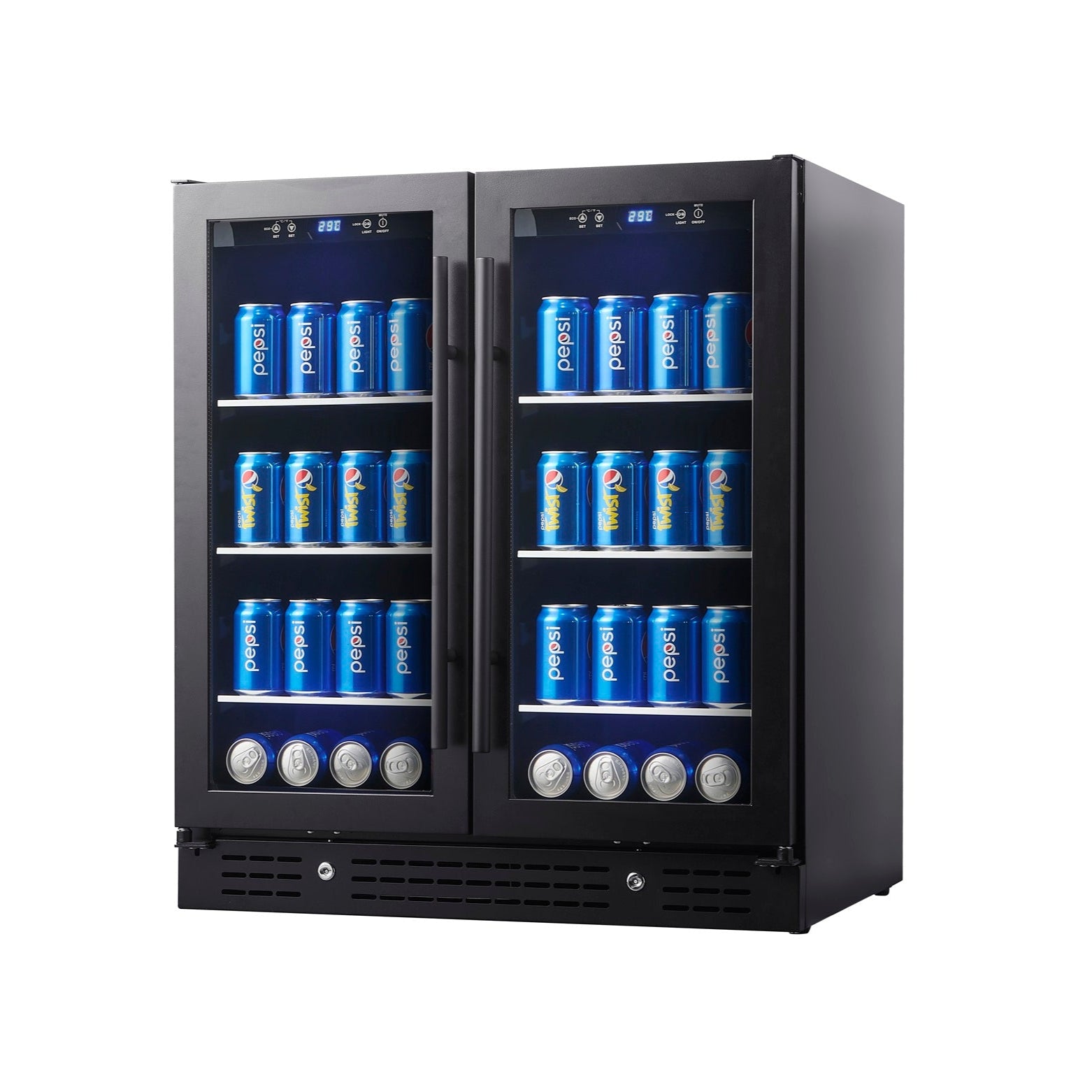

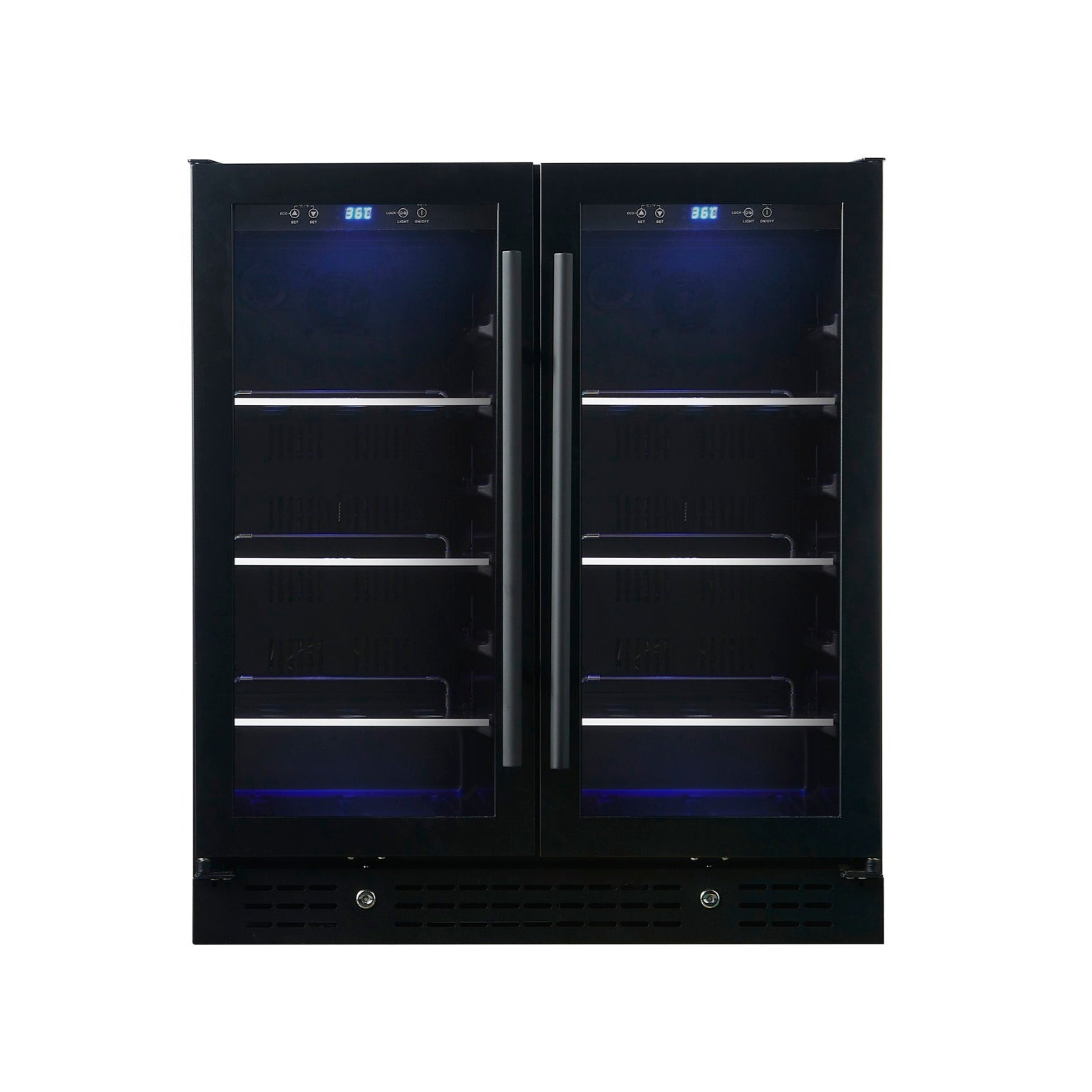

30-inch Wide Undercounter Beverage Fridge with Low-E Glass Door
SIZE: 29.6” W x 22.4” D x 33.9” H
USE CASE: Perfect for keeping different beverages at their ideal temperatures during dinner parties, casual get-togethers, or quiet evenings at home.
NOTE: Single unit featuring two compartments with independent temperature settings
Quick Overview:
Upgrade your beverage storage with the KingsBottle KBU165B2—an elegant 30-inch wide undercounter beverage fridge engineered for modern homes, home bars, and light commercial environments. Whether entertaining guests or stocking up for the weekend, this unit delivers exceptional cooling performance in a stylish, built-in-ready package.
With a spacious capacity of up to 154 standard 12oz cans, it offers double the storage of our compact KBU165BW, making it the perfect solution for those who want more room without compromising on footprint.
A digital controller provides precise temperature management between 35°F and 68°F, ideal for chilling beer, soda, mixers, and more. The quiet, energy-efficient compressor ensures minimal noise and reduced power consumption—perfect for open-plan living or commercial spaces.
The double-paned Low-E glass door reduces condensation and blocks harmful UV rays to protect your beverages. Inside, adjustable chrome shelves provide flexible storage for different can sizes, while soft LED lighting ensures visibility and style. Fan-circulated cooling keeps the interior evenly chilled from top to bottom.
With a professional black-trimmed finish and front-venting design, the KBU165B2 is ideal for both built-in or freestanding installations.
Specifications
Cooling
| Can Capacity | 154 Cans |
|---|---|
| Temperature Zones | Dual Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Fixed-Speed Compressor |
Electrical & Size
| Volume | 5.83 CF (165 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 60.0 lb |
| Dimensions (W x D x H) | 29.53" W x 22.44" D x 33.86" H |
Installation & Documents
Installation Information
| Installation Type | Built-in / Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |

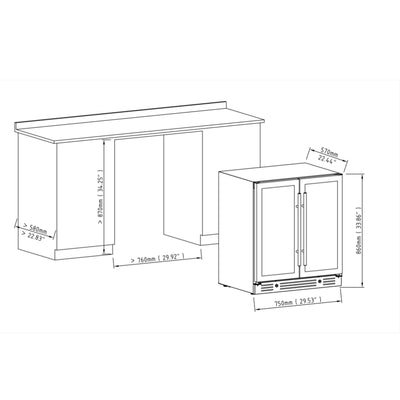

Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
