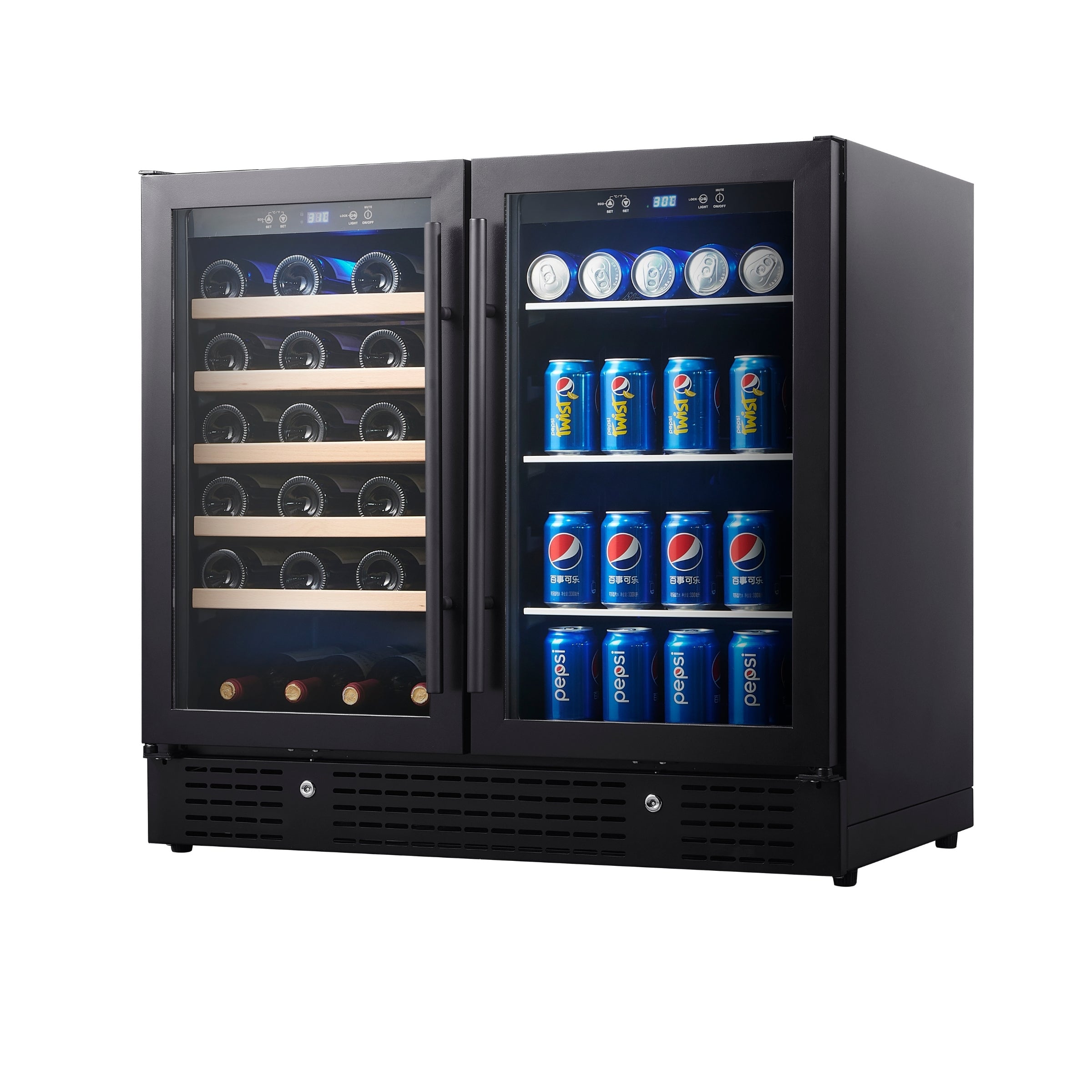

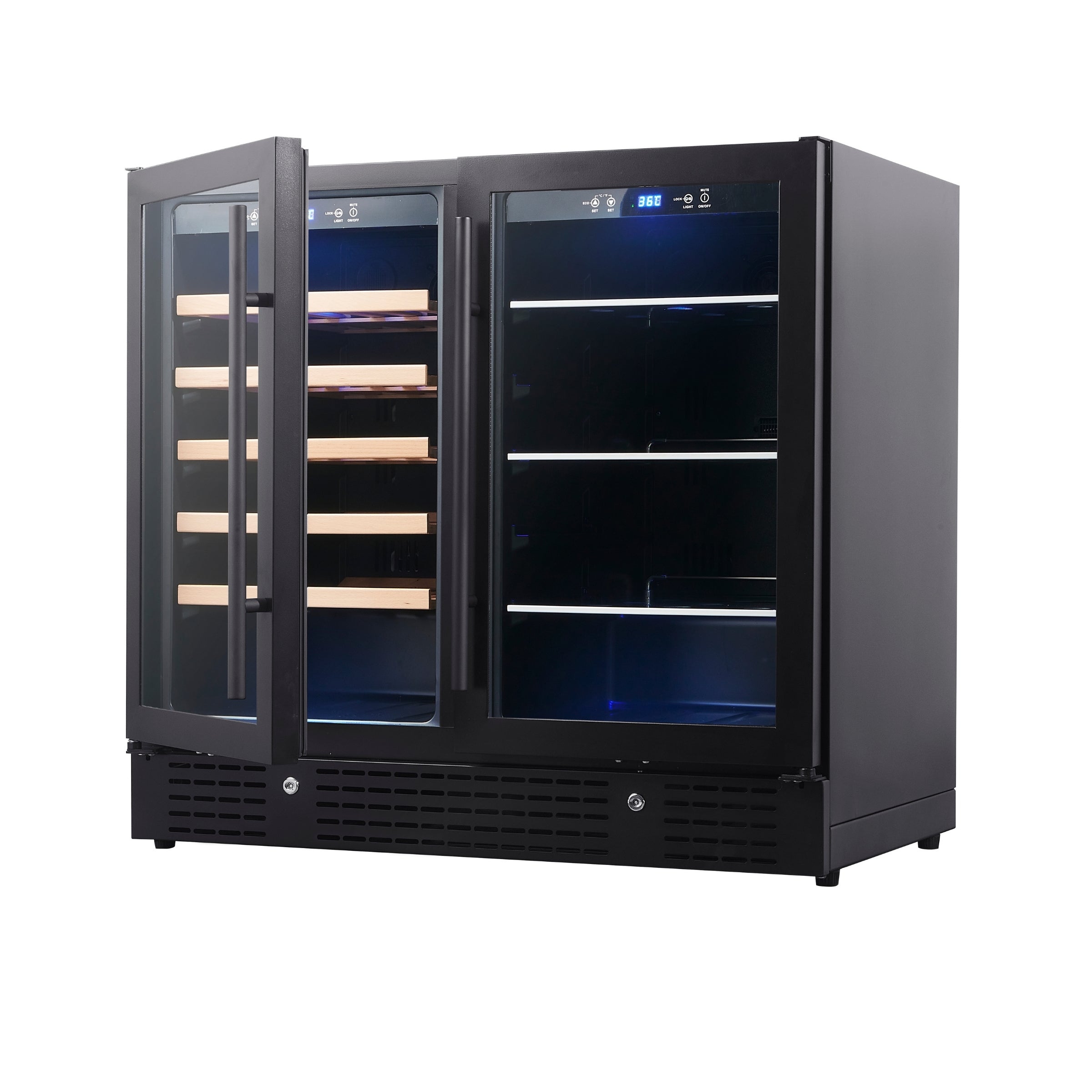

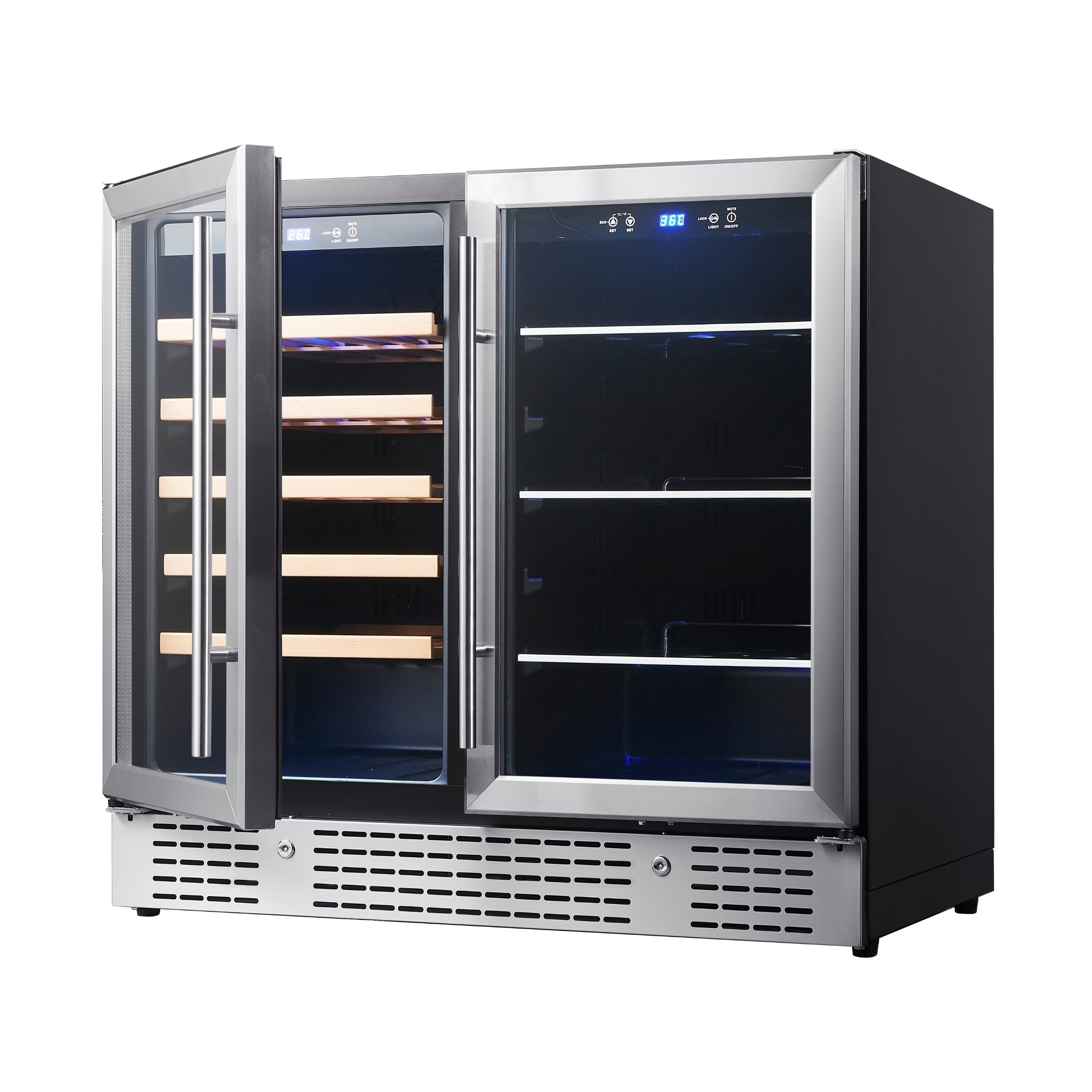

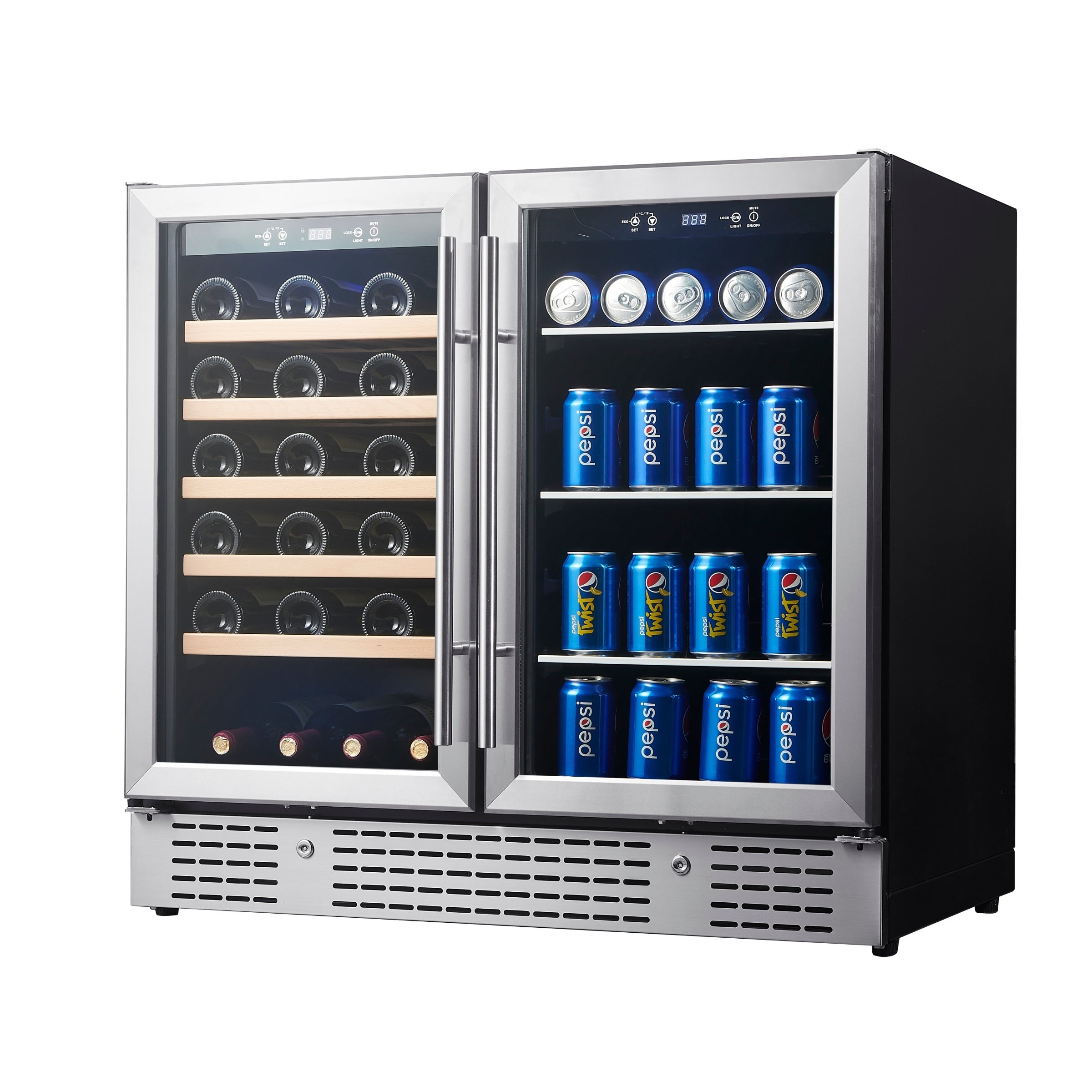

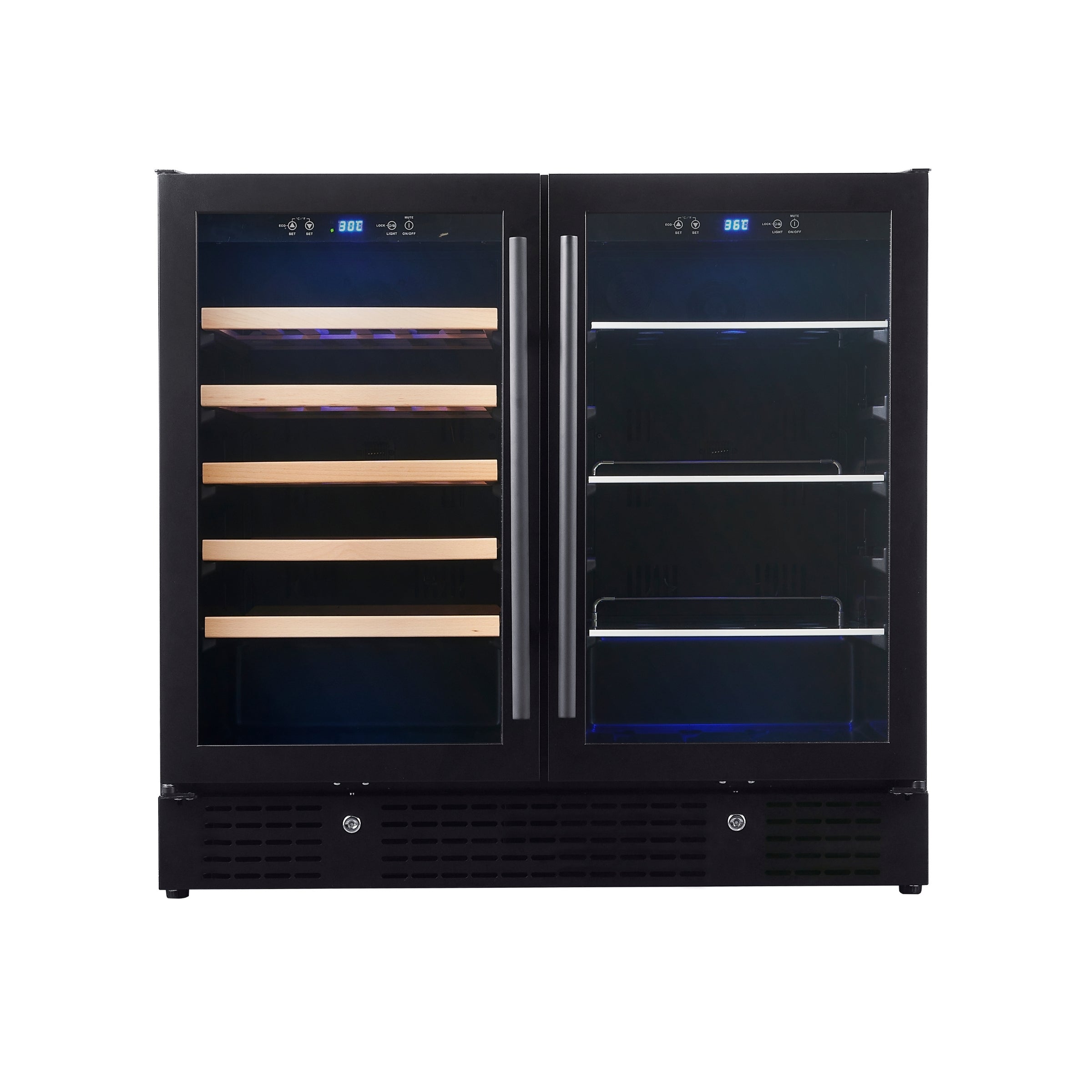

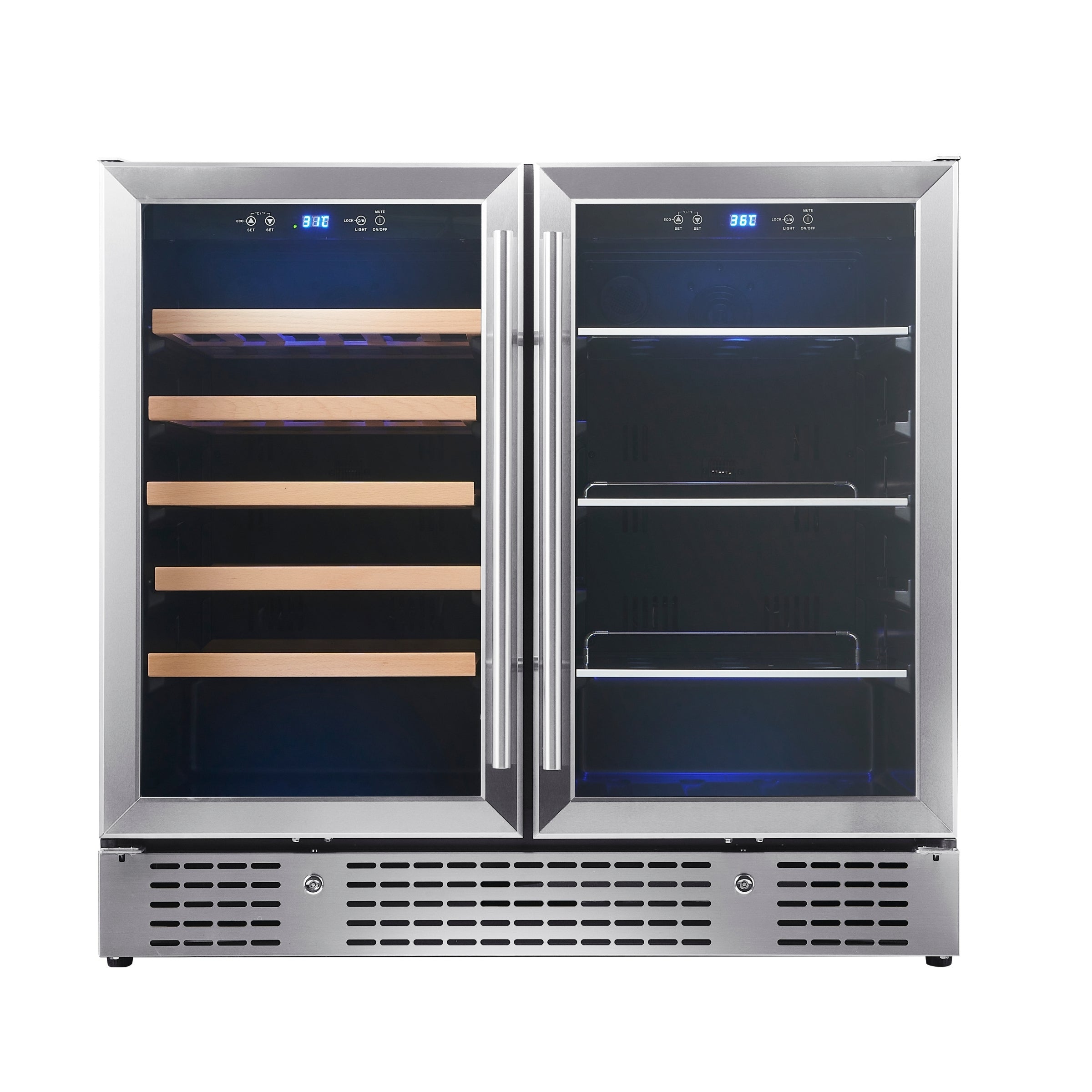

36-Inch Dual-Zone Wine & Beverage Center

KingsBottle

36-Inch Dual-Zone Wine & Beverage Center

SKU: KBU190BW-BLK

$2,195.00

Wine & Beverage Dual Storage

Separates wine and beverages into dedicated zones, ensuring optimal conditions for both.

SIZE 35.43" W x 23.43" D x 33.46" H

IMPORTANT Single unit featuring two compartments—left for wine and right for beer.

Door Style:

Warranty:

Variant

Key Features

Dual-Zone Temperature Control

35°F to 68°F (2°C to 20°C)

Low-E Glass Protection

Reduces condensation while improving insulation and keeping your display clear.

Adjustable Shelving System

Flexible shelf configuration adapts to different bottle or can sizes.

Flexible Dual-Zone Storage

Designed to accommodate both wine bottles and beverage cans within one integrated cooling system.

Elegant Glass Door Presentation

Showcases your collection with a clean modern display while maintaining internal conditions.

Built-In Ready Design

Designed for seamless installation with cabinetry for a clean integrated look.

Description

Designed for modern kitchens, home bars, and entertaining spaces, this integrated wine and beverage refrigeration system combines dual storage functions within one clean built-in solution.

Separate wine and beverage storage zones allow both collections to remain organized and accessible while maintaining their preferred serving conditions.

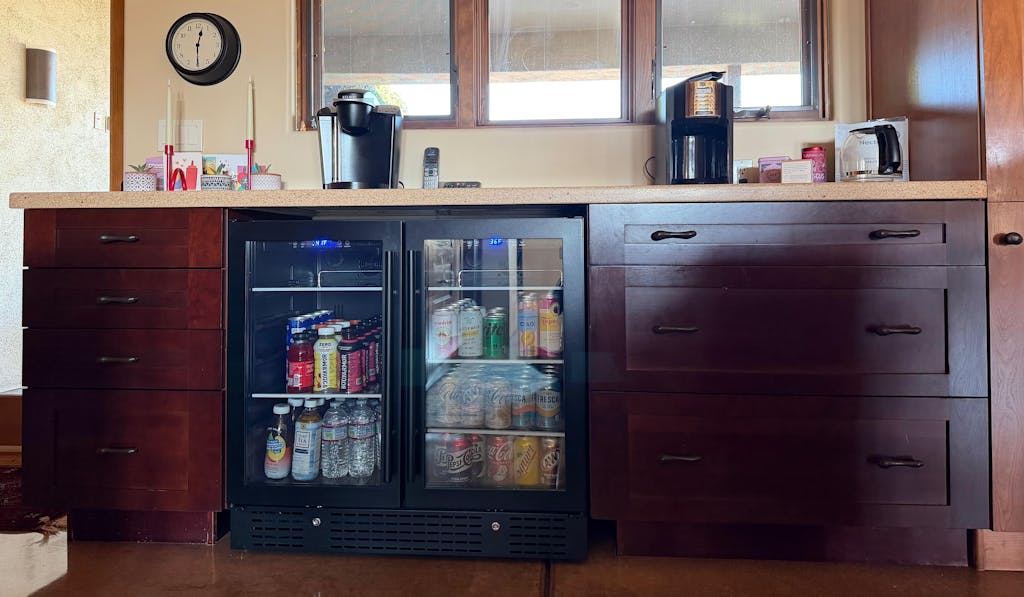

Designed for seamless under-counter installation, the system integrates naturally into cabinetry layouts while supporting convenient everyday use and refined visual presentation.

Well suited for homes, entertainment spaces, and hospitality-inspired environments where wine storage, beverage access, and built-in integration are equally important.

Specifications

Cooling

Bottle Capacity	34 Bottles
Can Capacity	98 Cans
Temperature Zones	Dual Zone
Temperature Range	35°F to 68°F (2°C to 20°C)
Compressor	Embraco Fixed-Speed Compressor
Cooling System	Compressor Cooling + Forced-Air Convection
Operating Ambient Temperature	32-100°F (0-38°C)

Construction

Door Type	Low-E Glass

Electrical & Size

Volume	6.70 CF (190 Liters)
Noise Level	42.0 dB
Weight	69.0 lb
Energy Consumption	595kWh/Year
Electrical Requirements	110-115V/60HZ
Defrost Type	Automatic Defrost
Dimensions (W x D x H)	35.43" W x 23.43" D x 33.46" H (900W x 595D x 850H mm)

Installation & Documents

Installation Information

Installation Type	Built-In or Freestanding
Ventilation Requirement	Front Venting – Allows built-in installation with no rear clearance required for operation
Clearance Note	No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access.
Installation Considerations	The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement.
Installation Note	Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance.
