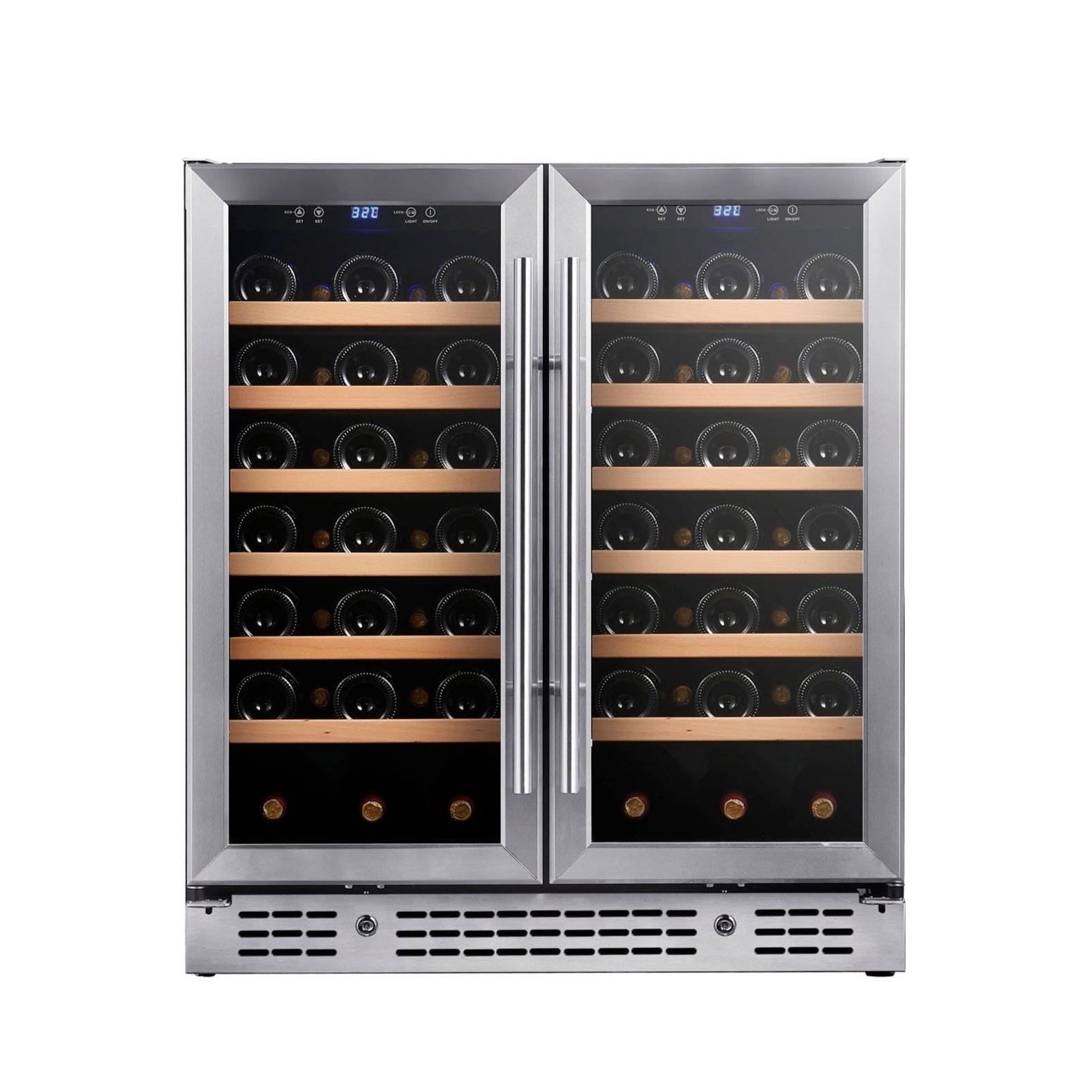

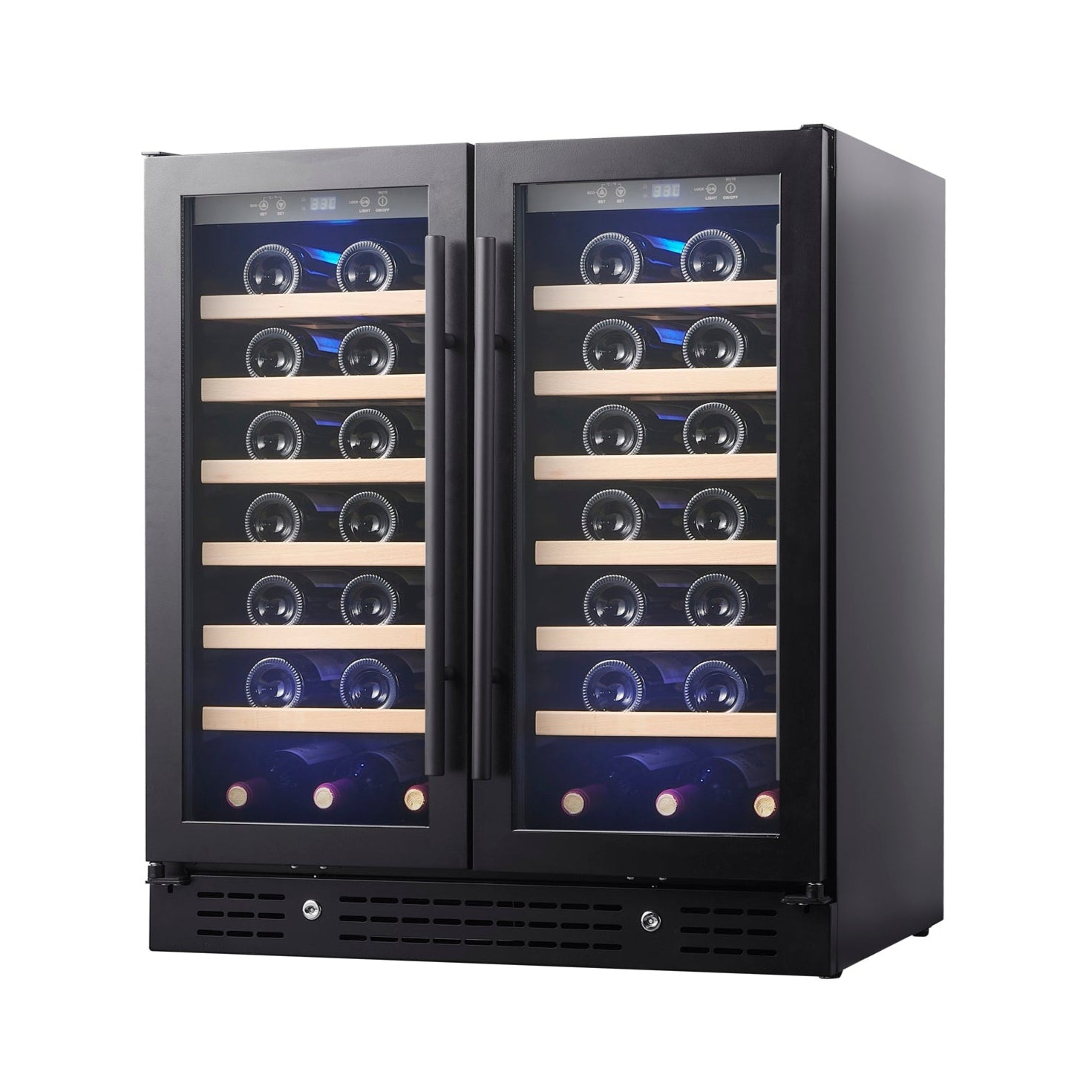

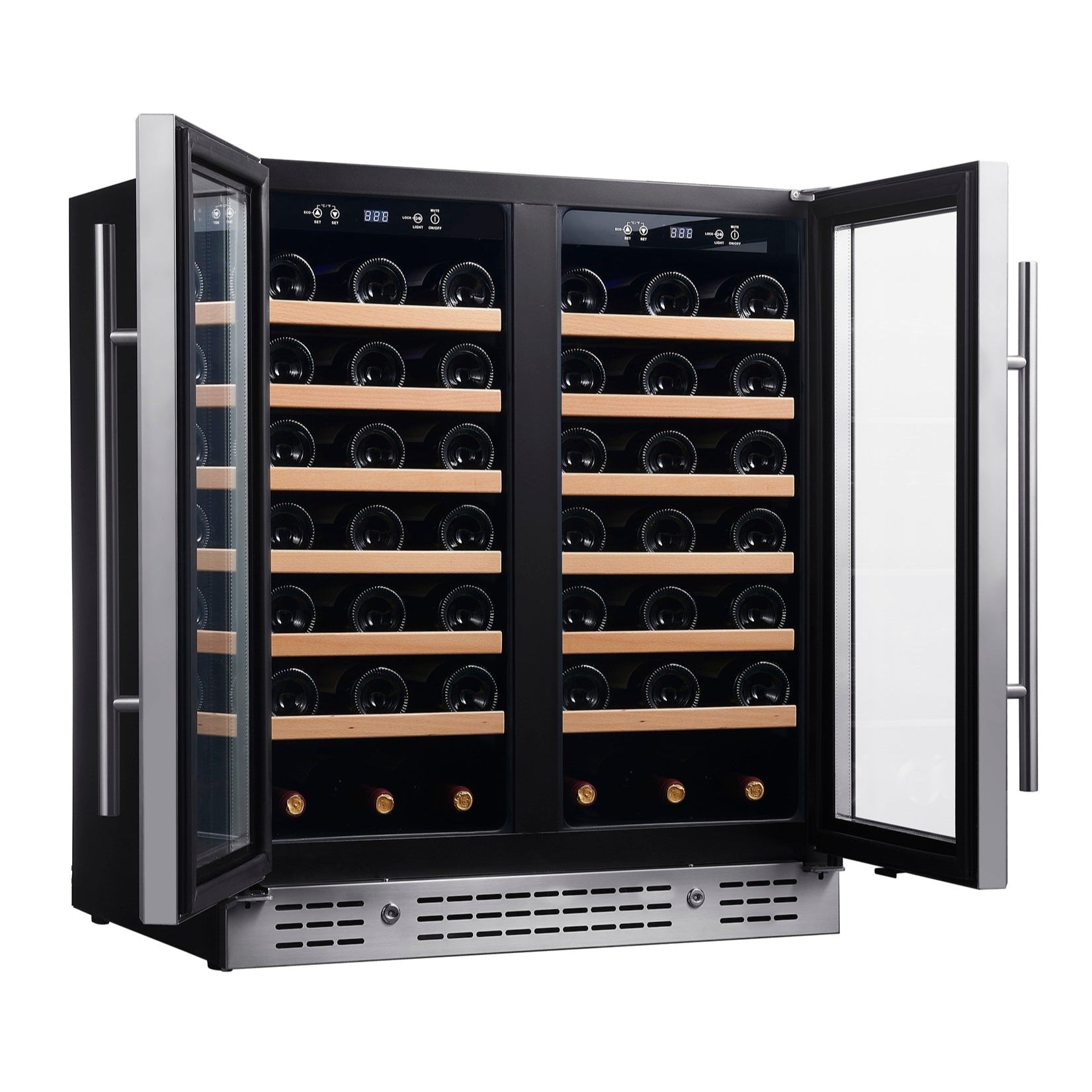

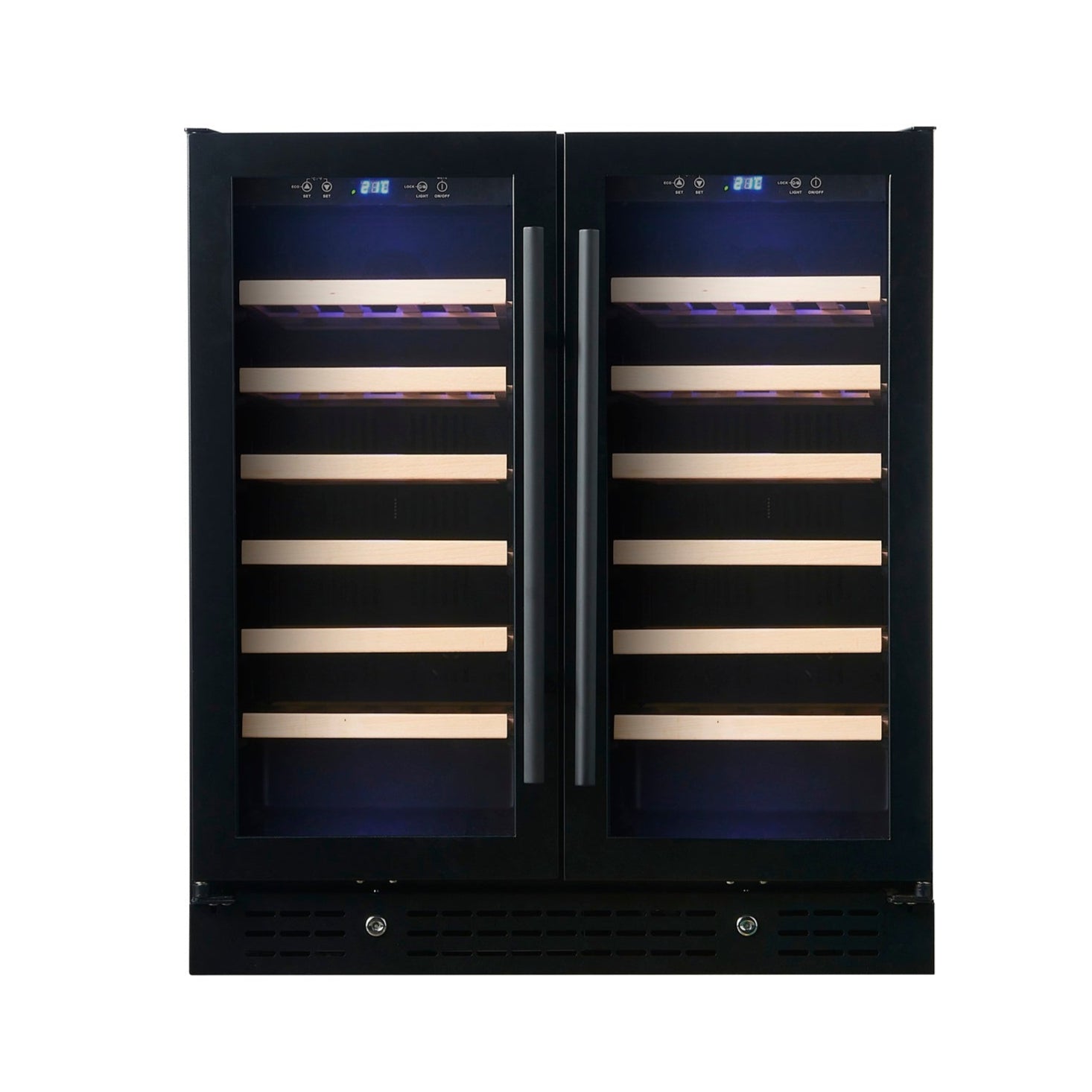

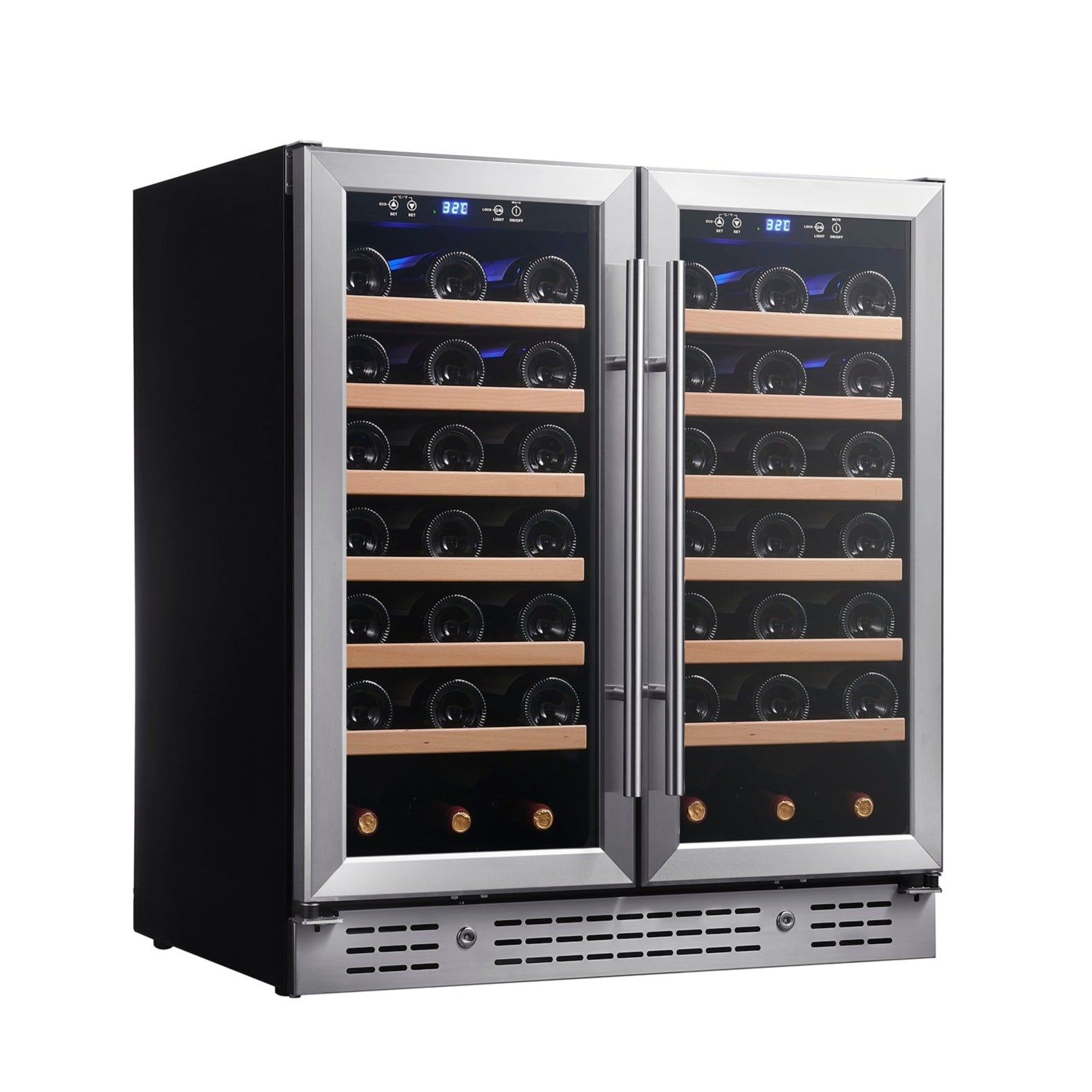

30-Inch Dual-Zone Wine Cooler
Compact Under-Counter Wine Storage
Ideal for kitchens and compact spaces, offering premium wine storage without compromising layout or accessibility.
Key Features
Dual-Zone Temperature Control
Store wine at ideal serving and aging temperatures with independently controlled zones.
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Large Bottle Compatibility
Fits wider bottles without compromising storage capacity or organization.
Capacity
Stores up to 66 bottles
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Built-In Ready Design
Designed for seamless installation with cabinetry for a clean integrated look.
Designed for modern kitchens and entertaining spaces, this built-in wine cooler provides organized storage with independent serving flexibility for different wine styles.
Its dual-zone configuration allows red and white wines to be stored separately at their preferred serving temperatures within one integrated system.
Designed for seamless under-counter installation, the unit integrates naturally into cabinetry while maintaining easy bottle access and clean visual presentation.
Well suited for collectors seeking both serving flexibility and refined built-in integration for everyday wine enjoyment.
Specifications
Cooling
| Bottle Capacity | 66 Bottles |
|---|---|
| Temperature Zones | Dual Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Fixed-Speed Compressor |
Construction
| Door Type | Low-E Glass |
|---|
Electrical & Size
| Volume | 5.83 CF (165 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 60.0 lb |
| Dimensions (W x D x H) | 29.53" W x 22.44" D x 33.86" H (750W x 570D x 860H mm) |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |

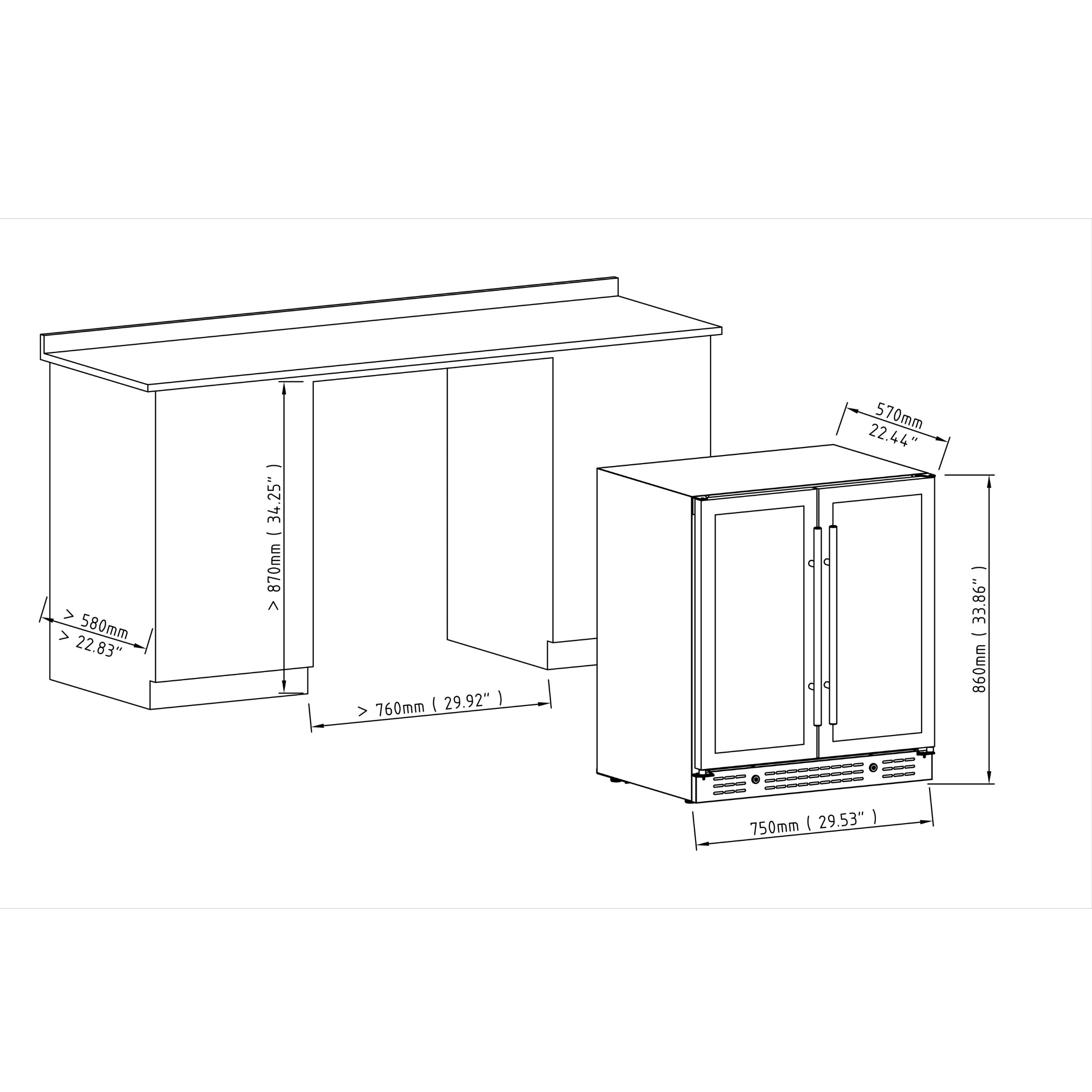

| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |

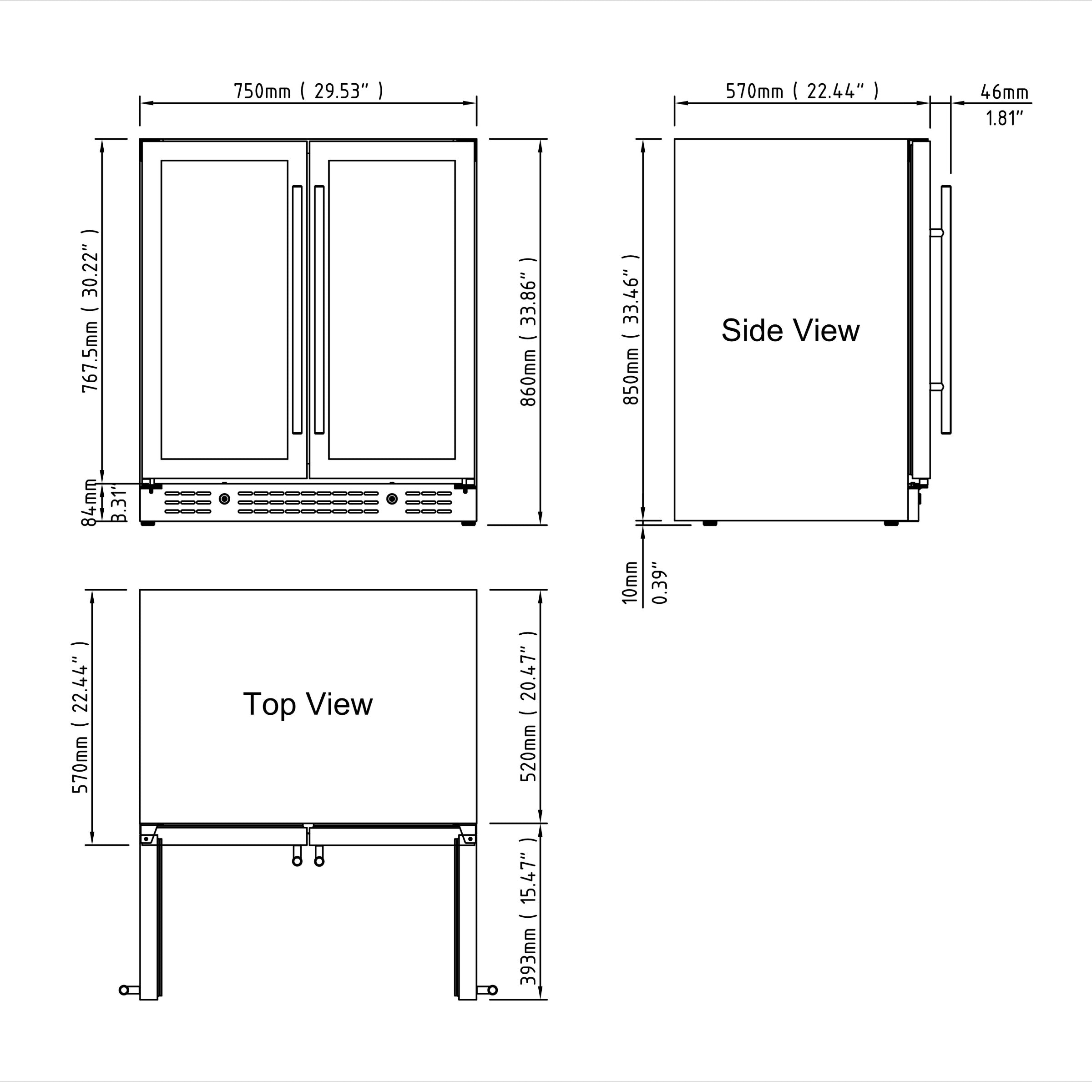

Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
