Wall-Mounted Wine Rack | H-Type

SKU: WMRH-03B

$34.95

Architectural Wine Display

Seamlessly integrates into modern interiors, transforming wine storage into a refined architectural feature.

Height:

Variant

System Features

Space-Efficient Storage

Maximizes bottle capacity while maintaining a clean and organized footprint.

Custom Layout Flexibility

Metal rack components can be arranged to suit both compact and feature display walls.

Architectural Metal Display

Creates a clean and modern storage presentation with a strong architectural look.

Residential & Commercial Flexibility

Suitable for both private cellars and larger hospitality or retail environments.

Space-Smart Wall Storage

Helps maximize vertical storage while maintaining a refined display.

Description

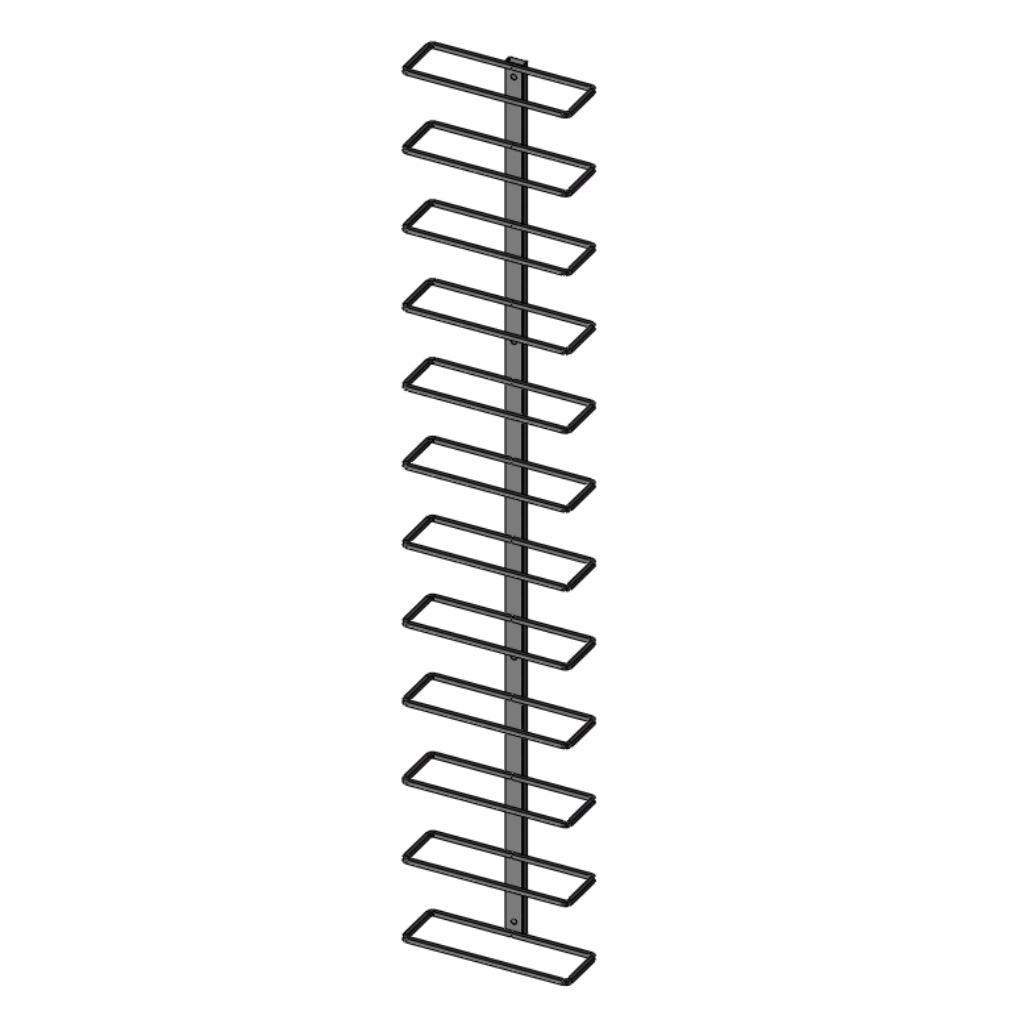

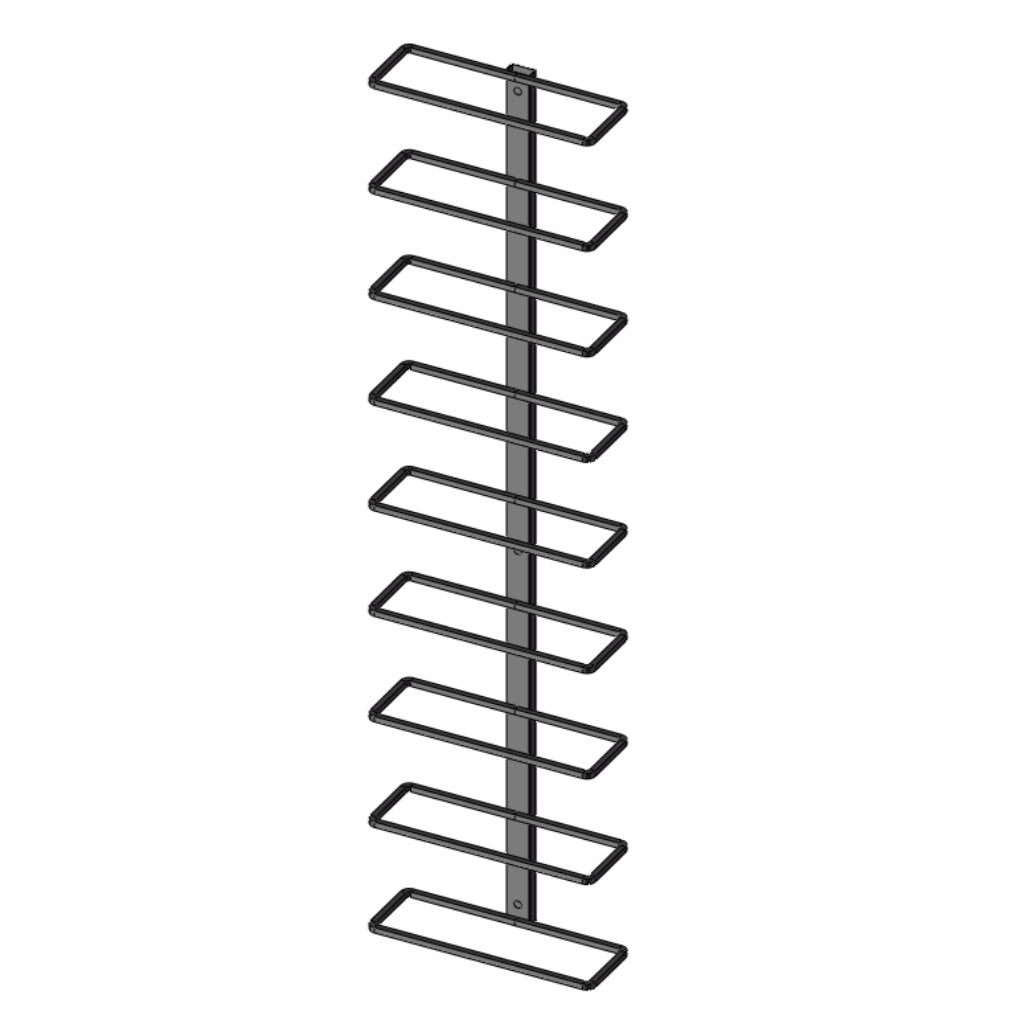

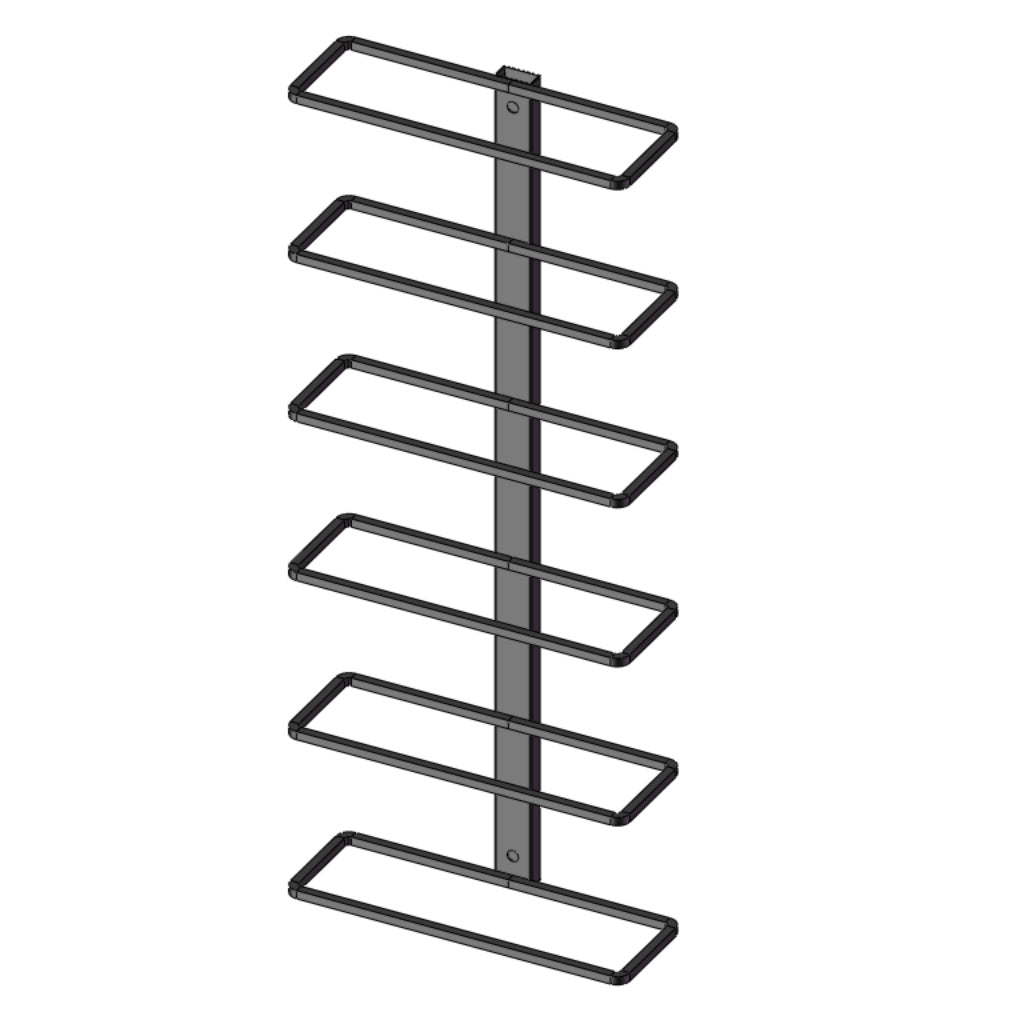

A welded steel rack: a central spine with a rectangular frame for each bottle. Each frame is 10.04" (255 mm) wide and stands 3.64" (92.5 mm) off the wall. Bottles sit label forward.

Key features

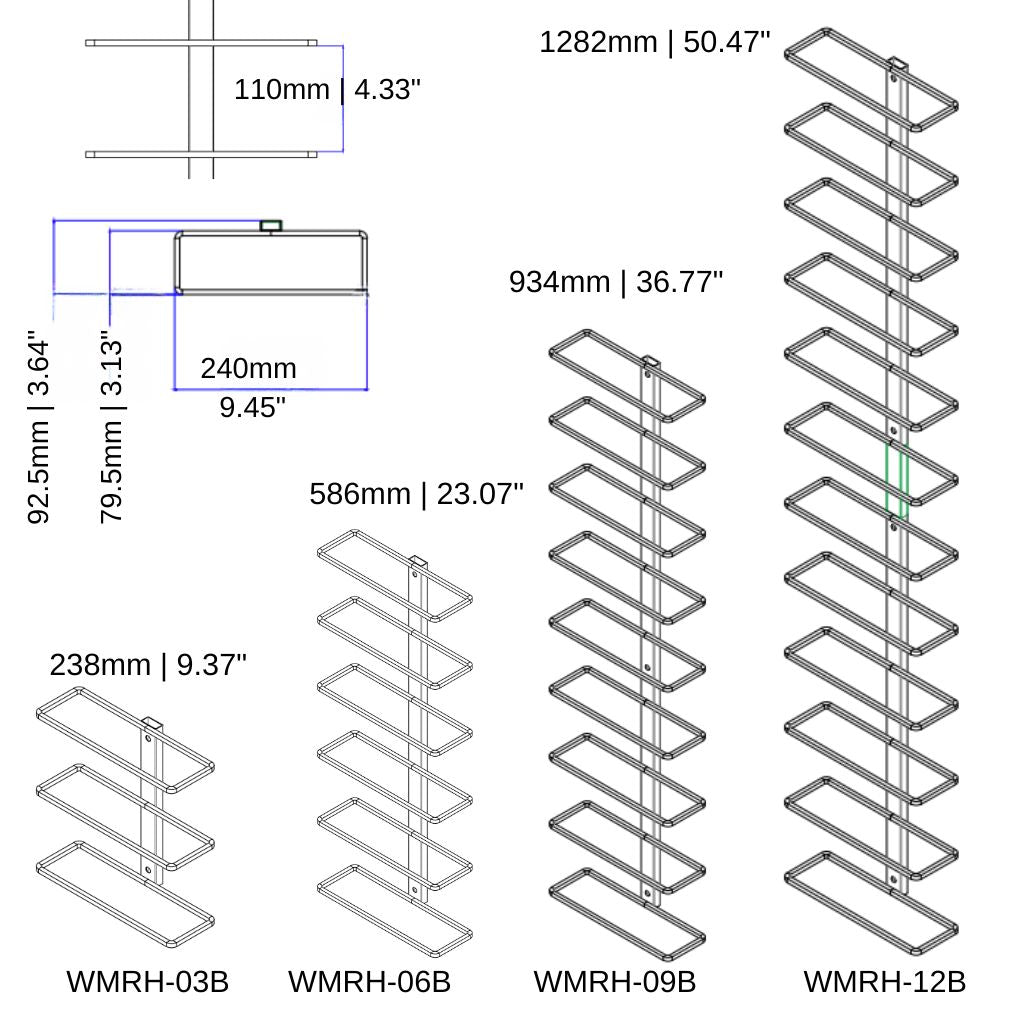

Four sizes: 3, 6, 9 or 12 bottles: 9.37", 23.07", 36.77" or 50.47" high (238, 586, 934 or 1282 mm).
Bottle size: 2.76" to 4.17" (70 to 106 mm) in diameter.
Arrives assembled: the 12-bottle rack is two 6-bottle racks with a connector, included.
Extendable: join two racks end to end with the H-Type Wall Mounted Wine Rack Coupler & Spacer (sold separately). It pushes into both spines; no screws.
Side by side: space racks 14.37" (365 mm) apart, center to center (12.99" / 330 mm minimum).

In the box

The rack, with wall screws and anchors for solid walls. Drywall, hollow walls, glass and acrylic need fixings bought separately. The installation guide shows the fixing for each wall type.

Specifications

Construction

Material	Steel

Installation & Documents

Installation Information

Installation Type	Wall-Mounted
Clearance Note	Ensure sufficient wall space and bottle clearance before installation. Mount only to a structurally suitable surface.
Installation Note	This product is designed for wall-mounted installation. Ensure the wall surface is structurally sound and suitable for the fixing method used. Professional installation is recommended where necessary. Always check alignment and bottle clearance before final fixing.
