Wall-Mounted Wine Rail | Offset Peg
Architectural Wine Display
Seamlessly integrates into modern interiors, transforming wine storage into a refined architectural feature.
Two matte black steel rails hold a column of bottles horizontally, label forward. The pegs on one rail sit 20 mm (0.79") higher than on the other, so each bottle rests at a slight angle.
Key features
- Four rail lengths: 13.46", 26.93", 40.39" or 53.86" (342 to 1368 mm), holding 3, 6, 9 or 12 bottles per column.
- Three peg depths: 1, 2 or 3 bottles deep.
- Bottle size: up to 3.74" (95 mm) in diameter.
- Silicone O-rings: grip each bottle and protect the glass.
- Extendable: join two racks end to end with the Offset Peg Wall-Mounted Wine Rack Coupler (sold separately).
In the box
Two rails, the wine pegs, a bolt and washer for each peg, and wall screws with anchors for solid walls. Drywall, hollow walls, glass and acrylic need fixings bought separately. The installation guide shows the fixing for each wall type.
Specifications
Rail: 0.98" W × 0.43" D (25 × 11 mm). Pegs: 0.74" (18.7 mm) diameter. Color: matte black.
| SKU | Rail length | Bottles | Peg | Depth from wall |
|---|---|---|---|---|

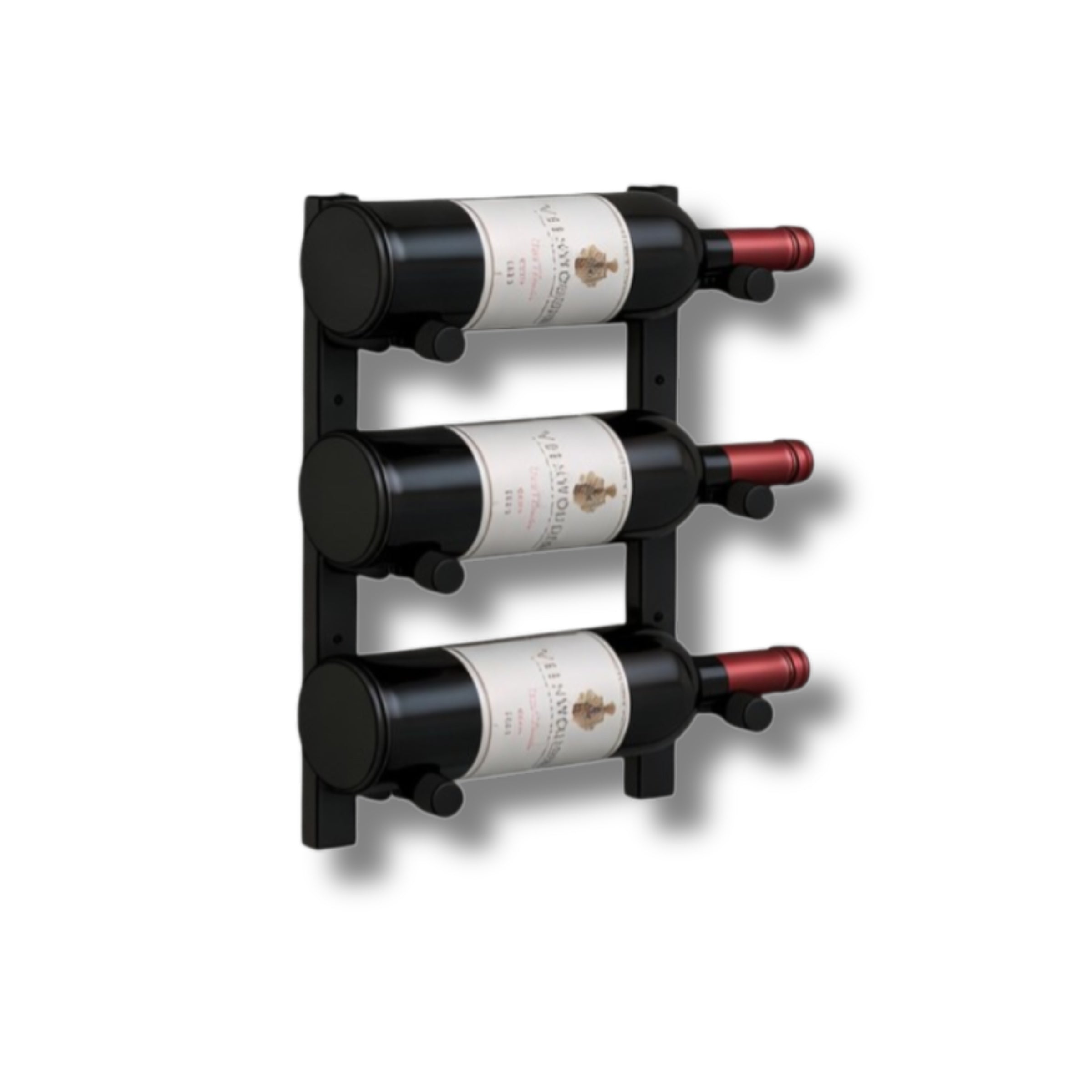

| RAIL0342-WPH01MBK | 342 mm (13.46") | 3 | Single deep · 85 mm (3.35") | 96 mm (3.78") |

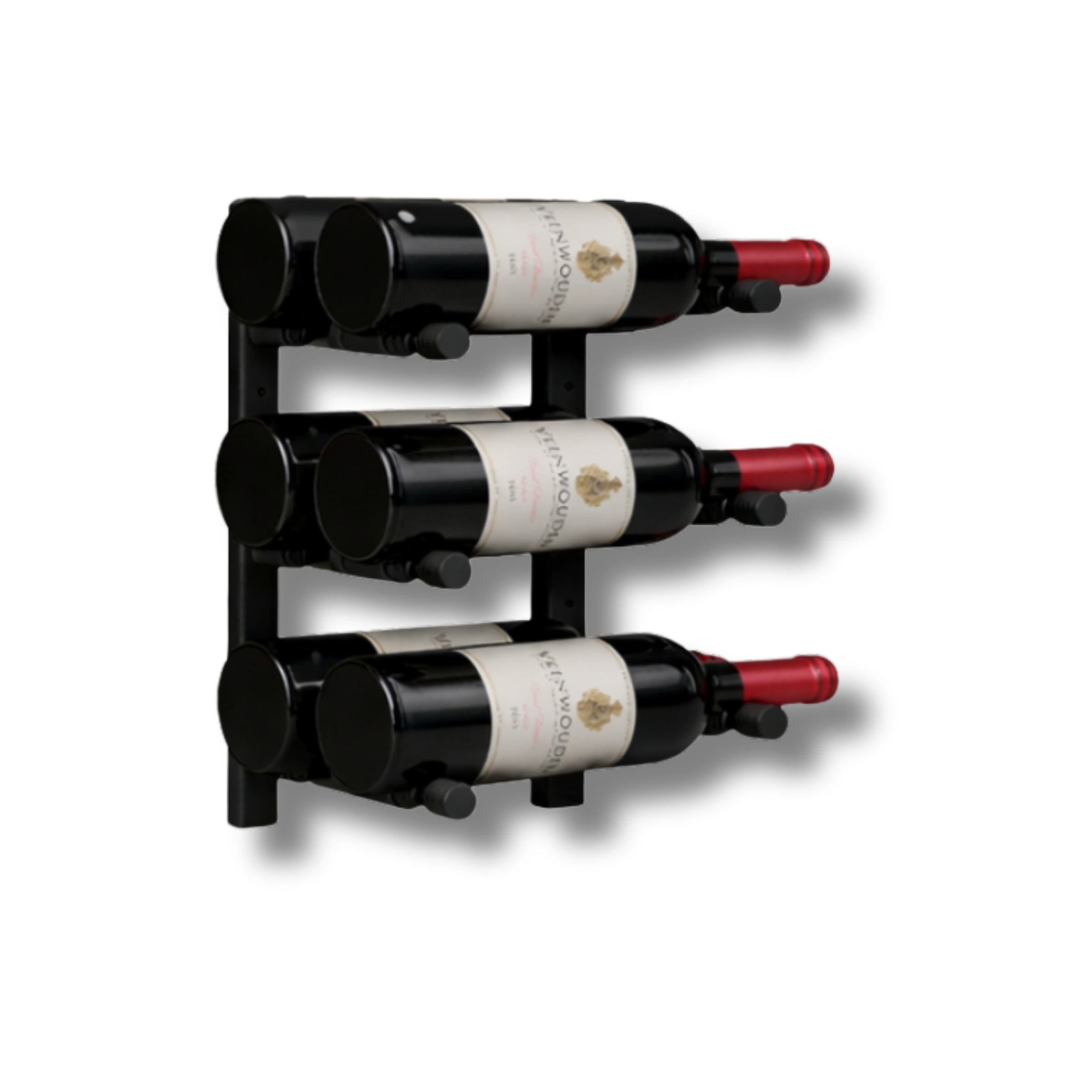

| RAIL0342-WPH02MBK | 342 mm (13.46") | 3 | Double deep · 180 mm (7.09") | 191 mm (7.52") |

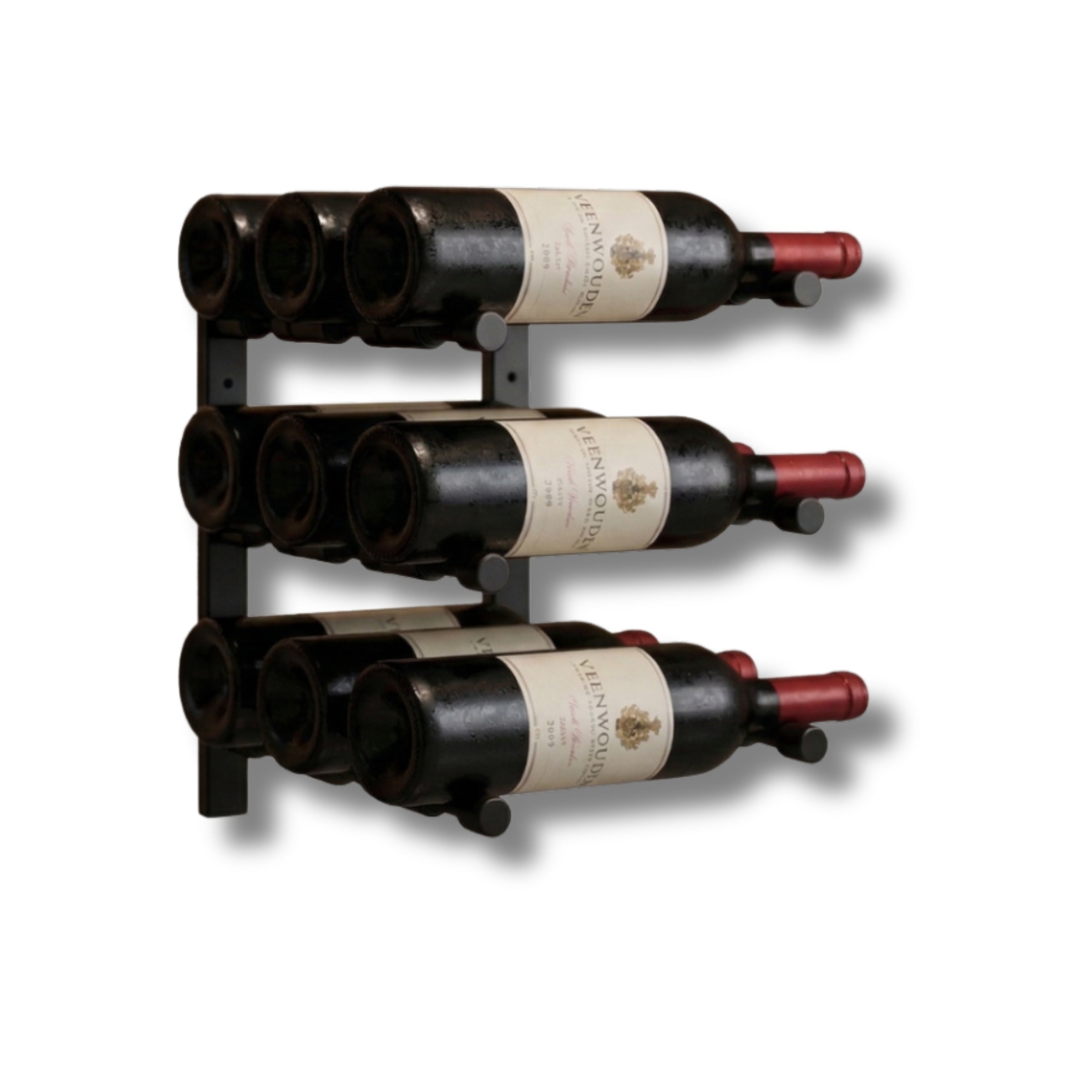

| RAIL0342-WPH03MBK | 342 mm (13.46") | 3 | Triple deep · 275 mm (10.83") | 286 mm (11.26") |

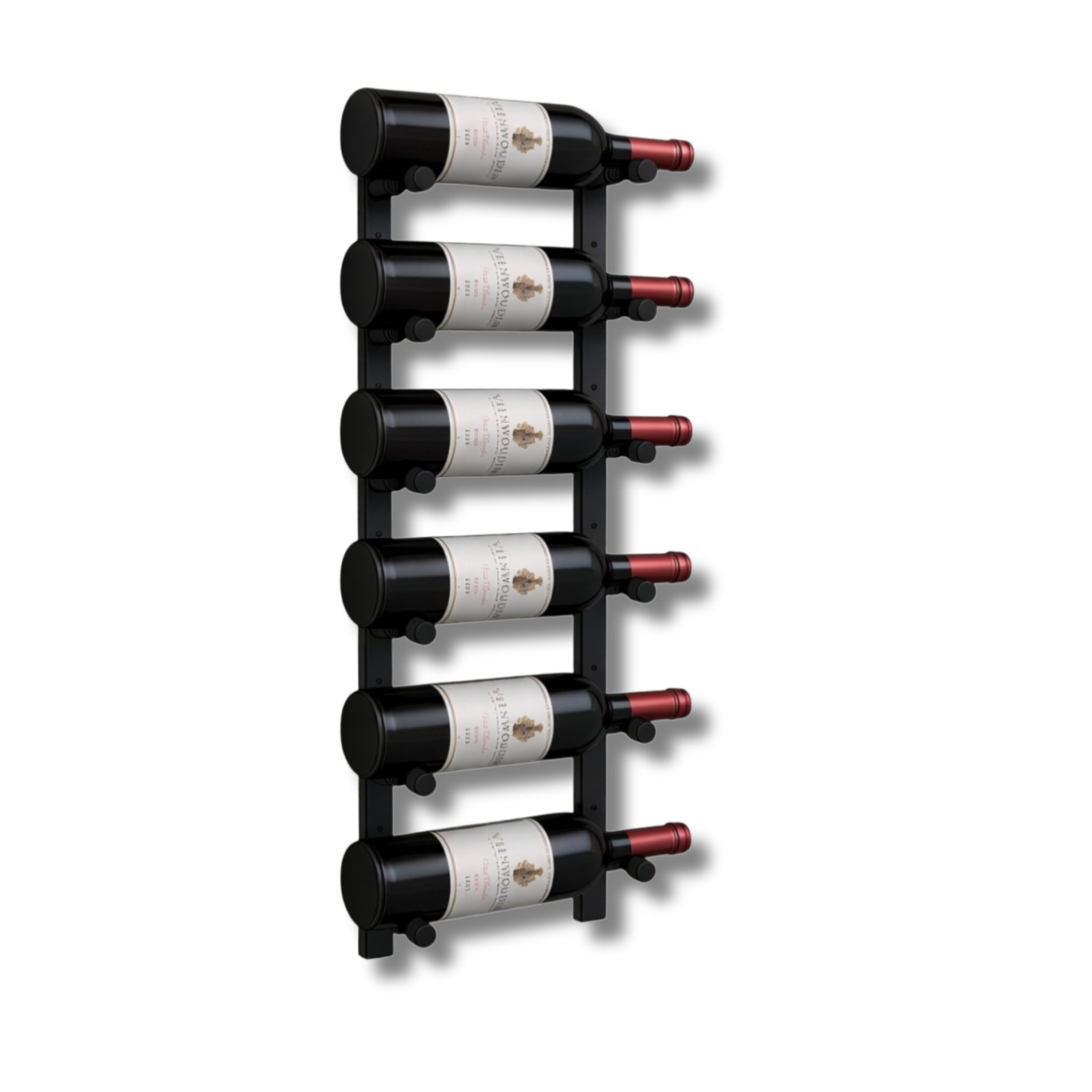

| RAIL0684-WPH01MBK | 684 mm (26.93") | 6 | Single deep · 85 mm (3.35") | 96 mm (3.78") |

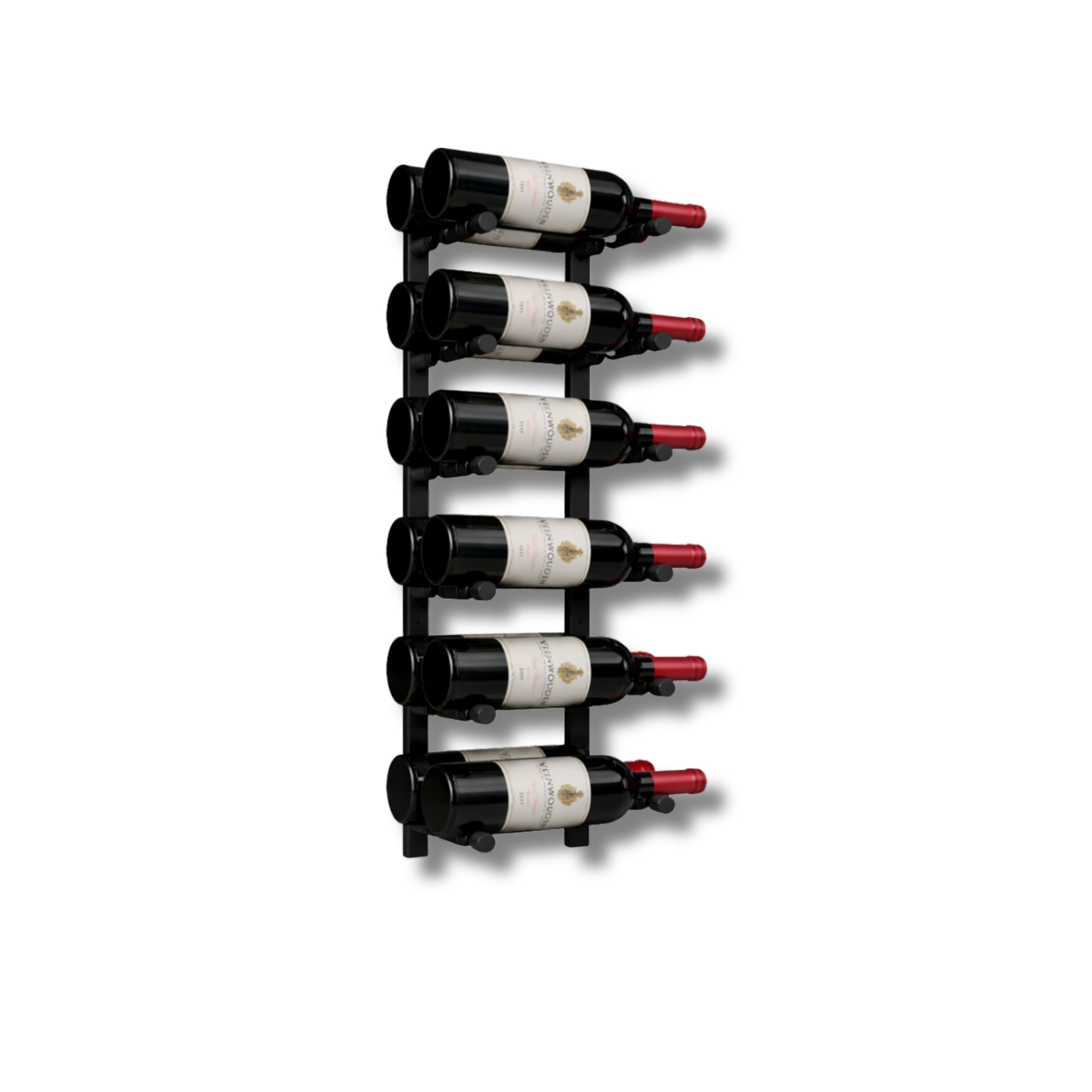

| RAIL0684-WPH02MBK | 684 mm (26.93") | 6 | Double deep · 180 mm (7.09") | 191 mm (7.52") |

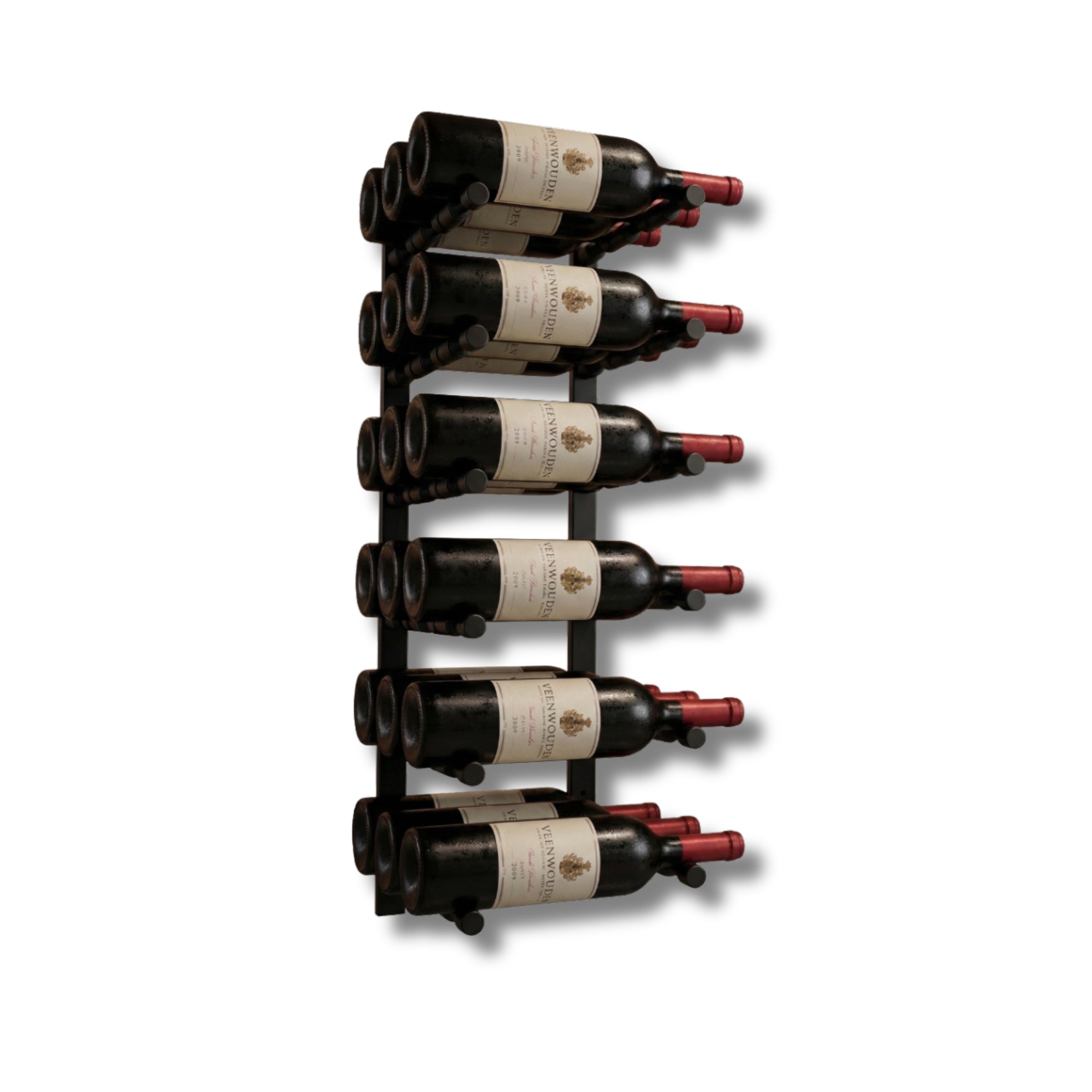

| RAIL0684-WPH03MBK | 684 mm (26.93") | 6 | Triple deep · 275 mm (10.83") | 286 mm (11.26") |

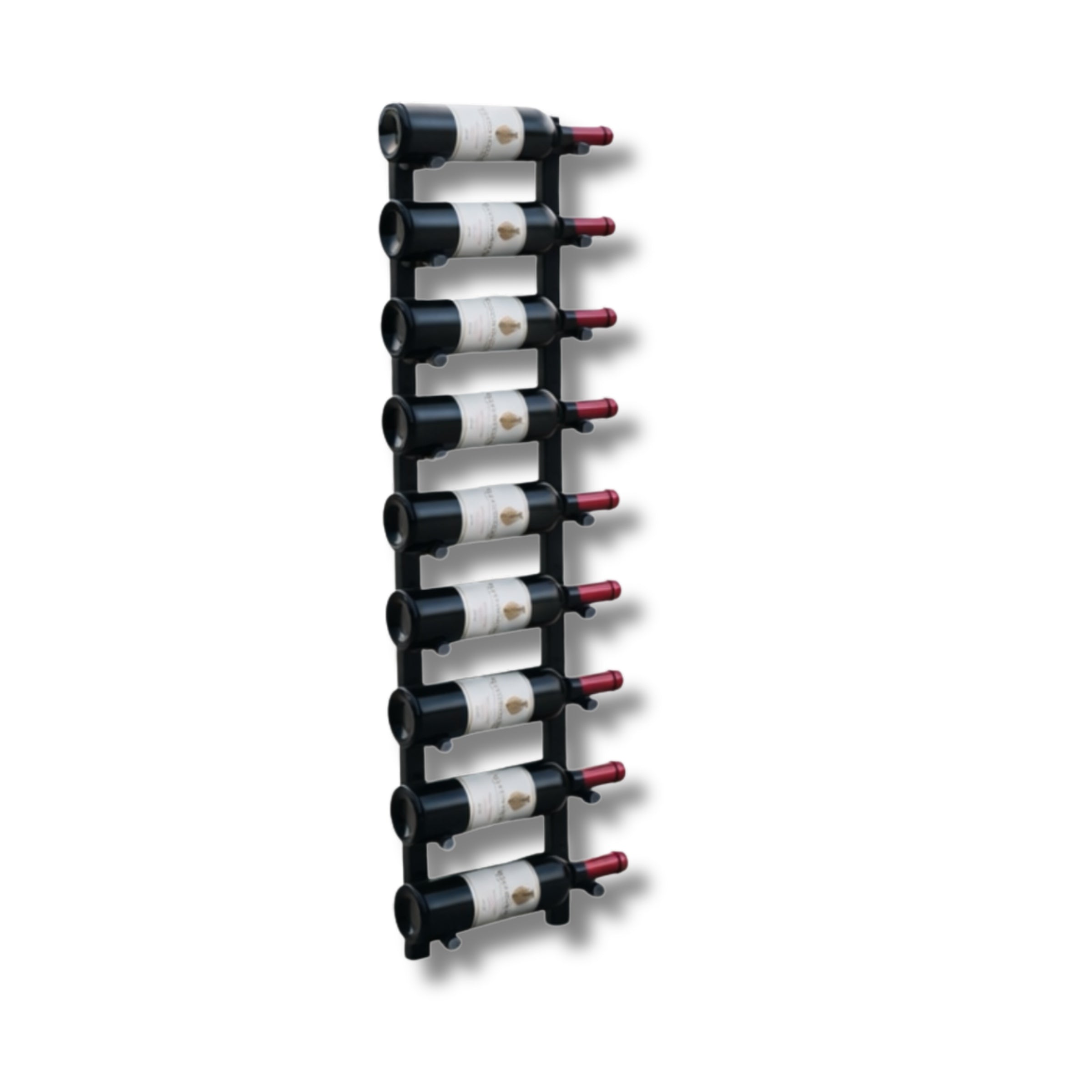

| RAIL1026-WPH01MBK | 1026 mm (40.39") | 9 | Single deep · 85 mm (3.35") | 96 mm (3.78") |

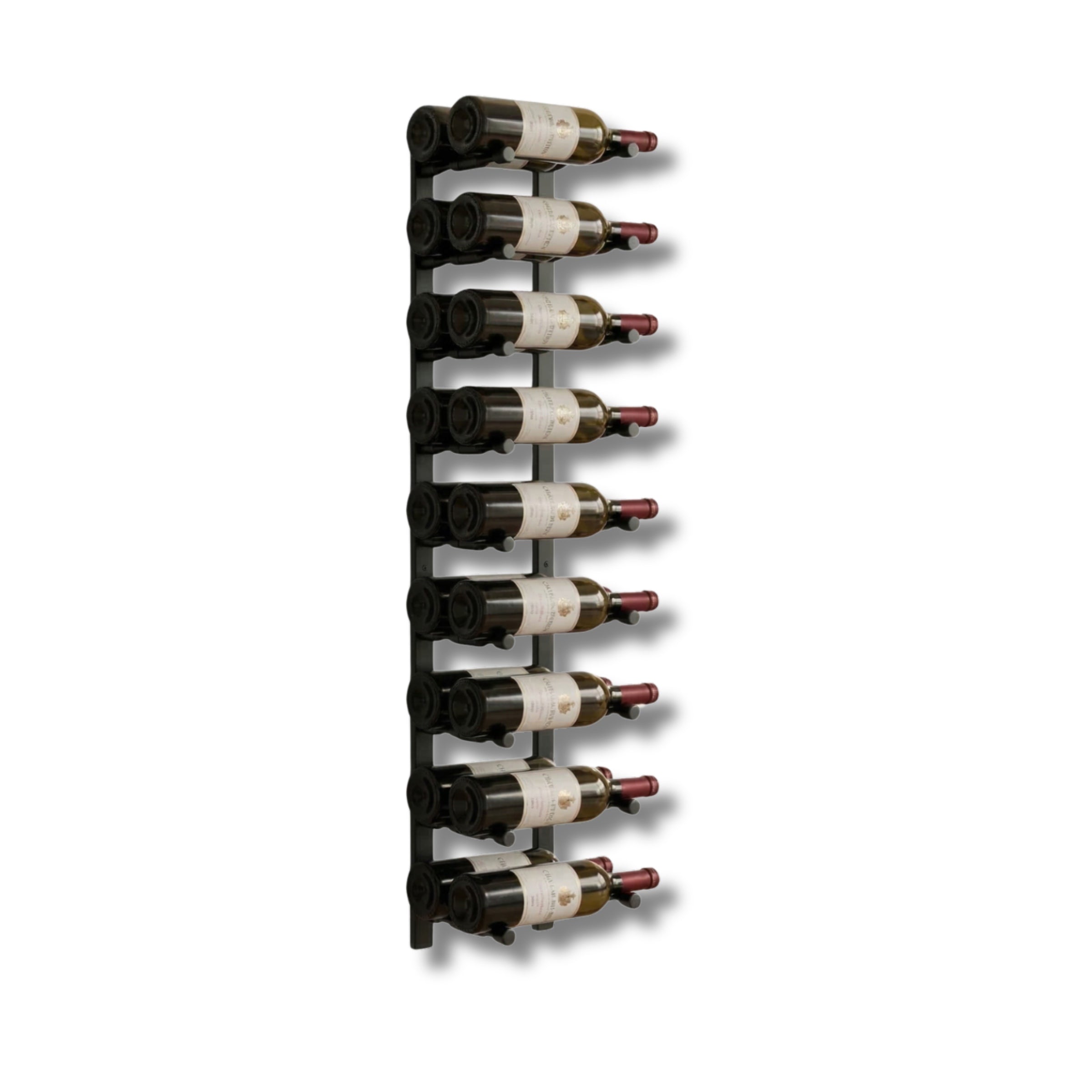

| RAIL1026-WPH02MBK | 1026 mm (40.39") | 9 | Double deep · 180 mm (7.09") | 191 mm (7.52") |

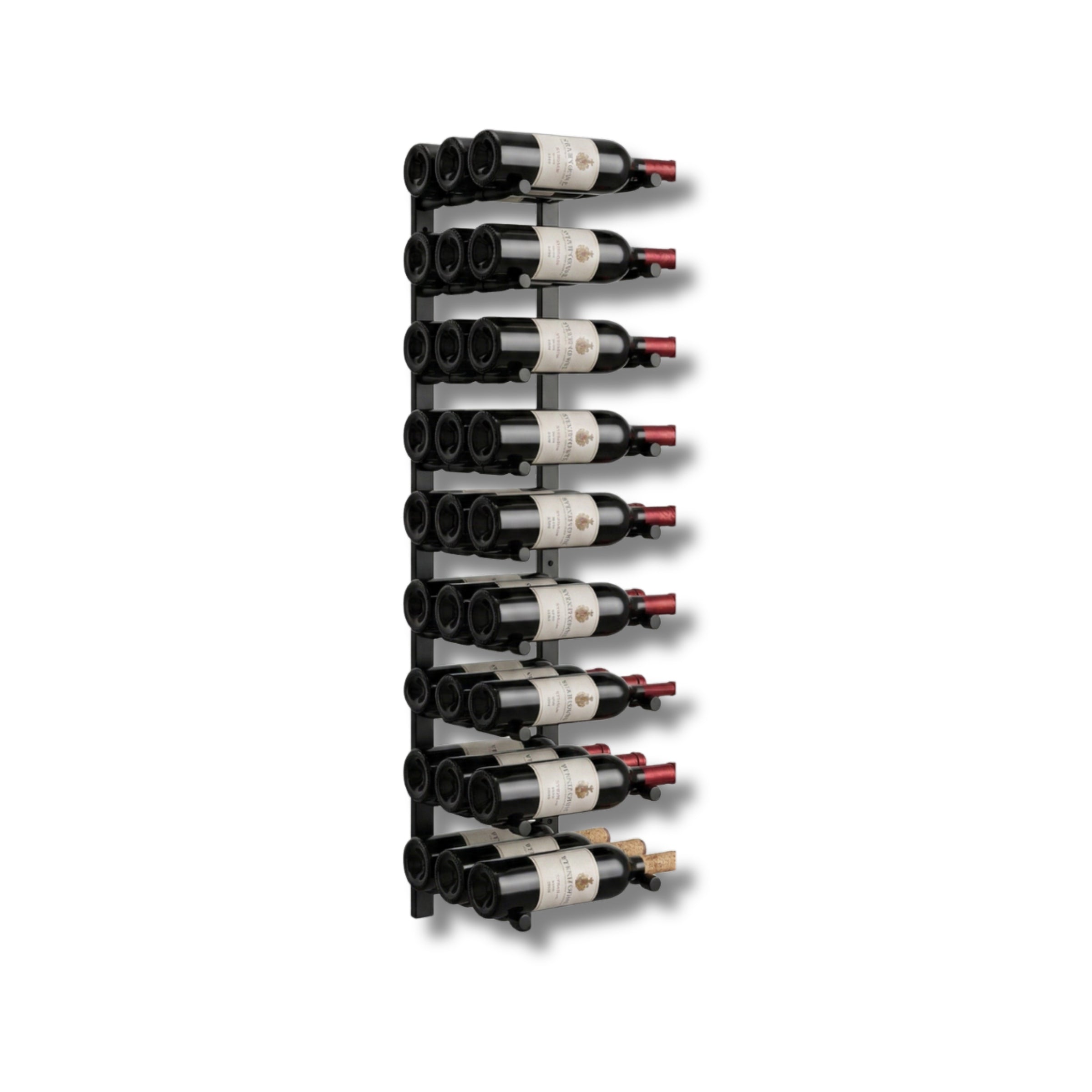

| RAIL1026-WPH03MBK | 1026 mm (40.39") | 9 | Triple deep · 275 mm (10.83") | 286 mm (11.26") |

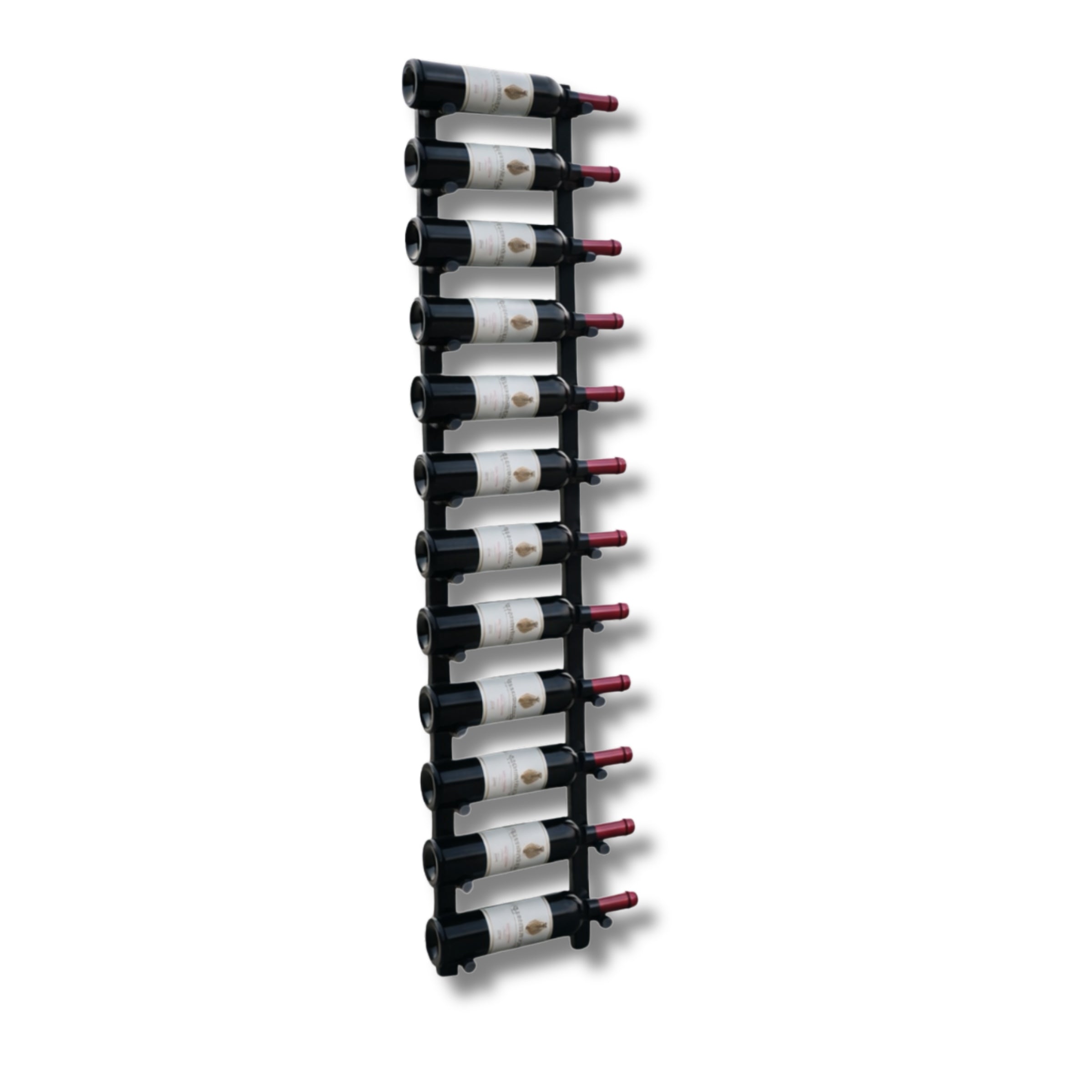

| RAIL1368-WPH01MBK | 1368 mm (53.86") | 12 | Single deep · 85 mm (3.35") | 96 mm (3.78") |

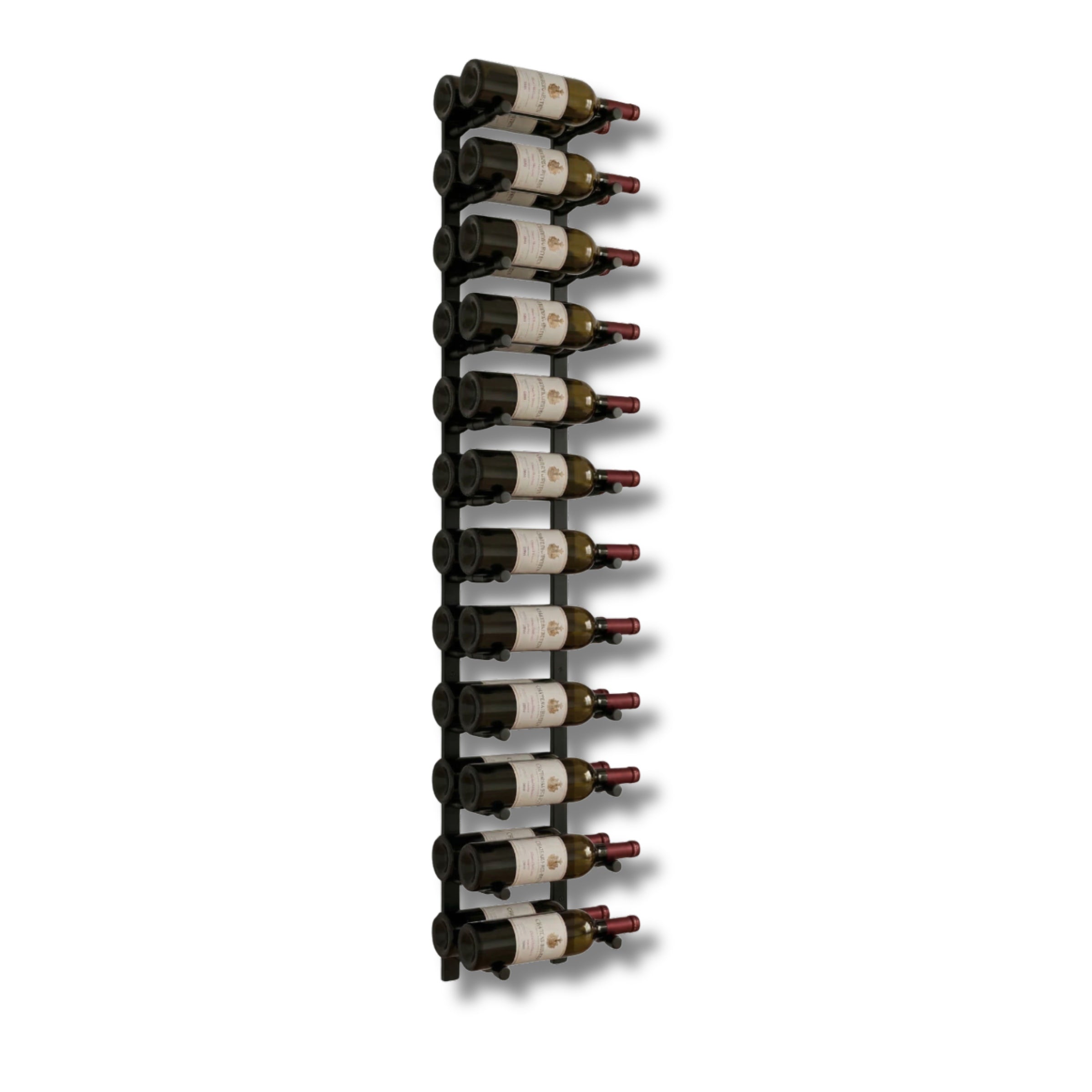

| RAIL1368-WPH02MBK | 1368 mm (53.86") | 12 | Double deep · 180 mm (7.09") | 191 mm (7.52") |

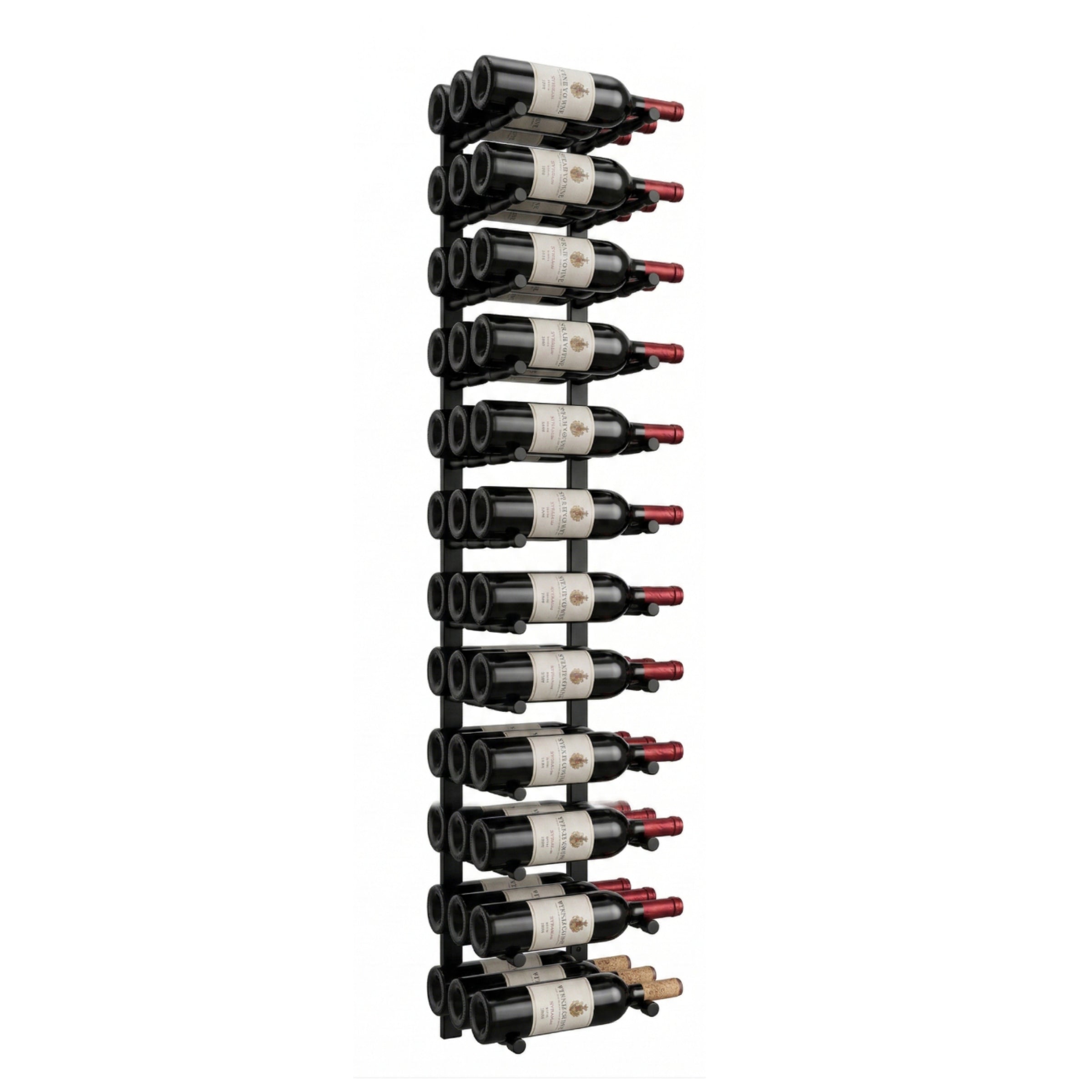

| RAIL1368-WPH03MBK | 1368 mm (53.86") | 12 | Triple deep · 275 mm (10.83") | 286 mm (11.26") |
Specifications
Construction
| Material | Steel |
|---|
Installation & Documents
Installation Information
| Installation Type | Wall-Mounted |
|---|---|
| Clearance Note | Ensure sufficient wall space and bottle clearance before installation. Mount only to a structurally suitable surface. |
| Installation Note | This product is designed for wall-mounted installation. Ensure the wall surface is structurally sound and suitable for the fixing method used. Professional installation is recommended where necessary. Always check alignment and bottle clearance before final fixing. |

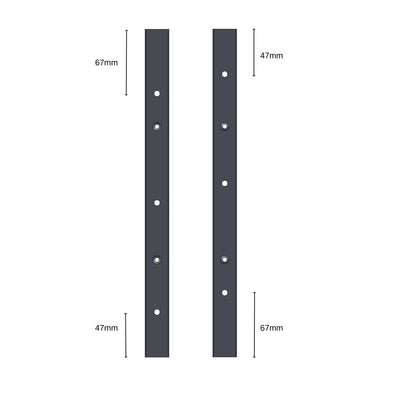

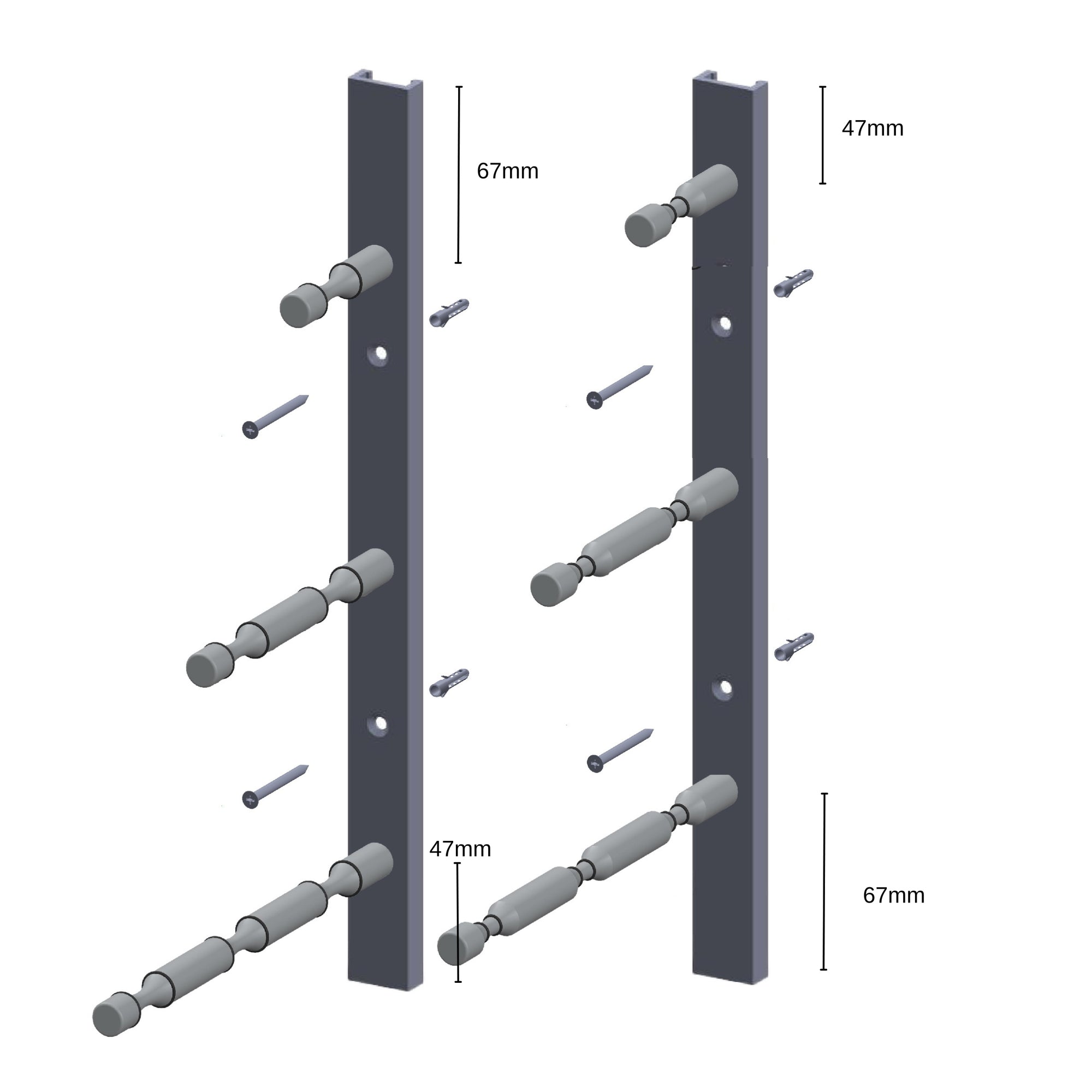

Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
Compare Storage Options
Review adjacent configurations by storage type and format to find the most suitable option for your space.
Wall-Mounted Wine Rail | Offset Peg
Sale price$49.95
Choose options
Wall-Mounted Wine Rail | Offset Peg
Sale price$49.95
