Wall-Mounted Wine Rack | C-Type
Architectural Wine Display
Seamlessly integrates into modern interiors, transforming wine storage into a refined architectural feature.

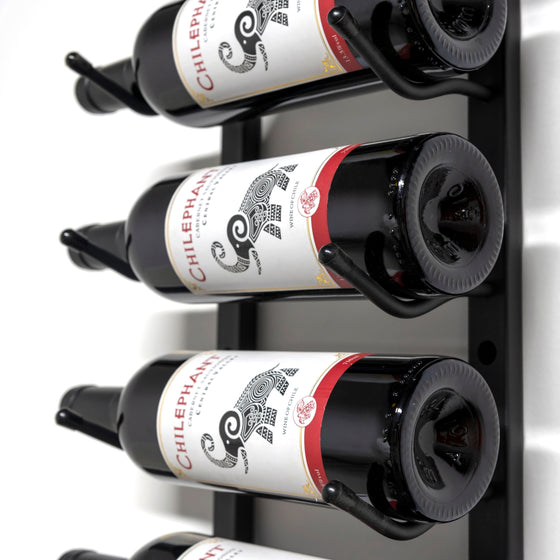

Each rack is a pair of steel holder strips. Bottles lie across the two strips, label forward, at a slight angle. The cork stays in contact with the wine, which keeps it from drying out, and the air in the bottle stays at the top.
Key features
- Two heights: 35.43" (900 mm, 9 bottles) or 47.24" (1200 mm, 12 bottles), including the end caps.
- Three depths: 1, 2 or 3 bottles deep: 4.92", 8.86" or 11.93" (125, 225 or 303 mm) from the wall.
- Bottle size: up to 3.39" (86 mm) in diameter.
- Stackable: mount a second rack directly above the first, end to end. No connector needed.
- Clean finish: caps cover the screw heads once the strips are fixed.
In the box
Strip A and Strip B, with one screw, wall anchor and cap for each screw hole, for solid walls. Drywall, hollow walls, glass and acrylic need fixings bought separately. The installation guide shows the fixing for each wall type.
Specifications
Construction
| Material | Steel |
|---|
Installation & Documents
Installation Information
| Installation Type | Wall-Mounted |
|---|---|
| Clearance Note | Ensure sufficient wall space and bottle clearance before installation. Mount only to a structurally suitable surface. |
| Installation Note | This product is designed for wall-mounted installation. Ensure the wall surface is structurally sound and suitable for the fixing method used. Professional installation is recommended where necessary. Always check alignment and bottle clearance before final fixing. |

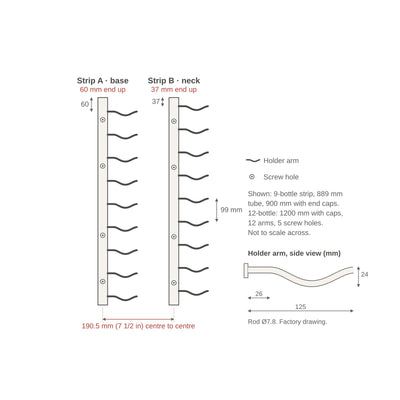

Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
