24-Inch Single-Zone Wine Cooler
Compact Under-Counter Wine Storage
Ideal for kitchens and compact spaces, offering premium wine storage without compromising layout or accessibility.
Key Features
Single-Zone Stability
35°F to 54°F (2°C to 20°C)
Quiet & Energy Efficient Operation
Inverter compressor delivers quieter performance while reducing energy consumption.
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Large Bottle Compatibility
Fits wider bottles without compromising storage capacity or organization.
Full-Extension Shelving
Smooth glide-out shelves provide easy access to every bottle, even those stored at the back.
Capacity
Stores up to 46 bottles
Designed to provide reliable wine storage with a clean built-in appearance for modern kitchens, home bars, and entertaining spaces.
Its single-zone configuration is ideal for collectors who prefer dedicated temperature consistency for either red or white wines.
Designed for seamless under-counter installation, the unit integrates naturally into cabinetry and home bar layouts while supporting organized bottle presentation and easy everyday access.
Well suited for kitchens, entertainment spaces, and compact wine collections where clean integration and everyday usability are equally important.
Specifications
Cooling
| Bottle Capacity | 46 Bottles |
|---|---|
| Temperature Zones | Single Zone |
| Temperature Range | 35°F to 54°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
Construction
| Door Type | Low-E Glass |
|---|
Electrical & Size
| Volume | 5.12CF (145 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 52.0 lb |
| Dimensions (W x D x H) | 23.43" W x 22.76" D x 34.06" H (595W x 578D x 865H mm) |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |

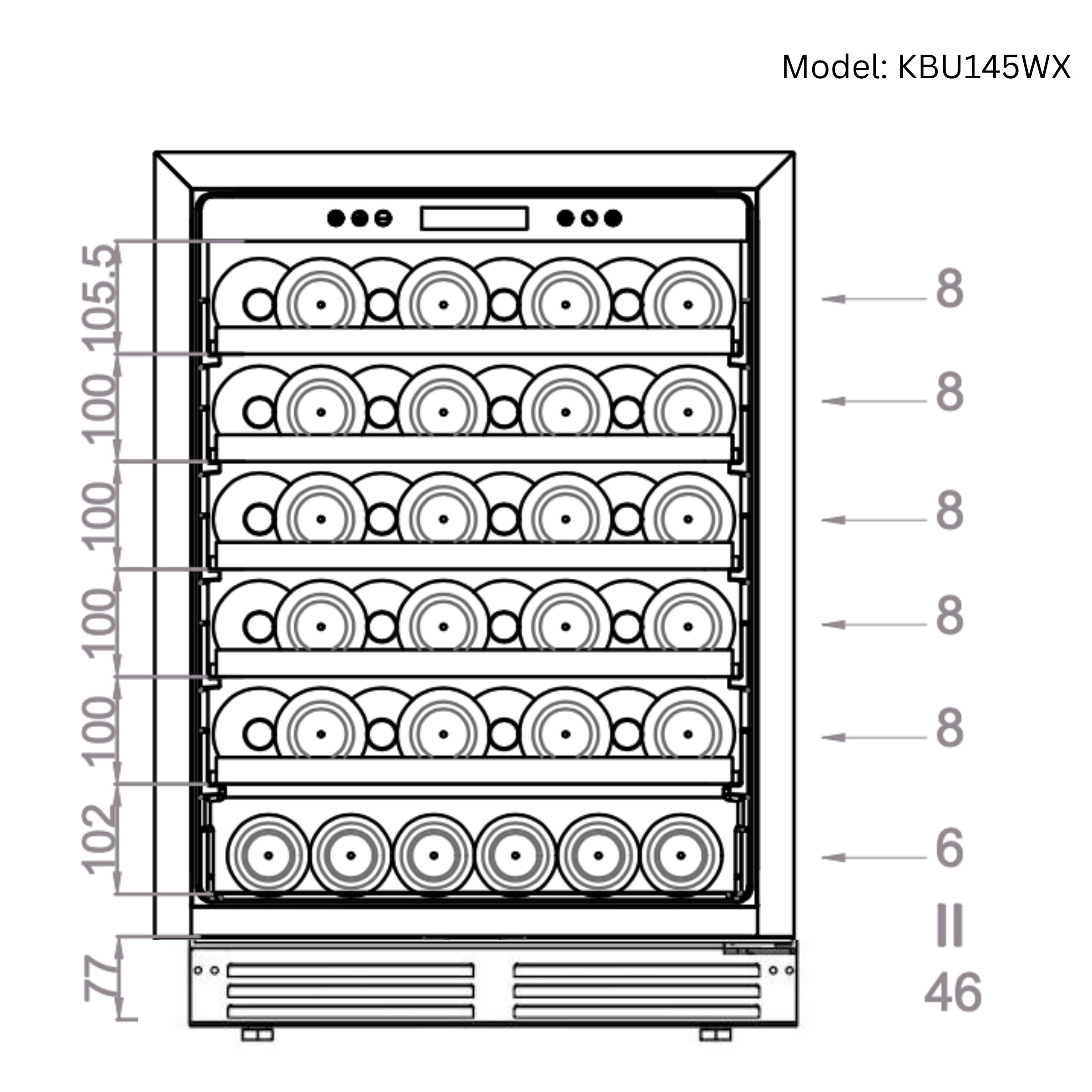

Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
