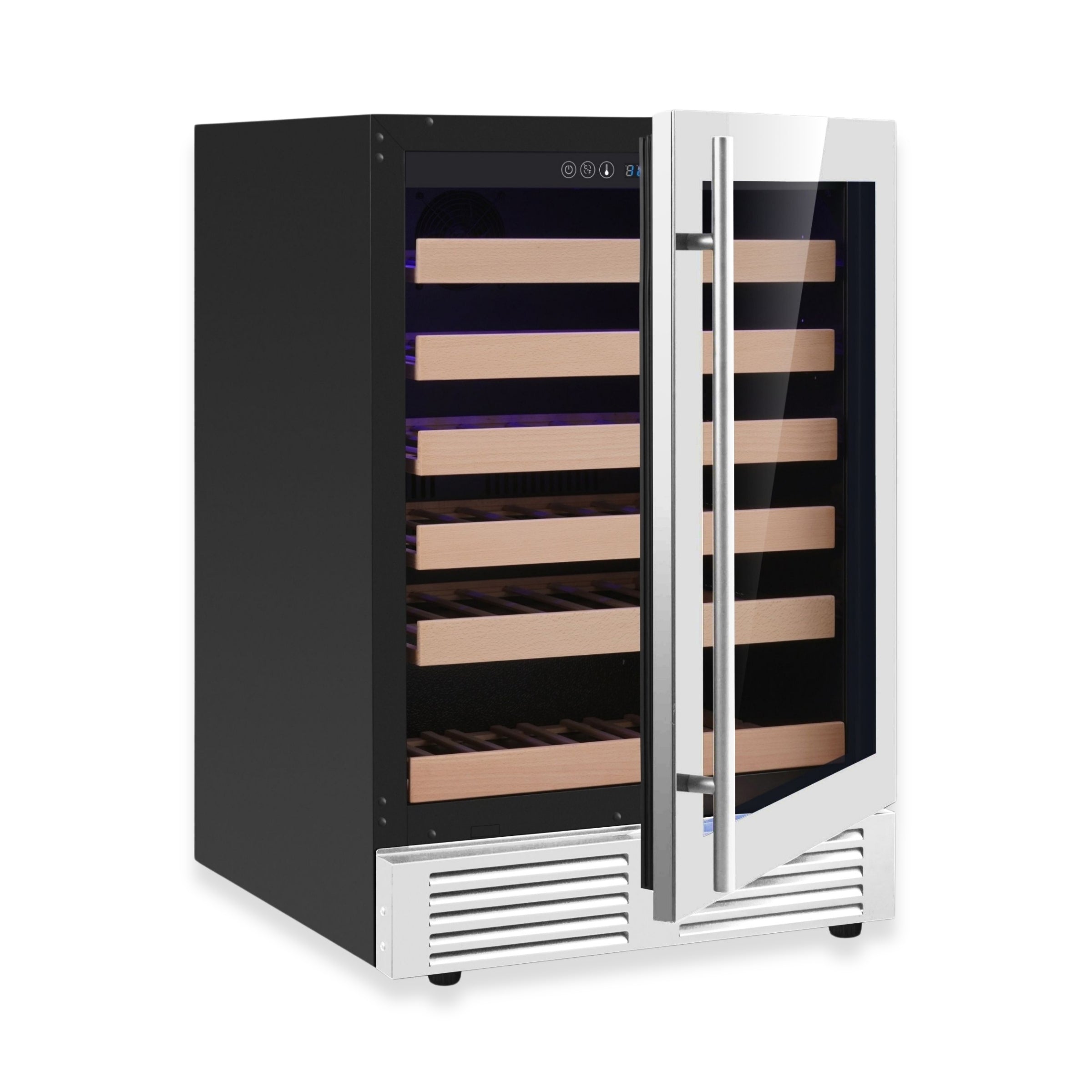

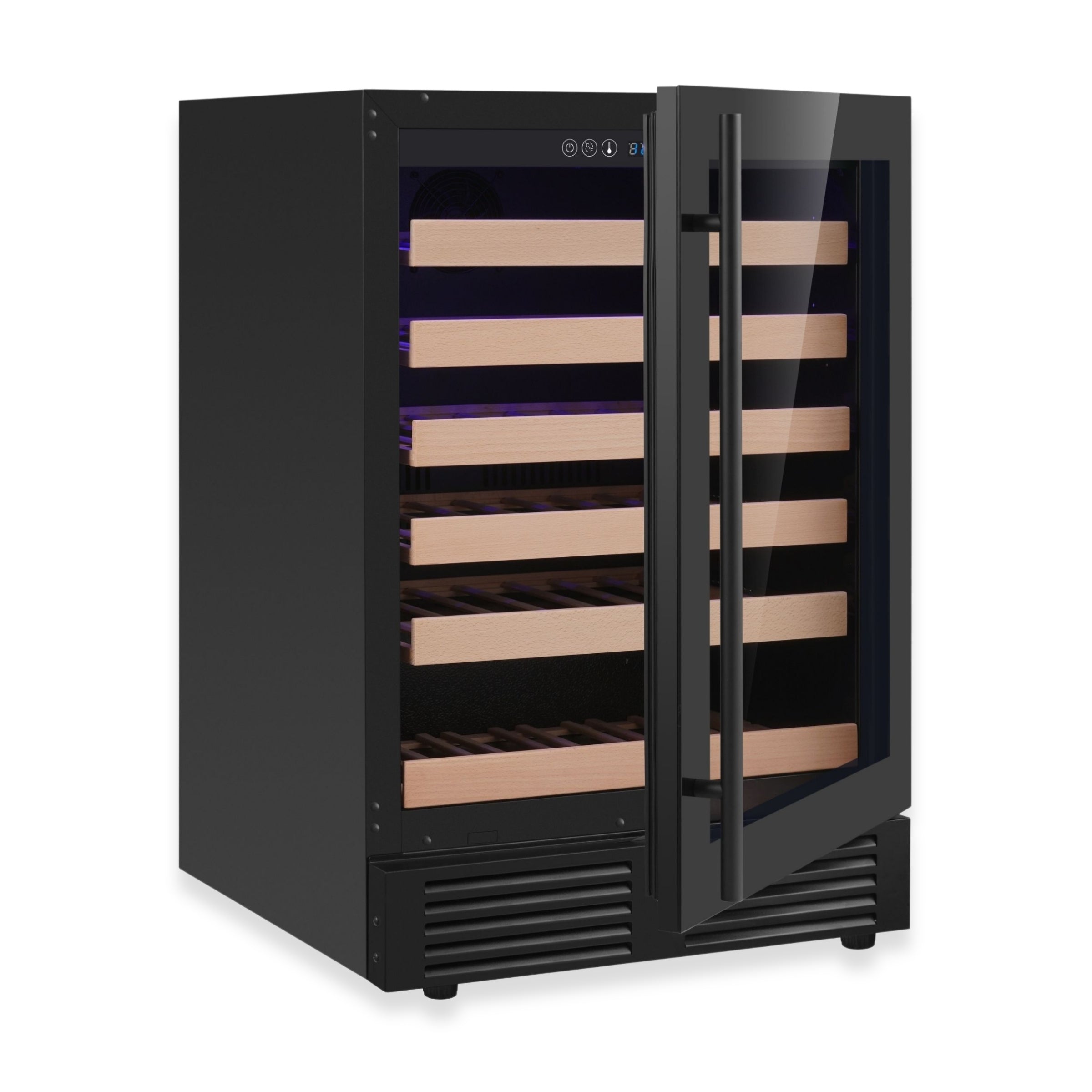

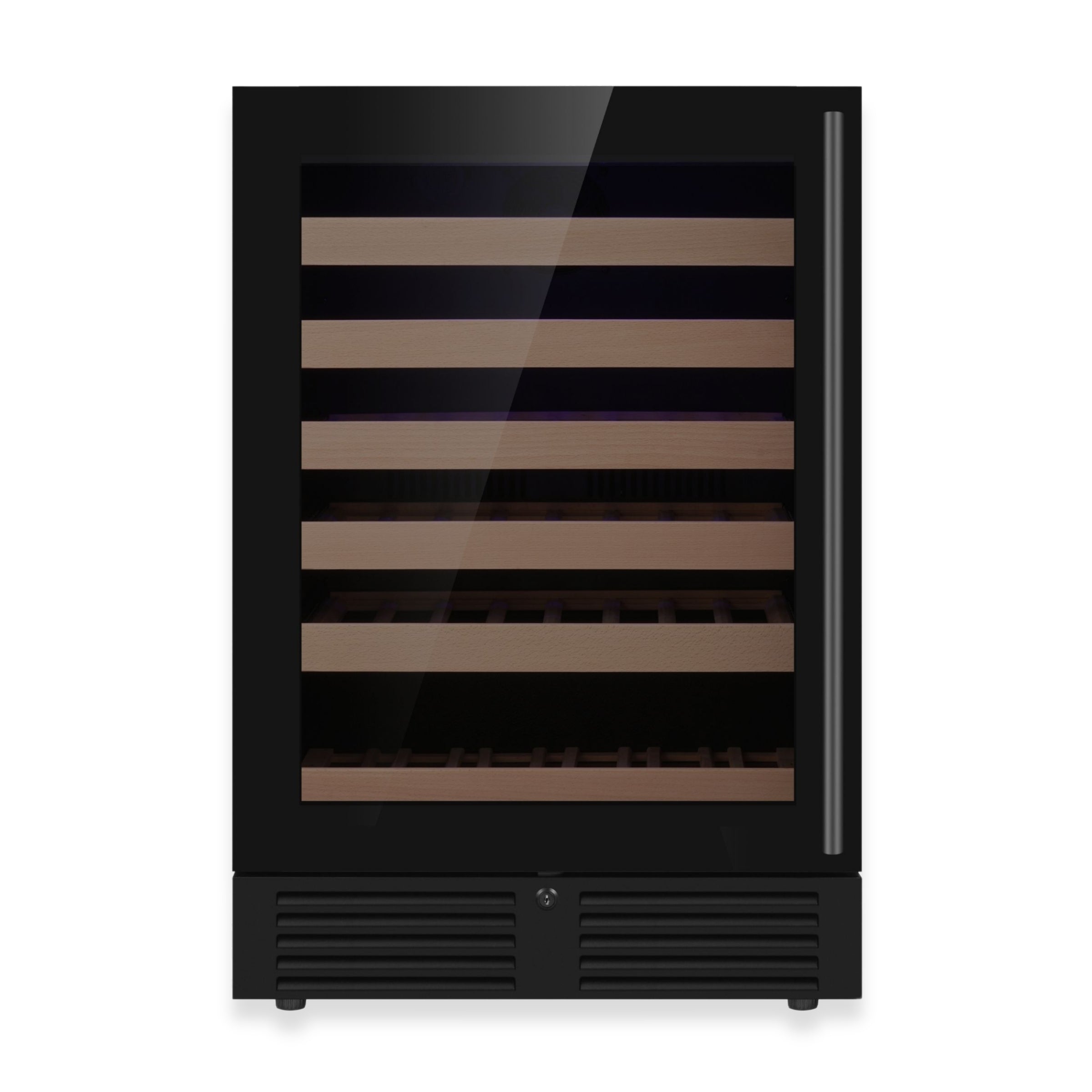

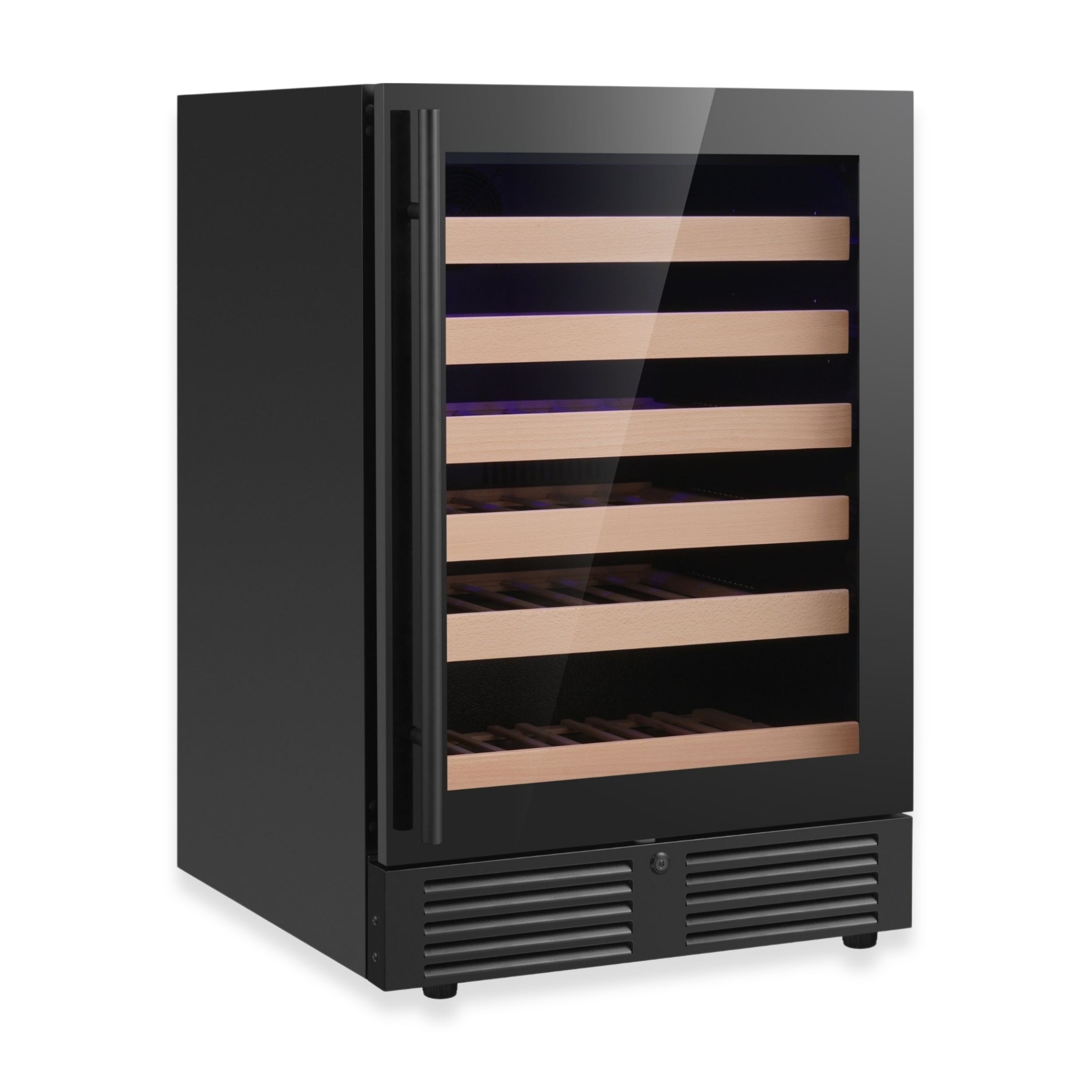

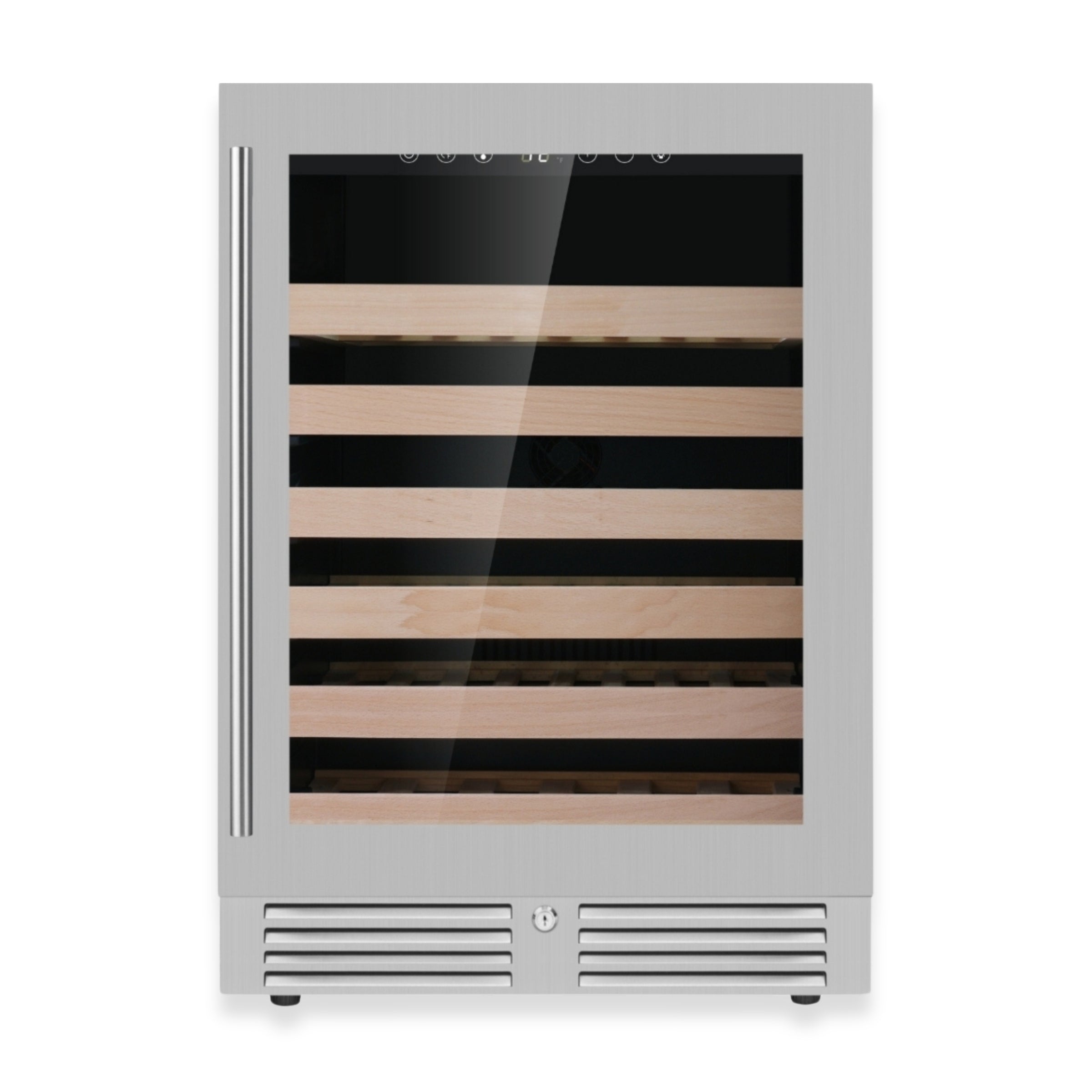

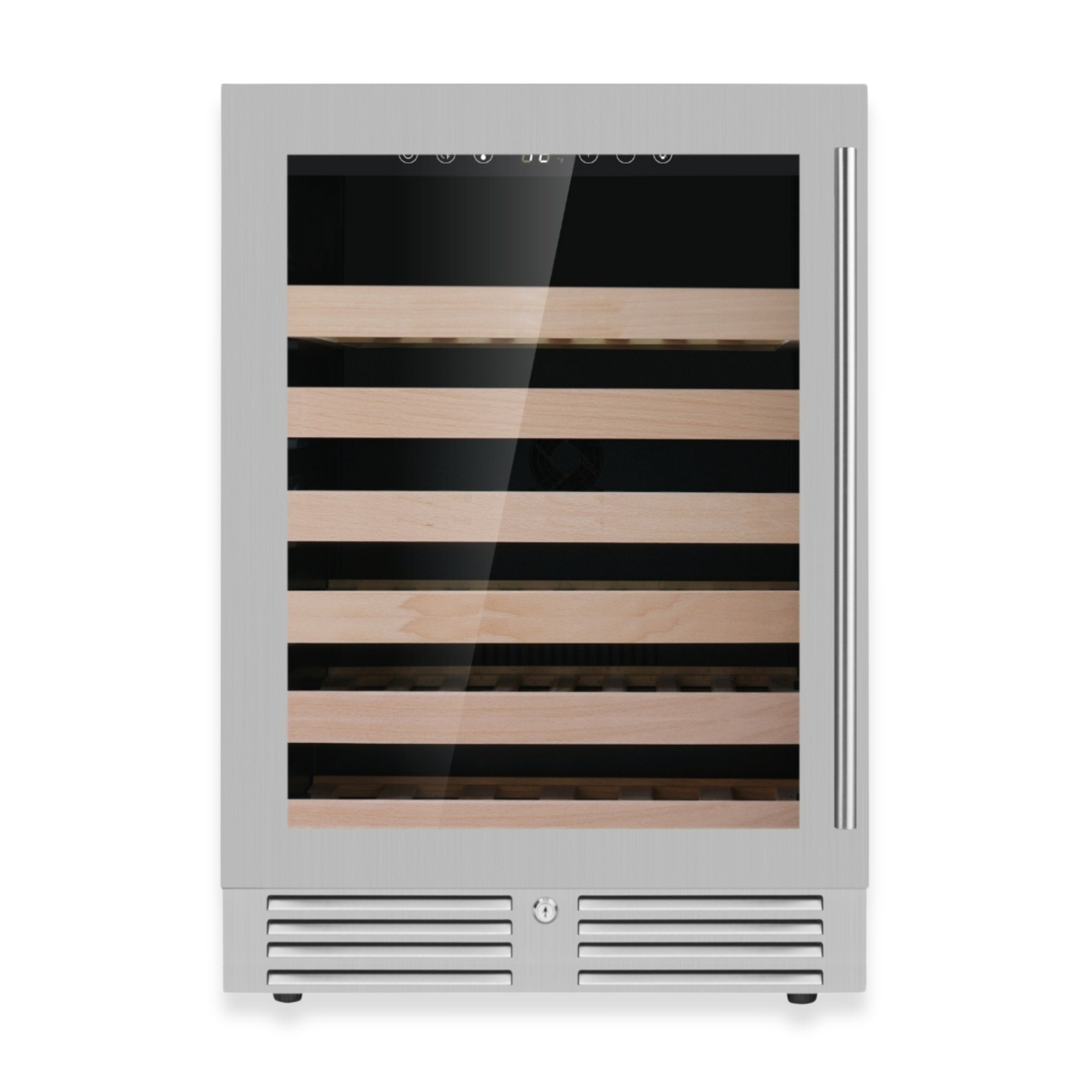

24-Inch Single-Zone Wine Cooler
Compact Under-Counter Wine Storage
Ideal for kitchens and compact spaces, offering premium wine storage without compromising layout or accessibility.
Key Features
Single-Zone Stability
35°F to 54°F (2°C to 20°C)
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Large Bottle Compatibility
Fits wider bottles without compromising storage capacity or organization.
Full-Extension Shelving
Smooth glide-out shelves provide easy access to every bottle, even those stored at the back.

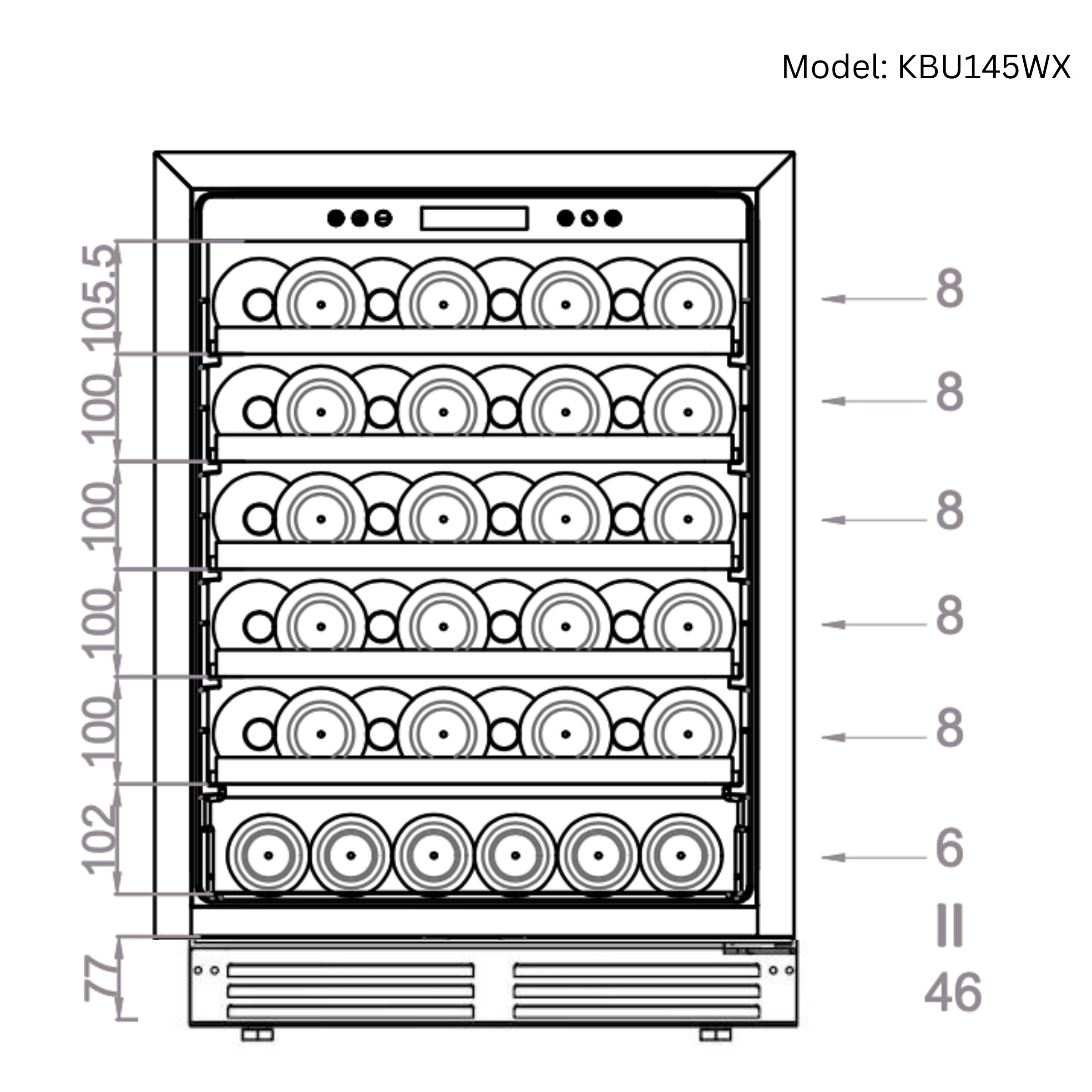

Capacity
Stores up to 46 bottles
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Designed to provide reliable wine storage with a clean built-in appearance for modern kitchens, home bars, and entertaining spaces.
Its single-zone configuration is ideal for collectors who prefer dedicated temperature consistency for either red or white wines.
Designed for seamless under-counter installation, the unit integrates naturally into cabinetry and home bar layouts while supporting organized bottle presentation and easy everyday access.
Well suited for kitchens, entertainment spaces, and compact wine collections where clean integration and everyday usability are equally important.
Specifications
Cooling
| Bottle Capacity | 46 Bottles |
|---|---|
| Temperature Zones | Single Zone |
| Temperature Range | 35°F to 54°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
Construction
| Door Type | Low-E Glass |
|---|
Electrical & Size
| Volume | 5.12CF (145 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 52.0 lb |
| Energy Consumption | 150 kWh/Year |
| Energy Certification | ETL/DOE |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Dimensions (W x D x H) | 23.43" W x 22.76" D x 34.06" H (595W x 578D x 865H mm) |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
