48" Ultimate Under Bench Wine Fridge and Bar Refrigerator Combo with 3 Temp. Zones

KingsBottle

48" Ultimate Under Bench Wine Fridge and Bar Refrigerator Combo with 3 Temp. Zones

SKU: KBU145BW3-SS

$3,495.00

SIZE: 46.84” W x 22.75” D x 32.87” H, included stand height 0.59”

USE CASE: The most versatile, triple temperature zones for all your drinks on hand when you want them

NOTE: Set of two units, use side by side or separately.

Door Style:

Warranty:

Variant

Quick Overview:

Ultimate Under Bench Combo: A sleek integrated unit combining a wine fridge and bar refrigerator for versatile beverage storage.
Dual-Zone Wine Fridge: Offers independent temperature control to store different wines at their optimal conditions.
Dedicated Bar Refrigerator: Provides separate cooling specifically for beers and other beverages.
Low‑E Glass Door: Minimizes condensation and blocks UV rays for pristine display and preservation.
Energy-Efficient Inverter Compressor: Ensures ultra-quiet, reliable cooling while reducing energy consumption.

Description

The 48" Ultimate Under-Bench Wine Fridge and Bar Refrigerator Combo is the perfect blend of style and functionality for any home or commercial space. Designed with two separate sections, the wine cooler accommodates up to 48 bottles of wine while the beverage compartment stores 130 cans, ensuring that you can chill both wine and drinks in one sleek unit.

This model is powered by the Embraco Inverter Compressor, known for its ultra-quiet operation and energy-efficient performance. The innovative compressor reduces energy consumption by up to 40%, offering long-term savings without compromising on cooling performance.

The cooler features adjustable wooden and metal shelves, offering flexible storage for wine bottles, cans, and other beverages. With its low-emissivity (Low-E) glass door, your drinks are protected from harmful UV rays while maintaining the unit’s energy efficiency.

Whether used as a built-in or freestanding unit, this cooler seamlessly fits into your home or bar. The sleek stainless steel finish and modern design make it both a functional and aesthetic addition to any space.

Specifications

Cooling

Bottle Capacity	46 Bottles
Can Capacity	161 Cans
Temperature Zones	Triple Zone
Temperature Range	35°F to 68°F (2°C to 20°C)
Compressor	Embraco Inverter Compressor

Electrical & Size

Volume	10.24 CF (145 Liters) Total, 5.12CF (145 Liters) Each
Noise Level	42.0 dB
Weight	104.0 lb
Dimensions (W x D x H)	46.85" W x 22.76" D x 32.87" H

Installation & Documents

Installation Information

Installation Type	Built-in / Freestanding
Ventilation Requirement	Front Venting – Allows built-in installation with no rear clearance required for operation
Clearance Note	No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access.
Installation Considerations	The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement.
Installation Note	Set of two units, use side by side or separately.

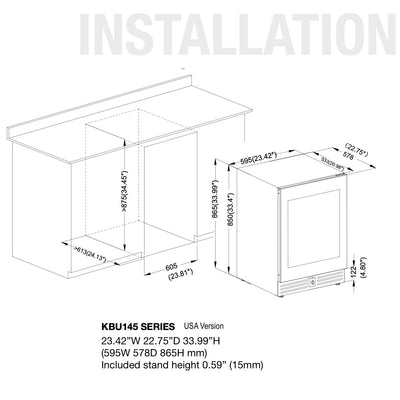

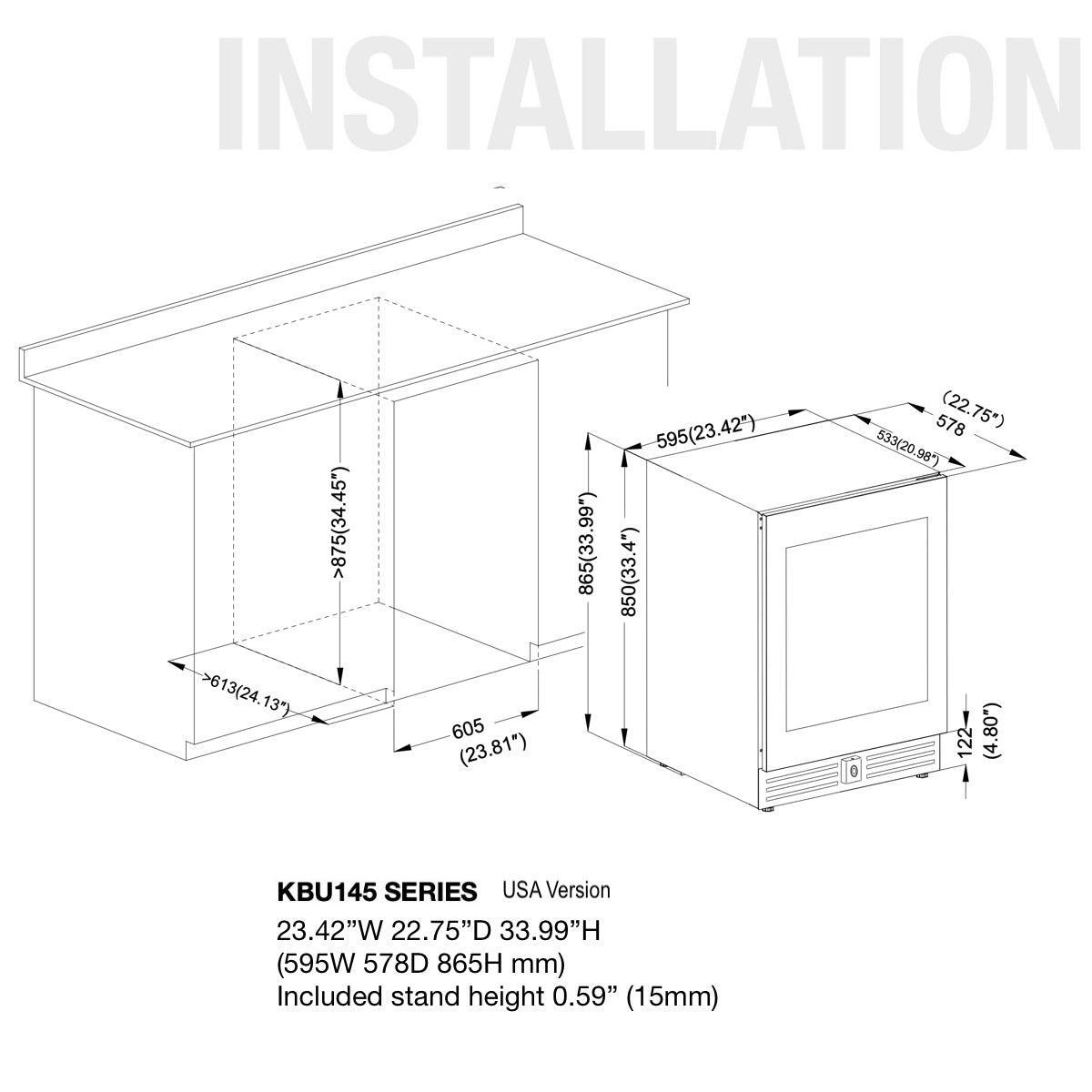

Installation Diagrams

Diagram 1 ↗

Diagram 2 ↗

User Manual ↓ User Manual 2 ↓ Dimension Drawing ↓ Energy Label ↓

↓ Spec Sheet (PDF)
