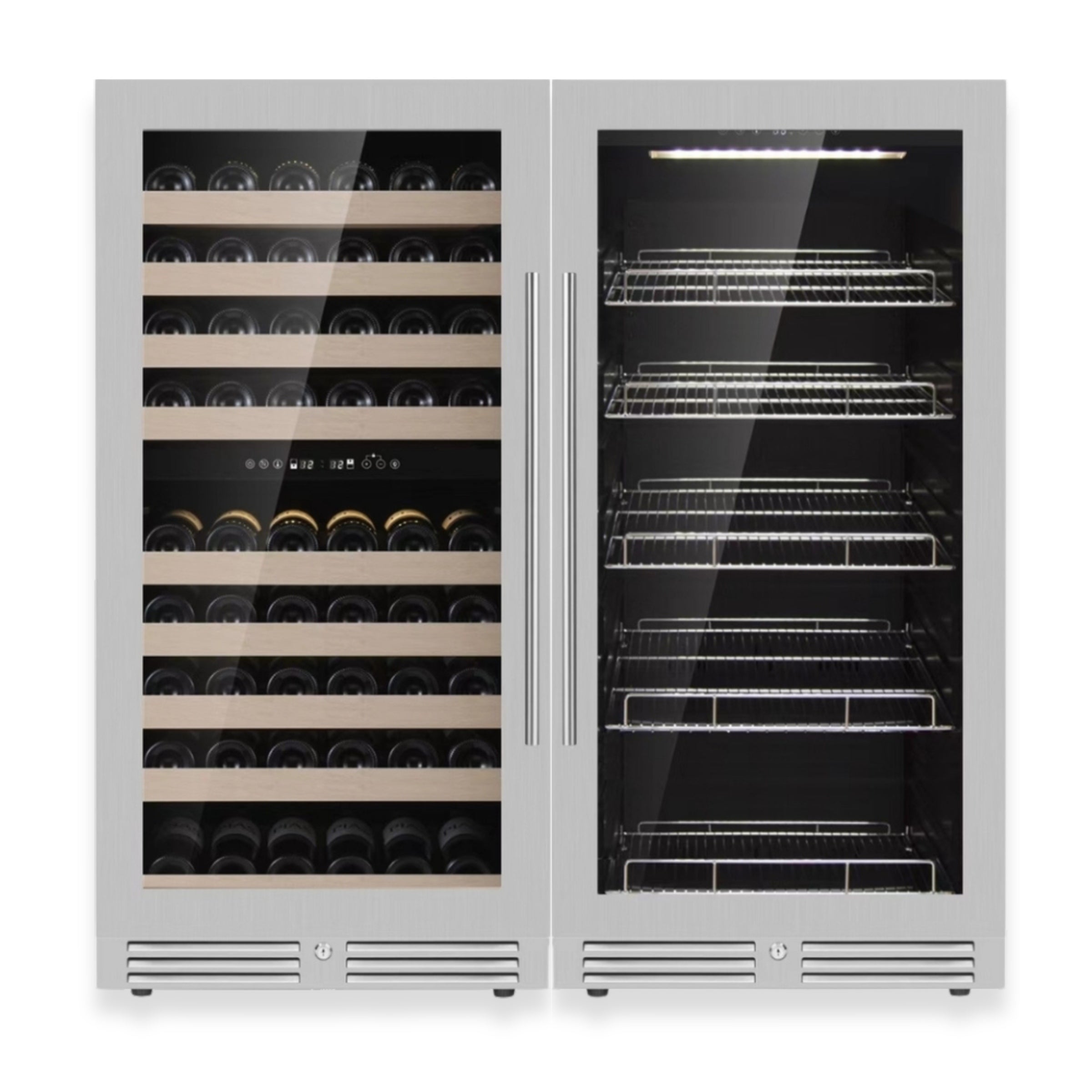

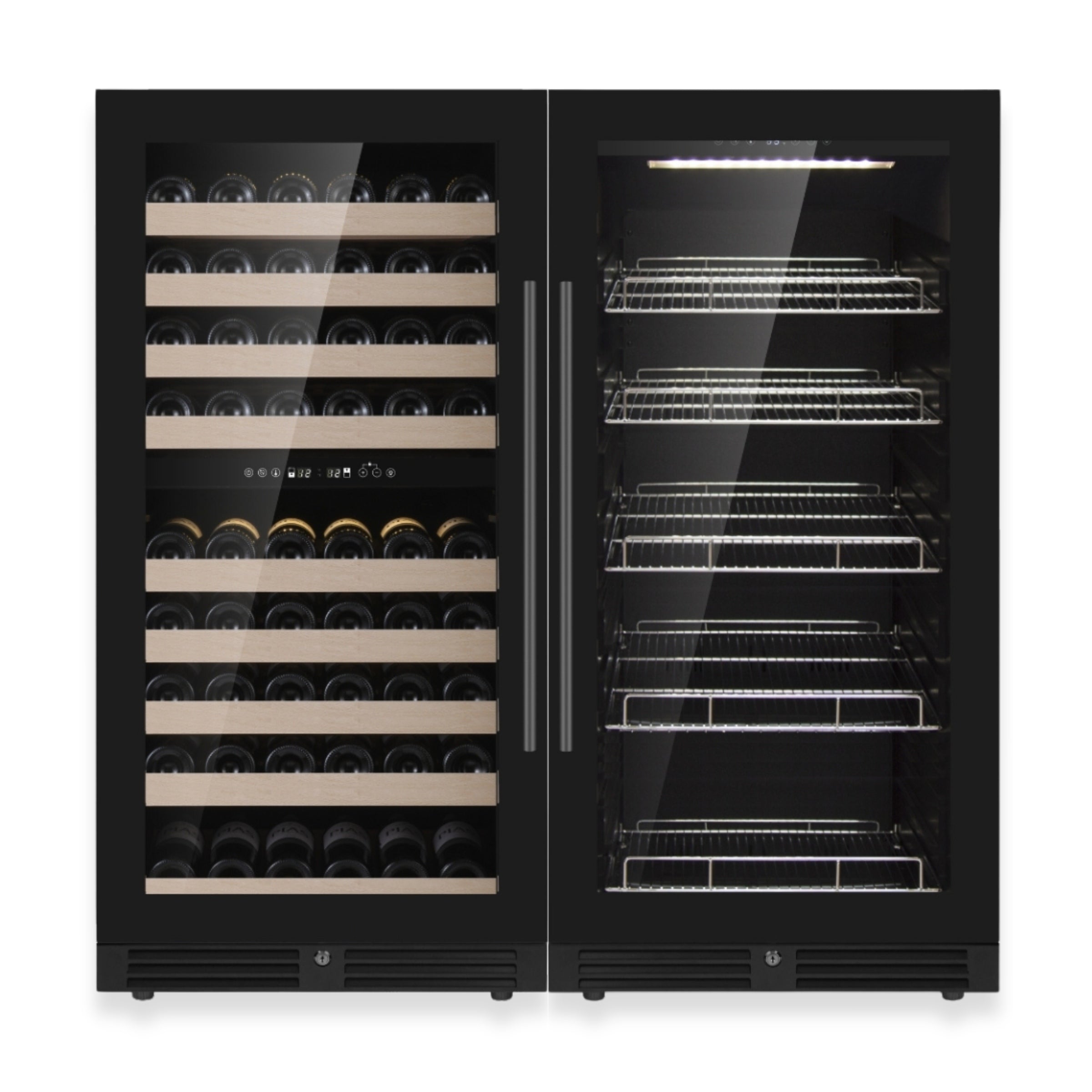

Multi-Purpose Beverage & Wine Storage
Designed for flexible use, accommodating both wine collections and everyday drinks in one system.
Key Features
Triple-Zone Storage Flexibility
Organize different beverages or wines across three independently controlled temperature zones.
Quiet & Energy Efficient Operation
Inverter compressor delivers quieter performance while reducing energy consumption.
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Adjustable Shelving System
Flexible shelf configuration adapts to different bottle or can sizes.
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Designed for larger storage requirements, this upright wine and beverage refrigeration system provides organized dual-purpose storage for residential and light commercial applications.
Separate wine and beverage sections support convenient access and serving flexibility while maintaining organized refrigeration across multiple storage zones.
The tall configuration is well suited for entertainment rooms, hospitality-inspired spaces, and dedicated refrigeration areas where accessibility and capacity both matter.
A practical solution for households and social spaces seeking larger-capacity wine and beverage storage with clean organization and everyday usability.
| Bottle Capacity | 91 Bottles |
|---|---|
| Can Capacity | 389 Cans |
| Temperature Zones | Triple Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Door Type | Low-E Glass |
|---|
| Volume | 18.72 CF (530 Liters) Total, 9.36 CF (265 Liters) Each |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 152.0 lb |
| Dimensions (W x D x H) | 46.85" W x 27.56" D x 47.24" H (1190W x 700D x 1200H mm) |
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Set of two units, use side by side or separately. |
Technical documentation, drawings, and product support files.
