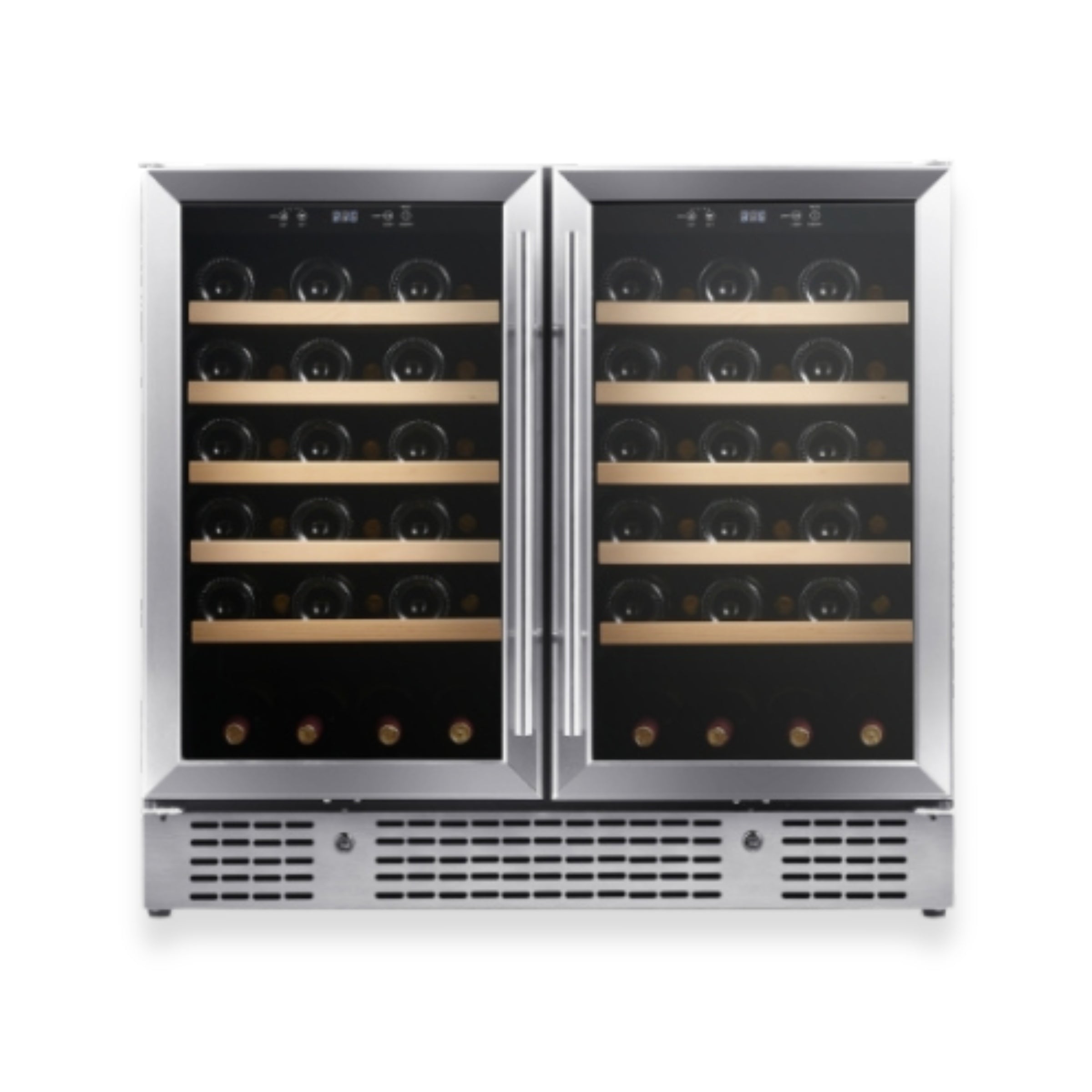

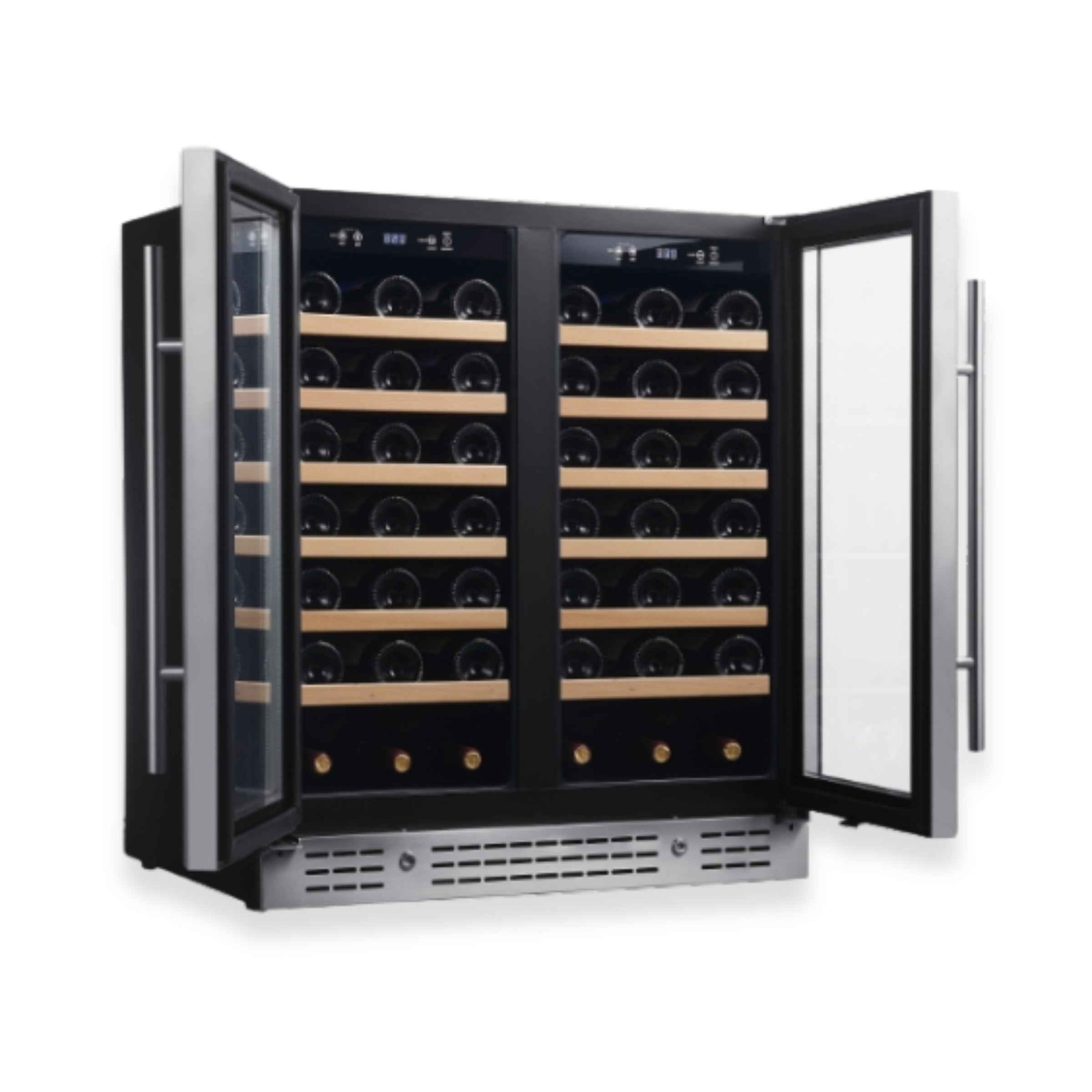

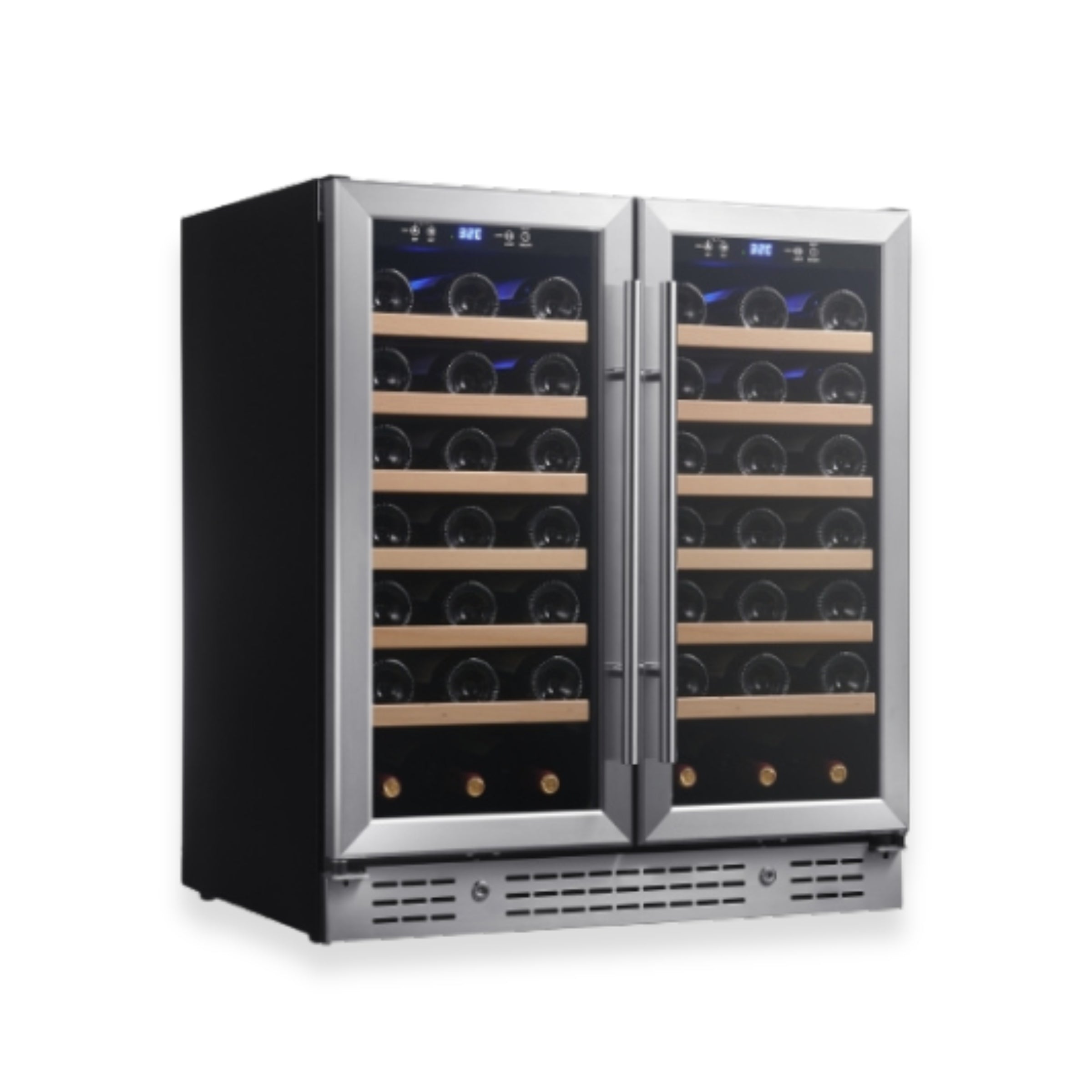

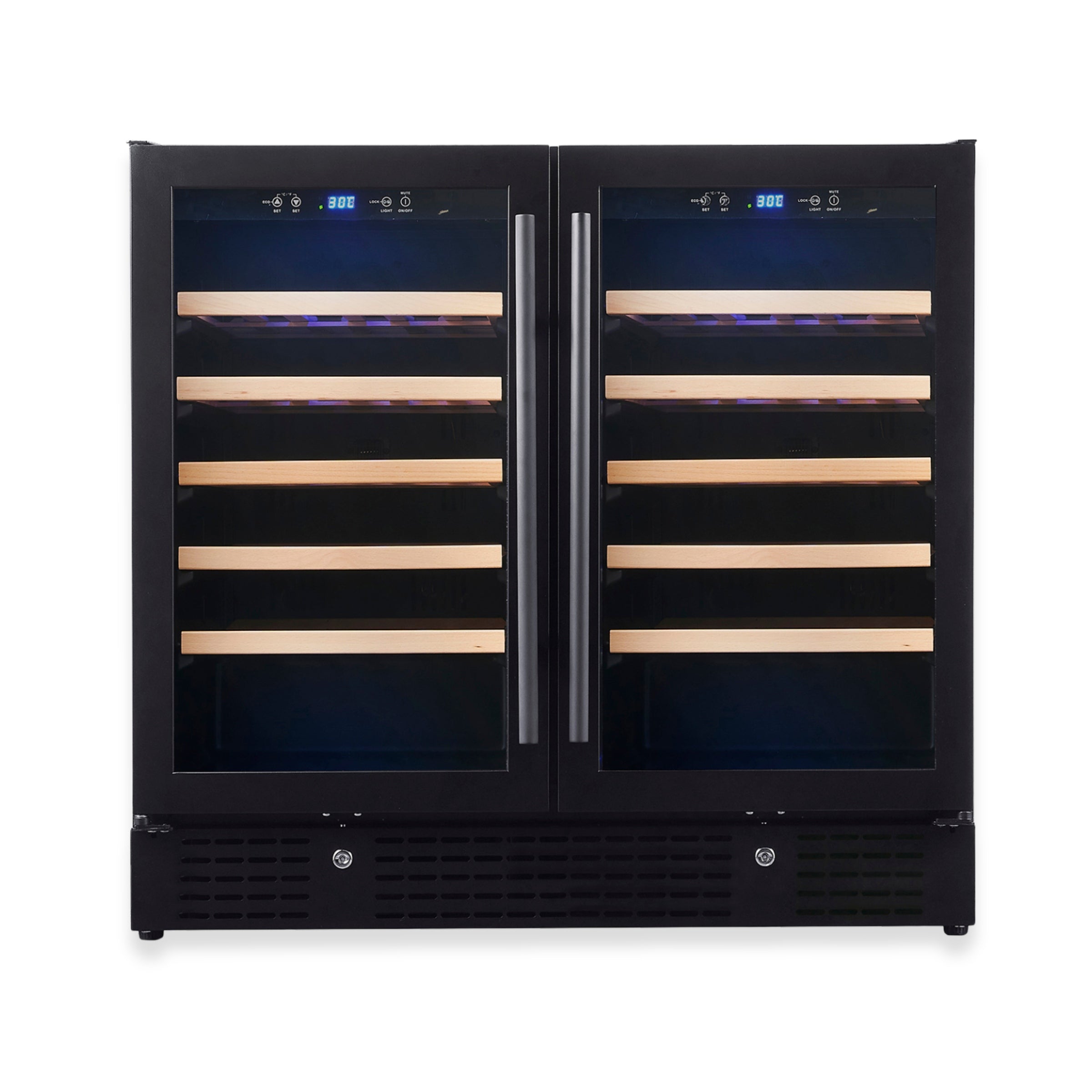

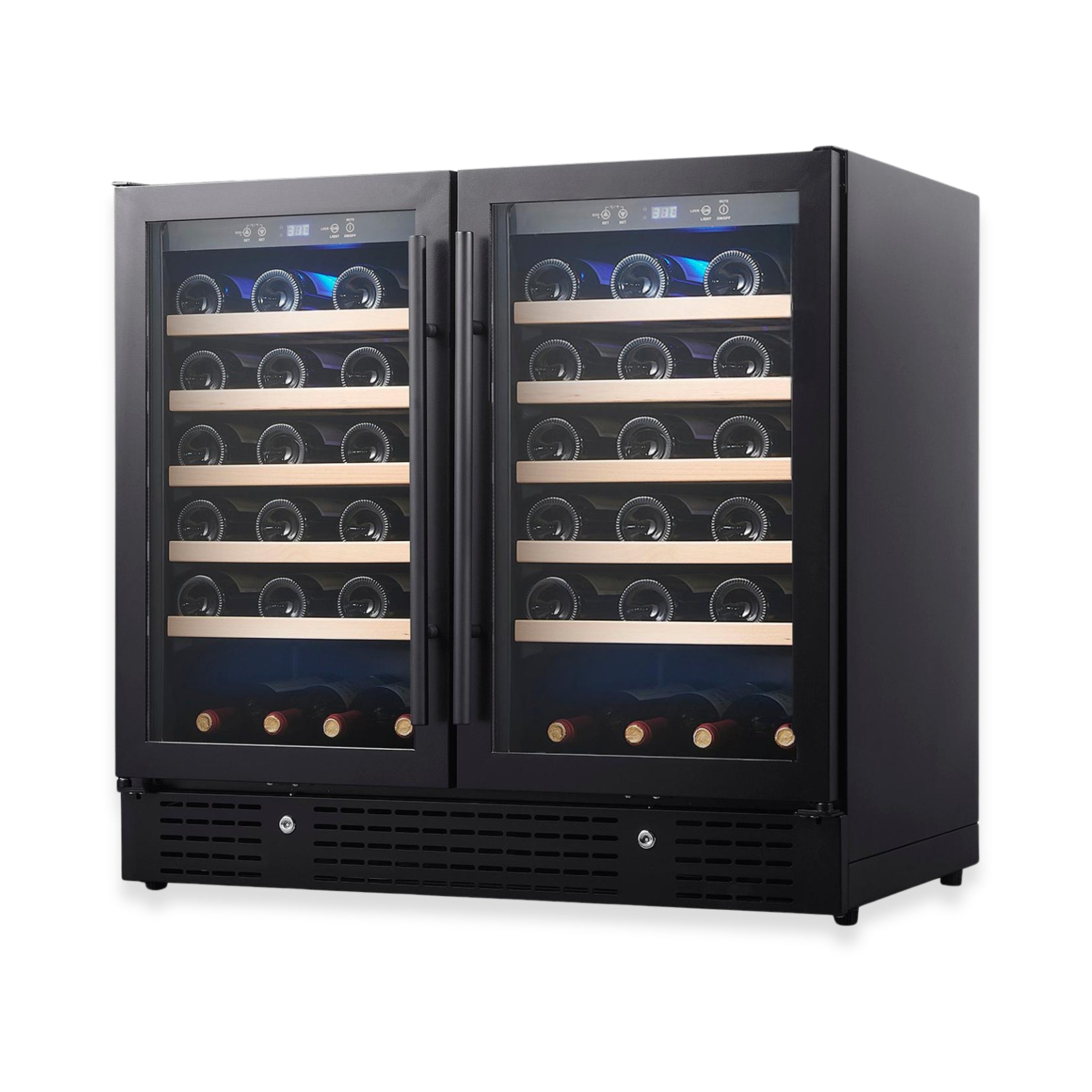

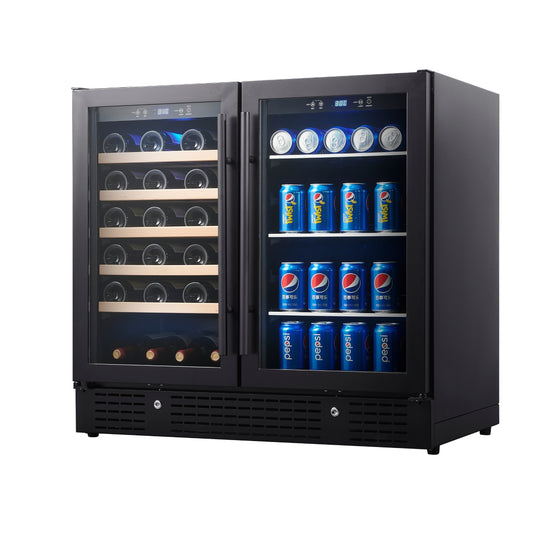

36-inch Under Bench Dual-Zone Wine Cooler with Low-E Glass Door
SIZE: 35.5” W x 23.4” D x 33.5” H
USE CASE: Ideal under the Island bench, built into the kitchen or bar area
NOTE: Independently control two temperature zones for red and white wines (35–68°F)
Quick Overview:
Elevate your wine storage with the KingsBottle 36" (900mm) Wide Under Bench Dual Zone Wine Fridge, a sleek and sophisticated solution designed for American wine enthusiasts. Perfectly sized for seamless integration under countertops in kitchens, home bars, or dining areas, this front-venting fridge combines style and precision to keep your collection at its best. With dual-zone cooling, you can store your Napa Valley Cabernet at 60°F (16°C) and your Oregon Pinot Gris at 46°F (8°C), ensuring every bottle is served at its ideal temperature.
This premium fridge holds up to 68 bottles (standard 750ml, up to 86mm diameter), making it ideal for intimate gatherings or building your wine collection. The Low-E glass door minimizes condensation for a clear view of your wines and provides UV protection to preserve their quality.
Specifications
Specifications
Volume: | 6.70 CF (190 Liters) |
Capacity (by bottles): | 68 bottles |
Installation Type: | Built-In or Freestanding |
Climate Type: | ST;N;SN |
Temperature Zones: | Dual Zone |
Adjustable Temperature Range: | 35–68 °F (2–20 °C) per zone |
Operating Room Temperature: | 32-100°F (0-38°C) |
Shelf Configuration: | 10 wood shelves (5 in each side) |
Dimensions: | 35.5” W x 23.4” D x 33.5” H |
Electrical
Compressor: | Embraco Compressor |
Power Supply: | 110-115V/60HZ |
Rated Power Input (W): | 120W |
Rated Current: | 1.1A |
Refrigerant: | R600a/35g |
Energy Consumption: | 595kWh/Year |
Technical Features

Quiet Compressor
Utilizes a high-quality, quiet-running compressor that offers vibration-free cooling, ensuring your beverages are stored without disturbance.

Low-E Glass
Reduces energy consumption and condensation on the glass door;
Acts as an invisible insulating barrier.
Note: Low-E Glass features a thin coating that reduces heat transfer and condensation, enhancing energy efficiency and cooling performance.

Fan Circulated Air-Cooling System
Ensures temperature uniformity in the cabinet;
Compensates for air humidity to protect contents.

Activated Carbon Filter
Effectively filters impurities in the air;
Keeps the air in the cabinet fresh and odor-free.

LED Display Digital Touchpad Control
Simple and easy-to-operate controls;
Clear and accurate settings display.

45mm Thickness C-Pantane
Thicker foam optimizes cooling performance and reduces energy consumption.

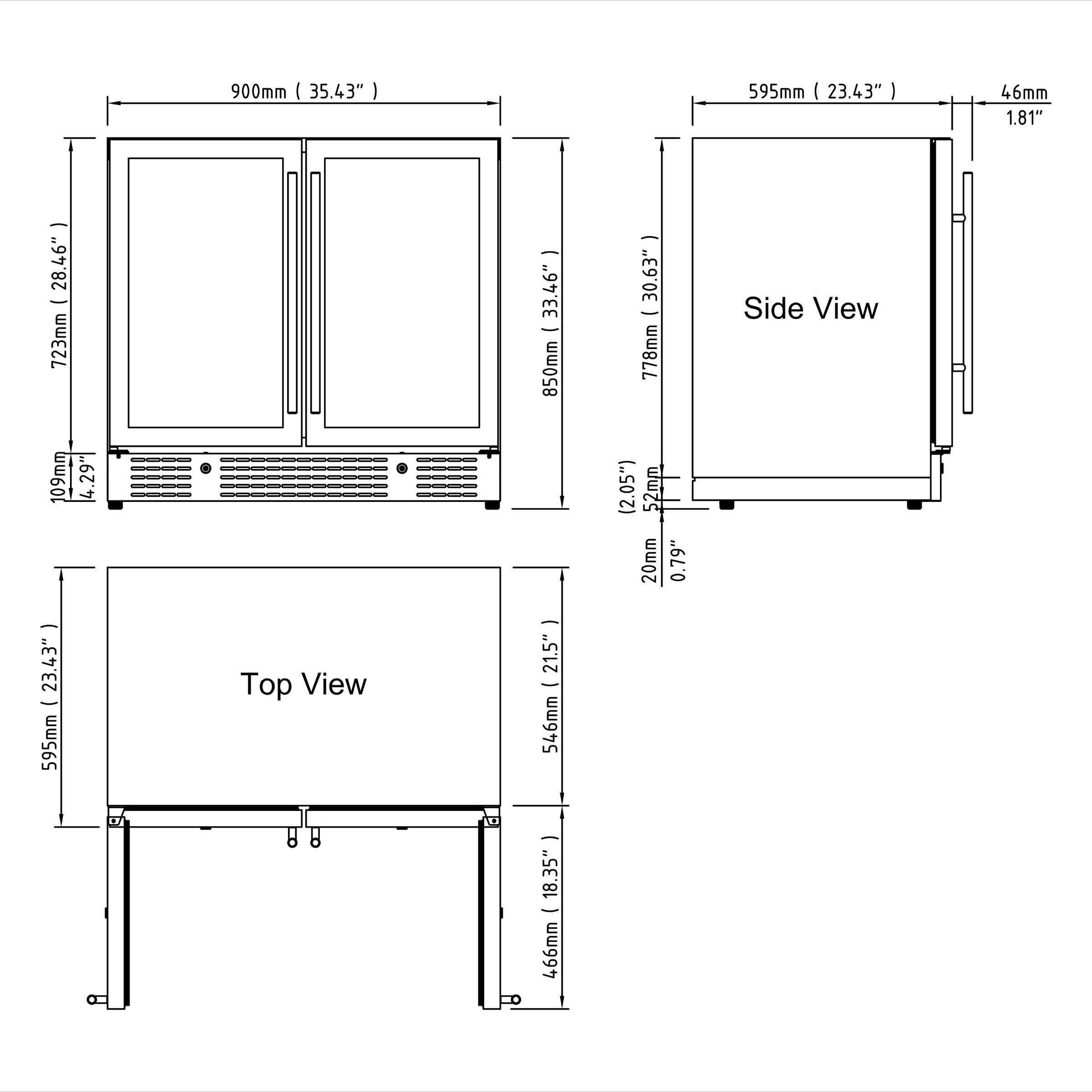

Dimensions & Diagrams

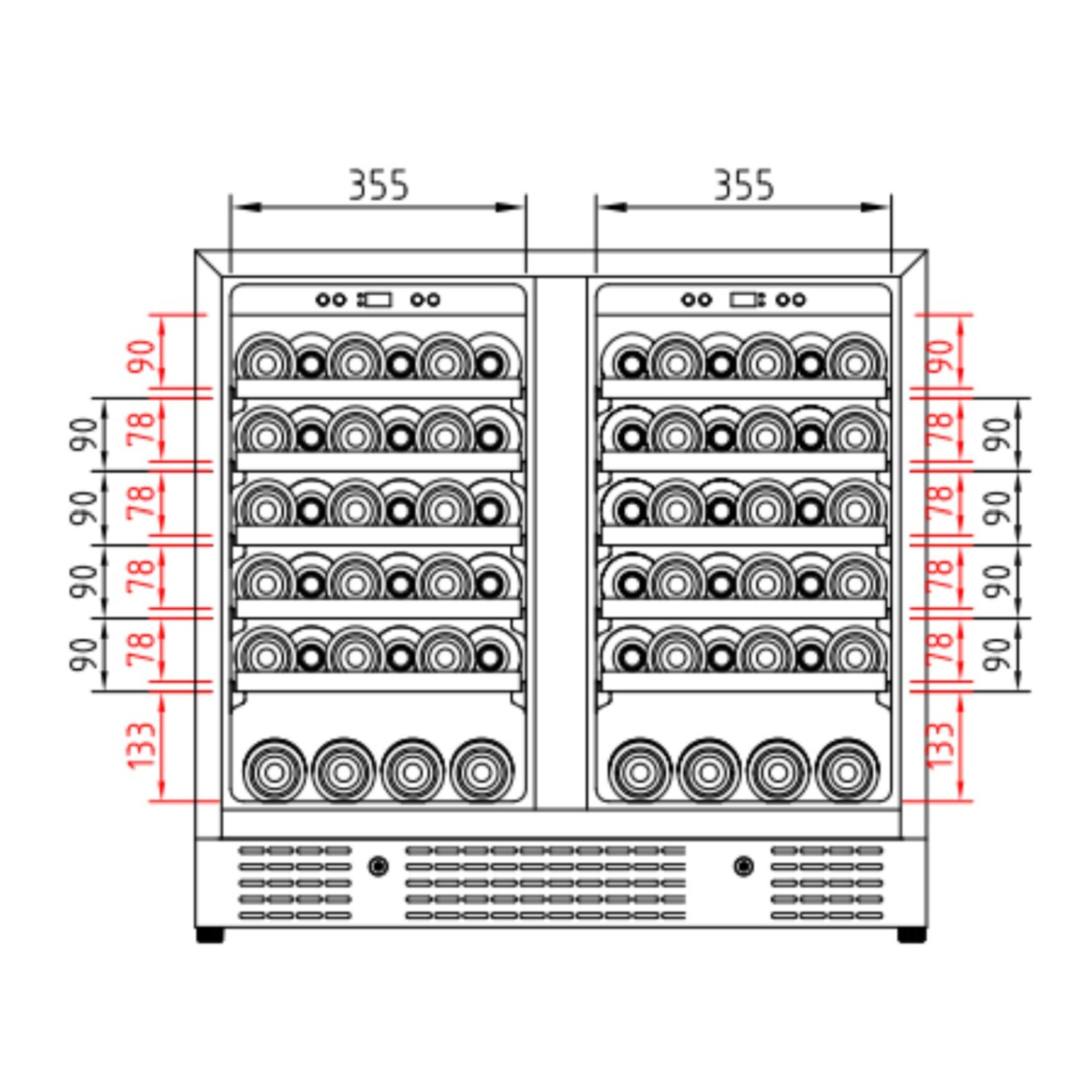

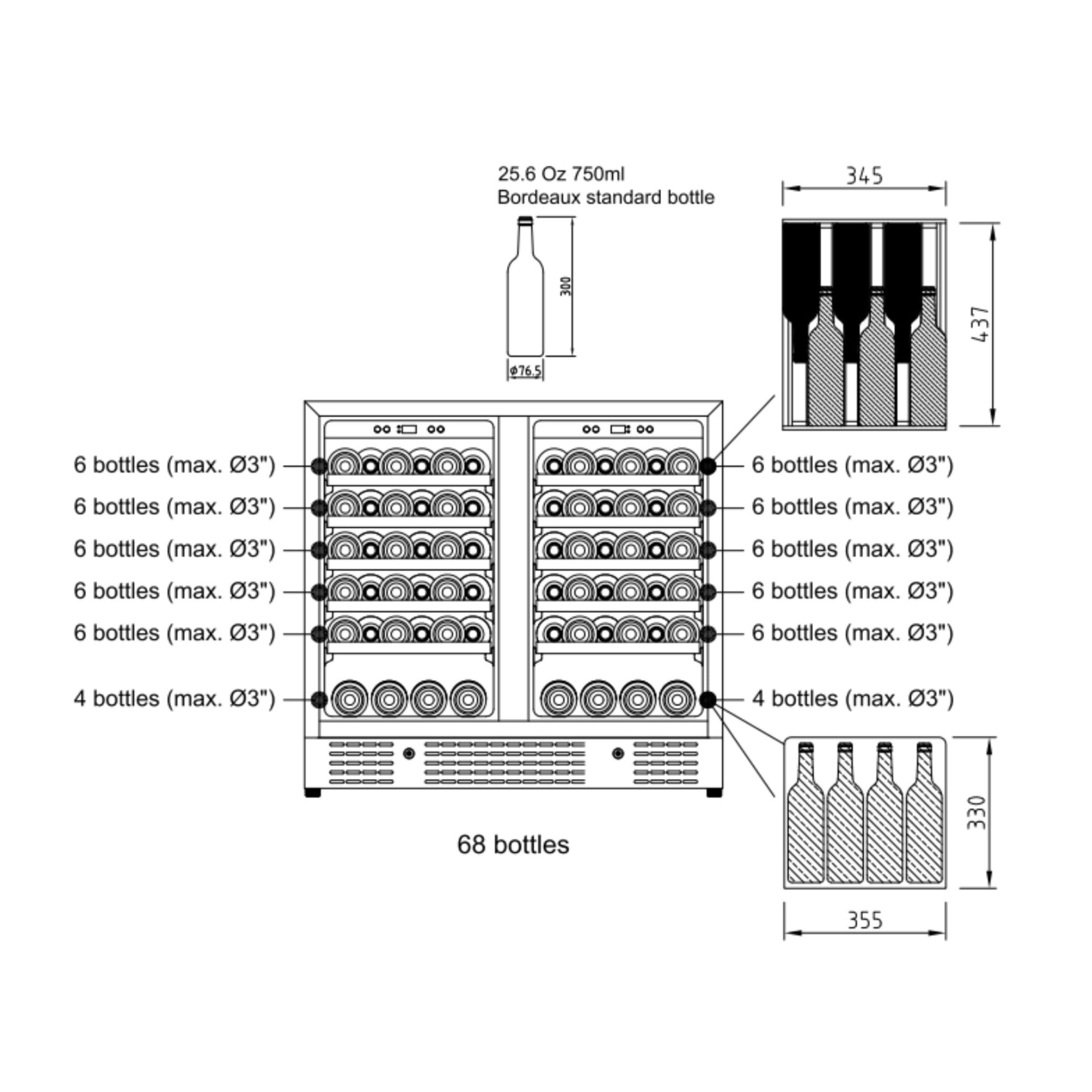

Technical Dimensions

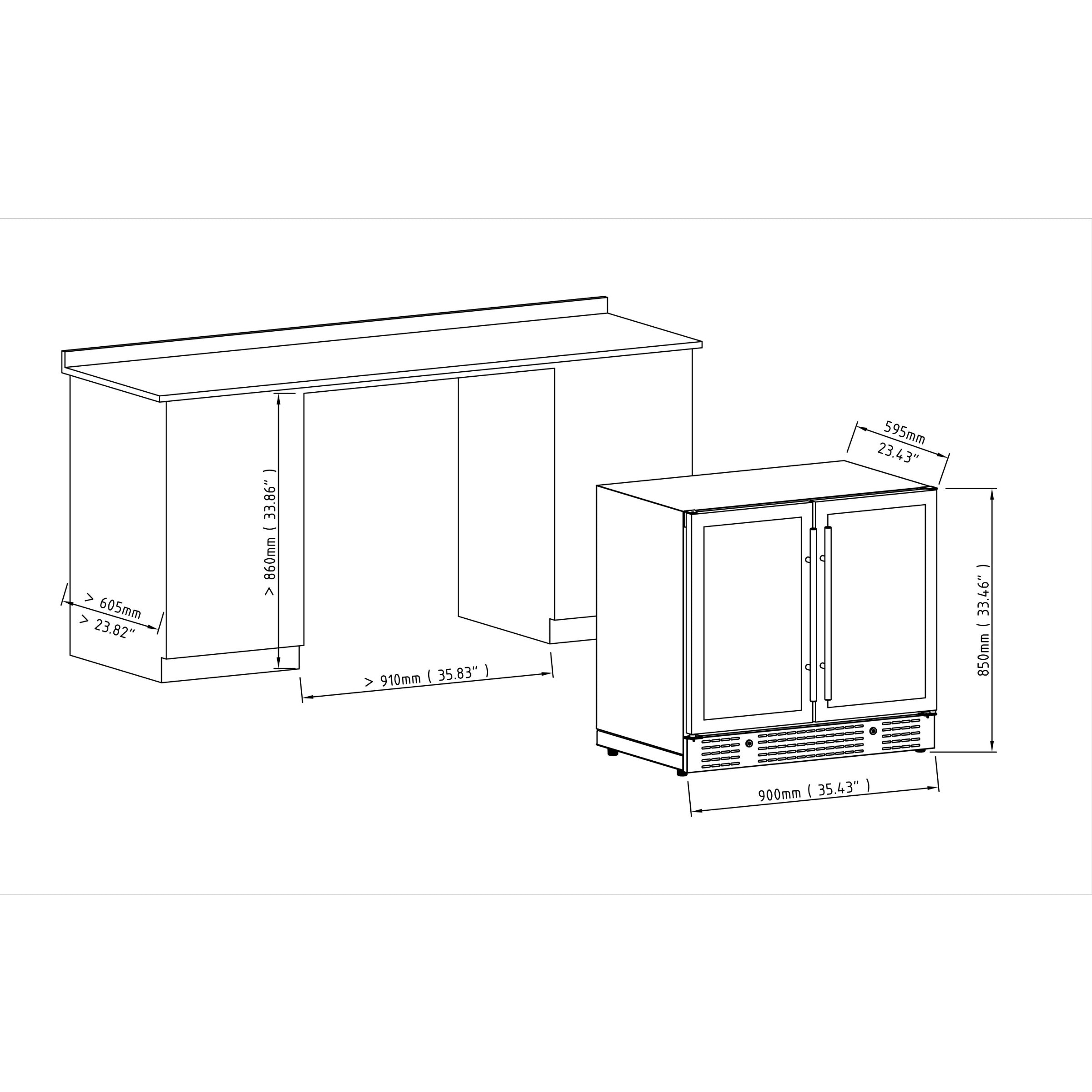

Installation Diagrams

User Instruction
Download the Wine & Beer Combo User Manual (KBU165BW/KBU190BW)
