24-Inch Under-Counter Dual Zone Wine Cooler with Low-E Glass Door

KingsBottle

24-Inch Dual-Zone Wine Cooler

Name: 24-Inch Dual-Zone Wine Cooler
Rating: 4.47 (49 reviews)

SKU: KBU145DX-FG RHH

$1,895.00

Compact Under-Counter Wine Storage

Ideal for kitchens and compact spaces, offering premium wine storage without compromising layout or accessibility.

SIZE 23.43" W x 22.76" D x 34.06" H

IMPORTANT Accommodates large bottles up to 3.39" (86mm) in diameter.

Door Style:

Door Direction:

Variant

Key Features

Dual-Zone Temperature Control

Store wine at ideal serving and aging temperatures with independently controlled zones.

Low-E Glass Protection

Reduces condensation while improving insulation and keeping your display clear.

Large Bottle Compatibility

Fits wider bottles without compromising storage capacity or organization.

Full-Extension Shelving

Smooth glide-out shelves provide easy access to every bottle, even those stored at the back.

Capacity

Stores up to 46 bottles

Elegant Glass Door Presentation

Showcases your collection with a clean modern display while maintaining internal conditions.

Description

Designed for modern kitchens and entertaining spaces, this built-in wine cooler provides organized storage with independent serving flexibility for different wine styles.

Its dual-zone configuration allows red and white wines to be stored separately at their preferred serving temperatures within one integrated system.

Designed for seamless under-counter installation, the unit integrates naturally into cabinetry while maintaining easy bottle access and clean visual presentation.

Well suited for collectors seeking both serving flexibility and refined built-in integration for everyday wine enjoyment.

Specifications

Cooling

Bottle Capacity	46 Bottles
Temperature Zones	Dual Zone
Temperature Range	Upper Zone 35°F to 54°F (2°C to 12°C); Lower Zone 54°F to 68°F ( 12°C to 20°C )
Compressor	Embraco Inverter Compressor
Cooling System	Compressor Cooling + Forced-Air Convection
Operating Ambient Temperature	32-100°F (0-38°C)

Construction

Door Type	Low-E Glass

Electrical & Size

Volume	5.12CF (145 Liters)
Noise Level	42.0 dB
Weight	52.0 lb
Energy Consumption	180 kWh/Year
Energy Certification	ETL/DOE
Electrical Requirements	110-115V/60HZ
Defrost Type	Automatic Defrost

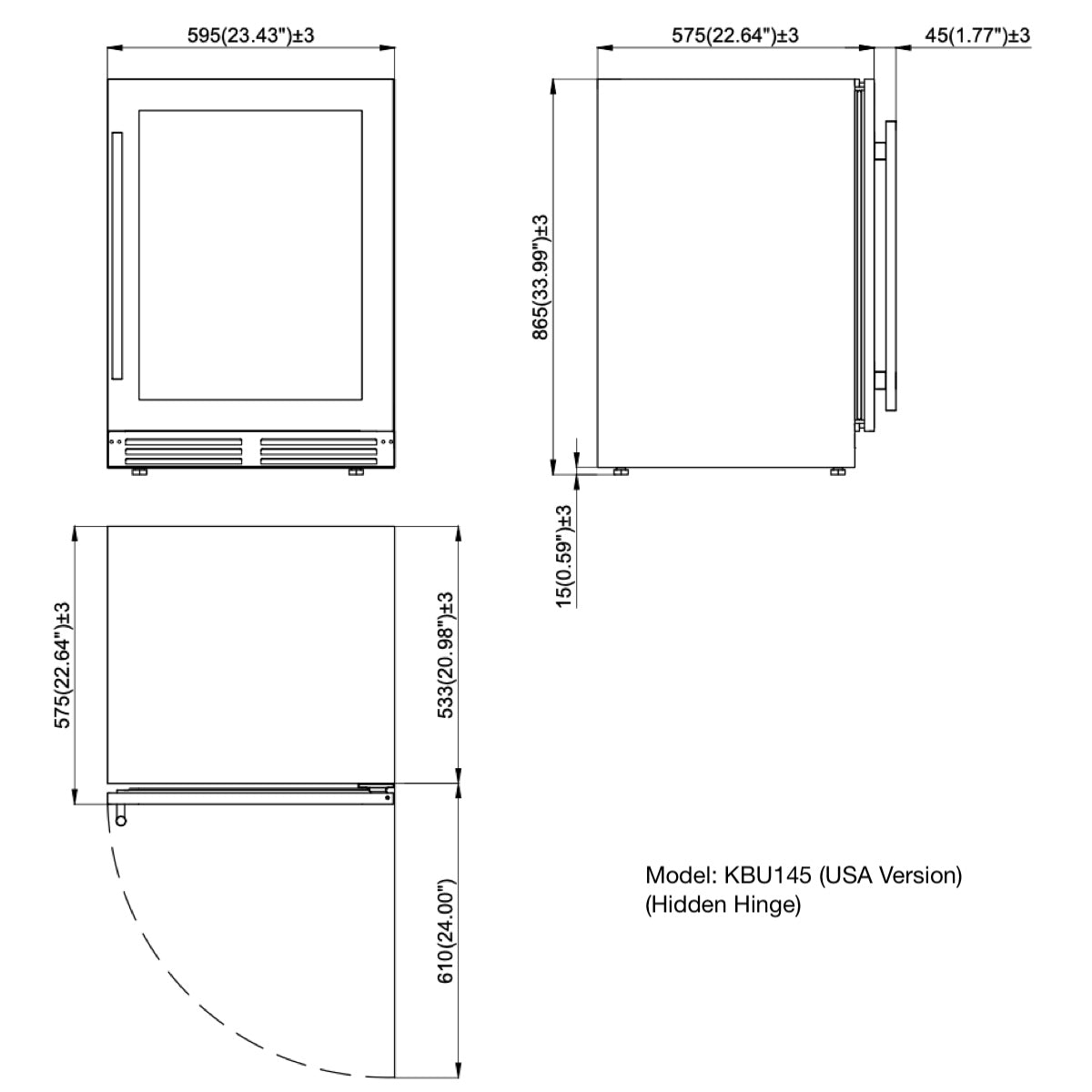

Dimensions (W x D x H)	23.43" W x 22.76" D x 34.06" H (595W x 578D x 865H mm)

Installation & Documents

Installation Information

Installation Type	Built-In or Freestanding
Ventilation Requirement	Front venting – suitable for built-in installation.
Clearance Note	Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully.
Installation Note	Install on a level surface.

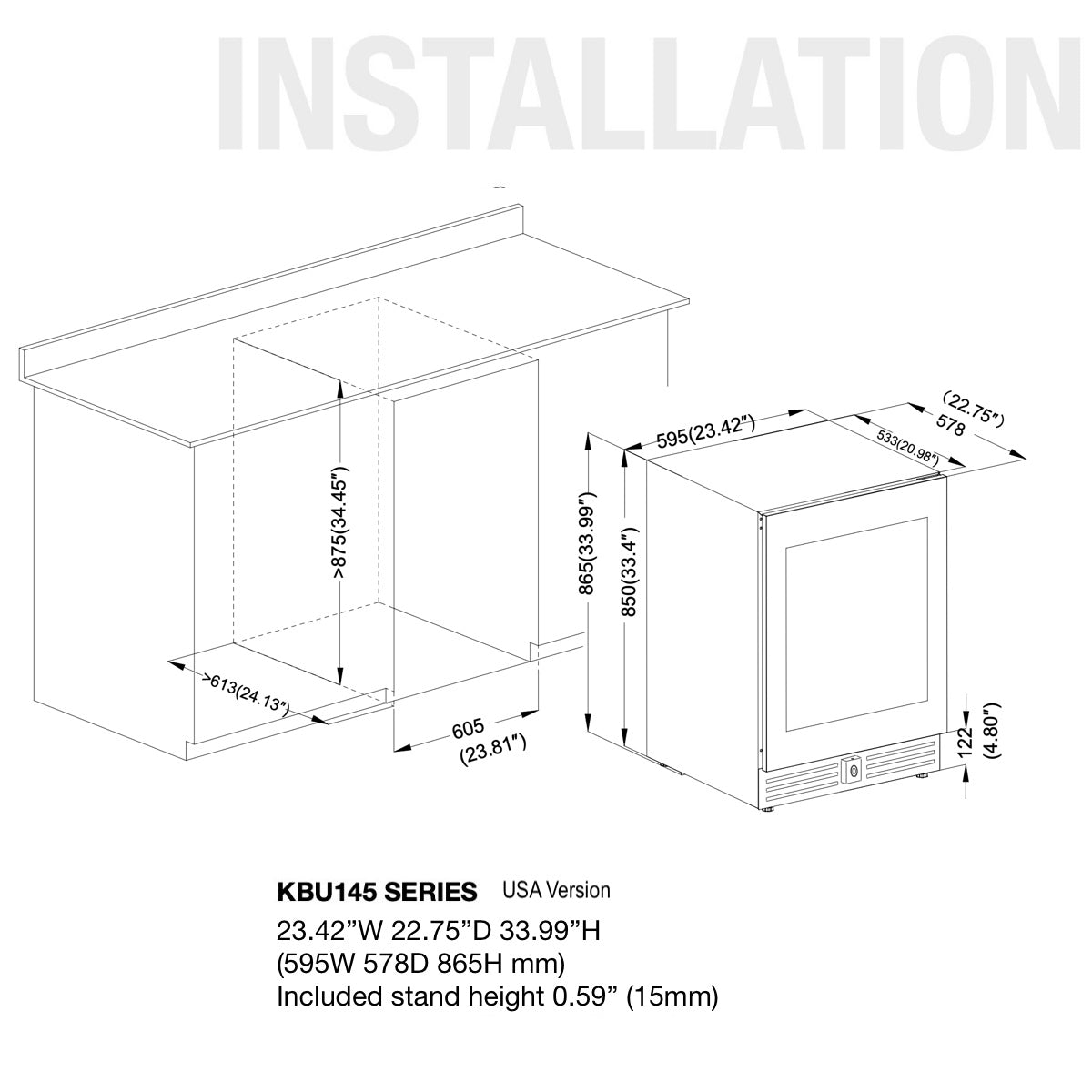

Installation Diagrams

Installation Diagram 1

Installation Diagram 2

Spec Sheet PDF User Manual PDF Dimension Drawing PDF Energy Label PDF
