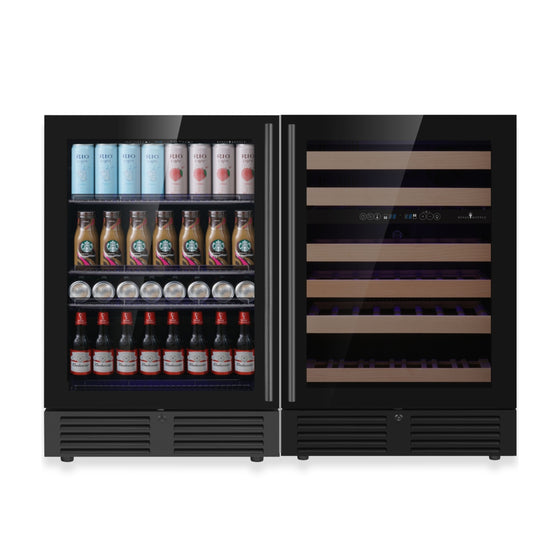

48-Inch Dual-Zone Wine & Beverage Center
Wine & Beverage Dual Storage
Separates wine and beverages into dedicated zones, ensuring optimal conditions for both.
Key Features
Dual-Zone Temperature Control
35°F to 68°F (2°C to 20°C)
Quiet & Energy Efficient Operation
Inverter compressor delivers quieter performance while reducing energy consumption.
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Adjustable Shelving System
Flexible shelf configuration adapts to different bottle or can sizes.
Flexible Dual-Zone Storage
Designed to accommodate both wine bottles and beverage cans within one integrated cooling system.
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Designed for modern kitchens, home bars, and entertaining spaces, this integrated wine and beverage refrigeration system combines dual storage functions within one clean built-in solution.
Separate wine and beverage storage zones allow both collections to remain organized and accessible while maintaining their preferred serving conditions.
Designed for seamless under-counter installation, the system integrates naturally into cabinetry layouts while supporting convenient everyday use and refined visual presentation.
Well suited for homes, entertainment spaces, and hospitality-inspired environments where wine storage, beverage access, and built-in integration are equally important.
Specifications
Cooling
| Bottle Capacity | 46 Bottles |
|---|---|
| Can Capacity | 161 Cans |
| Temperature Zones | Dual Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
Construction
| Door Type | Low-E Glass |
|---|
Electrical & Size
| Volume | 10.24 CF (145 Liters) Total, 5.12CF (145 Liters) Each |
|---|---|
| Noise Level | 42.0 dB |
| Dimensions (W x D x H) | 46.85" W x 22.76" D x 32.87" H (1190W x 578D x 835H mm) |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Set of two units, use side by side or separately. |
Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
Compare Storage Options
Review adjacent configurations by storage type and format to find the most suitable option for your space.
