48-Inch Triple-Zone Wine & Beverage Center
Multi-Purpose Beverage & Wine Storage
Designed for flexible use, accommodating both wine collections and everyday drinks in one system.
Key Features
Triple-Zone Storage Flexibility
Organize different beverages or wines across three independently controlled temperature zones.
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Adjustable Shelving System
Flexible shelf configuration adapts to different bottle or can sizes.
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Built-In Ready Design
Designed for seamless installation with cabinetry for a clean integrated look.
Designed for modern kitchens, home bars, and entertaining spaces, this integrated wine and beverage refrigeration system combines dual storage functions within one clean built-in solution.
Separate wine and beverage storage zones allow both collections to remain organized and accessible while maintaining their preferred serving conditions.
Designed for seamless under-counter installation, the system integrates naturally into cabinetry layouts while supporting convenient everyday use and refined visual presentation.
Well suited for homes, entertainment spaces, and hospitality-inspired environments where wine storage, beverage access, and built-in integration are equally important.
Specifications
Cooling
| Bottle Capacity | 46 Bottles |
|---|---|
| Can Capacity | 161 Cans |
| Temperature Zones | Triple Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
Construction
| Door Type | Low-E Glass |
|---|---|
| Interior Lighting | White, Blue or Dynamic (color-cycling) · On/off button; turns on automatically when the door opens |
Electrical & Size
| Volume | 10.24 CF (145 Liters) Total, 5.12CF (145 Liters) Each |
|---|---|
| Noise Level | 42.0 dB |
| Weight | 104.0 lb |
| Energy Consumption | 362kWh/Year |
| Energy Certification | ETL/DOE |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Dimensions (W x D x H) | 46.85" W x 22.76" D x 32.87" H (1190W x 578D x 835H mm) |
Installation & Documents
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
Installation Diagrams
Documents & Downloads
Technical documentation, drawings, and product support files.
Compare Storage Options
Review adjacent configurations by storage type and format to find the most suitable option for your space.
Choose options
48-Inch Triple-Zone Wine & Beverage Center
Sale price$3,495.00
Recently viewed products
Some of the reviews shown are from related products the merchant grouped with this one.
N
The KingsBottle products are beautiful and look fantastic in our new “Speakeasy” room. Everything fits beautifully and they are easy to use and very quiet in operation. We ordered the black/dark trim version vs the stainless. They are stunning…well worth the wait.
I knocked off one star because the shipping partner did not do a great job. The boxes were labeled, “Do not double stack” but, they were double stacked! The boxes were well padded however there were several holes punched into both boxes. One of those holes led to a noticeable ding in the side of the bar fridge - luckily that didn’t affect function and the under bench design hides the ding.
In summary, Product Quality - 5 Stars, Shipping Quality - 1 Star.
B
We love our new 'combo' of wine refrigerator and beverage refrigerator! They provide great service and look beautiful in our new Wine Room!
Hi Bryan, thank you for the review. Good to see more and more people like our COMBO idea. If you could post a photo here and share it with us, that will be perfect.
--------

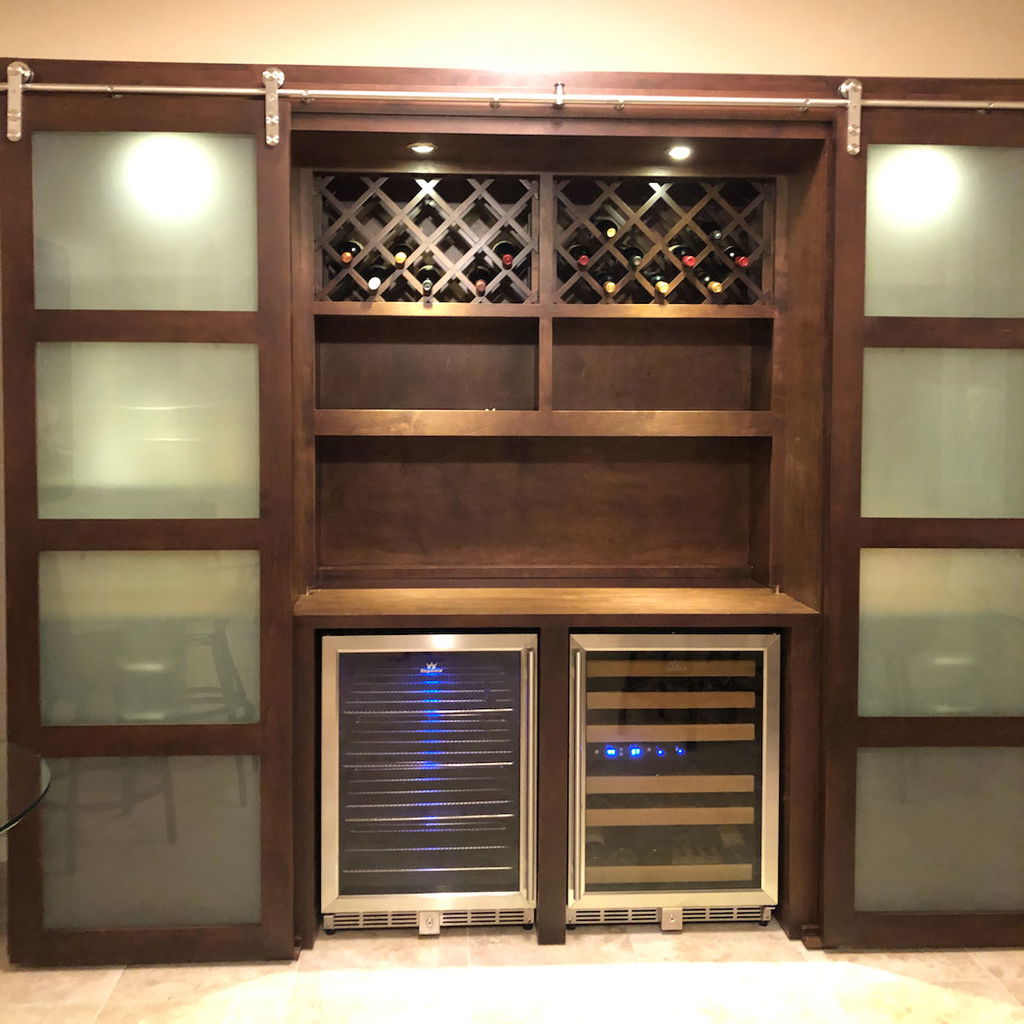

Note: received review picture. Many thanks to Bryan!
M
I purchased these coolers for our new kitchen and am very satisfied with my choice. They look great under the counter, are very quiet, and perform very well. I had a small issue with one of the cooler handles being bent but an email to Kingsbottle support resolved the problem quickly. I am confident that KingsBottle stands behind their products 100%. I would definitely recommend these coolers to anyone looking for a quality product!
C
Jeremias was amazing. We had to delay our order until the closing of our home, and he ensured that the delivery was coordinated for the day we wanted the delivery. In addition, the third party delivery company did an excellent job in delivery. Really happy with the 48” Ultimate Under Bench Wine and Fridge and Bar refrigerator.
Thank you for your kind words and for taking the time to leave a review. We are thrilled to hear that you had a positive experience with our customer service and that your delivery went smoothly. We hope you continue to enjoy your 48' Ultimate Under Bench Wine Fridge and Bar Refrigerator. Cheers!
T
We love the looks are home is still in the building process haven’t installed it yet!
D
Everything you could want in a beverage cooler. Digital display to tell what it set at and what the temp is currently. The wine cooler is great. No issues except one slightly bigger than normal bottle wouldn’t fit. So if you have anything slightly larger than regular bottle. Your are very limited on where you can put it. The beverage cooler the shelves could be a little better quality. One came slightly bent easily Fixed. Also I just wish you could have a more options when it came to moving the shelves height. I ended up having to take one shelve out for it to work. The glass front fridge is so you can see what’s in there before opening it. The shelf layout is made for beers and drinks to lay down. And the shelves are more like drawers. Shrinking the amount of drinks you can put it in it. Considering what the price is didn’t think that any of those would be an issue. Otherwise. Gets your beverages cold and quickly.
B
48 Inch Glass Door Side By Side Wine And Beverage Cooler Combo
T
We love the wine and beverage fridges. They are exactly what we wanted and they work perfectly.
D
When they first arrived one of the coolers had silver trim on the bottom and the other one had black with a silver key hole. I called and they sent out new ones right away, but the ones they sent were to small for my model . called again and they finally sent the right ones. having no instructions I took the door off and put the first one back together, it was a experience still haven't fixed the other one yet trying to move when I get in I will attempt the second one. But after all of that mess I love my coolers they look great and work awesome. thank you customer service.
J
The unit is the perfect combination for our new wine room. The 3 zones are amazing and work perfectly. Couldn’t be happier and would highly recommend.
U
Great fridge, well packaged and virtually silent in operation. Extremely stylish and very well designed with three separate compartments for whites, reds and beverages. Great product, good price, delivered on time, looks really good and professional. Highly recommend.
W
Good product and fair pricing!!
R
Very nice bev and wine frig came well packaged. Had them up and running after settling in period. Both are quite and look great.
K
The combo refrigerators are stylish and look great, however, they run louder than expected and wine cooler compressor has a swooshing sound when running. I don't know if that's normal, but I do know it's annoying.
E
We're incredibly pleased with this 3-zone unit. Have had it just a little over a month - so far it's working wonderfully and looks beautiful as well!
B
This is a wonderful addition to our kitchen remodel project. We are still struggling with adjusting the top shelf on the left to accommodate bottles but we feel confidant we can manage this. The dual temps. are accurate and it seems to work efficiently......very happy with the product overall. Delivered without a problem
E
The beer fridge and wine cooler came to us in good condition, seems to work well so far and we are looking forward to using it. We are also pleased with the design.
H
It looks great, I would highly recommend it
A
So far so good. Beautiful wine cooler that is so much quieter than my previous cheap one. Dual zone is working great. Fits my space under the granite perfectly. Love it. Did I mention it looks really awesome?
S
Good product. Quiet operation. Excellent customer service
R
We love the dual temp, and the cooler works great. The bottles all fit well and only had to put for screws for the door handle to assemble. Love it!
C
Exactly as described Beverage and Wine cooler. Looks really great in the living room with my liquor bar and does a fantastic job. Really easy to control. Keeps good temperature. Easy to change. Definitely a buy.
A
This is 3 zone and very attractive unit and you can only hear it with the door open! Touch controls and cool looking blue interior lighting. Excellent choice.
R
This is the perfect combo of a wine and beverage fridge. They are very quiet and look very cool and luxurious.in our new kitchen bar area.
The only reason for the 4 Stars is that there is one small flaw in the design. The door of the wine fridge must be fully opened for the shelves to slide out to see the wine. If the shelves were an inch narrower it would make a difference. I kept them because they look so elegant. They also do their job!
R
This is the perfect combo of a wine and beverage fridge. They are very quiet and look very cool and luxurious.in our new kitchen bar area.
The only reason for the 4 Stars is that there is one small flaw in the design. The door of the wine fridge must be fully opened for the shelves to slide out to see the wine. If the shelves were an inch narrower it would make a difference. I kept them because they look so elegant. They also do their job!
S
Delivery contractor was very difficult to deal with. No reasonable instructions for reversing the door hinging.
G
Did a lot of research looking for a beverage cooler that would chill down to as near to 32 degrees as possible. This doesn't go down quite that low but we've been very happy with the results and tempature of our beverages. Both the beverage and the wine cooler look great under our counters with no operational issues.
