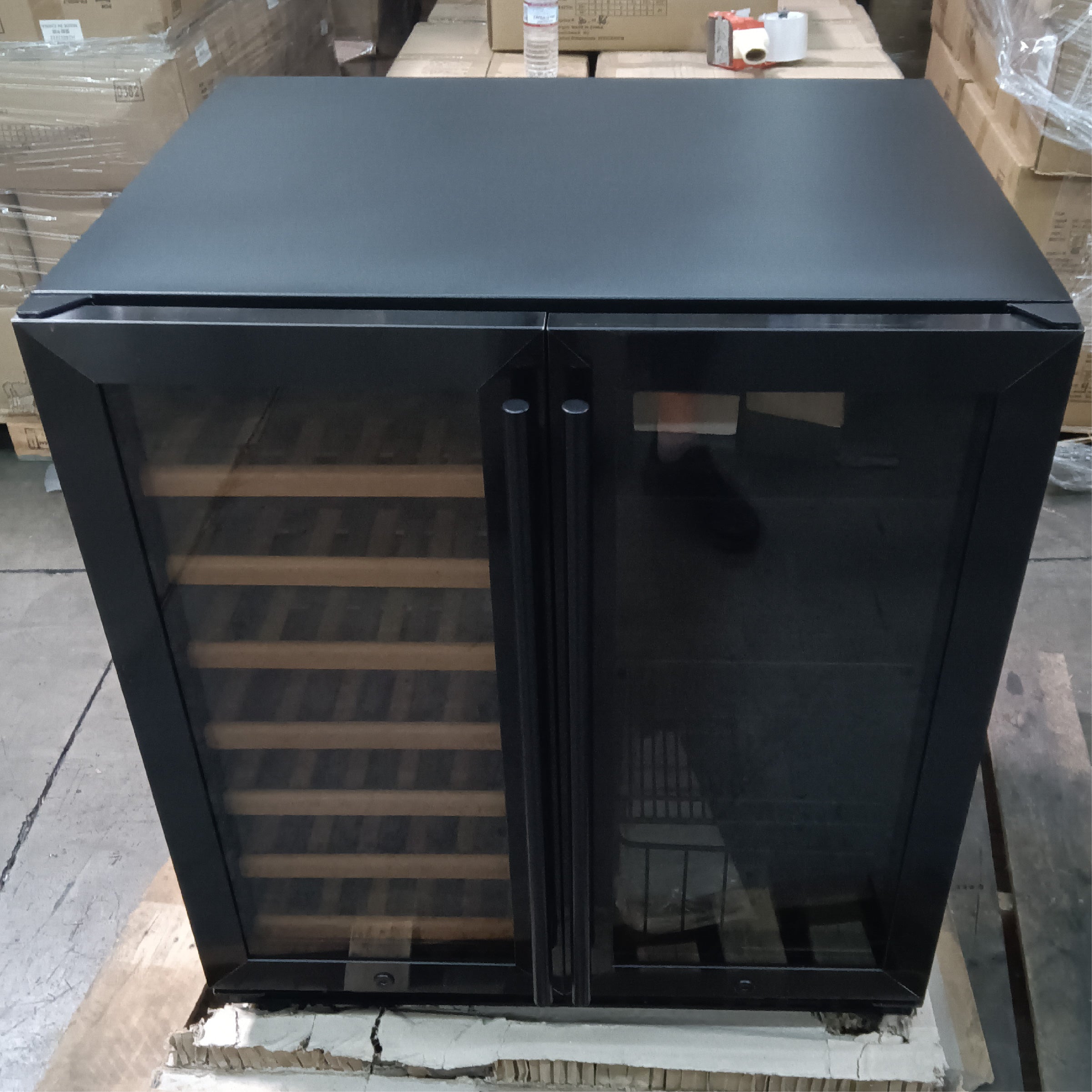

Wine & Beverage Dual Storage
Separates wine and beverages into dedicated zones, ensuring optimal conditions for both.
Key Features
Dual-Zone Temperature Control
35°F to 68°F (2°C to 20°C)
Low-E Glass Protection
Reduces condensation while improving insulation and keeping your display clear.
Adjustable Shelving System
Flexible shelf configuration adapts to different bottle or can sizes.
Flexible Dual-Zone Storage
Designed to accommodate both wine bottles and beverage cans within one integrated cooling system.
Elegant Glass Door Presentation
Showcases your collection with a clean modern display while maintaining internal conditions.
Built-In Ready Design
Designed for seamless installation with cabinetry for a clean integrated look.
Designed for modern kitchens, home bars, and entertaining spaces, this integrated wine and beverage refrigeration system combines dual storage functions within one clean built-in solution.
Separate wine and beverage storage zones allow both collections to remain organized and accessible while maintaining their preferred serving conditions.
Designed for seamless under-counter installation, the system integrates naturally into cabinetry layouts while supporting convenient everyday use and refined visual presentation.
Well suited for homes, entertainment spaces, and hospitality-inspired environments where wine storage, beverage access, and built-in integration are equally important.
| Bottle Capacity | 33 Bottles |
|---|---|
| Can Capacity | 77 Cans |
| Temperature Zones | Dual Zone |
| Temperature Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Fixed-Speed Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
| Door Type | Low-E Glass |
|---|
| Volume | 5.83 CF (165 Liters) |
|---|---|
| Noise Level | 42.0 dB |
| Defrost Type | Automatic Defrost |
| Dimensions (W x D x H) | 38.78" W x 23.23" D x 34.41" H (985W x 590D x 874H mm) |
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation Requirement | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |

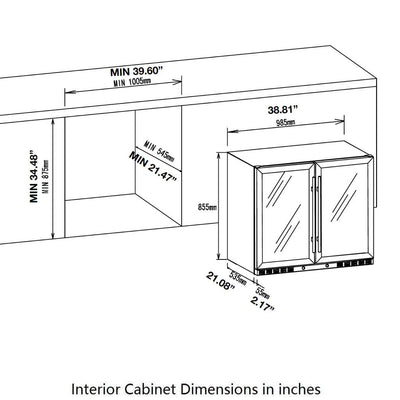

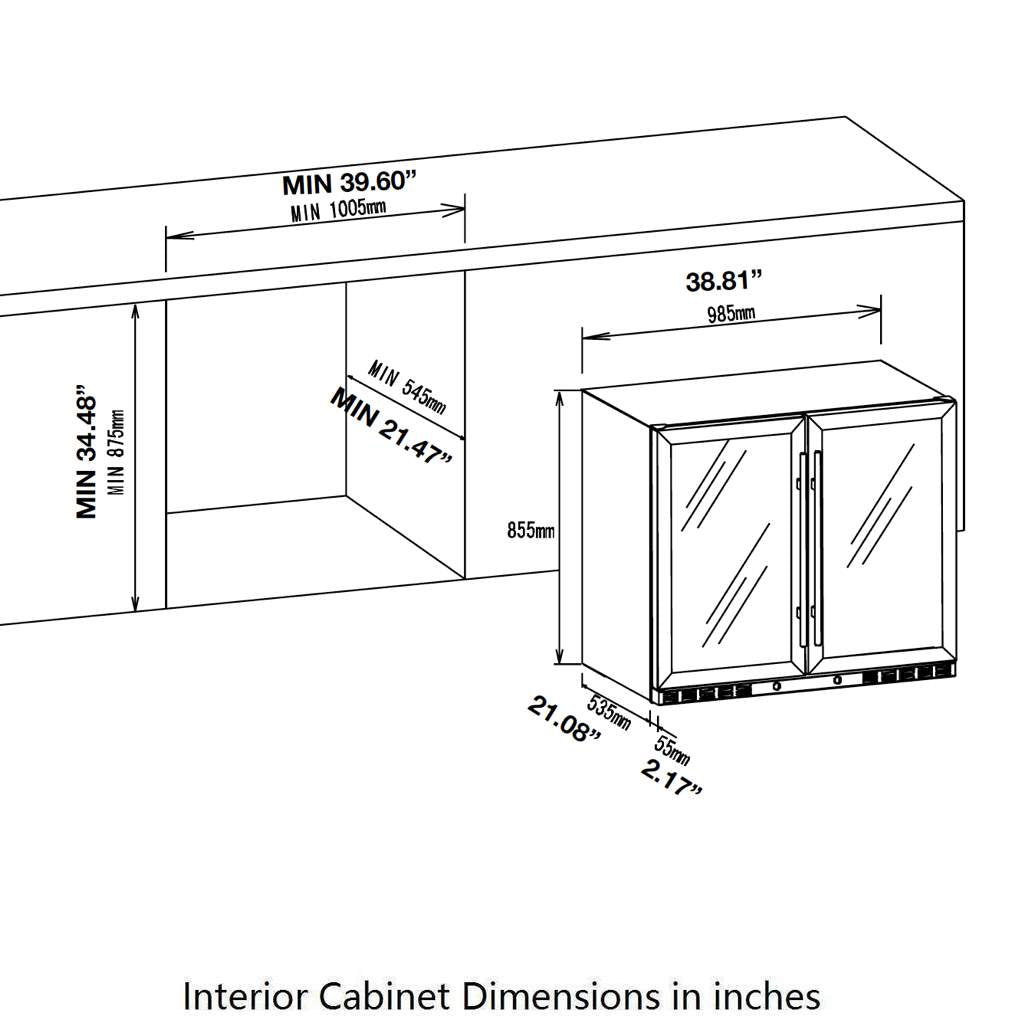

| Installation Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
