The evaporator models below are for replacement on KingsBottle refrigerators only. Please check and choose the right model for your evaporator replacement, we don't accept returns and refund on this item. If you use these parts for repair of other brand refrigerators, we can not guarantee the dimensions fits.

OEM and ODM orders are welcome! The price of customized unit listing here is only for your reference. Please contact us, provide a design to get a quote.

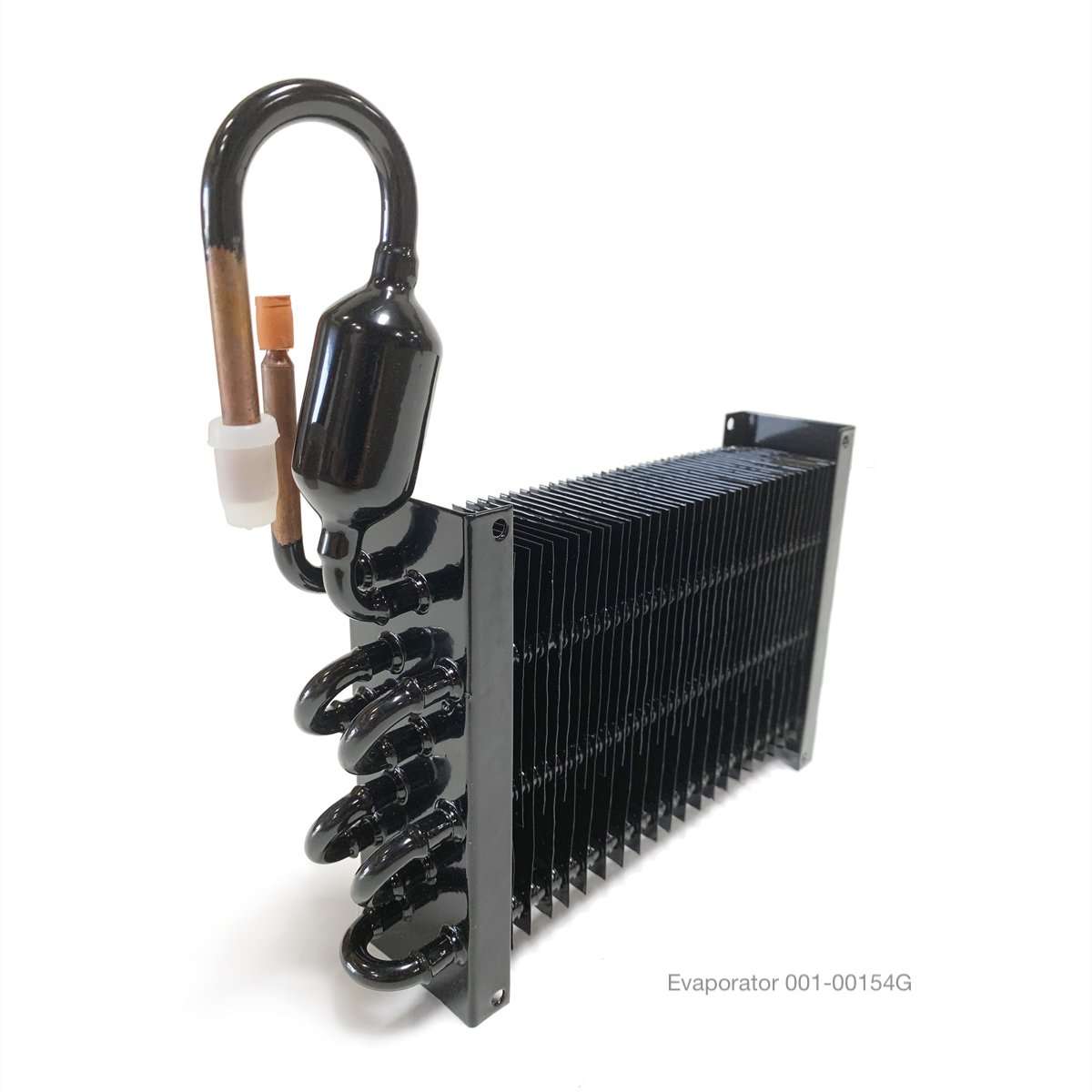

Model # 001-00154G | DOWNLOAD
  • Evaporator coil for Kingsbottle refrigerator KBU50, KBU55C, KBU55M, KBU55ASD
  • Tube Size: 0.315" (8mm)
  • Coil Type: Evaporator
  • Tubing: Copper 0.016 IG
  • Fins: Aluminum 0.0055 Sinewave
  • Dimensions:
  • Weight: 1 lbs

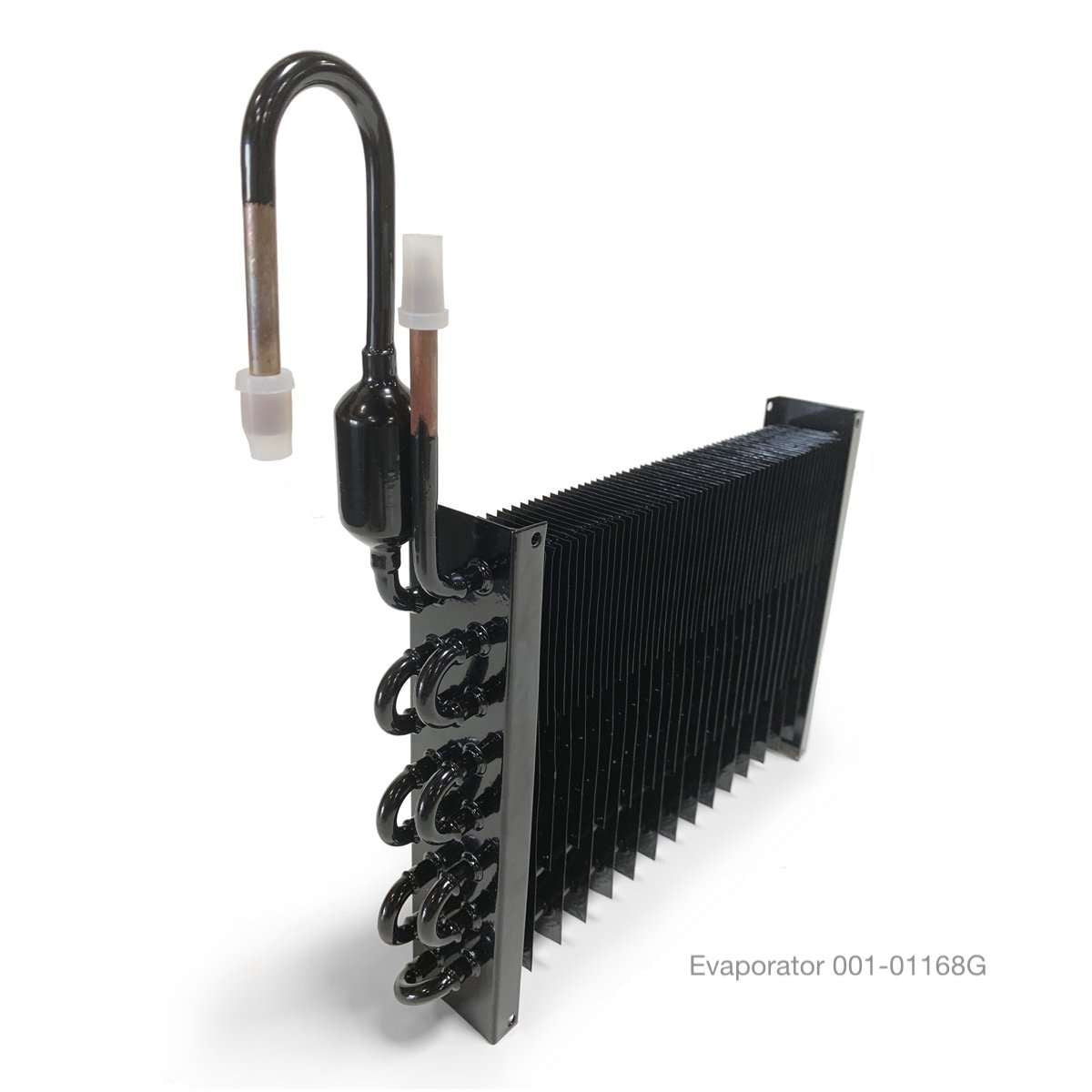

Model # 001-01168G | DOWNLOAD
  • Evaporator coil for Kingsbottle refrigerator KBU170, KBU100, KBU56, KBU28LR (each LEFT and RIGHT side has an evaporator coil 001-01168G)
  • Tube Size: 0.315" (8mm)
  • Coil Type: Evaporator
  • Tubing: Copper 0.016 IG
  • Fins: Aluminum 0.0055 Sinewave
  • Dimensions: 2-RD x 5-FPI x 8-TH x 11.25-FL
  • Weight: 2.3 lbs
Model # 001-0328SE
  • Evaporator coil for Kingsbottle refrigerator KBU328
  • Tube Size: 0.315" (8mm)
  • Coil Type: Evaporator
  • Tubing: Copper 0.016 IG
  • Fins: Aluminum 0.0055 Sinewave
  • Dimensions:
  • Weight: 2.3 lbs
