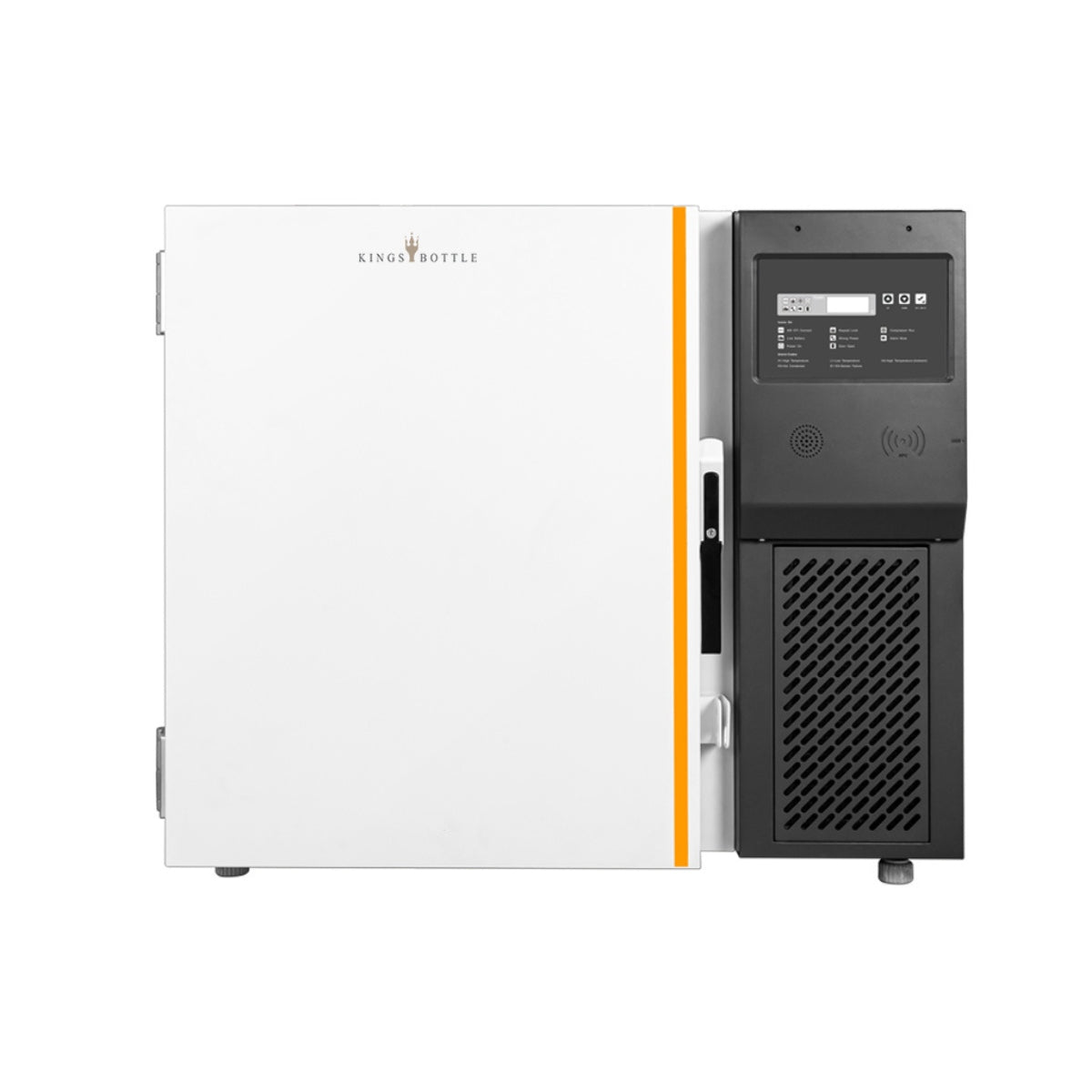

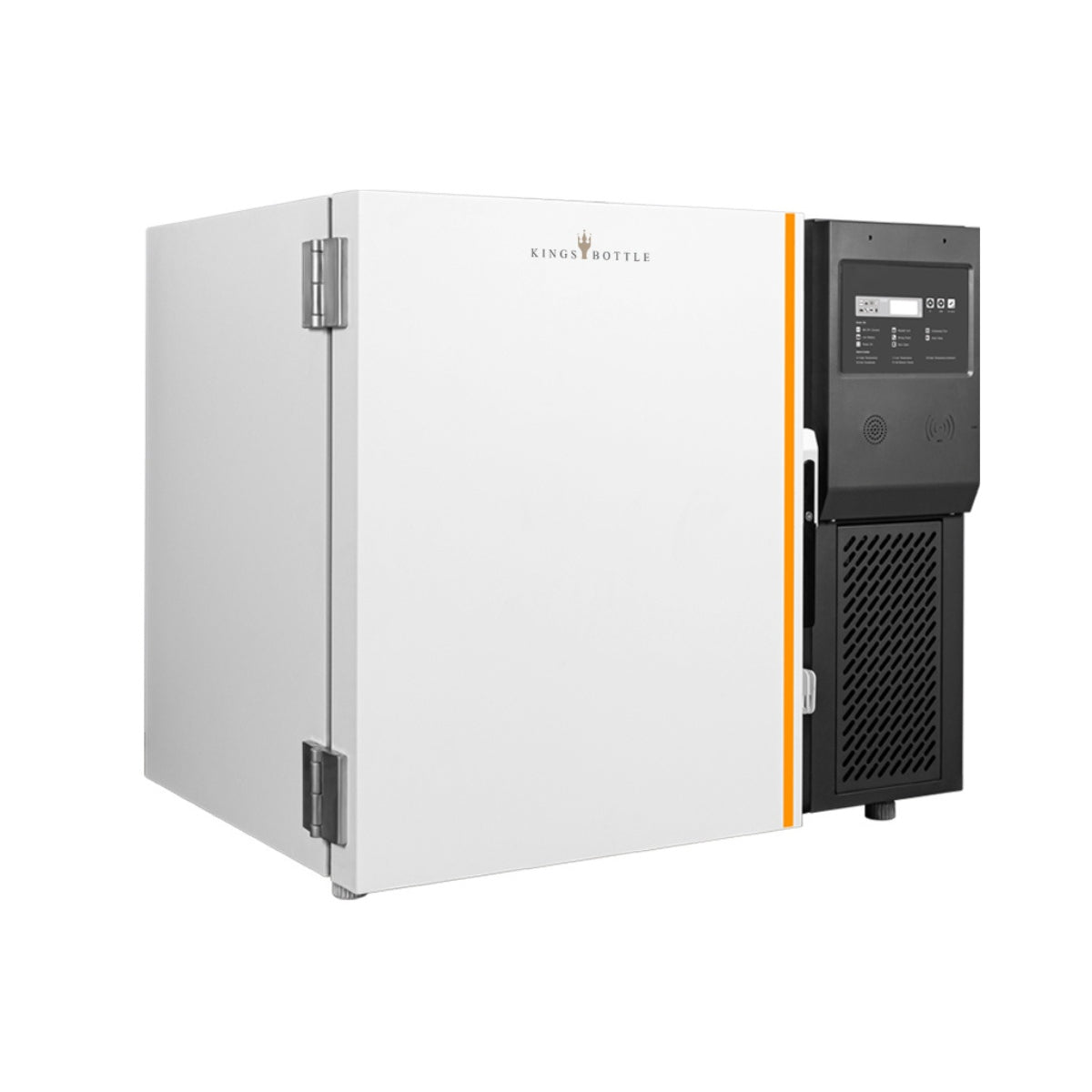

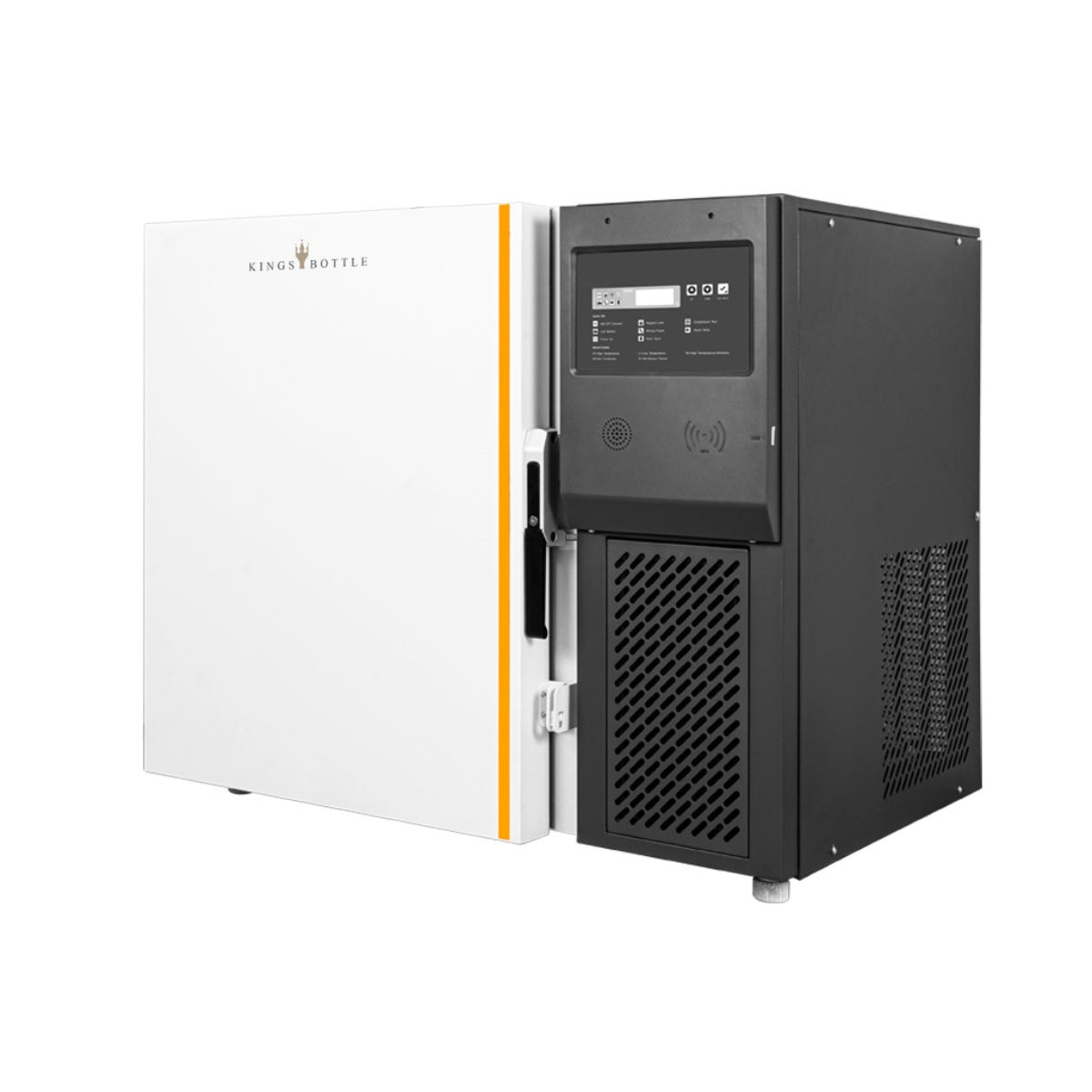

-40°C~-86°C Ultra Low Temperature 108L Under Counter Biomedical Freezer
Precision Medical Refrigeration
Designed for sensitive materials requiring stable and controlled storage conditions.
Key Features
Air Cooling with Auto-Defrost
Fan-assisted air cooling with automatic defrost maintains uniform 2°C–8°C conditions throughout the cabinet — eliminating frost build-up and ensuring consistent temperature for vaccines, medications, and biological specimens.
Auto-Cascade Refrigeration System
A two-stage auto-cascade compressor system using SECOP components delivers rapid pull-down to -81°C within 3 hours at 25°C ambient — minimising sample exposure time during initial freezing.

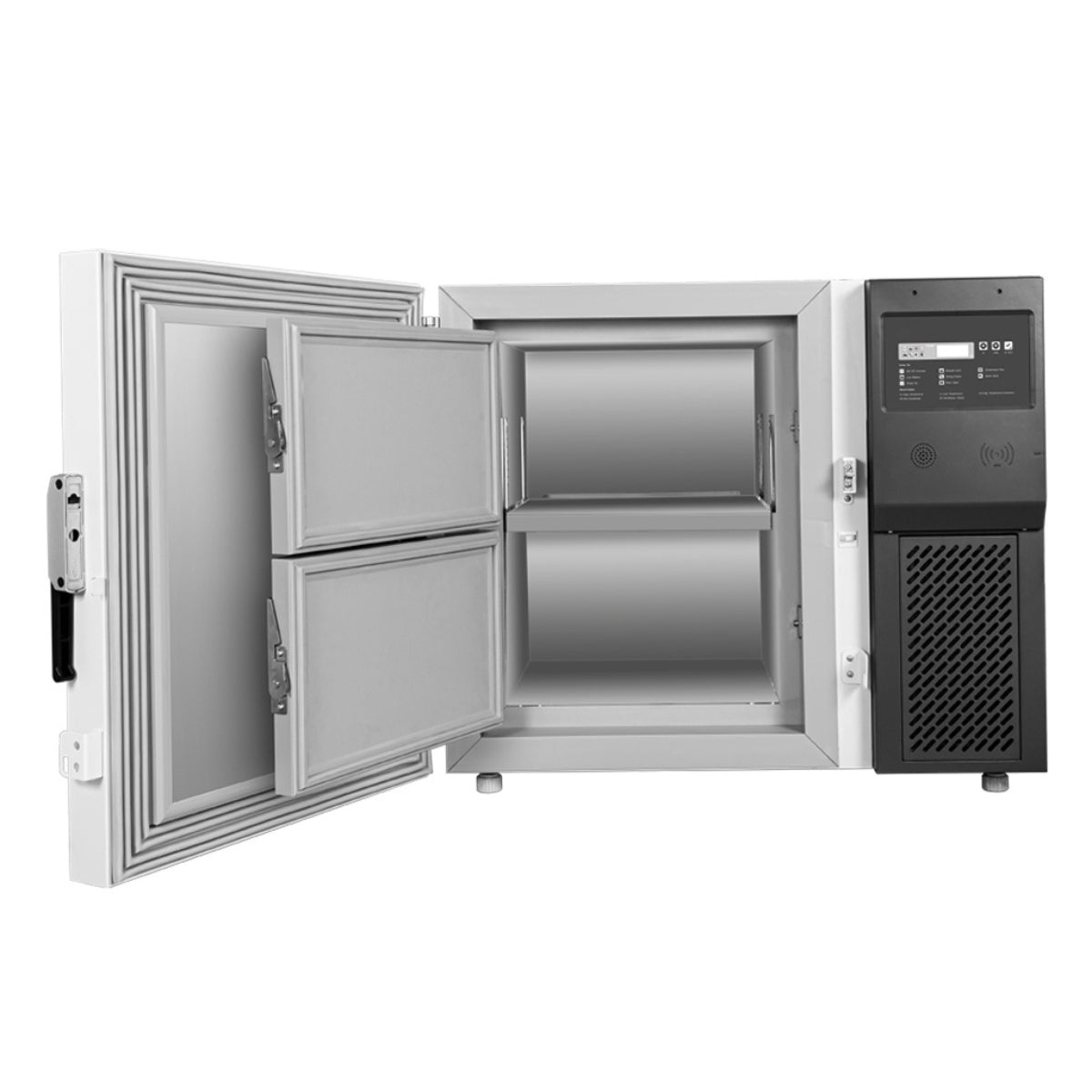

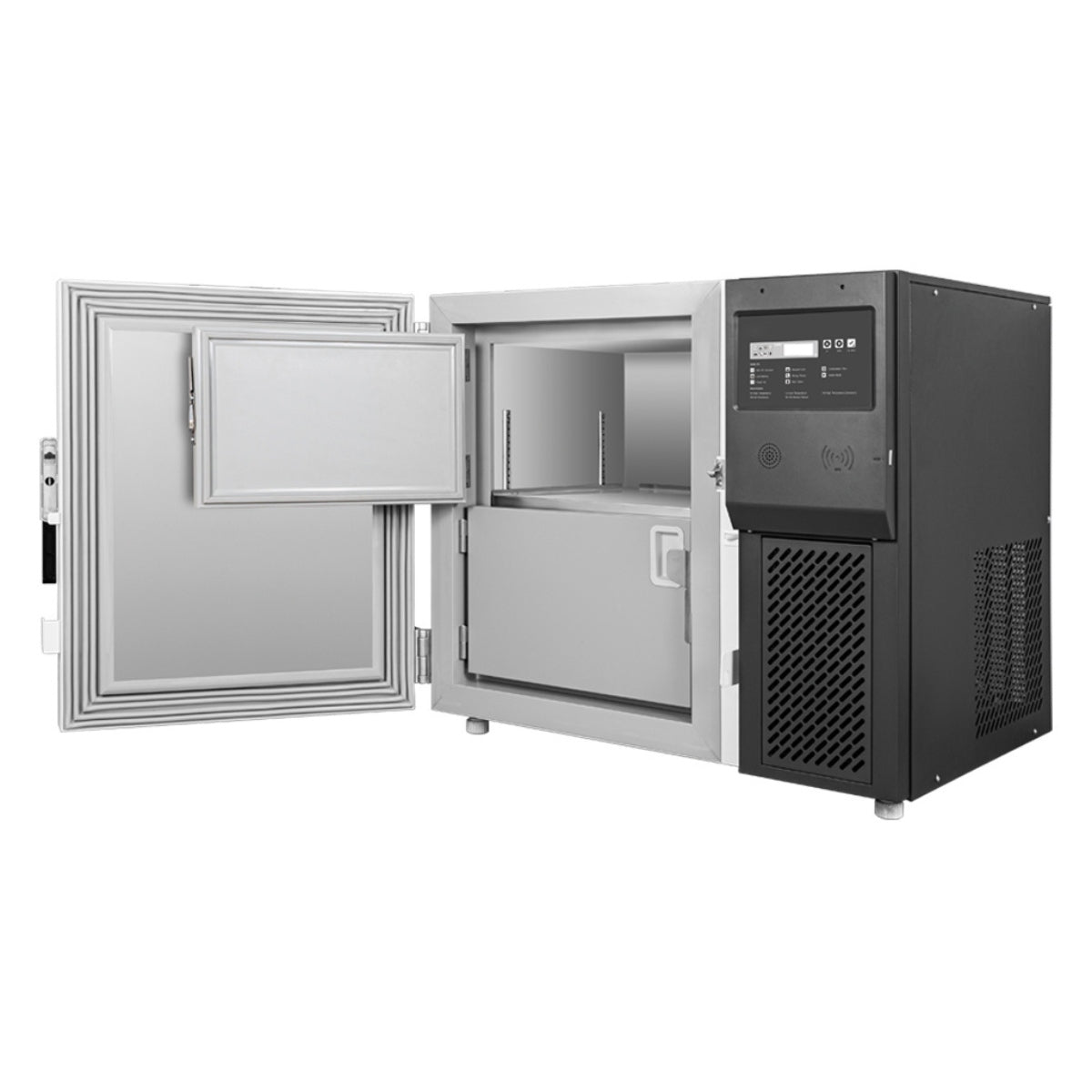

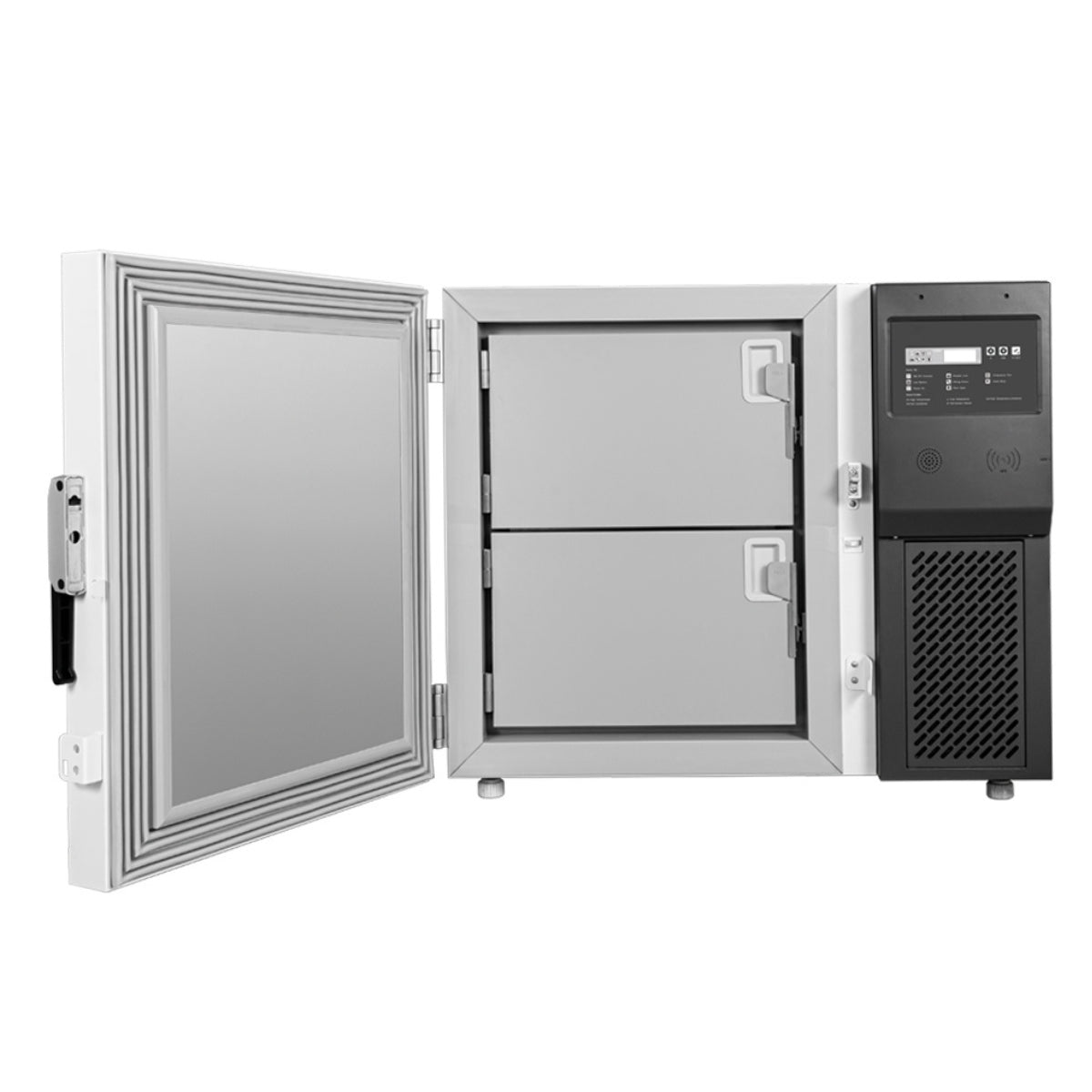

Dual-Chamber Independent Control
Two dedicated compressors power the upper and lower chambers independently — allowing different temperature setpoints in each compartment for organised, category-based storage of blood plasma, reagents, and other sensitive materials.
Frost-Free Air Cooling System
Multi-duct vortex refrigeration with a finned evaporator ensures even temperature distribution and eliminates frost completely — removing the need for manual defrost cycles and maintaining uninterrupted storage conditions.
Single-Zone Stability
-40°C to -86°C; Accuracy: 0.1℃; Uniformity: +/-1C within cabinet
108L Under-Counter Footprint
Stackable, benchtop-compatible design with 108L capacity — accommodating up to 9,000 vials (2ml). Patented LBA forming technology increases internal space utilisation by 10% within a compact under-counter envelope.
The -40°C to -86°C Ultra Low Temperature 108L Under-Counter Biomedical Freezer is designed to provide precise and reliable storage for sensitive biological materials. With an ultra-low temperature range from -40°C to -86°C, this freezer is perfect for storing vaccines, enzymes, and other critical biomedical products.
It features an energy-efficient compressor and digital temperature control, ensuring consistent temperatures and reducing power consumption. The compact under-counter design makes it ideal for labs, pharmacies, and medical offices where space is limited.
With a lockable door and easy-to-use digital interface, this freezer combines security, efficiency, and performance in one reliable unit.
Specifications
Cooling
| Temperature Zones | Single Zone |
|---|---|
| Temperature Range | -40°C to -86°C; Accuracy: 0.1℃; Uniformity: +/-1C within cabinet |
| Operating Ambient Temperature | 61-90°F (16 - 32°C) |
Construction
| Door Type | Solid Door |
|---|
Electrical & Size
| Volume | 3.82 CF (108 Liter) |
|---|---|
| Energy Consumption | 5.5 kw.h/24h |
| Electrical Requirements | 97-127V~/60Hz |
| Defrost Type | Manual Defrost |
| Dimensions (W x D x H) | 37.6" W x 26.61" D x 32.09" H (955W x 676D x 815H mm) |
Installation & Documents
Installation Information
| Installation Type | Freestanding |
|---|
Documents & Downloads
Technical documentation, drawings, and product support files.
