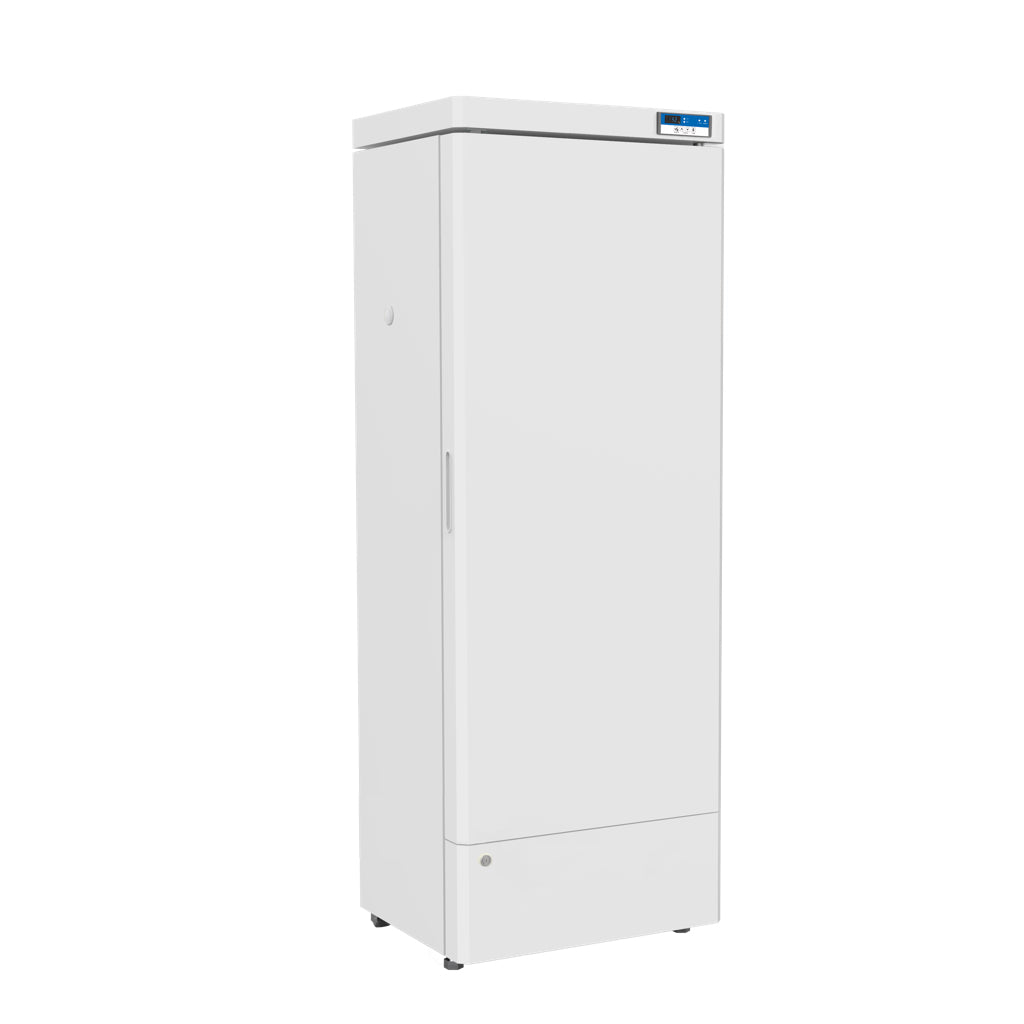

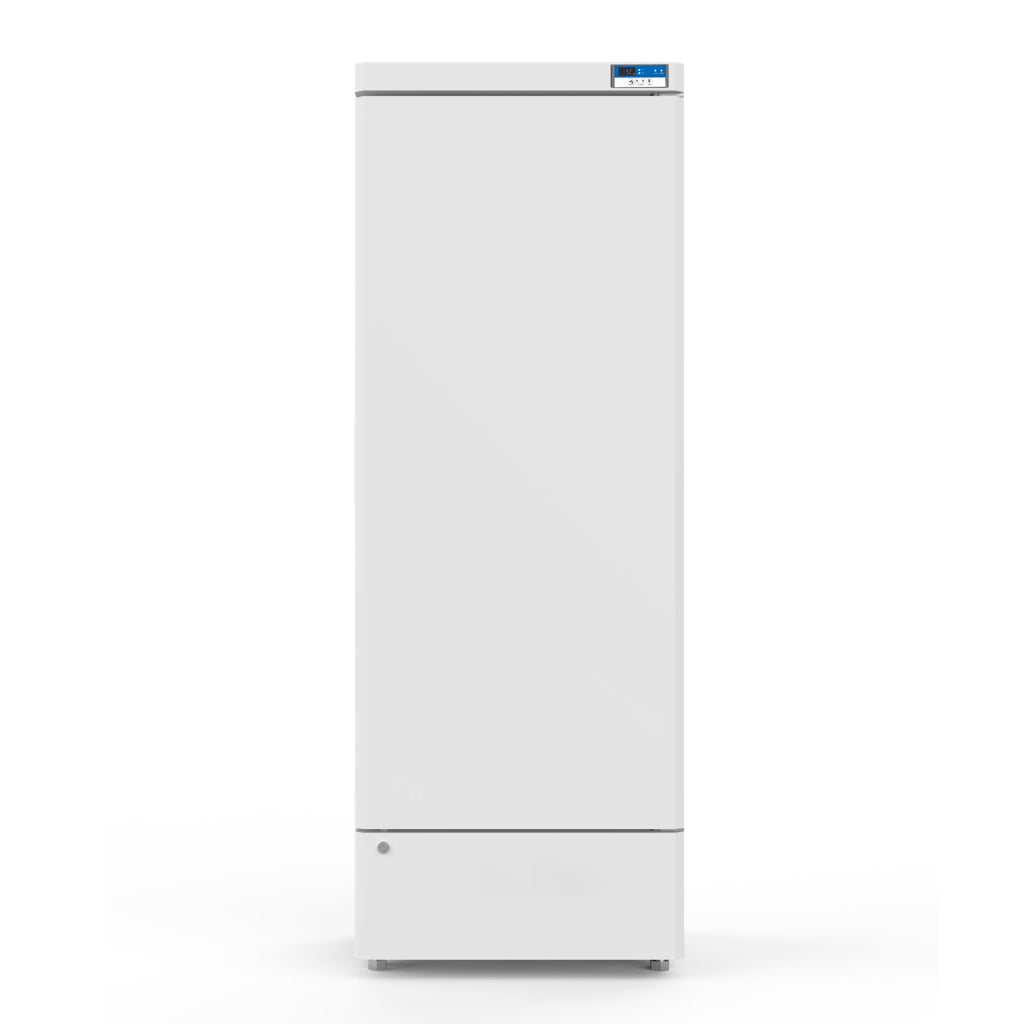

-10~-25°C 270L Biomedical Freezer

[Description_top]

• High-efficiency refrigeration system
• High-precision temperature control
• Reliable security system
• Human-oriented design
• Two-layer thermal insulating foamed door

[/Description_top][Description]

This -10°C ~-25°C Biomedical freezer is a high-quality low-temperature freezer with stable performance. It is equipped with an international famous refrigeration system, which is high-efficiency and environmentally friendly. And the condenser is designed perfectly for temperature stability and refrigeration system reliability. This low temp freezer is designed for laboratory and medical grade and best for storage of special materials, blood plasma, vaccine, and biological products.

High-efficiency Refrigeration System
The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy-saving and low noise. The condenser installed on the bottom ensures temperature stability and system reliability.

High-precision Temperature Control
The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25℃ inside the cabinet.

Reliable Security System
The well-developed audible & visual alarm system (sensor failure alarm, high temperature/low-temperature alarm, etc.) makes it safer for storage. The turn-on delay and stopping interval protection function can ensure reliability in running;

Human-oriented Design
The built-in door gasket is dustproof and easy to clean. And it is equipped with an ABS engineering plastic liner. The adjustable front screws facilitate easy movement.

[/Description] [Features]

• The system has the function of digital temperature display and the temperature inside the cabinet can be set within a range from -10℃ to -25℃.
• The high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure more precise temperature control
• The compressor supplied by an internationally famous brand and EBM fan is energy-saving and environmentally friendly
• The refrigerating circuit with proprietary intellectual property rights ensures high efficiency and stability

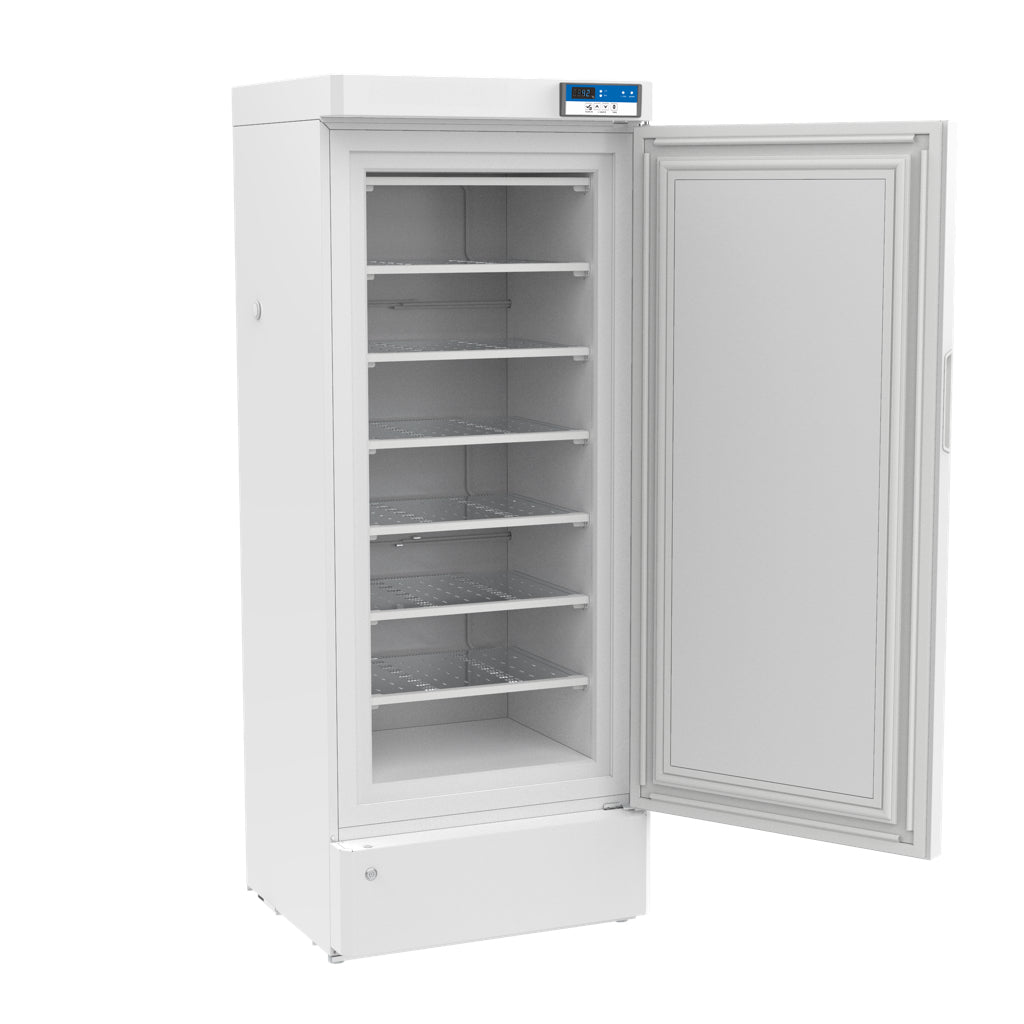

• Seven transparent drawers can be used for storage based on classification.
• The two-layer thermal insulating foamed door can prevent loss of refrigerating capacity in an effective way
• The cabinet is made from CFC-free polyurethane material, which can improve its heat-insulating performance to a large extent
• The well-developed audible & visual alarm system makes it safer for storage The turn-on delay and stopping interval protection function can ensure reliability in running The keyboard lock function can prevent any adjustment of operating parameters without permission
• The door is equipped with a lock, improving the security of sample storage

This -10°C ~-25°C Biomedical freezer is suitable for use in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low-temperature resistance test on biological materials, vaccines, biological products, and military products, etc. Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health & disease prevention system, laboratories in colleges & universities, etc.

Technical Parameters

• Cabinet Type: Upright

• Effective Capacity: 9.53 Cu Ft (270L)

• External Size: 27.56”W*25.20D*70.55”H (700W*640D*1792H mm)

• Internal Size: 19.69”W*18.11”D*48.62”H (500W*460D*1235H mm)

• Power Consumption (kWh/24h):

• Rate Current (A): 1.53
• Input Power(W):

• Voltage: 110V±10%, 60Hz

• N.W/G.W: 90/98 kgs (198.42/216.05 lbs)


Performance:

• Temp.Range(℃): -10 ~ 25°C

• Ambient Temperature(℃): 16 ~ 32
• Alarm: Visual & Audio
  high and low-temperature alarm, sensor error alarm, door open alarm
• Temperature Recorder:
• Special note: The WIFI function is just for a future update, it is unavailable now.

Construction:

• Refrigerant: CFC FREE, R600a
• Shelves: 7 s(ABS)

• Inner Material: Aluminum plate with spraying

• External Material: PCM (Powder Coated Material)

• Door Lock: Yes

• Casters: 2+(2 leveling feet)
• Access Test Port: 1pc, D25mm
