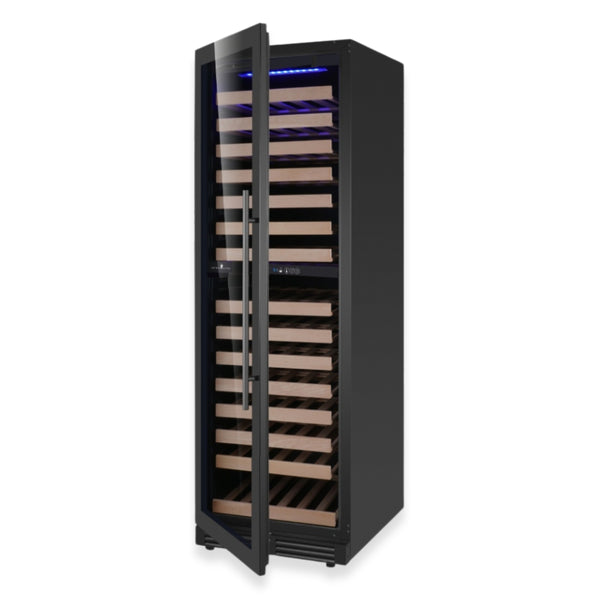

72-Inch Upright Dual-Zone Wine Cooler
Bottle Capacity
159 Bottles
Temperature
Upper Zone 35°F to 54°F (2°C to 12°C); Lower Zone 54°F to 68°F ( 12°C to 20°C )
Dimensions
23.43" W × 27.36" D × 70.87" H
Zone
Dual Zone
Installation
Built-In or Freestanding
Format
Full Height
Storage
Wine
Specifications
| Bottle Capacity | 159 Bottles |
|---|---|
| Temp Zones | Dual Zone |
| Temp Range | Upper Zone 35°F to 54°F (2°C to 12°C); Lower Zone 54°F to 68°F ( 12°C to 20°C ) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
| Energy Consumption | 230 kWh/Year |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Door Type | Borderless Black Glass Door |
|---|---|
| Volume | 15.00 CF (425 Liters) |
| Noise Level | 42.0 |
| Weight | 103.0 |
| Dimensions | 23.43" W × 27.36" D × 70.87" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
