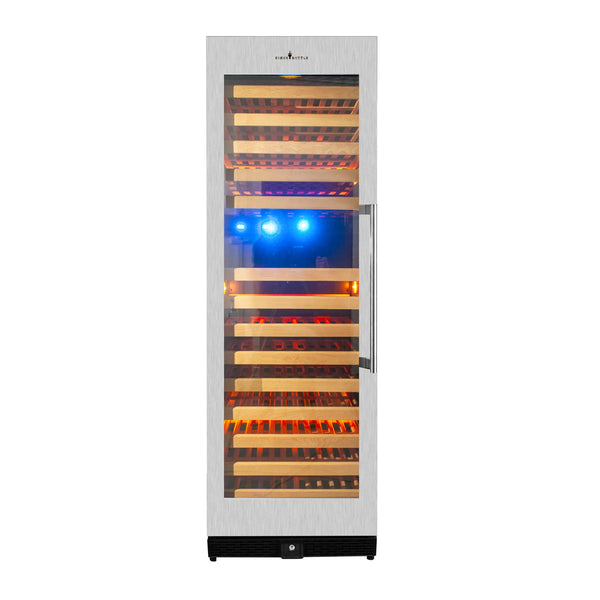

Tall Large Wine Refrigerator With Glass Door With Stainless Steel Trim
Bottle Capacity
164 Bottles
Temperature
Upper Zone: 39-60 °F ( 4 - 15°C); Lower Zone: 45-64 °F ( 7 - 18°C)
Dimensions
23.54" W × 26.97" D × 71.69" H
Zone
Dual Zone
Installation
Built-In or Freestanding
Format
Full Height
Storage
Wine
Specifications
| Bottle Capacity | 164 Bottles |
|---|---|
| Temp Zones | Dual Zone |
| Temp Range | Upper Zone: 39-60 °F ( 4 - 15°C); Lower Zone: 45-64 °F ( 7 - 18°C) |
| Compressor | Embraco Inverter Compressor |
| Door Type | Glass Door With Stainless Steel Trim |
|---|---|
| Volume | 14.30 CF (405 Liter) |
| Noise Level | 41.0 |
| Weight | 141.0 |
| Dimensions | 23.54" W × 26.97" D × 71.69" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
