Architectural Wine & Beverage Storage

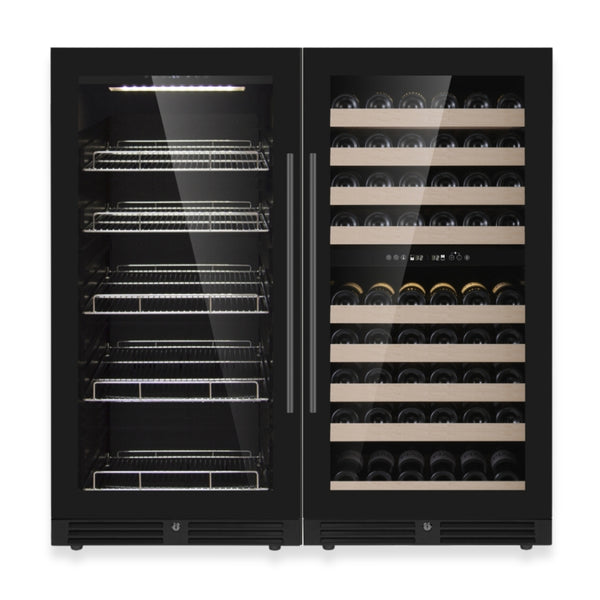

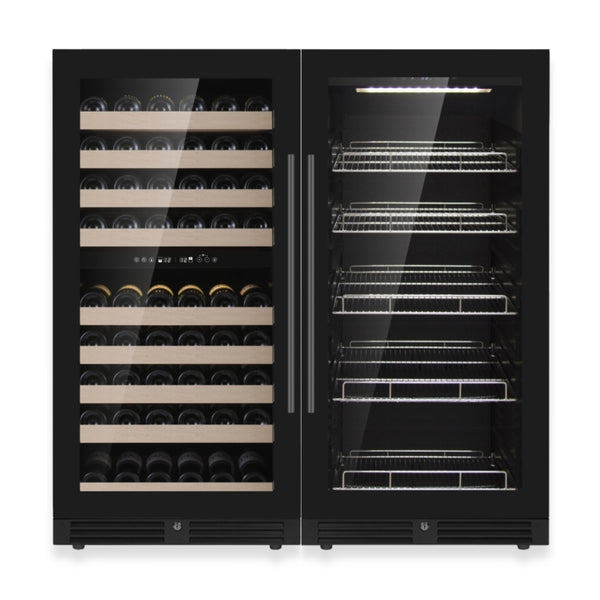

47" High Wine & Beverage Refrigerator Combo with Triple Temp. Zones
Bottle Capacity
91 Bottles
Can Capacity
389 Cans
Temperature
35°F to 68°F (2°C to 20°C)
Dimensions
46.85" W × 27.56" D × 47.24" H
Zone
Triple Zone
Installation
Built-In or Freestanding
Format
Tall Format
Storage
Wine + Beverage
Specifications
| Bottle Capacity | 91 Bottles |
|---|---|
| Can Capacity | 389 Cans |
| Temp Zones | Triple Zone |
| Temp Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Door Type | Borderless Black Glass door |
|---|---|
| Volume | 18.72 CF (530 Liters) Total, 9.36 CF (265 Liters) Each |
| Noise Level | 42.0 |
| Weight | 152.0 |
| Dimensions | 46.85" W × 27.56" D × 47.24" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Set of two units, use side by side or separately. |
