Architectural Wine & Beverage Storage

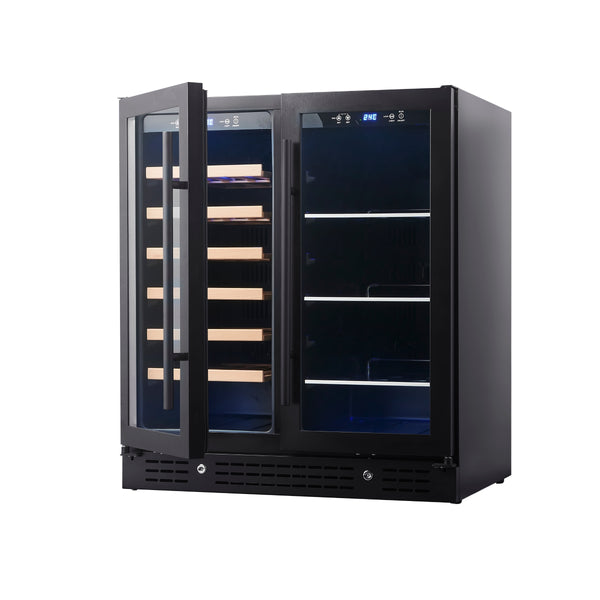

30-inch Combination Beer and Wine Cooler with Low-E Glass Door
Bottle Capacity
33 Bottles
Can Capacity
77 Cans
Temperature
35°F to 68°F (2°C to 20°C)
Dimensions
29.53" W × 22.44" D × 33.86" H
Zone
Dual Zone
Installation
Built-In or Freestanding
Format
Under Counter
Storage
Wine + Beverage
Specifications
| Bottle Capacity | 33 Bottles |
|---|---|
| Can Capacity | 77 Cans |
| Temp Zones | Dual Zone |
| Temp Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Fixed-Speed Compressor |
| Door Type | Glass Door With Black Trim |
|---|---|
| Volume | 5.83 CF (165 Liters) |
| Noise Level | 42.0 |
| Weight | 60.0 |
| Dimensions | 29.53" W × 22.44" D × 33.86" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
