Architectural Wine & Beverage Storage

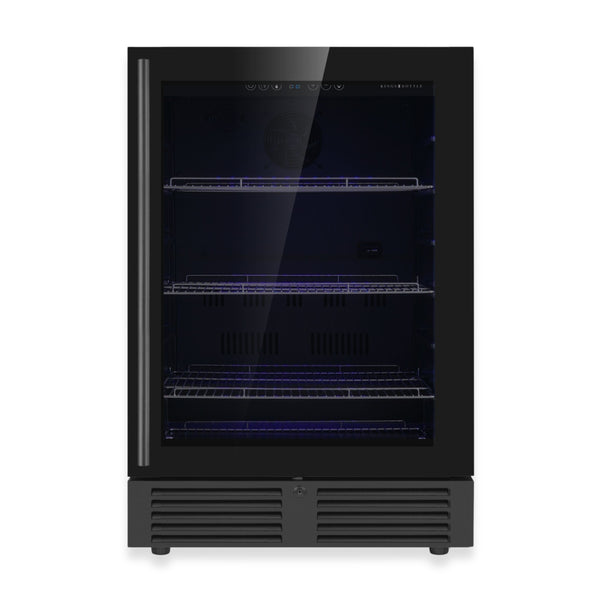

24-Inch Beverage Refrigerator
Can Capacity
161 Cans
Temperature
35°F to 54°F (2°C to 20°C)
Dimensions
23.43" W × 22.76" D × 34.06" H
Zone
Single Zone
Installation
Built-In or Freestanding
Format
Under-Counter
Storage
Beverage
Specifications
| Can Capacity | 161 Cans |
|---|---|
| Temp Zones | Single Zone |
| Temp Range | 35°F to 54°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
| Energy Consumption | 182 kWh/Year |
| Energy Certification | ETL/DOE |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Door Type | Borderless Black Glass Door |
|---|---|
| Lighting | Blue and White LED |
| Lock | Yes |
| Volume | 5.12CF (145 Liters) |
| Noise Level | 42.0 |
| Weight | 52.0 |
| Dimensions | 23.43" W × 22.76" D × 34.06" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
