Architectural Wine & Beverage Storage

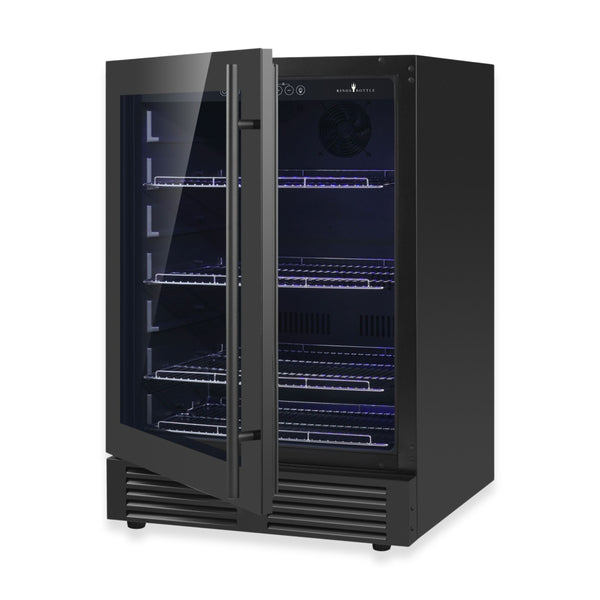

24-Inch Beverage Refrigerator
Can Capacity
161 Cans
Temperature
35°F to 54°F (2°C to 20°C)
Dimensions
23.43" W × 22.76" D × 34.06" H
Zone
Single Zone
Installation
Built-In or Freestanding
Format
Under-Counter
Storage
Beverage
Specifications
| Can Capacity | 161 Cans |
|---|---|
| Temp Zones | Single Zone |
| Temp Range | 35°F to 54°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
| Energy Consumption | 182 kWh/Year |
| Energy Certification | ETL/DOE |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Door Type | Borderless Black Glass Door |
|---|---|
| Lighting | Blue and White LED |
| Lock | Yes |
| Volume | 5.12CF (145 Liters) |
| Noise Level | 42.0 |
| Weight | 52.0 |
| Dimensions | 23.43" W × 22.76" D × 34.06" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
