Architectural Wine & Beverage Storage

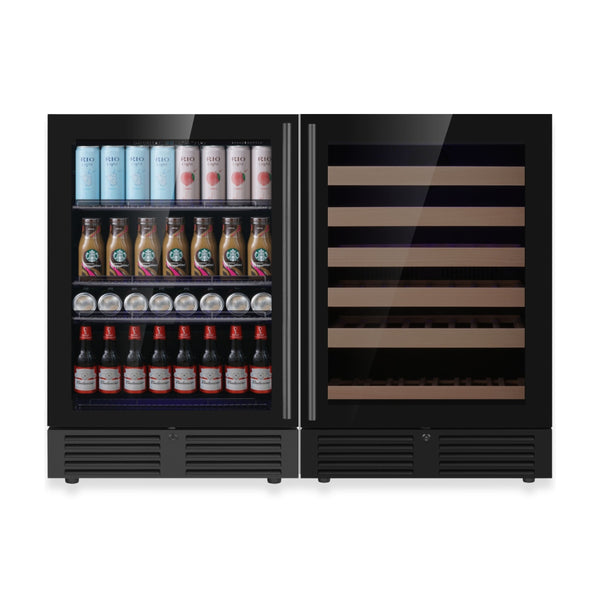

48-Inch Dual-Zone Wine & Beverage Center
Bottle Capacity
46 Bottles
Can Capacity
161 Cans
Temperature
35°F to 68°F (2°C to 20°C)
Dimensions
46.85" W × 22.76" D × 32.87" H
Zone
Dual Zone
Installation
Built-In or Freestanding
Format
Under-Counter
Storage
Wine + Beverage
Specifications
| Bottle Capacity | 46 Bottles |
|---|---|
| Can Capacity | 161 Cans |
| Temp Zones | Dual Zone |
| Temp Range | 35°F to 68°F (2°C to 20°C) |
| Compressor | Embraco Inverter Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
| Energy Consumption | 332kWh/Year |
| Energy Certification | ETL/DOE |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Door Type | Borderless Black Glass door |
|---|---|
| Volume | 10.24 CF (145 Liters) Total, 5.12CF (145 Liters) Each |
| Noise Level | 42.0 |
| Dimensions | 46.85" W × 22.76" D × 32.87" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
