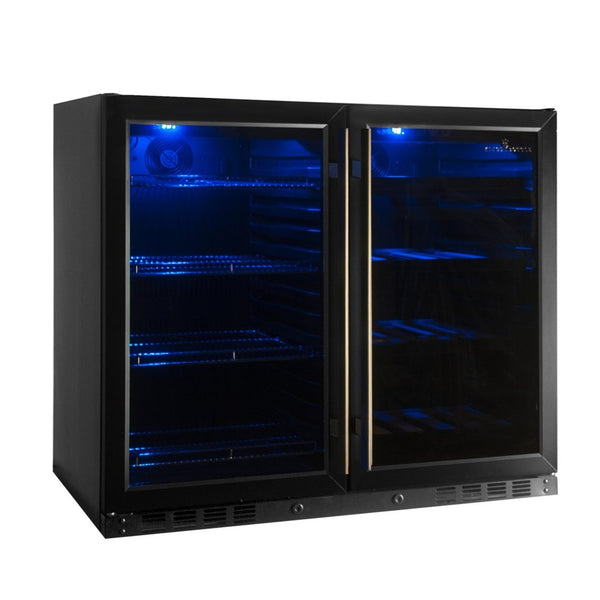

39-Inch Dual-Zone Wine & Beverage Center
Bottle Capacity
28 Bottles
Can Capacity
100 Cans
Temperature
34°F to 64°F (1°C to 18°C)
Dimensions
38.78" W × 23.23" D × 34.41" H
Zone
Dual Zone
Installation
Built-In or Freestanding
Format
Under-Counter
Storage
Wine + Beverage
Specifications
| Bottle Capacity | 28 Bottles |
|---|---|
| Can Capacity | 100 Cans |
| Temp Zones | Dual Zone |
| Temp Range | 34°F to 64°F (1°C to 18°C) |
| Compressor | Embraco Inverter Compressor |
| Door Type | Glass Door With Black Trim |
|---|---|
| Volume | 7.76 CF (220 Liters) |
| Noise Level | 42.0 |
| Weight | 82.0 |
| Dimensions | 38.78" W × 23.23" D × 34.41" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
