Architectural Wine & Beverage Storage

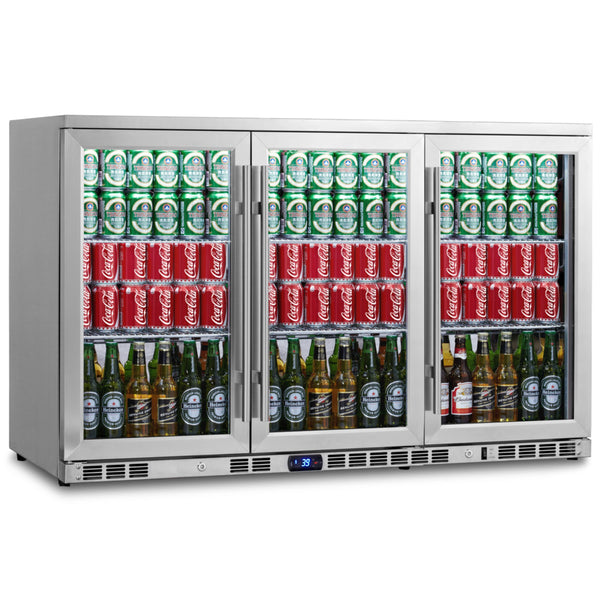

53-Inch Beverage Refrigerator
Can Capacity
324 Cans
Temperature
32°F to 46°F (1°C to 8°C)
Dimensions
52.56" W × 21.46" D × 33.86" H
Zone
Single Zone
Installation
Built-In or Freestanding
Format
Under-Counter
Storage
Beverage
Specifications
| Bottle Capacity | 190 Bottles |
|---|---|
| Can Capacity | 324 Cans |
| Temp Zones | Single Zone |
| Temp Range | 32°F to 46°F (1°C to 8°C) |
| Compressor | Embraco Fixed-Speed Compressor |
| Cooling System | Compressor Cooling + Forced-Air Convection |
| Operating Ambient Temperature | 32-100°F (0-38°C) |
| Energy Consumption | 712kWh/Year |
| Electrical Requirements | 110-115V/60HZ |
| Defrost Type | Automatic Defrost |
| Door Type | heating_glass |
|---|---|
| Lighting | White · On/off button |
| Lock | Yes |
| Volume | 11.12 CF (315 Liters) |
| Noise Level | 48.0 |
| Weight | 120.0 |
| Dimensions | 52.56" W × 21.46" D × 33.86" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front venting – suitable for built-in installation. |
| Clearance Note | Allow at least the minimum cutout shown in the installation diagram. This extra space is not needed for ventilation; it lets the unit slide in and out for installation and servicing without damaging the power cord. If the power outlet is on the wall behind the unit, allow at least 1-3/8" (35 mm) between the outlet face and the back of the unit for the angled plug, or place the outlet in an adjacent cabinet. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be needed on the hinge side so the door can open fully. |
| Installation Note | Install on a level surface. |
