Architectural Wine & Beverage Storage

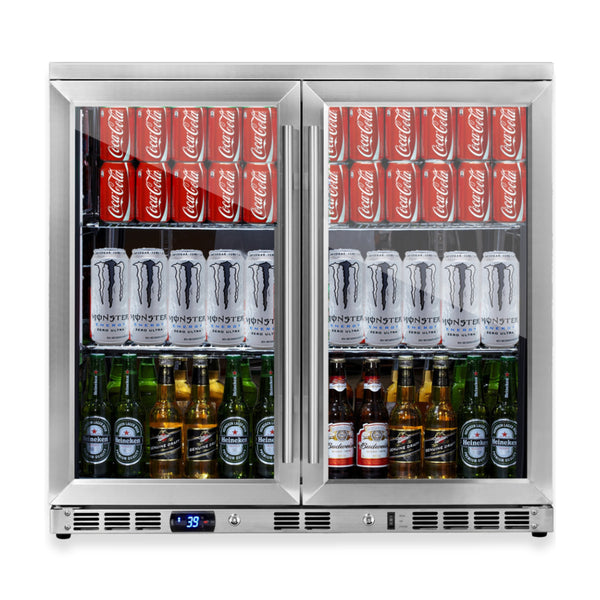

36-Inch Beverage Refrigerator
Can Capacity
198 Cans
Temperature
32°F to 46°F (1°C to 8°C)
Dimensions
35.43" W × 21.46" D × 33.86" H
Zone
Single Zone
Installation
Built-In or Freestanding
Format
Under-Counter
Storage
Beverage
Specifications
| Bottle Capacity | 120 Bottles |
|---|---|
| Can Capacity | 198 Cans |
| Temp Zones | Single Zone |
| Temp Range | 32°F to 46°F (1°C to 8°C) |
| Compressor | Embraco Fixed-Speed Compressor |
| Door Type | heating_glass |
|---|---|
| Lighting | White LED |
| Lock | Yes |
| Volume | 7.42 CF (210 Liters) |
| Noise Level | 42.0 |
| Weight | 75.0 |
| Dimensions | 35.43" W × 21.46" D × 33.86" H |
Installation Information
| Installation Type | Built-In or Freestanding |
|---|---|
| Ventilation | Front Venting – Allows built-in installation with no rear clearance required for operation |
| Clearance Note | No clearance is required for operation. Additional space is recommended to facilitate installation, ventilation efficiency, and maintenance access. |
| Considerations | The illustrated cutout dimensions allow for proper door swing and full access to pull-out shelves when installed as a built-in appliance. If installing between frameless cabinets, a 1/2" (12 mm) filler strip or side panel may be required on the hinge side. The filler strip acts as a spacer between the appliance and adjacent cabinetry, ensuring unobstructed door movement. |
| Installation Note | Ensure the unit is installed on a level surface and positioned according to the specified cutout dimensions. Proper alignment and spacing should be maintained to allow full door operation, structural stability, and optimal performance. |
